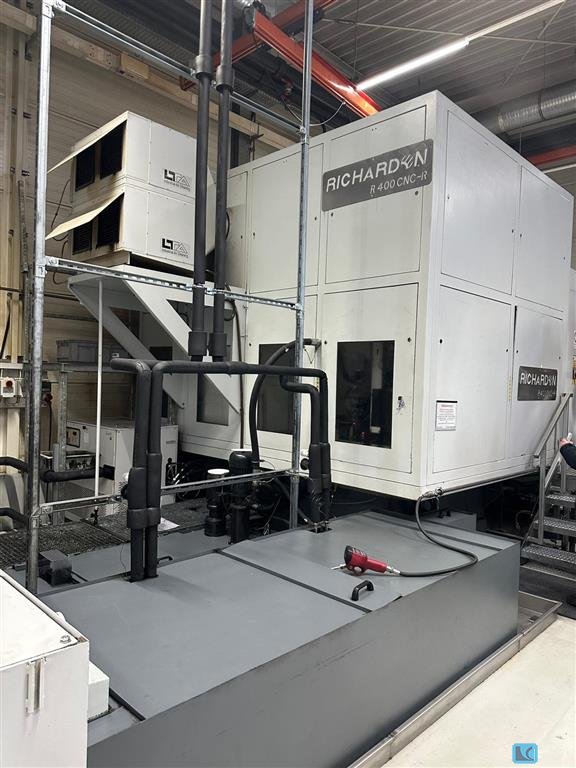

RICHARDON R 400 CNC R Rotor Milling Machine
usadoVendedor verificado
Solicitar precio
Directamente al vendedor
1 / 5
Datos técnicos
· ID 170391937Maquinaria usada
- Estado
- usado
- Año de fabricación
- 2009
- Ubicación
- Staufenberg 2
Identifikation
FabricanteRICHARDON
ModeloR 400 CNC R
Número de artículo1113-25023
Technik
Cantidad1
Descripción
rotor dia:30-500 mm
hobbing length:500-1000 mm
total power requirement:80 kW
weight of the machine ca.:15 t
dimensions of the machine ca.:3,6 x 2,5 x 3,0 m
max. module:8
Max. module Et milling = 12
Max. module hobbing = 12
Max. axial travel = 110 to 1100mm
Max. cutter speed = 300rpm
Max. cutter displacement tangential = -350 to -55mm
Max. table speed = 100rpm
Table drive: torque motor
Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil
Including milling mandrel
hobbing length:500-1000 mm
total power requirement:80 kW
weight of the machine ca.:15 t
dimensions of the machine ca.:3,6 x 2,5 x 3,0 m
max. module:8
Max. module Et milling = 12
Max. module hobbing = 12
Max. axial travel = 110 to 1100mm
Max. cutter speed = 300rpm
Max. cutter displacement tangential = -350 to -55mm
Max. table speed = 100rpm
Table drive: torque motor
Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil
Including milling mandrel
