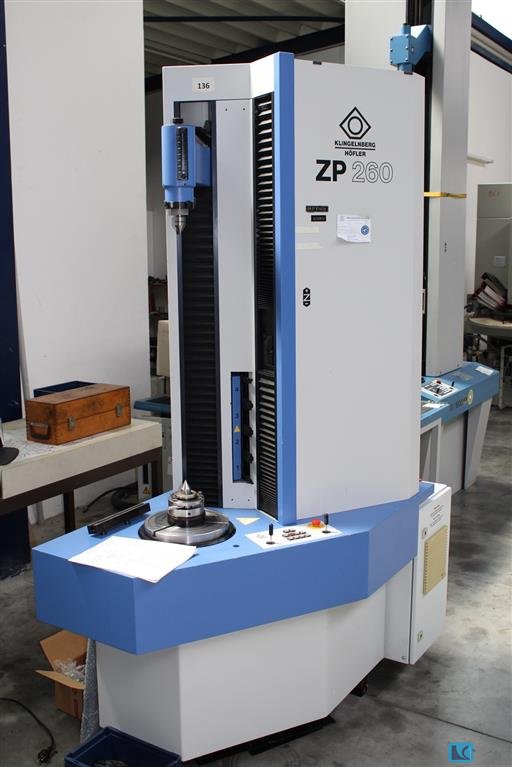

KLINGELNBERG-HOEFLER ZP 260 Gear Testing Machine
usadoVendedor verificado
Solicitar precio
Directamente al vendedor
1 / 5
Datos técnicos
· ID 170391987Maquinaria usada
- Estado
- usado
- Año de fabricación
- 1999
- Ubicación
- Staufenberg 1
Identifikation
FabricanteKLINGELNBERG-HOEFLER
ModeloZP 260
Número de artículo1113-6445
Technik
Cantidad1
Descripción
max. wheel diameter:5 - 260 mm
gear width:400 mm
max. module:15
min. module:0,5
gear hobbing diameter - internal:30 mm
max. helix angle:> 85 ° Aussenverz.
max. helix angle:> 45° Innenverz.
Testing Range vertical:400 mm
dist. between centers:5 - 600 mm
table diameter:260 mm
max. table load:100 kg
speeds:30 1/min
total power requirement:1,6 kVA
weight of the machine ca.:900 kg
dimensions of the machine ca.:200 x 1300 x 2150 mm
CNC Gear Tester in good condition, out of OEM Test Lab.
For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)
gear width:400 mm
max. module:15
min. module:0,5
gear hobbing diameter - internal:30 mm
max. helix angle:> 85 ° Aussenverz.
max. helix angle:> 45° Innenverz.
Testing Range vertical:400 mm
dist. between centers:5 - 600 mm
table diameter:260 mm
max. table load:100 kg
speeds:30 1/min
total power requirement:1,6 kVA
weight of the machine ca.:900 kg
dimensions of the machine ca.:200 x 1300 x 2150 mm
CNC Gear Tester in good condition, out of OEM Test Lab.
For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)
