6 SUPERFICI ELMAG maquina usada para la venta

Ancho de paso mm: 1300 02 Motores KW: 1 + 1 02 Pinceles Diámetro del cepillo mm: 300 Mesa de vacío Armario de control KW: 8.5

- Manufacturer: Elmag Superfici - Type: TT1 -30 - With cross carriage wheels - Length: 3,000 mm - Working width: 1,350 mm - Total width: 1,660 mm - Working height: 900 + - 20 mm - Height adjustable - Location, in stock - Volts, Hz 400 / 50 - Motor power 0.75 kW

3D UV dryer Superfici Elmag 2 tubes - 3D UV -dryer Superfici & conveyer - the pictures show the machine before overhaul - Producer Superfici - Type TU166 -30 + 2 UVM55 - Year of construction 1997 - Working width 1300 mm - Number of lamp from top 2 Stk. - Lamp bevel to conveyor - For mercury lamps - For gallium lamps - Electic capacity lamp 80 W/cm - Selective shiftable 80/40 W/cm - Feed speed infinitely adjustable by hand wheel ~ 2 - 7,5 m/min - Location - Voltage / HZ 400 / 50 - Commodity code 8419 3200

- Manufacturer Elmag Superfici - Type. TWIN SPRAY - Year of manufacture 2001 - Working width 1,300 mm - Working height 890 mm + - 20 mm - Operating side right - Price for overhauled machine - Gun drive in duo version - Dry extraction - Exhaust air output 8,000 m³/h - Belt transport system - Belt cleaning via roller cleaning system - With belt cleaning system - Belt cleaning, behind the machine, in the direction of travel, - With paint recovery - Gun control - Number of installed spray guns 4 pcs. - Spray guns type. Kremlin ATX - Airmix spray system - Supply air filter ceiling - Length 5,950 mm - Width 3,980 mm - Height 2,790 mm - Total connection 21 KW, 40 A - Volt, Hz 400 / 50 - Location, in stock __________________________ Optionally, we can also provide you with a quotation for the assembly and start -up of the system, as well as training for your employees ...

Driven roller conveyor with PVC -coated transport rollers for transporting workpieces. Power transmission via flat belt via transmission shaft. Absolutely smooth running even at high feed rates, feed frequency controlled. Technical data: - Year of manufacture 2009 - Transport length: 2,500 mm - Working width, usable: 1,300 mm - Roller length 1,450 mm - Working height: 900 + -20 mm - Roller diameter: 64 mm - Roller pitch: 125 mm - Adjustable feed rate (manual): 3 -15 m/min - Installed power: 0.37 KW

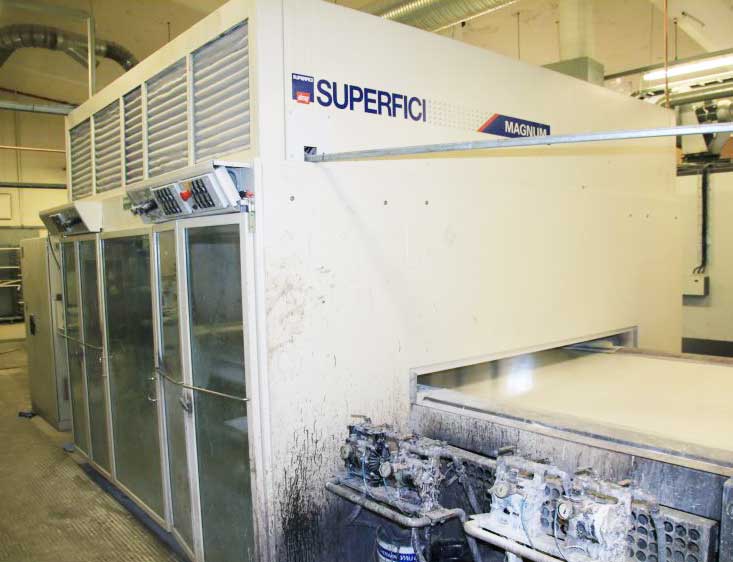

- Producer Elmag Superfici - Type Magnum 3.2.2 - Year of construction 2008 (2010) - Working width 1.350 mm - Working height 900 mm + - 20 mm - Operating side, right - Actual condition, machine is not overhauled - Duo gun drive system - Spraying gun carrier independently controllable - Dry filter system - Exhaust air 13.500 m³/h - Transport belttransport System - Feed speed adjustable bis 18 m/min - 2 belt cleaning units - Belt cleaning system with roller - Belt cleaning system, behind the machine - Lacquer reclaiming system with v -belt - Gun control system - PLC control with touch screen - Number of installed lacquer circles 2 Stk. - Supply air box - Length ~ 6.680 mm - Width 4.455 mm - Total connection power ~ 26.3 KW - Voltage / HZ 400 / 50 - Location, not on stock - Voltage fluctuation max. +/ - 5 %
