3 JKF maquina usada para la venta

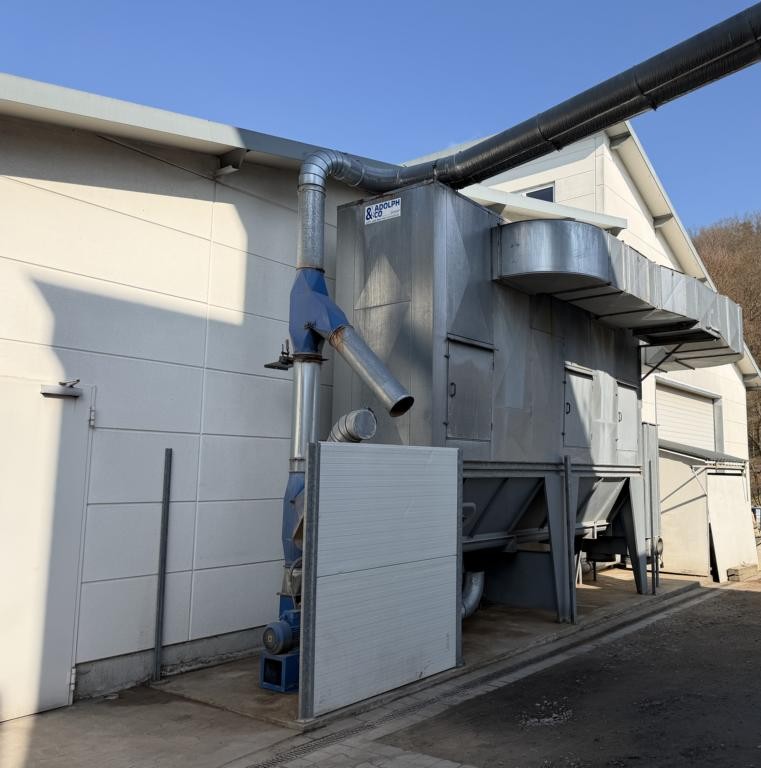

Central extraction system Adlolph & Co. (JKF) with screw conveyor and rotary valve. Manufacturer: Adolph & Co. (JKF) Type: AC 2 LK Year of manufacture: 2003 Suitable for dust and chips Volume flow: approx. 16,000 m³/h With air recirculation 1 piece Sluice filter, galvanized - Year of manufacture 2003 - AC 2 LK - Filter area: approx. 150m² - Cleaning of the filters via a vibration motor - Filter housing made of galvanized sheet steel - 3 inspection doors - Pressure relief surfaces - Exhaust air connection according to local requirements - Filter base frame in welded steel construction, galvanized. - Including dry extinguishing line, C connection 3 pieces Extraction fans: 1 piece Manufacturer: JKF Type: JK - 40K L Motor power: 11.0 kW Speed: 2,400 rpm Air flow: ~ 10,800 m³/h 1 piece Manufacturer: JKF Type: JK - 30K L Motor power: 7.5 kW Speed: 2,900 rpm Air flow: ~ 7 ...

Metering rotary valve, rotary valve, metering valve, rotary valve for screw conveyor, transport screw, screw conveyor, conveying technology, pipe screw conveyor -Rotary valve. 8-winged, with drive -Speed: 16 rpm -Drive motor: 0.75 kW -Inlet/outlet opening: 500 x 750 mm -Number: 1x rotary valve available -Price: per piece -Dimensions: 650/1340/H600 mm -Weight: 208 kg

Radial fan, chip extraction blower, fan, extraction, chip blower -Engine power: 37 kW -Speed: 1470 rpm -Inlet connection: Ø 600 mm -Outlet connection: Ø 600 mm -Dimensions: 1600/1400/H1800 mm -Weight: 800 kg
