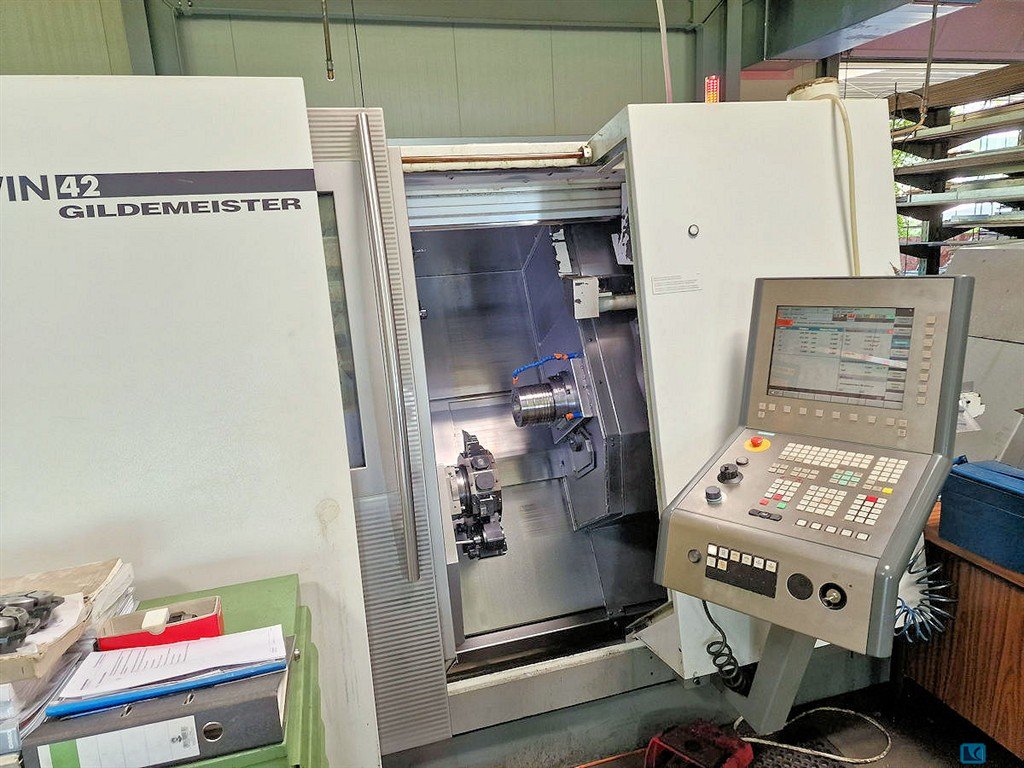

2 GILDEMEISTER twin 42 máquinas usadas

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

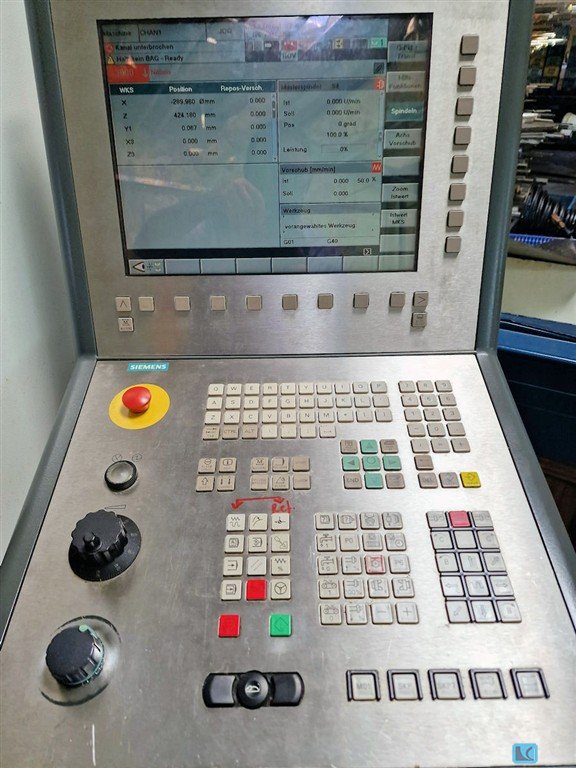

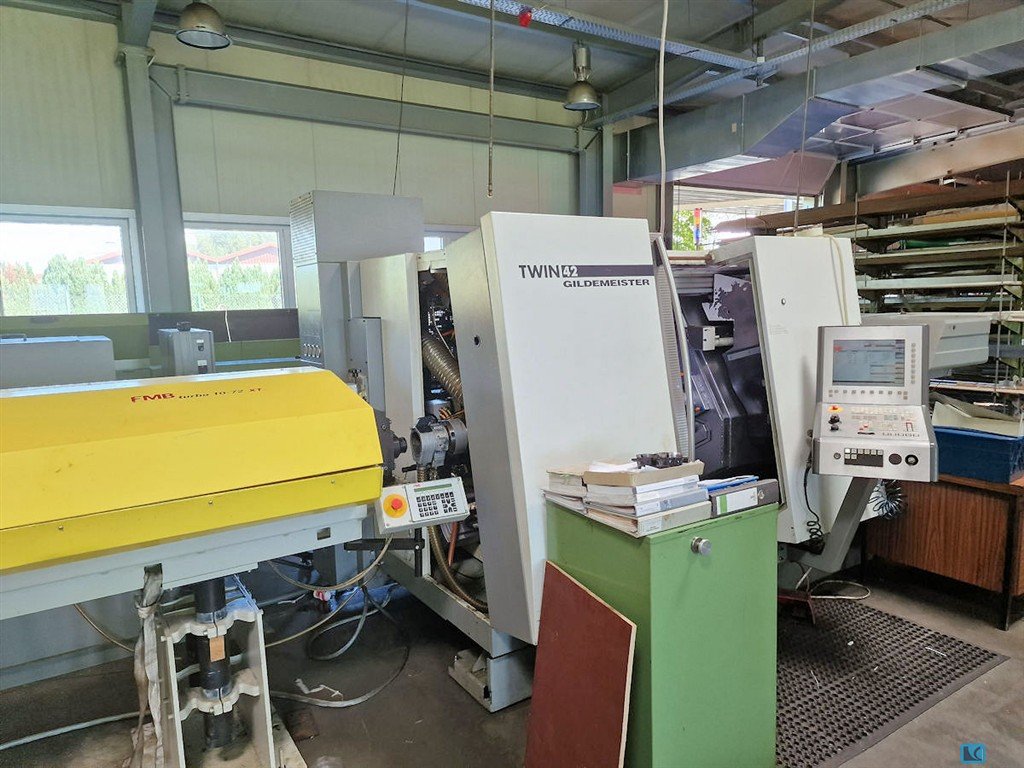

Torno CNC Fabricante: Gildemeister Tipo bicilíndrico 42 Año de fabricación 2005 Control Siemens 840D Longitud de giro: 210mm Torreta de 2 x 12 plegables, todos los lugares están alimentados Locomotora A 83700 Husillo A 50809 La máquina tiene un defecto en el eje de la pastilla, probablemente un rodamiento Con el cargador de barra Breuning Profimat
