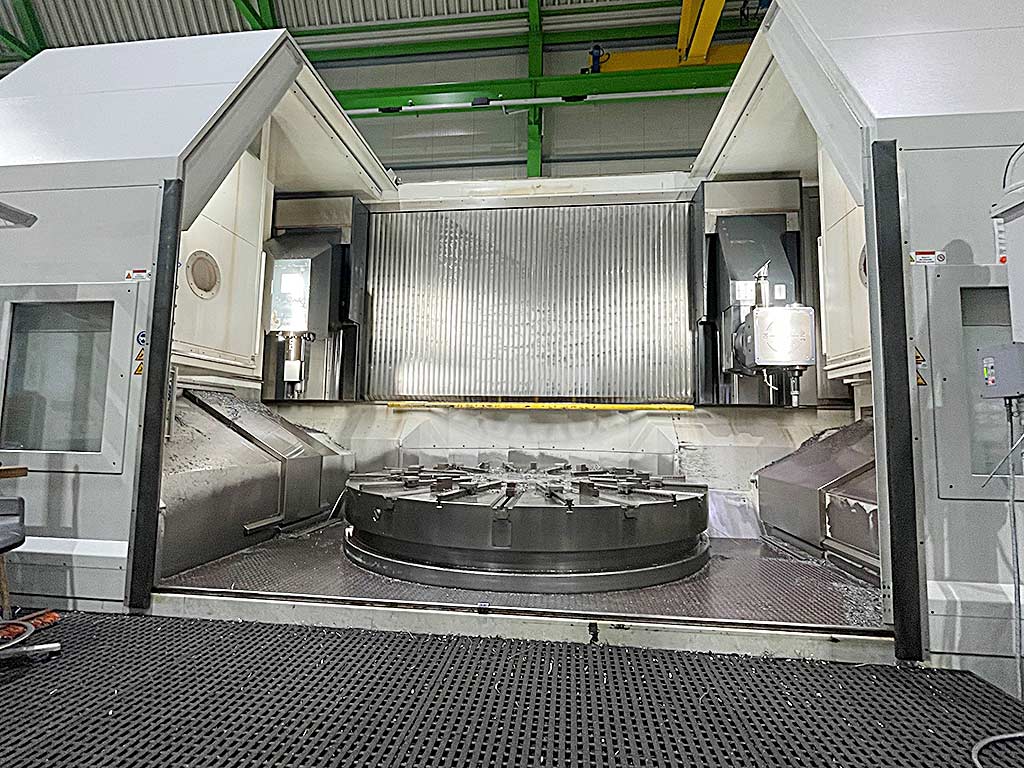

WMZ PV4000 Centro de torneado de husillo contrario CNC

A large-format CNC twin-spindle vertical turning machine WMZ is available. Travel X1/X2: 2950mm/2650mm, travel X: 5600mm, travel Z1/Z2: 3200mm/2830mm, feed rate X: 32m/min, feed rate Z: 20m/min, max. workpiece diameter: 3800mm, max. swing in working area: 4000mm, min. workpiece diameter 4-axis internal machining/external machining: 1250mm/1500mm, min. workpiece diameter 2-axis internal machining: 450mm. Table speed: 100rpm, tool stations: 2x47, tool interface: Capto C8, max. tool diameter: 120mm, max. tool length: 400mm, max. tool weight: 20kg, spindle power: 240kW/202kW. Machine dimensions X/Y/Z: approx. 15600mm/10350mm/5750mm, control: Siemens Sinumerik 840D sl. Documentation available. An on-site inspection is possible.
