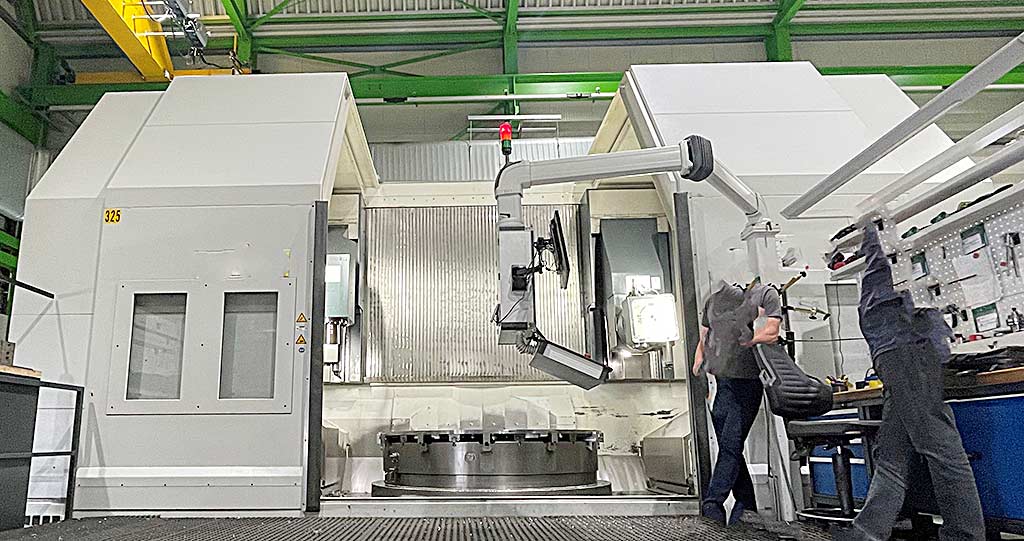

Centro de torneado de husillo contrario CNC WMZ PV2500
máquinas para el procesado de metales / tornos
A large-format CNC twin-spindle vertical turning machine WMZ is available. Travel X1/X2: 2450mm/2750mm, travel Z1/Z2: 2700mm/2300mm, max. workpiece diameter: 2800mm, max. swing diameter in the working area: 3000mm, min. workpiece diameter for 4-axis external machining/internal machining: ...
Fabricante: WMZ
Modelo:PV2500
Tipo de máquina: Centro de torneado de husillo contrario CNC
Número de artículo: 169755072
Cantidad: 1
Fecha: 08.07.2026
Año de fabricación: 2020
Ubicación:
Alemania
Deutschland
Precio:
Máquina en stock:No
Seller-item-No.:INNO31732
A large-format CNC twin-spindle vertical turning machine WMZ is
available. Travel X1/X2: 2450mm/2750mm, travel Z1/Z2: 2700mm/2300mm,
max. workpiece diameter: 2800mm, max. swing diameter in the working
area: 3000mm, min. workpiece diameter for 4-axis external
machining/internal machining: 1250mm/1500mm, min. workpiece diameter
for 2-axis internal machining: 450mm, rotary table speed: 230rpm, feed
rate X: 32m/min, feed rate Z: 20m/min, B-axis speed: 150rpm, spindle
power: 33kW, tool stations: 2x47, tool interface: Capto C8, max. tool
diameter: 120mm, max. tool length: 400mm, max. tool weight: 20kg.
Machine dimensions X/Y/Z: approx. 9350mm/8600mm/5700mm, control
system: Siemens SINUMERIK 840D sl. Documentation available. An on-site
inspection is possible.
