WMZ H200-O CNC Combination and Horizontal Turning Machine

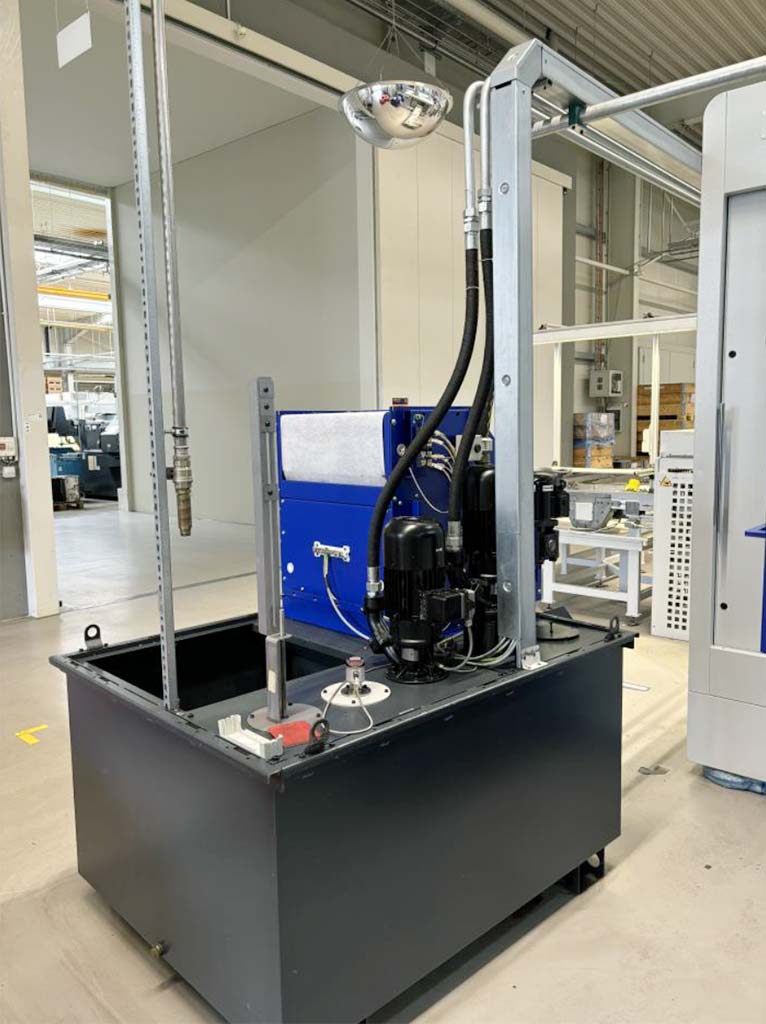

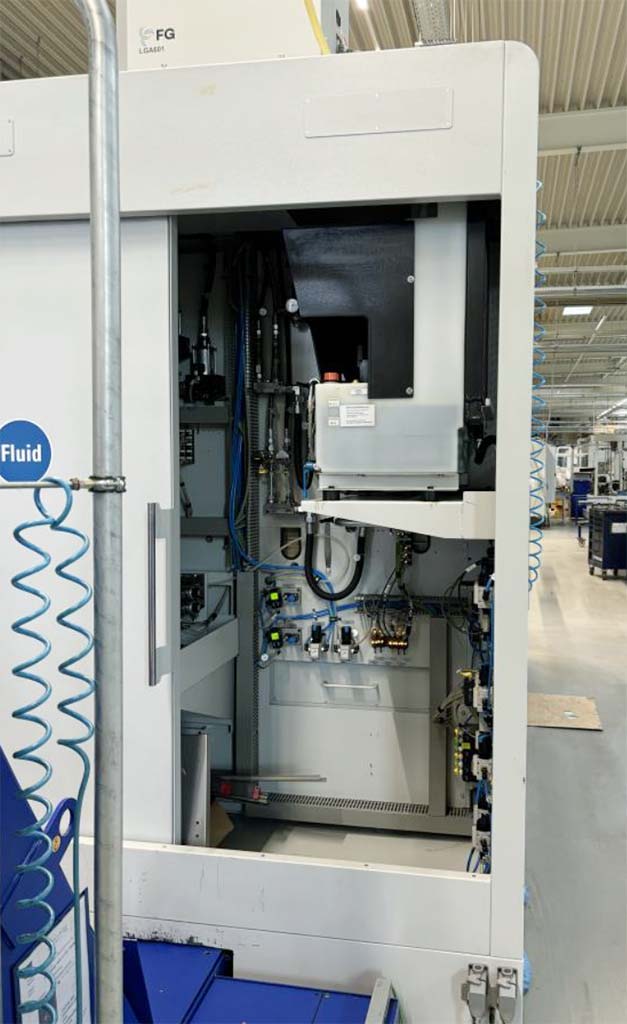

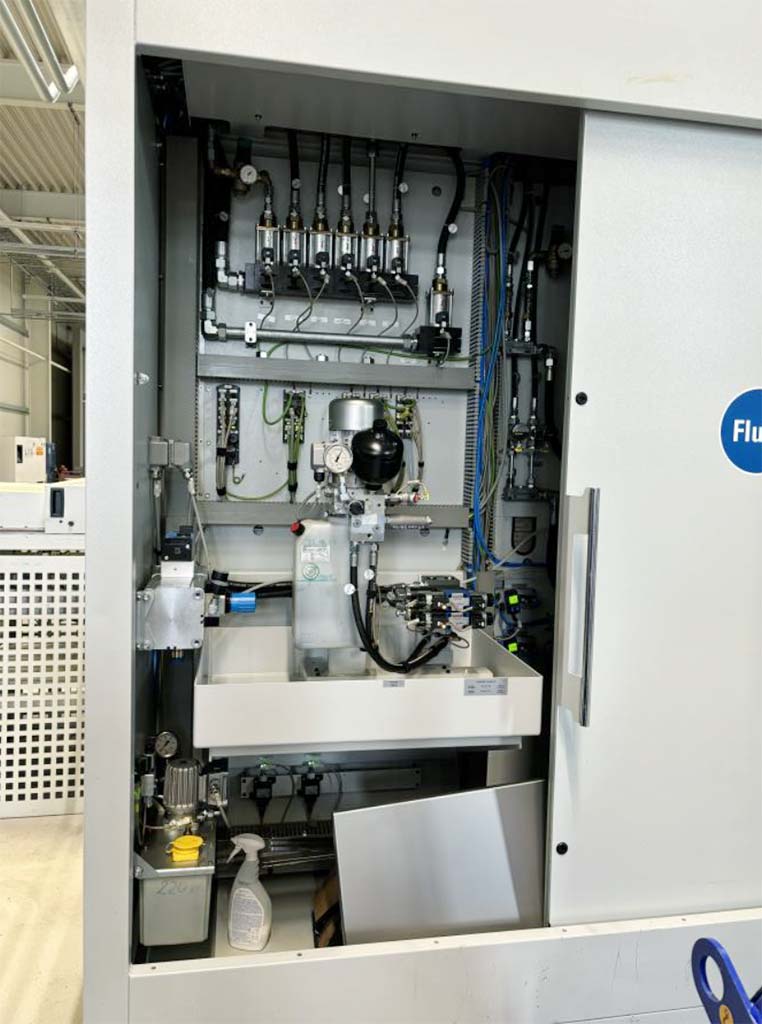

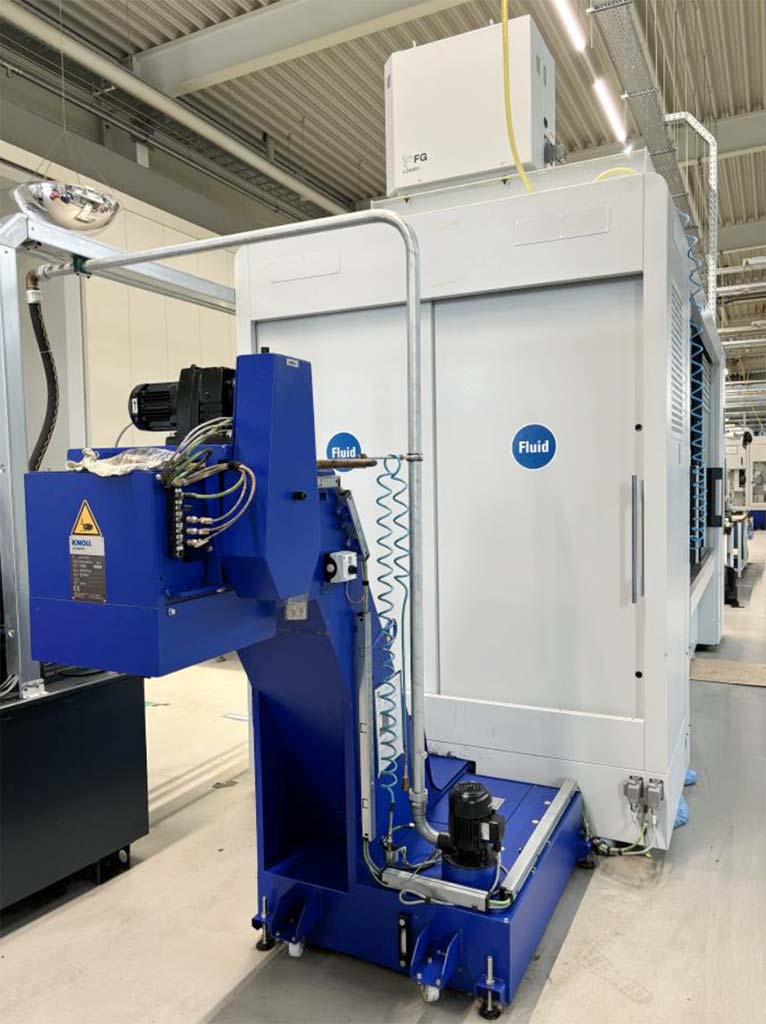

Machining processes: drilling, turning, milling, axes: Z3 longitudinal slide tool turret, Z4 longitudinal slide tool turret, X3 cross slide tool turret, X4 cross slide tool turret, C1 workpiece drive, C2 workpiece drive, K5 turret swivel axis, K6 tool drive, K7 turret swivel axis, K8 tool drive, travel X3: 251mm, X4: 251mm, Z3: 662mm, Z4: 662mm, tool turret: 12-station radial, DIN 69880-VDI40, drive: DIN 5480-W20x0.8, tool swing diameter: 580mm, specified dimension at tool area: 320mm, length: 13,000mm, width: 7300mm, height: 4100mm, weight: 22t, operating hours: 14,748h. Equipment: OP012 control panel, Kuka handling robot, chip conveyor, coolant tank, hydraulics, pneumatics, electrical cabinet, parts infeed and outfeed, documentation, installation plan, working area diagram, gearbox plan and transport plan. The following components should be overhauled: machine bed (guideways/ball screws), motor spindles with release units (replace bearings/reseal), cross slides (guideways/ball screws/motor), workpiece spindle (replace bearings/reseal), protective enclosure (interior cladding/working area door/repaint machine), coolant pumps, replacement of electrical cables/lubrication and hydraulic lines, as required. An on-site inspection is possible.
