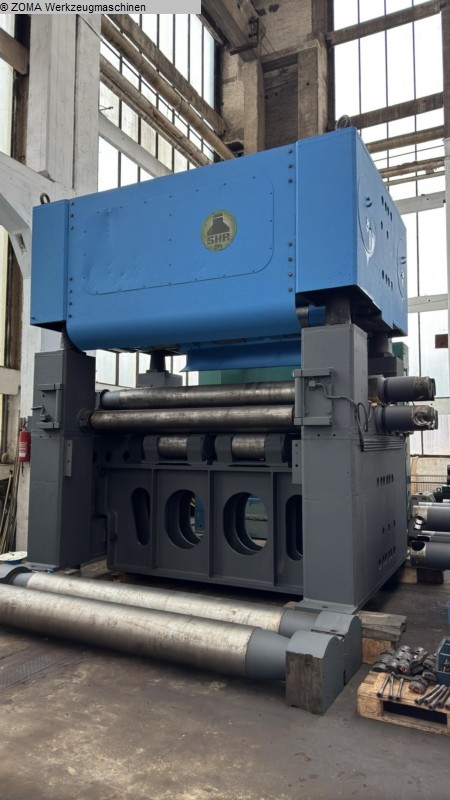

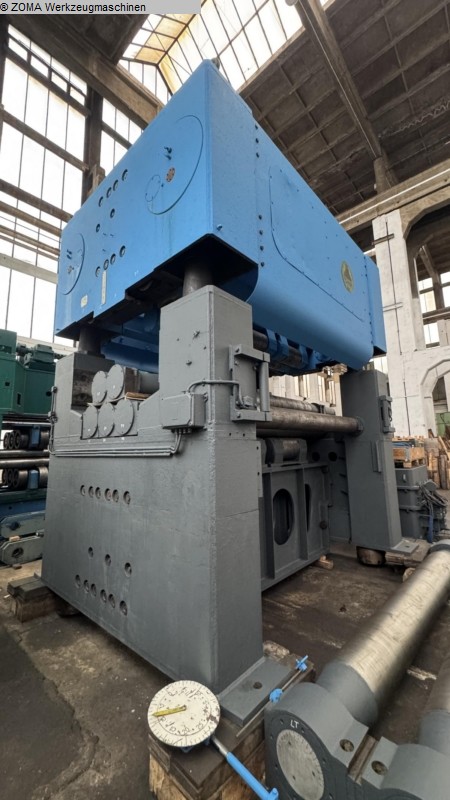

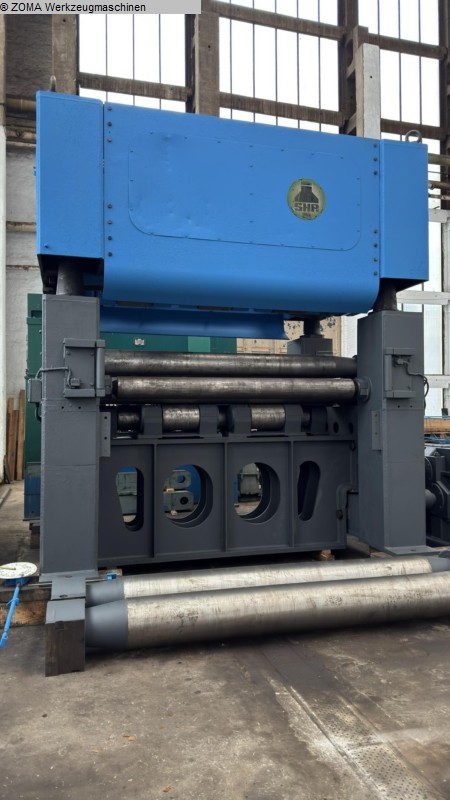

Maquinas arregladoras de metal presionado WMW WILDAU UBR 32 x 2500-7/16

plate width: 2500 mm
sheet thickness - max.: 32 mm
sheet thickness - max.: 39 mm
sheet thickness - min.: 8 mm
bale length: 2700 mm
number of straightening: 7 Rollers
number driven straightening rollers: 5 Stk
straightening roll diameter: 290 mm
diameter of input / output straightening rollers: 345 mm
number of support rollers: 13 Stk
diameter of support rollers: 288 mm
stroke of upper beam: 120 mm
straightening feed: 16 m/min
rated power of main drive: 90 kW
: 138 kw
weight: 79 t
Sheet width: 2,500 mm
Max. sheet thickness (St 50): 32 mm
Max. sheet thickness (St 34): 39 mm
Min. sheet thickness (St 50): 8 mm
Roller face length: 2,700 mm
Number of leveling rollers: 7
Number of driven leveling rollers: 5
Leveling roller diameter: 290 mm
Outlet leveling roller diameter: 345 mm
Number of backup rollers: 13
Backup roller diameter: 288 mm
Upper beam stroke: 120 mm
Leveling speed: 16 m/min
Main drive: 90 kW
Total connected load: 138 kW
Machine weight: 79 t

Additional Information

Maximum sheet thickness (St 50): 32 mm
Maximum sheet thickness (St 34): 39 mm
Minimum sheet thickness (St 50): 8 mm
