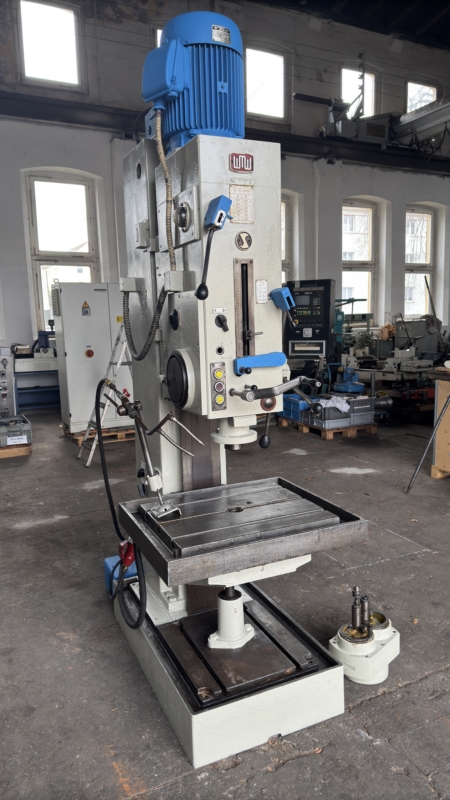

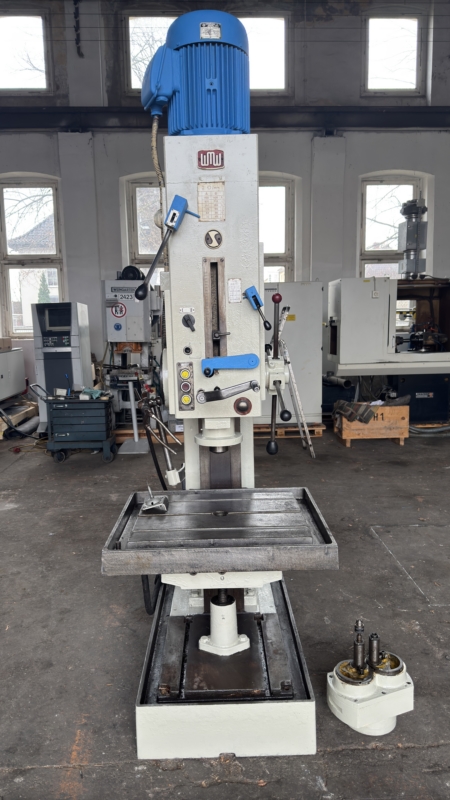

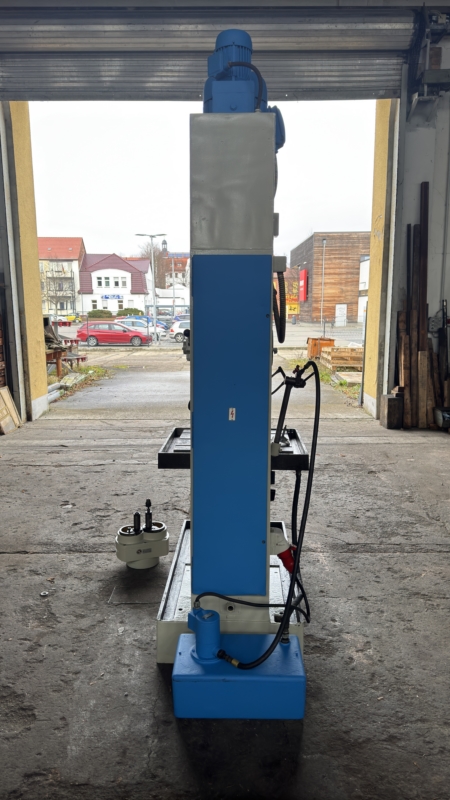

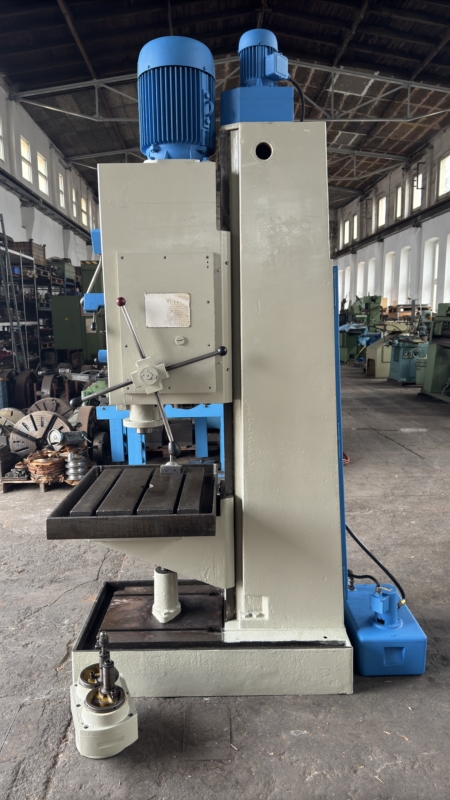

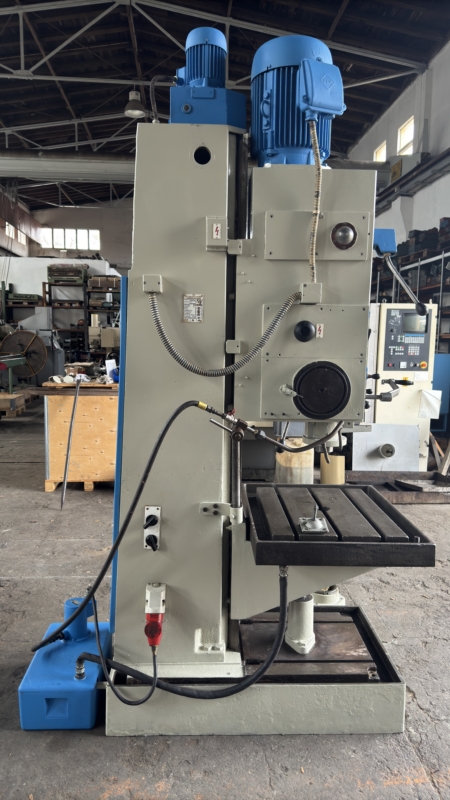

Taladradoras de montante WMW-SAALFELD BK 50 AI

bore capacity in steel (diameter): 50 mm
throat: 355 mm
bore stroke: 280 mm
spindle taper: MK 5
spindle head adjustment: vertikal 280 mm motorisch
feed: 0,11-1,73/9step mm/min
turning speeds: 32-1400/12step U/min
table-size: 770 x 640 mm
surface area: 630 x 500 mm
base plate: 490 x 530 mm
table travel:
total power requirement: 8,1 kW
weight of the machine ca.: 1,7 t
dimensions of the machine ca.: 1,25 x 0,8 x 2,75 m
Drilling capacity in steel: 50 mm
Throat depth: 355 mm
Spindle stroke: 280 mm
Spindle taper: Morse taper MT 5
Vertical head adjustment: 280 mm (motorized)
Feed rates: 0.11 – 1.73 mm/rev (9 steps)
Spindle speeds: 32 – 1,400 rpm (12 steps)
Table size: 770 × 640 mm
Clamping surface: 630 × 500 mm
Base plate: 490 × 530 mm
Movable table: Yes
Total power requirement: 8.1 kW
Machine weight: approx. 1.7 t
Space requirement (L × W × H): approx. 1.25 × 0.8 × 2.75 m
Additional Information
Distance from spindle nose to table: approx. 800 mm
