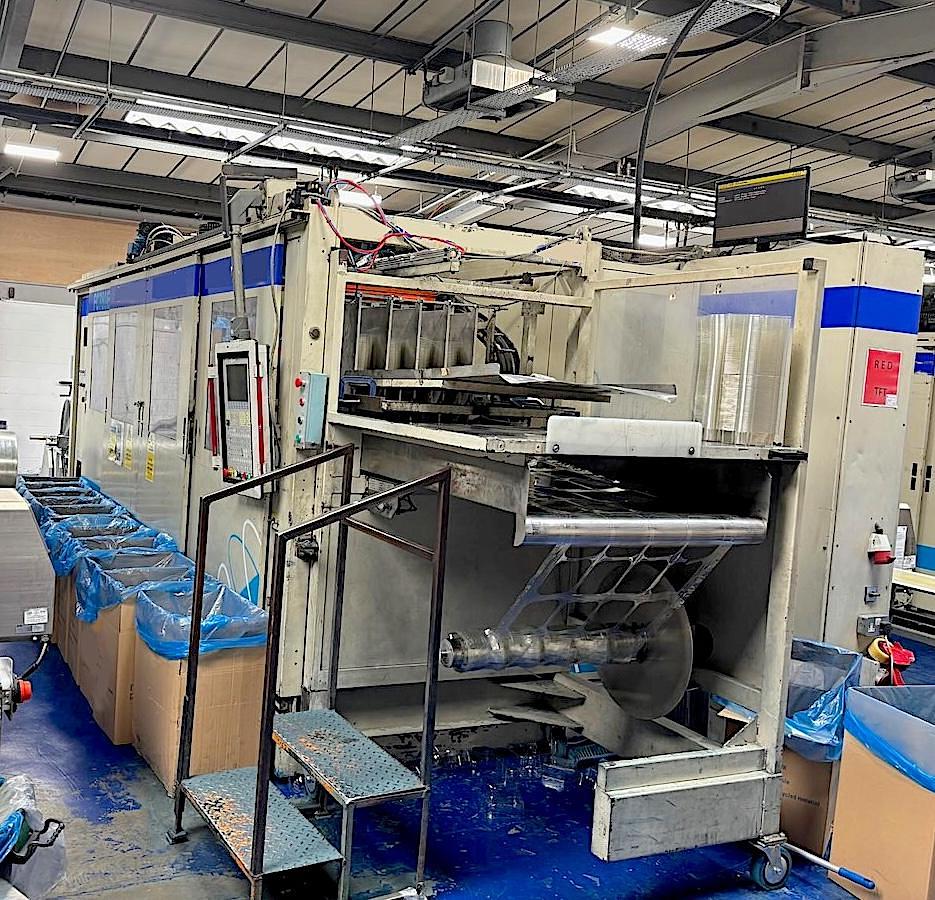

WM (Wrapping Mach... FC780E Máquina de envoltura WM

1 x Used Wrapping Machine WM FC780 E, age 2005, Unwinder:, Single Reel holder, Max. reel diameter 1,200 mm, Thermoforming machine:, Max. tool size 780* x 570 mm, Max. tool size with pneumatic clamp frame 750 x 570 mm, Max. positive depth 130 mm, Max. negative depth 130 mm, Max. sheet width 810 mm, Max. sheet indexing 570 mm, Max. HIPS sheet thickness 1.8 mm, Max. EPS sheet thickness 3 mm, Max. platen stroke (upper – lower) 150 mm, Heater length 1,775 mm, Clamping force DaN 20,000, Upper heating, installed power Kw 41, Lower heating, installed power Kw 41, Vacuum pump motor Kw 2,2, Platen driving servo motor (each) Kw 7.5, Sheet index servomotor Kw 11, Dry cycle speed 45 Cycles/ min, Processing air pressure 7 bar, Water consumption at + 12° C. 60 L/ min, Air consumption at 7 bar 50 L/ cycle, Cutting Press:, Max. cut dimensions 760 x 550 mm, Platen clamping force DaN 60,000, Upper platen stroke 150 mm, Lower platen stroke 150 mm, Steel rule heating plate Kw 7.8, Platen driving servomotor (each) Kw 7.5, Vertical Stacker:, Max. stacking dimensions 760 x 550 mm, Stacker driving servomotor Kw 2.2, Scrap Winder:, Max. scrap roll diameter 600 mm, General Features:, Total installed power Kw 140, Length ( A ) 11,000 mm, Width ( B ) 4,750 mm, Height ( C ) 2,550 mm, Weight 11,500 Kg, *. Machine can be inspected in production, ** Data Sheet is attached
