Sistemas de ventanas WEINIG Unicontrol 6 NC Spindeln

Tenoning spindle: 1 St.
Number of milling agregates: 4 St.
Spindle diameter: 50 mm

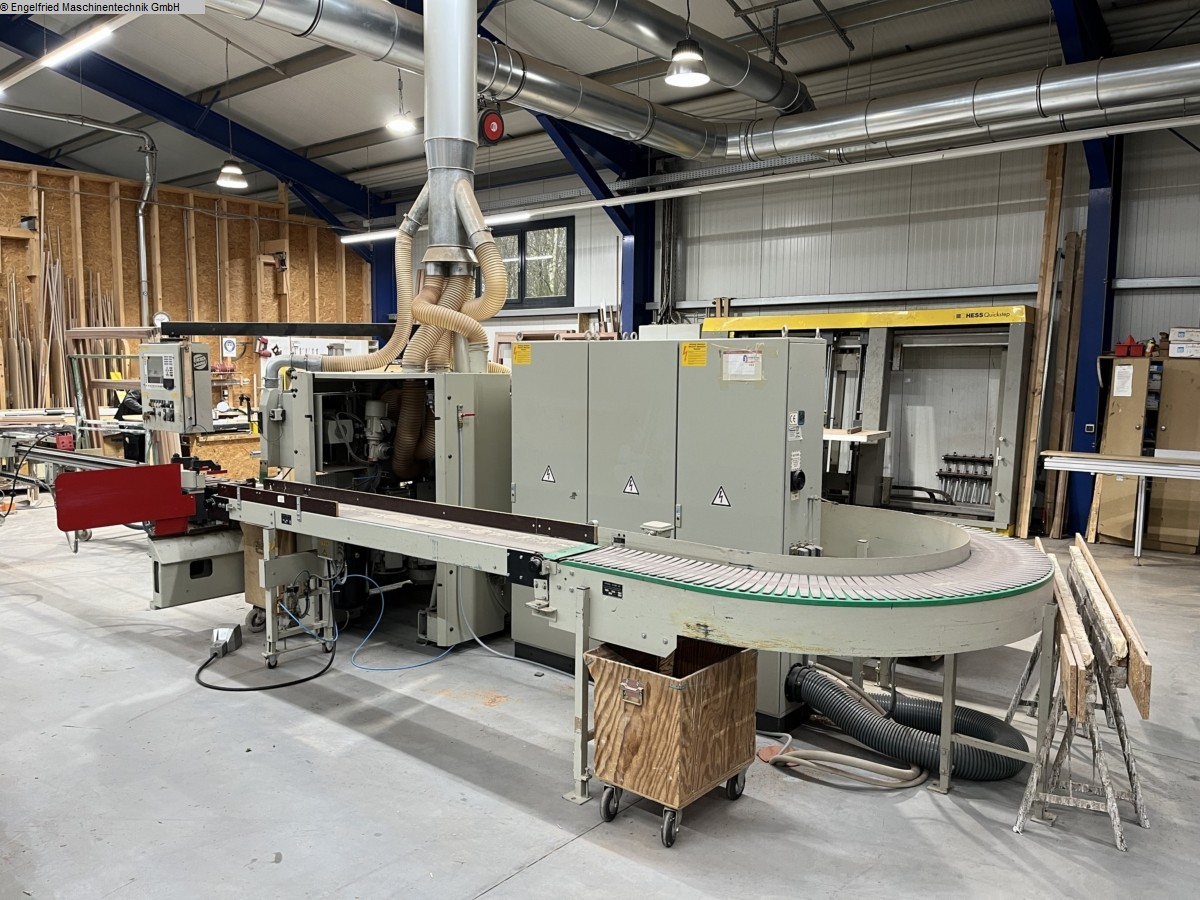

Weinig Unicontrol 6 with NC-controlled spindles
-----------------------------------------
The machine was in daily operation until September 2026, at which point it was professionally dismantled and placed into storage at our facility.

Summary of Technical Specifications
(Please inquire regarding any additional accessories that may be included)

Pos. 1: Cross-cut saw
----------------------------
> Electronic cross-cut saw, horizontally infinitely adjustable
> Number of tools: 1
> Spindle speed: 2,800 rpm
> Spindle diameter: 40 mm
> Max. tool diameter: 400 mm
> Motor power: 3.0 kW
> Laser alignment light for identifying the cut line
> NC-controlled length stop, mounted on the tenoning table,
positioning of the cross-cut saw is integrated into the control system. > Length 3500 mm

Item 2: Tenoning and slotting spindle
----------------------------
> Number of tools: variable, infinitely adjustable via NC axis
> Tool clamping length: 320 mm
> Vertical spindle stroke: variable, infinitely adjustable (254 mm) via NC axis
> Spindle speed: 3500 rpm
> Spindle diameter: 50 mm
> Max. tool diameter: 320 mm
> Motor power: 11 kW


Item 3: 1st profiling spindle (climb-cut and conventional-cut capable)
----------------------------
> Position: vertical, right-hand side
> Number of tools: 1
> Tool clamping length: 120 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Max. tool cutting circle diameter: 232 mm
> Motor power: 7.5 kW


Item 4: 2nd profiling spindle
----------------------------
> Position: vertical, right-hand side
> Number of tools: variable, infinitely adjustable via NC axis
> Tool clamping length: 320 mm
> Vertical spindle stroke: variable, infinitely adjustable (254 mm) via NC axis
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Max. tool cutting circle diameter: 232 mm
> Motor power: 11 kW

Item 5: Horizontal profiling milling unit (top-mounted)
----------------------------
> Clamping length: 40 mm
> Spindle diameter: 40 mm
> Motor power: 3.0 kW
> Speed: 5850 rpm
> Tool cutting circle diameter max. 130 mm
> Axial adjustment range: 2 positions
> Radial adjustment range: 2 positions


Pos. 6: 3rd profiling spindle (fitting/hardware spindle)
----------------------------
> Position: vertical, right-hand side
> Tool clamping length: 160 mm
> Axial adjustment range: 3 positions
> Radial adjustment range: 2 positions
> Spindle speed: 5,850 rpm
> Spindle diameter: 40 mm
> Max. tool cutting circle: 210 mm
> Motor power: 3.0 kW

Additional features
----------------------------
> Network-ready (online-capable)
> Rebating device for splinter-free rebating
> Package for processing double-part components
> Return conveyor system for one-man operation: slat conveyor
> Screen-based control system
> Device for angled (non-rectangular) windows
> Electronic angle display for angled windows

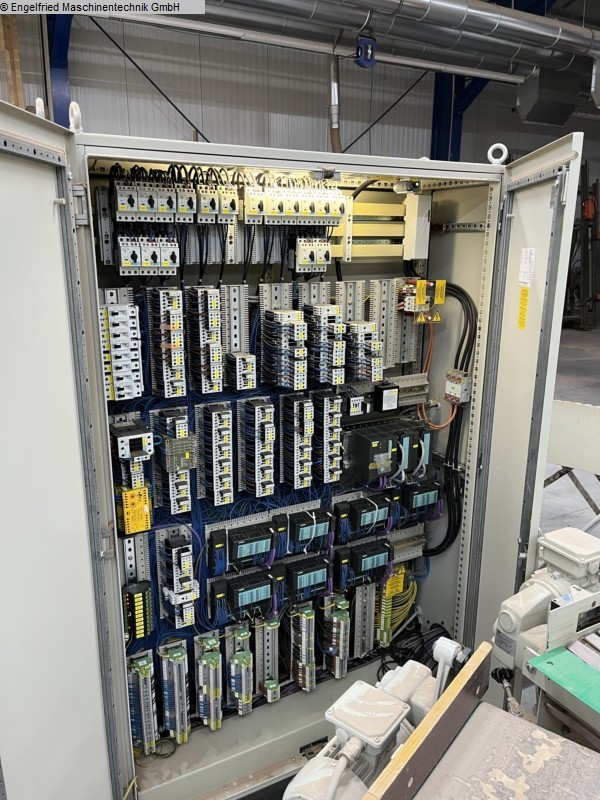

> Industrial PC, PC-based control system (NEXUS)
> Excludes machining tools

Includes 1 set of Stehle IV68 timber window tools
----------------------------
Price for the above-mentioned machine available upon request!
----------------------------

Optional (at additional cost): EUR 6,500.00
Note regarding used tools:
We currently have used Gold brand tools in stock (Stock No. #2790).
These are window tool sets for IV78 timber and IV78 timber/aluminum systems.
They were previously used on a Weinig Unicontrol 10, if used on a Unicontrol 6, an additional jointing cutter is required. Tooling set for fixed-stroke (FESTHUB) or CNC spindle machines with 80 mm and 95 mm stroke,
(tooling set prepared for IV 92 [92 mm thick timber window] profiles, to the extent technically feasible)
Timber-aluminium tooling set for fixed-stroke machines (80 mm and 95 mm stroke) – supplementary tooling

The tools are sold in the condition, scope, and with the accessories currently available in our stock. Regarding window cross-sections, tool drawings, and tool system lists:
Engelfried provides no guarantee that the tools actually present correspond to the systems mentioned or illustrated.

----------------------------
Should the technical specifications of this machine not meet your requirements, please contact us. Our highly experienced team will be happy to assist you with any necessary adjustments or help you find a machine that suits your specific needs!
