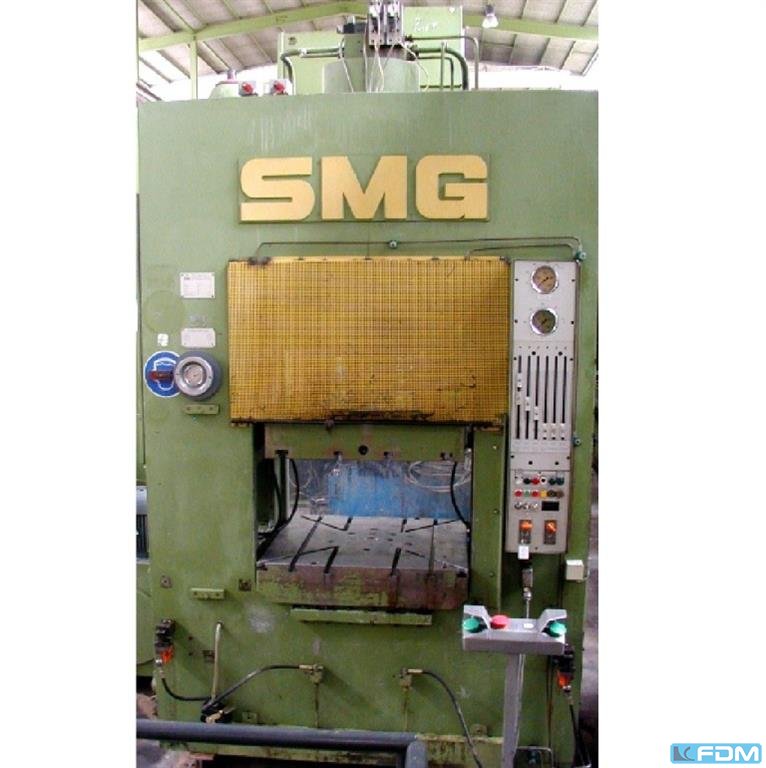

SMG DS 250 (UVV) Hydraulic Double-Column (Drawing) Press
usadoVendedor verificado
Solicitar precio
Directamente al vendedor
1 / 2
Datos técnicos
· ID 170400813Maquinaria usada
- Estado
- usado
- Año de fabricación
- 1977
- Ubicación
- Lager Eislingen, Baden-Württemberg
Identifikation
FabricanteSMG
ModeloDS 250 (UVV)
Número de artículo1050-043063
Technik
Cantidad1
Descripción
pressure:250 t
distance between columns:930 mm
stroke:200 mm
Distance table/ram, stroke up:600 mm
table surface area:900 x 860 mm
die cushion capacity:100 t
die cushion stroke:50 mm
die cushion area:350 x 400 mm
table height over floor:950 mm
side window:380 x 380 mm
ram surface:850 x 700 mm
feed down:400 mm/s
feed up:400 mm/s
working feed:30 mm/s
oil volume:350 l
power capacity:45,0 kW
weight:11,5 t
Dimensions (WxDxH):2,0 x 1,2 x 3,4 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
drawing cushion in table:hydraulic
depth stop:mechanical
foundation pit:not necessary
distance between columns:930 mm
stroke:200 mm
Distance table/ram, stroke up:600 mm
table surface area:900 x 860 mm
die cushion capacity:100 t
die cushion stroke:50 mm
die cushion area:350 x 400 mm
table height over floor:950 mm
side window:380 x 380 mm
ram surface:850 x 700 mm
feed down:400 mm/s
feed up:400 mm/s
working feed:30 mm/s
oil volume:350 l
power capacity:45,0 kW
weight:11,5 t
Dimensions (WxDxH):2,0 x 1,2 x 3,4 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
drawing cushion in table:hydraulic
depth stop:mechanical
foundation pit:not necessary
