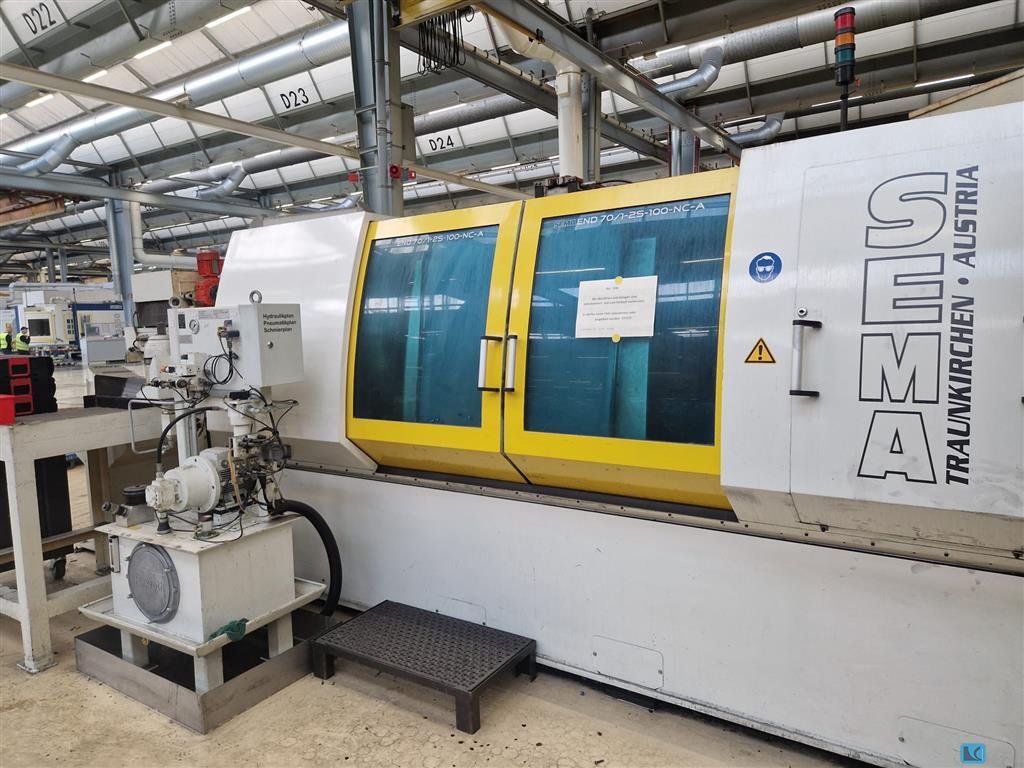

SEMA END 70-1-2-S-100-NC-A Facing and Centering Machine
usadoVendedor verificado
Solicitar precio
Directamente al vendedor
1 / 5
Datos técnicos
· ID 170397445Maquinaria usada
- Estado
- usado
- Año de fabricación
- 2008
- Ubicación
- Staufenberg 1
Identifikation
FabricanteSEMA
ModeloEND 70-1-2-S-100-NC-A
Número de artículo1113-235071
Technik
Cantidad1
Descripción
max. workpiece diameter:29 mm
min. workpiece diameter:26 mm
workpiece length:66 mm
the system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mm
Changing parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mm
Total length will probably be almost 400 mm possible with a few conversions.
Also dependent on tool lengths, machining lengths on the component, etc.
Workpiece: Piston pin
Drawing number: WHT 000 718, WHT 000 718 A
Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65
Length: 66 or 65 mm
Material: 17Cr3
Quantity: xxx parts / year
Cycle time: 5 sec.
However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clamping prisms. The parts that were typically produced on this machine left the system via a chute onto a conveyor belt. If longer parts were to be manufactured, this would need to be examined in detail.
