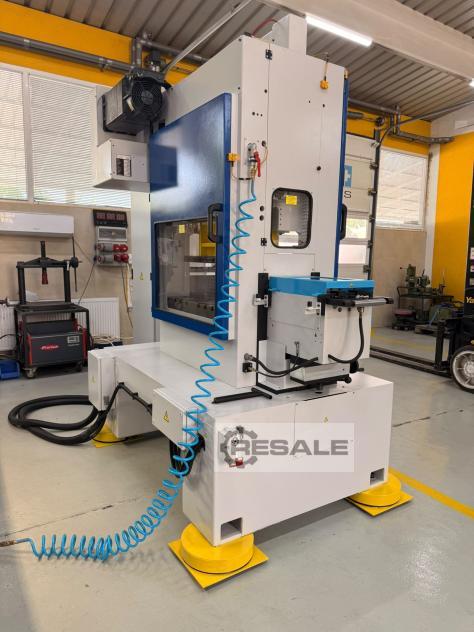

Prensas de gran velocidad SCHAAL SEP 80 SZV 3

Schaal SEP 80 SZV 302 Automatic Punching Press Machine • 2001 • ID: 34126

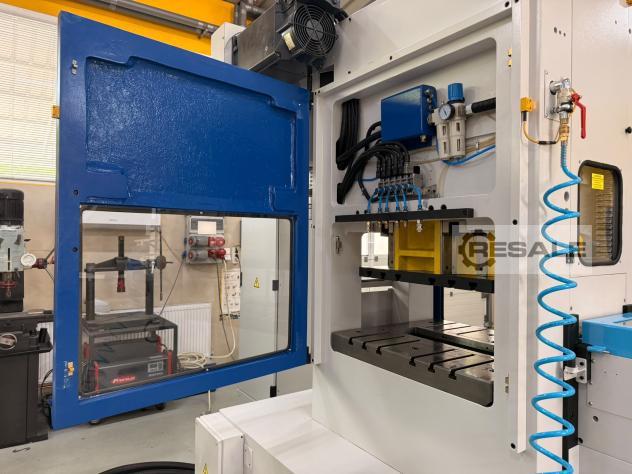

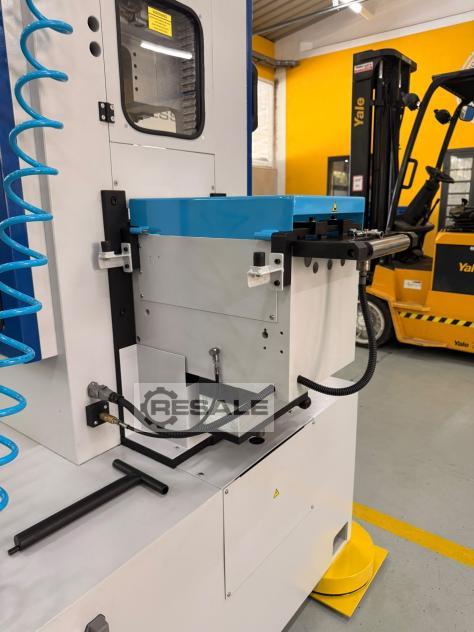

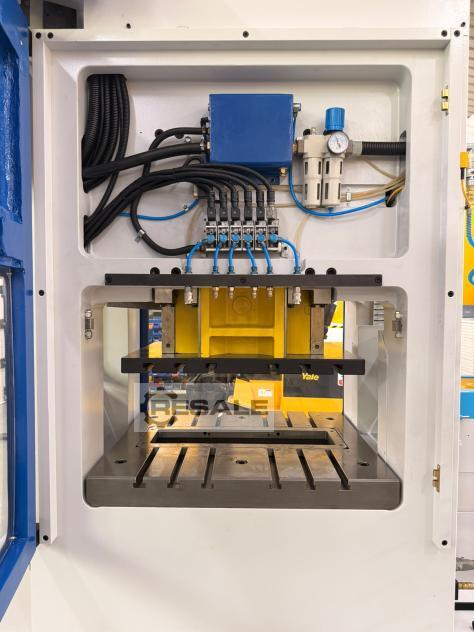

Frame and guidance on this unit are built for repeatability: a rigid double-column O-frame in vibration-damping cast iron, with the ram carried in 6-point play-free roller guides. Power is transmitted by a flywheel drive with pneumatic clutch/brake combination. Year of manufacture is 2001. Control and protection - Unidor electronic control system giving repeatable stroke accuracy and fast setup; integrated tool safety device protecting dies from damage caused by misfeeds or incorrect part positioning, which reduces downtime and tooling costs. Key data - pressing force 800 kN (80 tons); 60 – 320 min⁻¹; ram stroke adjustable 8 – 80 mm; ram adjustment 80 mm; ram surface 700 × 500 mm; clamping plate 830 × 700 mm at 80 mm thickness; table opening 500 × 200 mm; strip feed clearance 120 ± 40 mm; drive power 21.5 kW; weight 8,000 kg; footprint 1,500 × 2,000 mm with a height of 2,885 mm. Automated strip feeding is by the gripper feeding device SZV 302, for strip 10 – 270 mm wide and 0 – 4 mm thick. Schaal SEP 80, ref. no. 34126.

Technical Specifications
Pressing force: 800 kN (80 tons)
Strokes per minute: 60 – 320 min⁻¹
Ram stroke (adjustable): 8 – 80 mm
Ram adjustment: 80 mm
Ram surface: 700 × 500 mm
Table size (clamping plate): 830 × 700 mm
Clamping plate thickness: 80 mm
Table opening: 500 × 200 mm
Strip feed clearance: 120 ± 40 mm
Feed unit: Schaal SZV 3
Strip width: 10 - 270 mm
Thickness: 0 – 4 mm
Drive power: 21.5 kW
Weight: 8,000 kg
Footprint: 1,500 × 2,000 mm, height: 2,885 mm
seller offer No. resale 34126
