Prensas para marcos S+S Bavaria 2000 L
máquinas para el procesado de madera / máquinas de producción de ventanas / Prensas para marcos
Working width: 4000 mmWorking height: 2550 mmNumber of cylinders: 6 St.Dimensions (L/W/H): 5.000 x 1.200 x 2.900 mmloading dimensions L x W x H: 5.000 x 1.200 x 2.900 mmS+S Bavaria 2000 L window frame and sash pressThe press was partially reconditioned at our warehouse, immediately ...
Fabricante: S+S
Modelo:Bavaria 2000 L
Tipo de máquina: Prensas para marcos
Número de artículo: 170049800
Cantidad: 1
Fecha: 10.10.2026
Año de fabricación: 2014
Ubicación: Oberkochen
Precio:
Máquina en stock:Sí
Seller-item-No.:1305-2833
Working width: 4000 mm
Working height: 2550 mm
Number of cylinders: 6 St.
Dimensions (L/W/H): 5.000 x 1.200 x 2.900 mm
loading dimensions L x W x H: 5.000 x 1.200 x 2.900 mm
S+S Bavaria 2000 L window frame and sash press
The press was partially reconditioned at our warehouse, immediately available!
Technical specifications:
- Working dimensions: 4000 mm x 2550 mm (length x height)
- Abutment and pressure plate depth: 100 mm
- Automatic press cycle for mortise and tenon corner joints

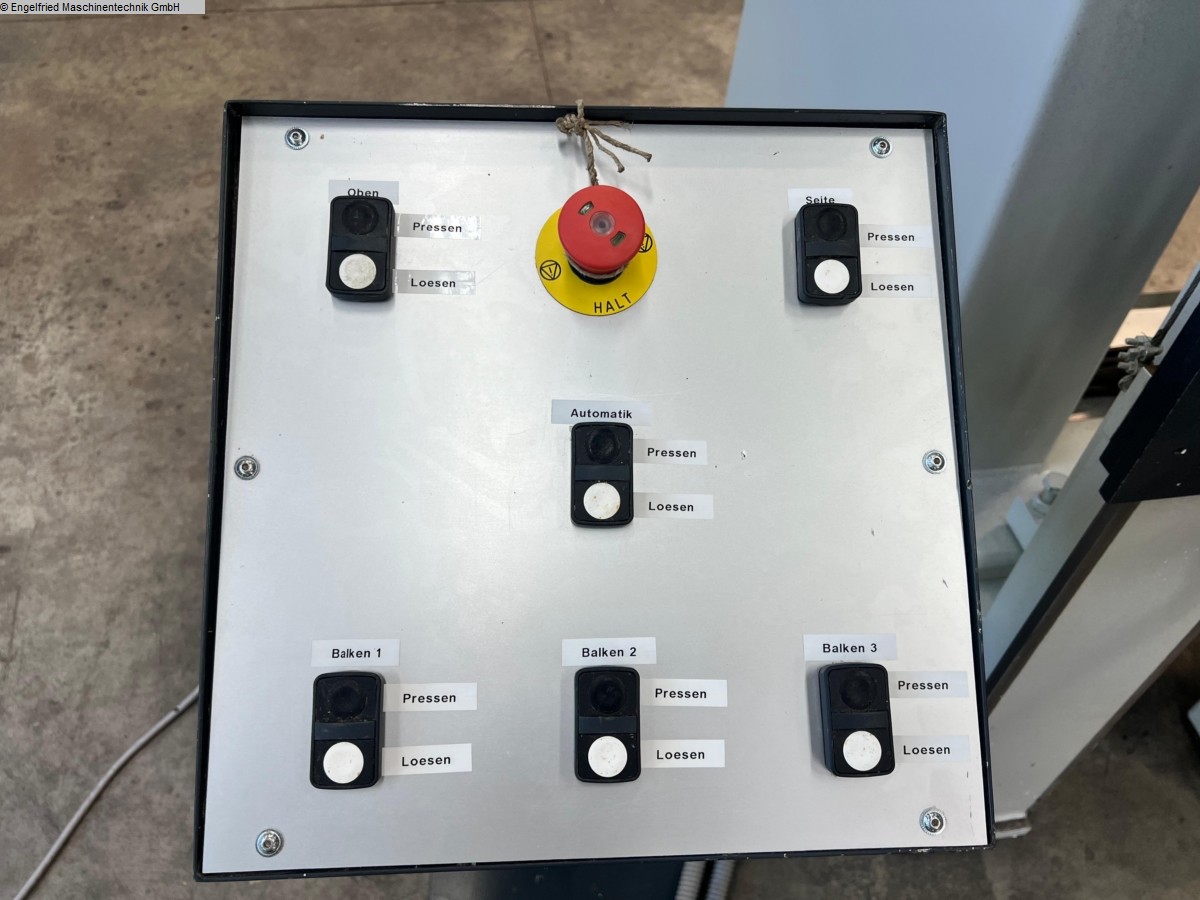

- hand control for manual pressing mode
- 1 central pressure beam (accommodates heights up to 2550 mm)
- 1 transverse pressure unit
- 1 shut-off valve for the 3rd vertical cylinder
- 1 shut-off valve for the upper horizontal cylinder
- 3 controls for angled window processing (vertical cylinders)

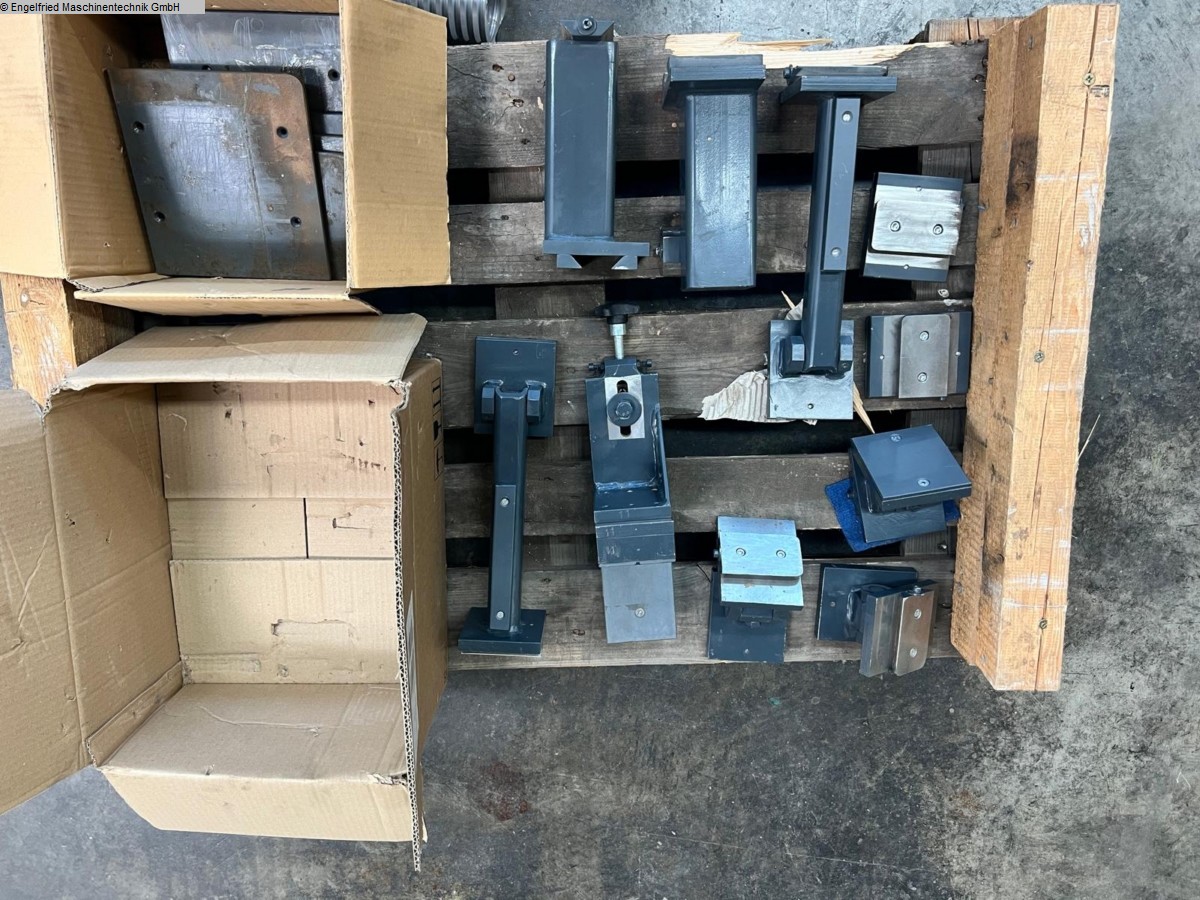

- 3 attachable pivoting pressure plates for pressing angles up to 60 degrees
- 2 extensions for pivoting pressure plates (for triangular/pointed windows)
- Surcharge for minimum dimensions
- All pressure plates and abutments faced with plastic
- Control cabinet located on the inside of the left base leg
- Press can be completely disassembled if required (price on request!)
- Finish: RAL 7035 Light Grey and RAL 7016 Anthracite Grey

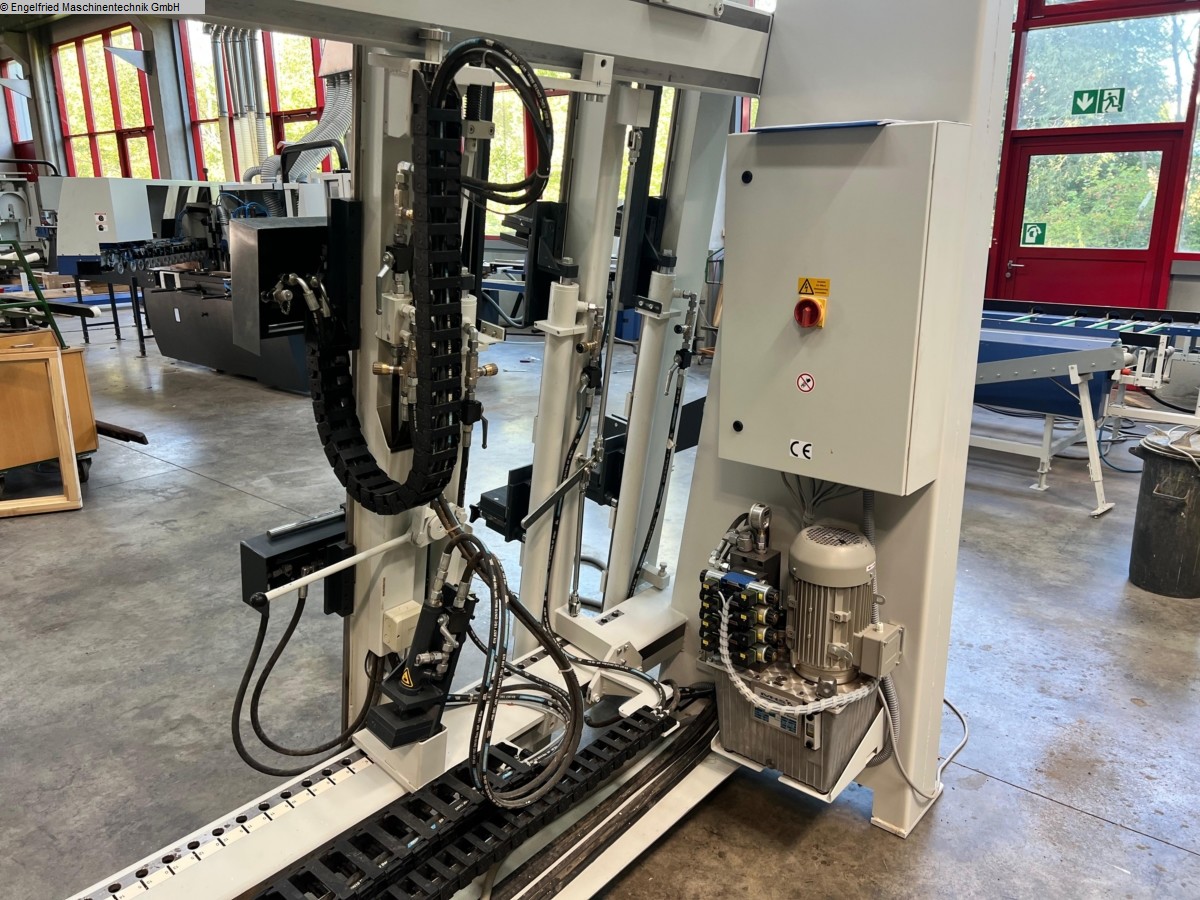

Image shows an archive photo of a delivered press.
No original photos available yet.
(Technical specifications provided by the manufacturer – subject to change/no guarantee)
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Working height: 2550 mm
Number of cylinders: 6 St.
Dimensions (L/W/H): 5.000 x 1.200 x 2.900 mm
loading dimensions L x W x H: 5.000 x 1.200 x 2.900 mm
S+S Bavaria 2000 L window frame and sash press
The press was partially reconditioned at our warehouse, immediately available!
Technical specifications:
- Working dimensions: 4000 mm x 2550 mm (length x height)
- Abutment and pressure plate depth: 100 mm
- Automatic press cycle for mortise and tenon corner joints
- hand control for manual pressing mode
- 1 central pressure beam (accommodates heights up to 2550 mm)
- 1 transverse pressure unit
- 1 shut-off valve for the 3rd vertical cylinder
- 1 shut-off valve for the upper horizontal cylinder
- 3 controls for angled window processing (vertical cylinders)
- 3 attachable pivoting pressure plates for pressing angles up to 60 degrees
- 2 extensions for pivoting pressure plates (for triangular/pointed windows)
- Surcharge for minimum dimensions
- All pressure plates and abutments faced with plastic
- Control cabinet located on the inside of the left base leg
- Press can be completely disassembled if required (price on request!)
- Finish: RAL 7035 Light Grey and RAL 7016 Anthracite Grey
Image shows an archive photo of a delivered press.
No original photos available yet.
(Technical specifications provided by the manufacturer – subject to change/no guarantee)
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
