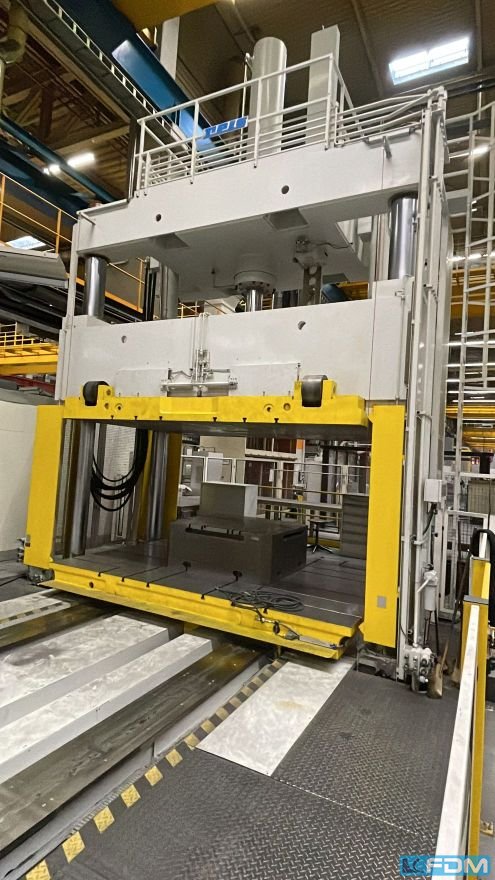

REIS TUS 400-250 Spotting Press
usadoVendedor verificado
Solicitar precio
Directamente al vendedor
1 / 5
Datos técnicos
· ID 170400291Maquinaria usada
- Estado
- usado
- Año de fabricación
- 2013
- Ubicación
- Freudenberg
Identifikation
FabricanteREIS
ModeloTUS 400-250
Número de artículo1048-7-46831
Technik
Cantidad1
Descripción
pressure:250 t
table length:4000 mm
table width:3000 mm
Controls:SIEMENS SIMATIC C7
PRESS DESIGN:.
- frame design : 4 column :.
- moving bolster : yes :.
PRESS FORCES:.
- total force (nominal):250 to
PRESS TABLE:.
- clamping surface (left-right):4000 mm
- clamping surface (front-back):3000 mm
- tool weight max.:100000 kg
- number of T-slots:12
- distance between T-slots:375 mm
- height above floor level:390 mm
RAM:.
- clamping surface (left-right):4000 mm
- clamping surface (front-back):3000 mm
- number of T-slots:12
- distance between T-slots:375 mm
- stroke:2900 mm
- tool weight max.:50000 kg
RAM (HYDR. PRESS):.
- number of main-cylinders:1
- approximation velocity max.:180 mm/s
- working velocity max.:50 mm/s
- restoring force of ram:95 to
TOOL ASSEMBLY DIMENSIONS:.
- distance table - ram max.:2750 mm
- distance between columns (H-frame):4100 mm
- Free passage between side columns (width):1500 mm
ELECTRICAL SPECIFICATIONS:.
- total power consumption:62 kW
- mains voltage:400 V
- mains frequency:50 Hz
DIMENSIONS / WEIGHTS:.
- space requirements length:10200 mm
- space requirements width:6900 mm
- total height:8850 mm
- height above floor level:7930 mm
- height under floor level:920 mm
- total weight approx.:120000 kg
ATTACHMENTS FOR PRESSES:.
- light barrier : yes :.
Technical description :
HYDRAULIC PRESS FOR DIE SPOTTING IN 4-COLUMN DESIGN
- Moving bolster with max. 100 ton payload
- Swivel carriage with max. 50 ton payload
- Swivel area 180°
- Table area 4000 x 3000 mms
- SICK Light barrier in the swivelling area
Please note that our modern REIS TUS 400-250 is a very hard to find (pre-owned machine) being in such an exceptional beautiful condition, sparingly used and having been regularly serviced.
Here once again we wish to draw up the features of our REIS:
- 250ton RAM force and max. table payload 100 ton, whereby 50ton max. payload RAM plate.
- Table drives out from the front and the ram tilts down on the rear side until floor- level.
- Our REIS has a modern ?S 7 Control?
- Our REIS originates from a very clean and modern German Company
Videolink
https://youtu.be/34BV4Z3Vvto
table length:4000 mm
table width:3000 mm
Controls:SIEMENS SIMATIC C7
PRESS DESIGN:.
- frame design : 4 column :.
- moving bolster : yes :.
PRESS FORCES:.
- total force (nominal):250 to
PRESS TABLE:.
- clamping surface (left-right):4000 mm
- clamping surface (front-back):3000 mm
- tool weight max.:100000 kg
- number of T-slots:12
- distance between T-slots:375 mm
- height above floor level:390 mm
RAM:.
- clamping surface (left-right):4000 mm
- clamping surface (front-back):3000 mm
- number of T-slots:12
- distance between T-slots:375 mm
- stroke:2900 mm
- tool weight max.:50000 kg
RAM (HYDR. PRESS):.
- number of main-cylinders:1
- approximation velocity max.:180 mm/s
- working velocity max.:50 mm/s
- restoring force of ram:95 to
TOOL ASSEMBLY DIMENSIONS:.
- distance table - ram max.:2750 mm
- distance between columns (H-frame):4100 mm
- Free passage between side columns (width):1500 mm
ELECTRICAL SPECIFICATIONS:.
- total power consumption:62 kW
- mains voltage:400 V
- mains frequency:50 Hz
DIMENSIONS / WEIGHTS:.
- space requirements length:10200 mm
- space requirements width:6900 mm
- total height:8850 mm
- height above floor level:7930 mm
- height under floor level:920 mm
- total weight approx.:120000 kg
ATTACHMENTS FOR PRESSES:.
- light barrier : yes :.
Technical description :
HYDRAULIC PRESS FOR DIE SPOTTING IN 4-COLUMN DESIGN
- Moving bolster with max. 100 ton payload
- Swivel carriage with max. 50 ton payload
- Swivel area 180°
- Table area 4000 x 3000 mms
- SICK Light barrier in the swivelling area
Please note that our modern REIS TUS 400-250 is a very hard to find (pre-owned machine) being in such an exceptional beautiful condition, sparingly used and having been regularly serviced.
Here once again we wish to draw up the features of our REIS:
- 250ton RAM force and max. table payload 100 ton, whereby 50ton max. payload RAM plate.
- Table drives out from the front and the ram tilts down on the rear side until floor- level.
- Our REIS has a modern ?S 7 Control?
- Our REIS originates from a very clean and modern German Company
Videolink
https://youtu.be/34BV4Z3Vvto
