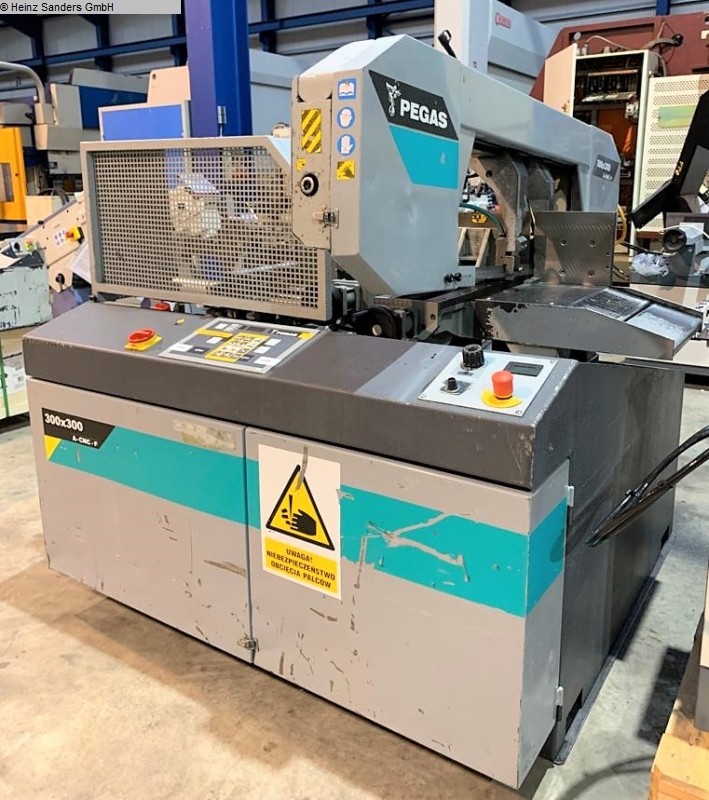

PEGAS - VOLLAUTOMAT 300x300 A-CNC-F Sierras de cinta
usadoVendedor verificado
Solicitar precio
Directamente al vendedor
1 / 6
Datos técnicos
· ID 170033326Sierras de cinta
- Estado
- usado
- Año de fabricación
- 2006
- Ubicación
- 49779 Niederlangen
Identifikation
FabricantePEGAS - VOLLAUTOMAT
Modelo300x300 A-CNC-F
Número de artículo1125-3170132
Technik
Cantidad1
Descripción
cutting diameter: 290 mm
saw band length: 4000 x 27 x 0,9 mm
table height: -- mm
cutting width: 300 mm
band speed: 20 - 100 m/min
load centre: 290 mm
rotary disc high: 290 x 300 mm
capacity 45 degrees: round: 260 mm
capacity 45 degrees: flat: 280 x 240 mm
height of the workpiece: 1800 x 1900 x 1750 mm
weight of the machine ca.: 2200 kg
- Fully automatic electro-hydraulic band saw
- electric feed unit - max. feed 520 mm
- front control panel
- electro-hydraulic material clamping
- semi-automatic & automatic mode selectable
- Miter cuts - Automatic operation up to 45° right
- Miter cuts - Semi-automatic operation up to 60° right
- stepless adjustment of the saw blade speed
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
saw band length: 4000 x 27 x 0,9 mm
table height: -- mm
cutting width: 300 mm
band speed: 20 - 100 m/min
load centre: 290 mm
rotary disc high: 290 x 300 mm
capacity 45 degrees: round: 260 mm
capacity 45 degrees: flat: 280 x 240 mm
height of the workpiece: 1800 x 1900 x 1750 mm
weight of the machine ca.: 2200 kg
- Fully automatic electro-hydraulic band saw
- electric feed unit - max. feed 520 mm
- front control panel
- electro-hydraulic material clamping
- semi-automatic & automatic mode selectable
- Miter cuts - Automatic operation up to 45° right
- Miter cuts - Semi-automatic operation up to 60° right
- stepless adjustment of the saw blade speed
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
