PEGAS 300 x 320 A-CNC-R Sierras de cinta

cutting diameter: 300 mm
saw band length: 3660 x 27 x 0.9 mm
capacity 90 degrees: flat: 320 x 290 mm
capacity 45 degrees: round: 290 mm
capacity 45 degrees: flat: 260 x 280 mm
capacity 60 degrees: round: 200 mm
capacity 60 degrees: flat: 180 x 170 mm
coolant capacity: ca. 100 l
Control: SPS
total power requirement: 2.4 kW AC
weight: 904 kg
range L-W-H: 2410 x 1920 x 2020 mm
** in good conditions
** Original price approx. 22.000 euros
** Special price on request
Features:

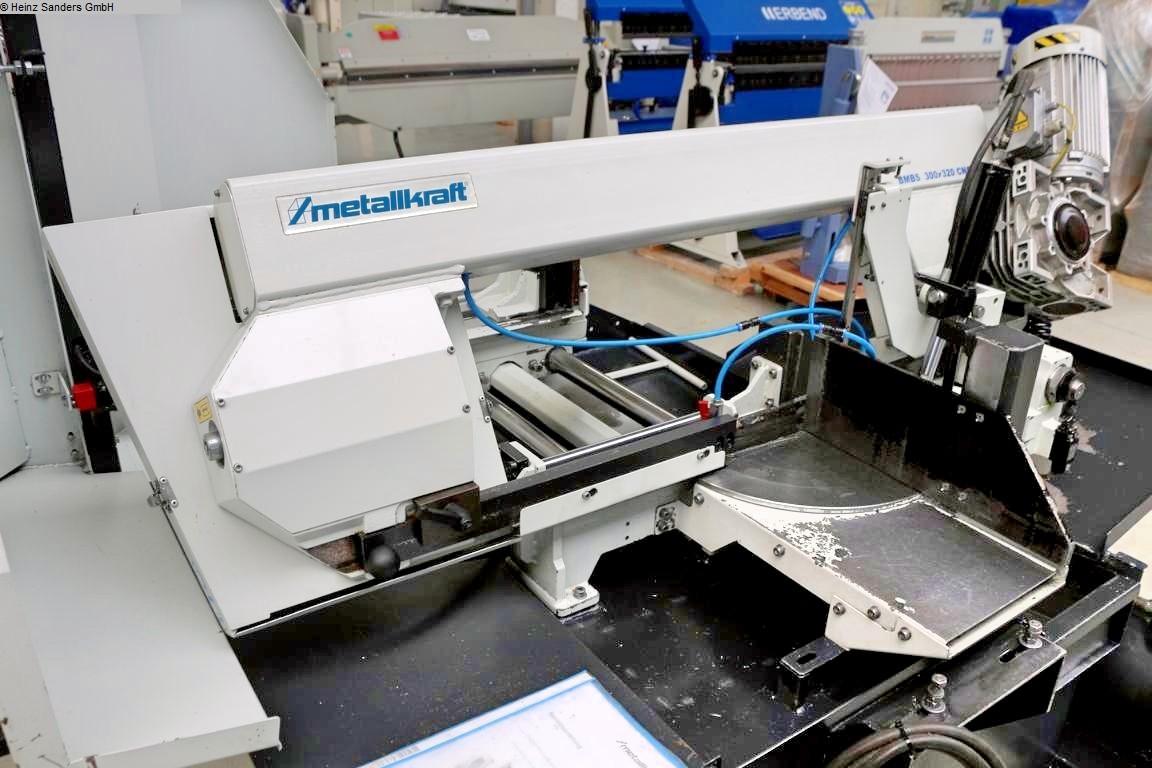

- Robust electro-hydraulic miter band saw, fully automatic (INDUSTRIAL)

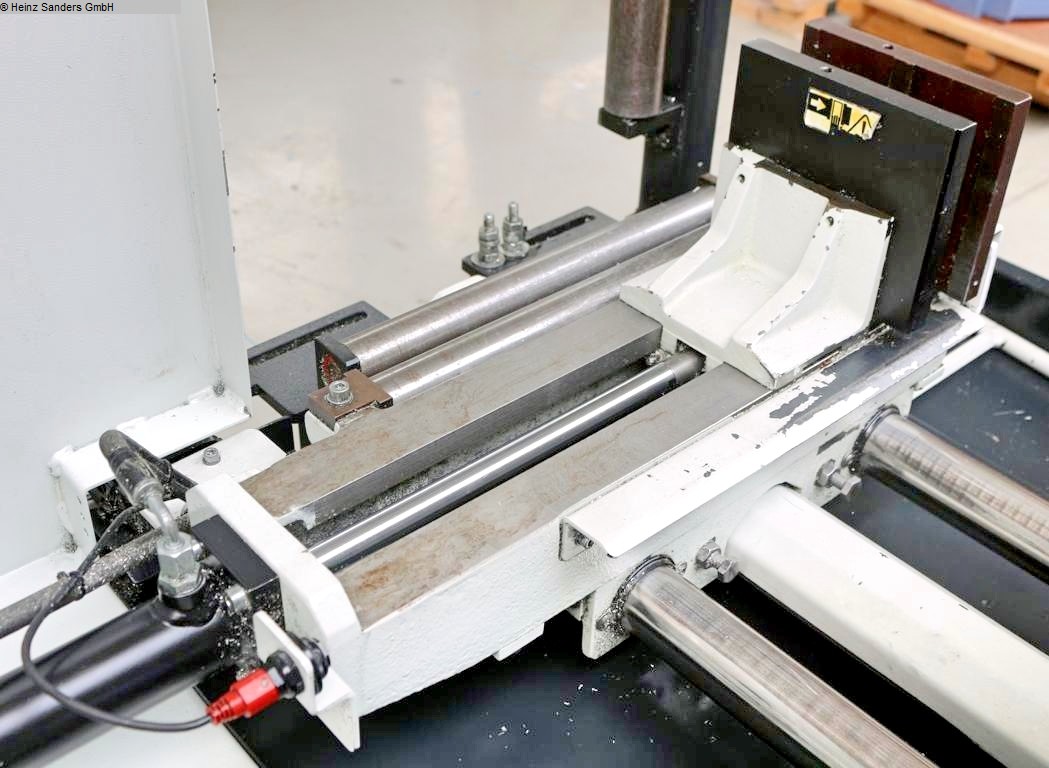

* Fully automatic with automatic material feed
* Material feed unit with recirculating ball screws
- Includes PLC MITSUBISHI control unit
* 20 programs, each with 15 cutting lengths + number of pieces programmable

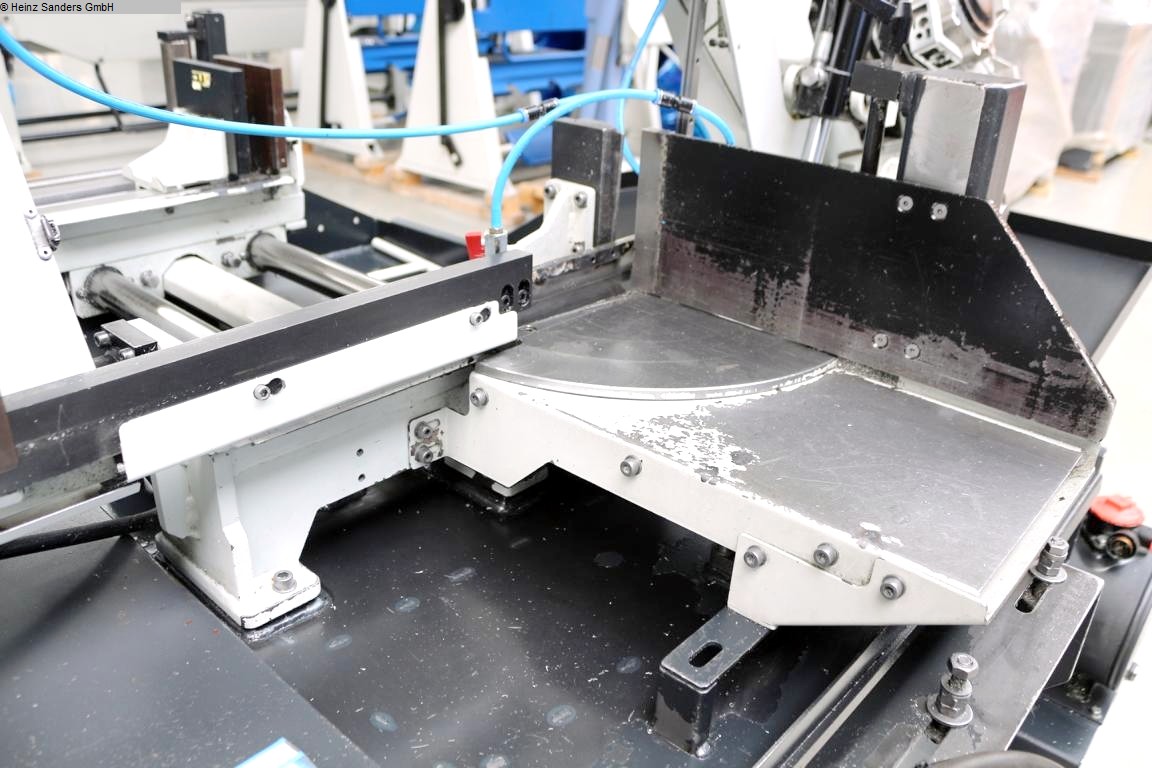

- For angles from 0° to 60°, with ball-bearing rotary table
* Mitre cuts up to 45° possible in automatic mode
* Mitre cuts up to 60° possible in semi-automatic mode
* Manual mitre adjustment
* Stepless adjustment of the mitre angle
- Saw blade guides made of carbide plates
- Saw feed continuously adjustable via fine throttle
- Strong machine bed and torsion-free saw frame
- Stepless speed adjustment of the saw blade
- Coolant device
- Operating instructions for machine + control system
* Special accessories included:
- 1x PEGAS chip conveyor
