otras máquinas para el procesado de metales usadas para la venta (11,133)

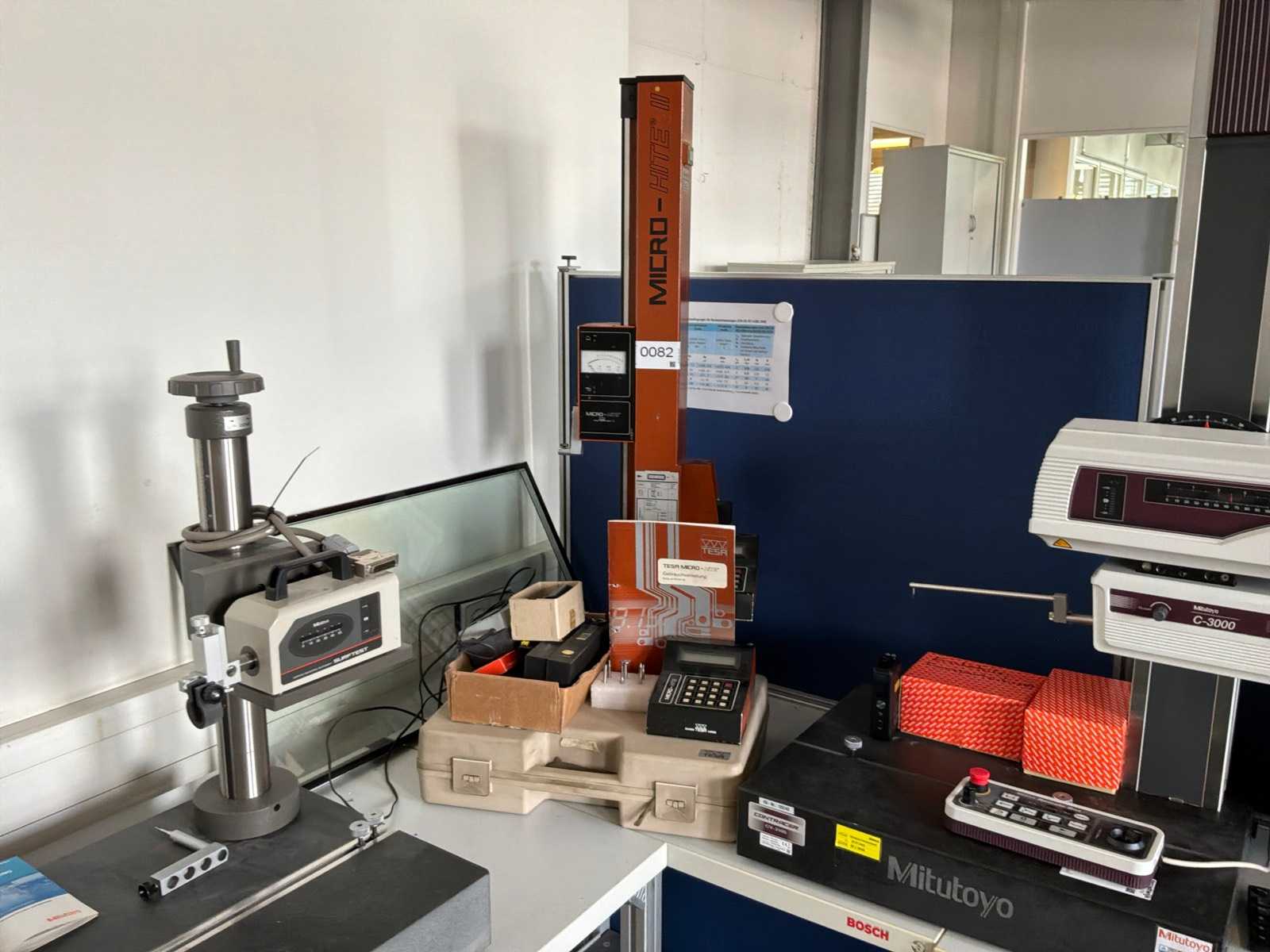

TESA - HITE 2 - 1995 - Medidor de longitud vertical con programas de medición controlados por microprocesador Compuesto por: A.O. Dispositivo de medición de longitud Conjunto de sondas Instrucciones Repuestos Fecha de recogida: 17:08 - 19:08 Auction-ID: A1-48584-82

DIMENSIONS / WEIGHTS:. - total height:35 mm

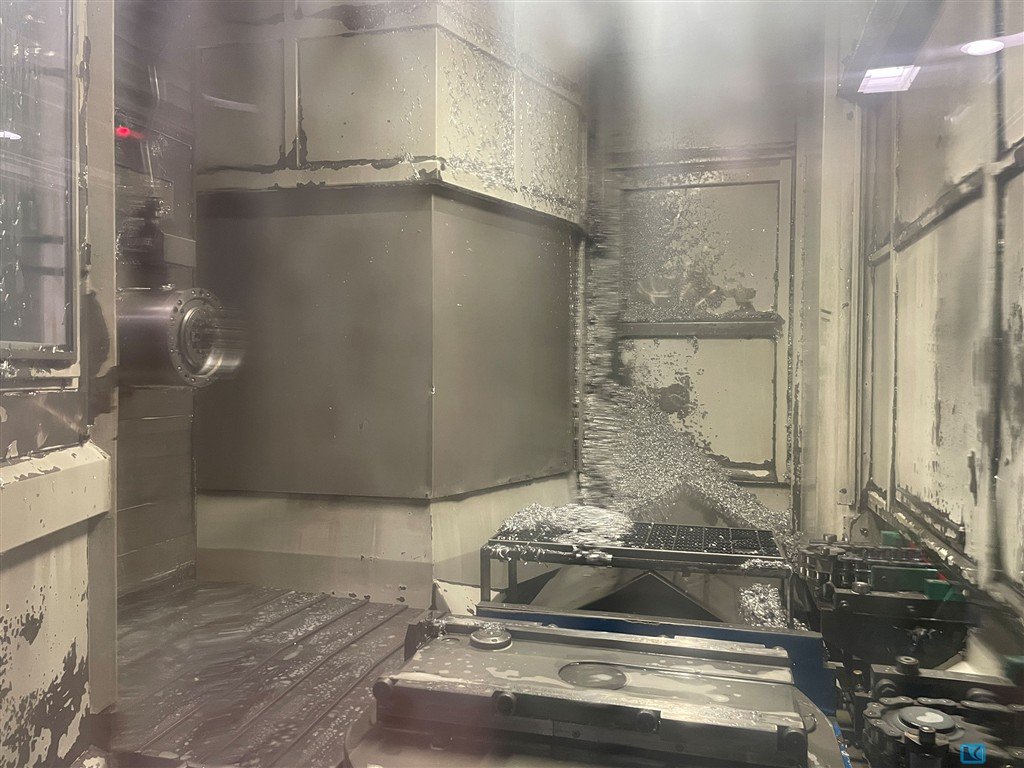

x-travel:1.100 mmy-travel:900 mmz-travel:1.250 mmtool length:750 mmrapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daNfeed capacity Z - max.:17.000 Nspindle taper:SK50 max. workpiece weight:1500 kgrevolutions per minute:10.000 U/minpallet table size:630 x 630 mmtool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

DIMENSIONS / WEIGHTS:. - total height:1000 mm

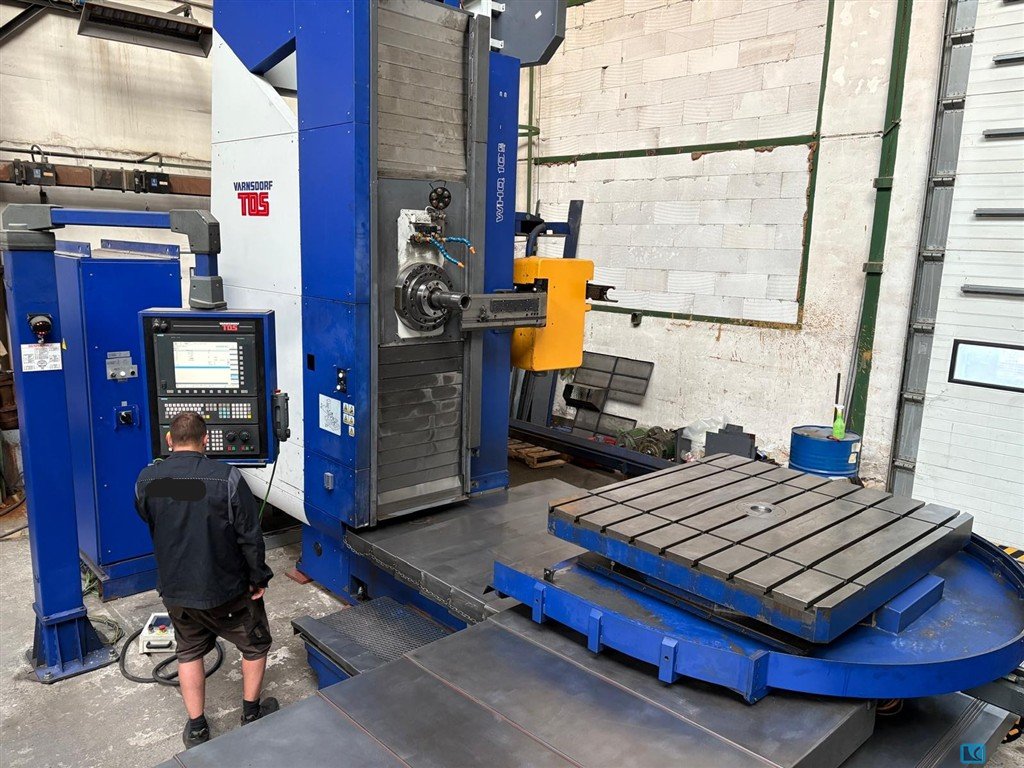

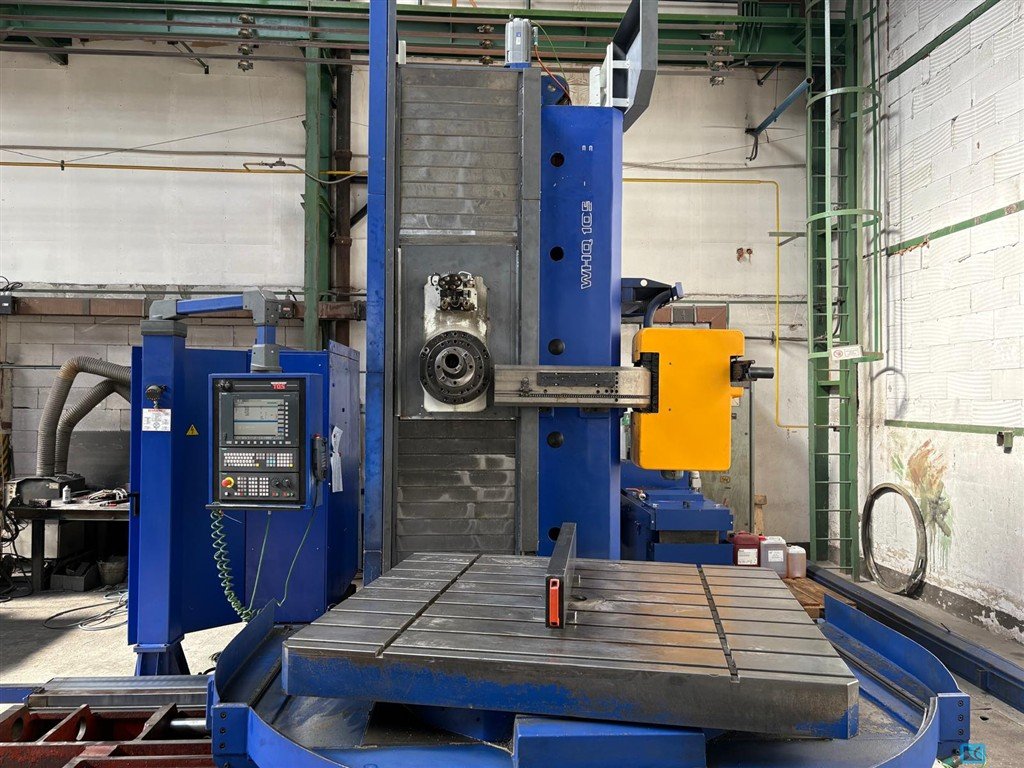

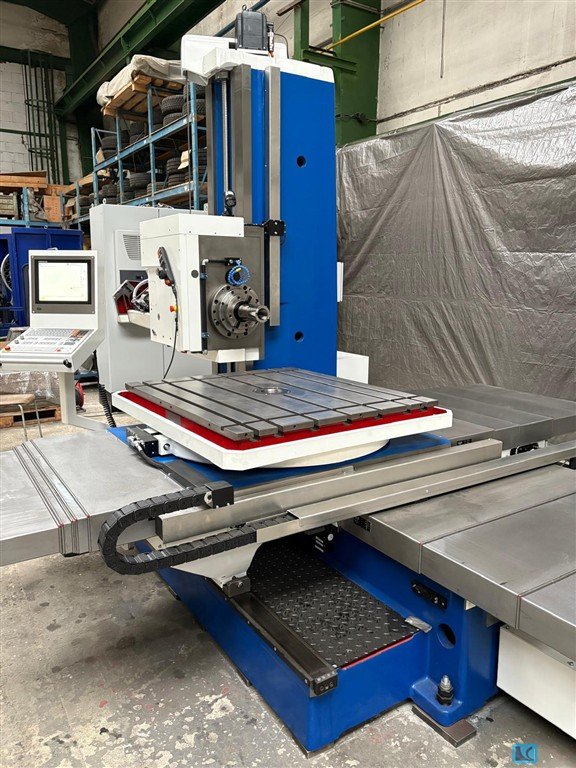

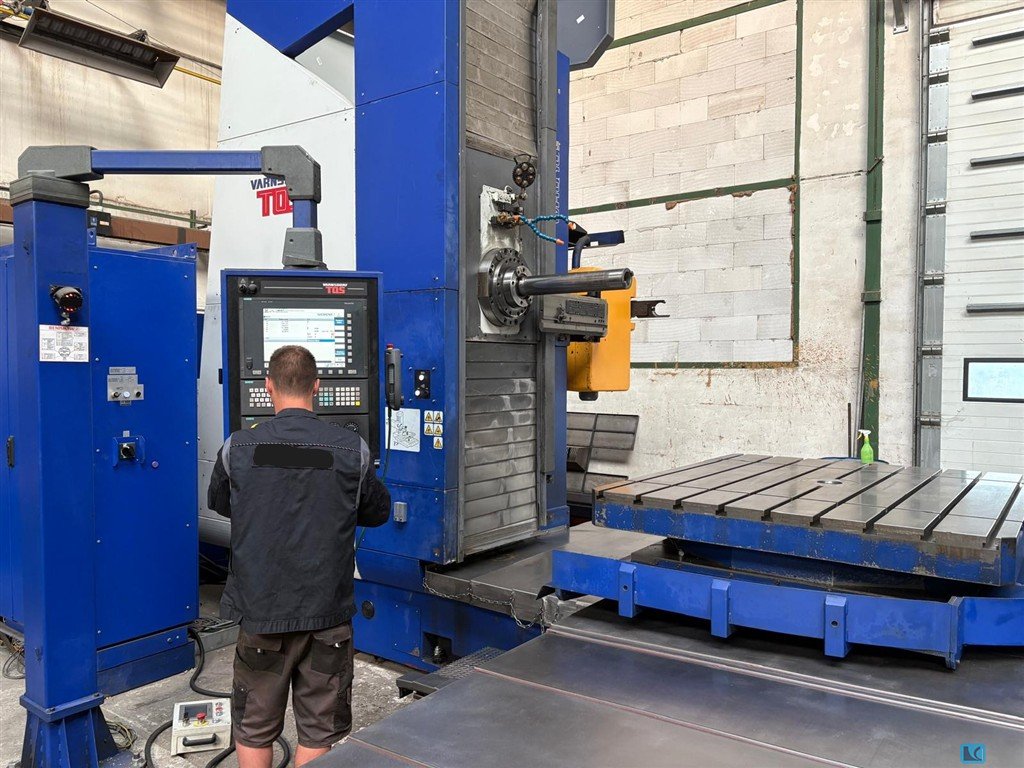

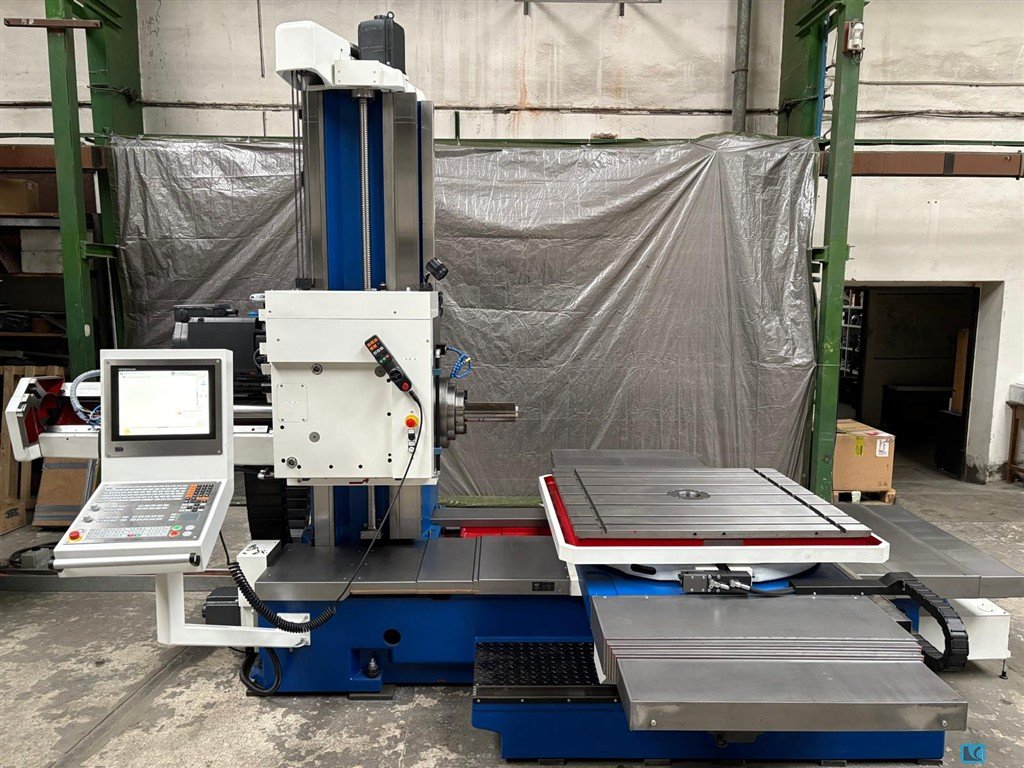

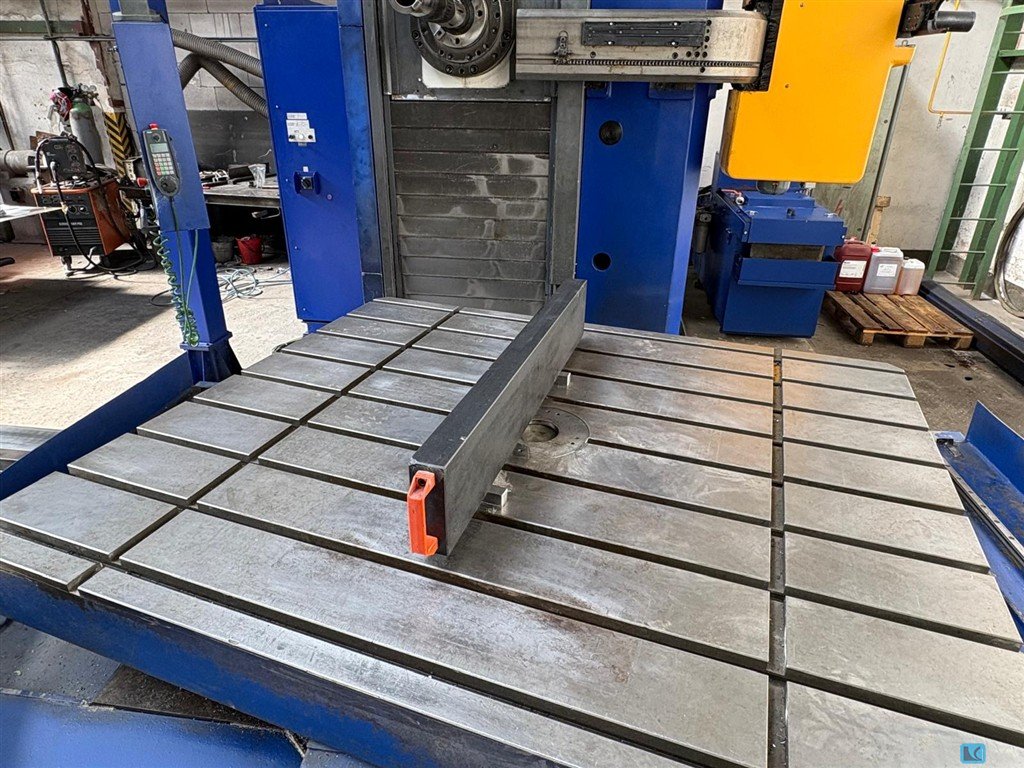

bore capacity in steel (diameter):- mmthroat:- mmbore stroke:- mmx-axis:1.800 mmy-axis:1.600 mmz-axis:1.250 mmw-axis:630 mmmax. table load:5.000 kgtable length:1.400 mmtable width:1.600 mmspindle diameter:105 mmspindle turning speed range:3.300 U/minnumbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary tableChip ConveyorOil cooling unit (chiller)Touch probe Renishaw RMP60Upgrades in 2024 and 2025Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZNew linear scales Heidenhain in X and Z axis including cablingretrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axisnew TOS Varnsdorf parts for tool clamping and automatic tool changer armOverhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)New Siemens hand wheel

DIMENSIONS / WEIGHTS:. - total height:1000 mm

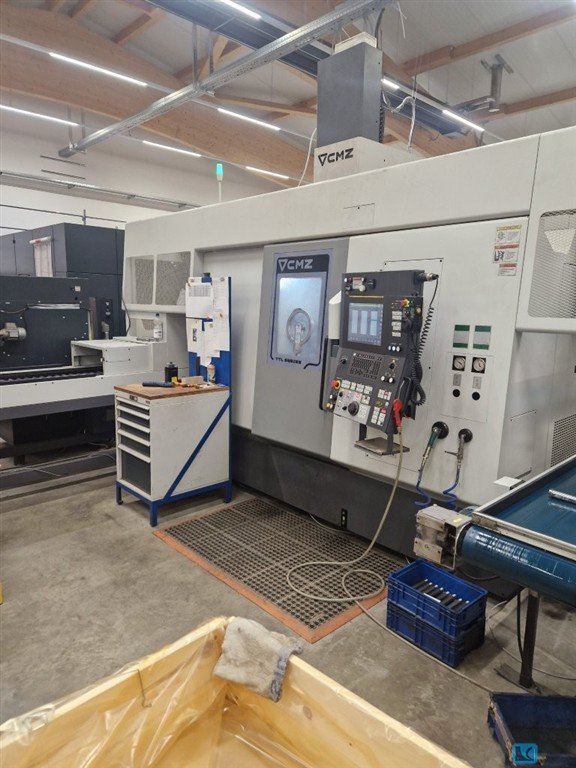

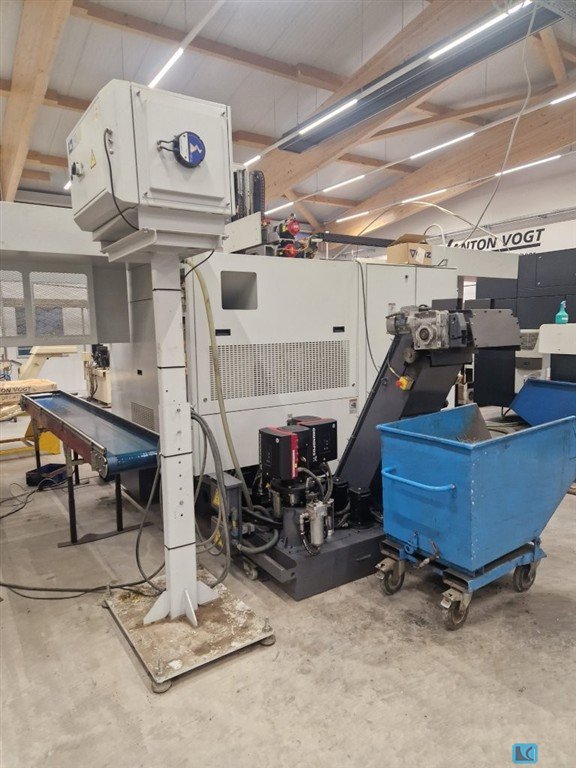

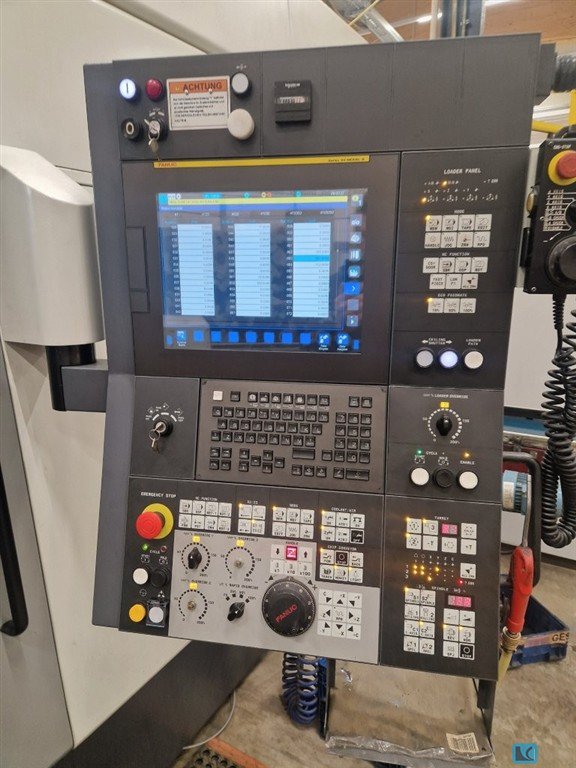

turning diameter:220 mmturning length:- mmcontrol:- distance between milling spindels:800 mmspindle speed max.:12.000 U/mindaylight:66 mmmachine weight ab.:11 ttotal power requirement:90 kVAFanuc controlTwo turretsTwo spindlesSpindle bore 66 mm on both spindlesTwo Y-axesParts gripperHainbuch chuck on both spindlesTailstock functionChip conveyorTool eyeShort bar loaderTool holder package

DIMENSIONS / WEIGHTS:. - total height:900 mm

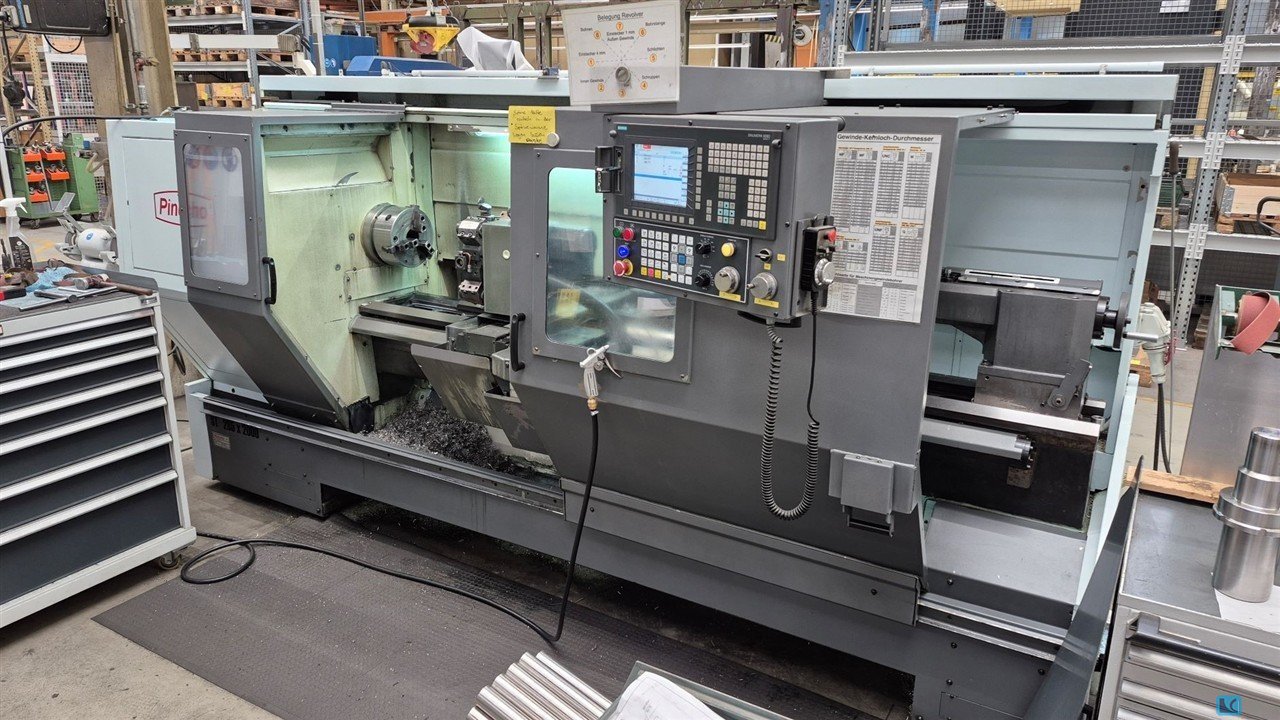

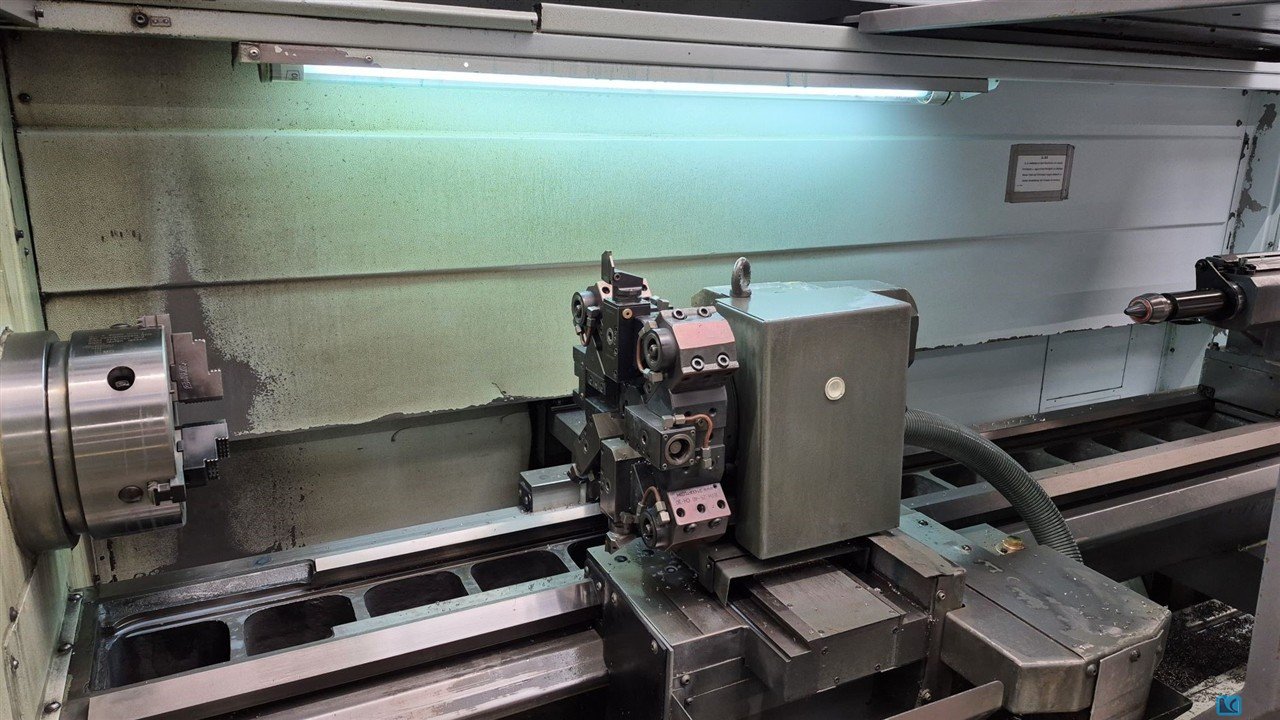

turning diameter:570 mmturning length:- mmcontrol:- Diameter of rotation above the bed slide:360 mmMaximum width:2.000 mmrevolutions per minute:max. 2500 U/min:11 kWmax. longitudinal feed:7,5 m/minmax. transverse feed:7,5 m/minrapid traverse longitudinal:12 m/minrapid traverse cross:15 m/minPinole diameter:95 mmPinolenhub:220 mmPinolen intake: MK 5 weight of the machine ca.:2,97 tdimensions of the machine ca.:3,8m x 1,3m x 2m mTechnical description:- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc- Machine bed - made of perlite casting GG-26- high stiffness due to strong ribbing- Bed slides - guideways hardened and ground- automatic lubrication of the bed rail- Reitstock - manual- Quick clamp- Operator station - two movable handwheels on the operator panel- a movable handwheel- Control - "Siemens 828 D" CNC control- Siemens "Comfort" (including Shopturn and re ...

Tamaño de caja 400x245x305mm; 15A/86V - 40A/96V; IP21S; pantalla digital; Auction-ID: A1-48424-334

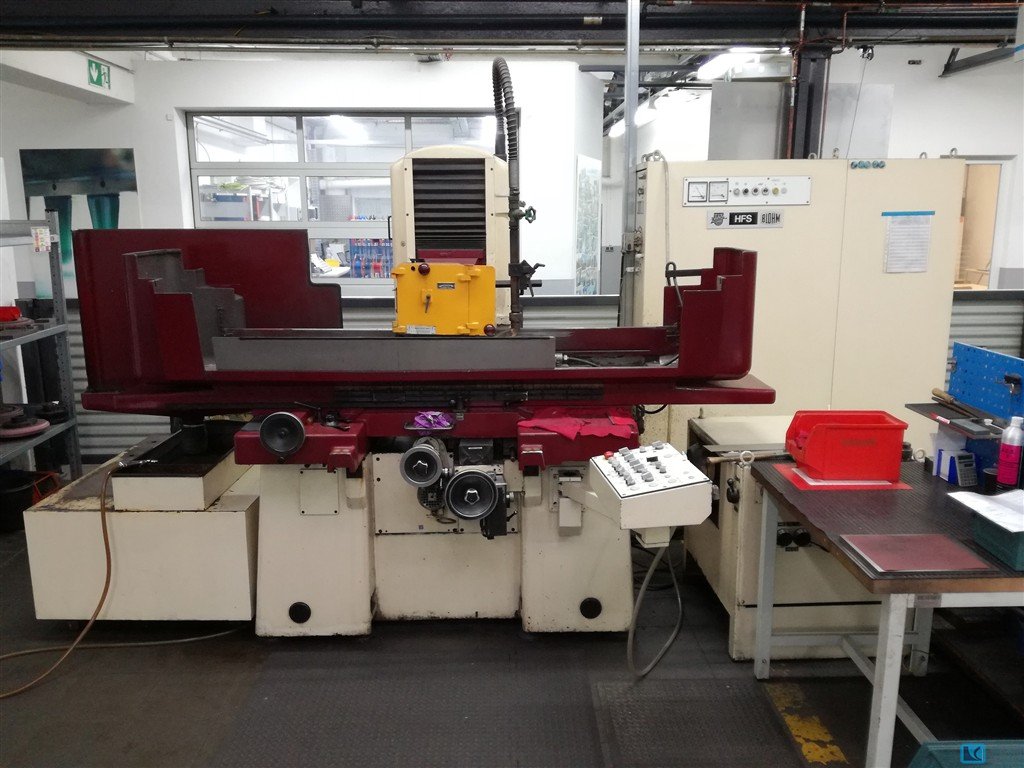

grinding length:900 mmgrinding width:400 mmworkpiece height:450/530 mmtable clamping surface LxW:1.320 x 300 mmmagnetic plate size:880 mm x 280 mm mmFinimaticCreep speedAdd-on for DiaformRectifier systemCoolant deviceInfinitely variable grinding clamping drive

Article: pickoff with shaftManufacturer: Schüttepickoff with shaft for Schutte multi spindle automatic lathe SF67 pickoff C26GFpickoff shaft C26GF9S1gear WG-67Sholder B73GF1S1Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

LINEAR AXLE:. - Number of moving slides:2 DIMENSIONS / WEIGHTS:. - space requirements length:15000 mm

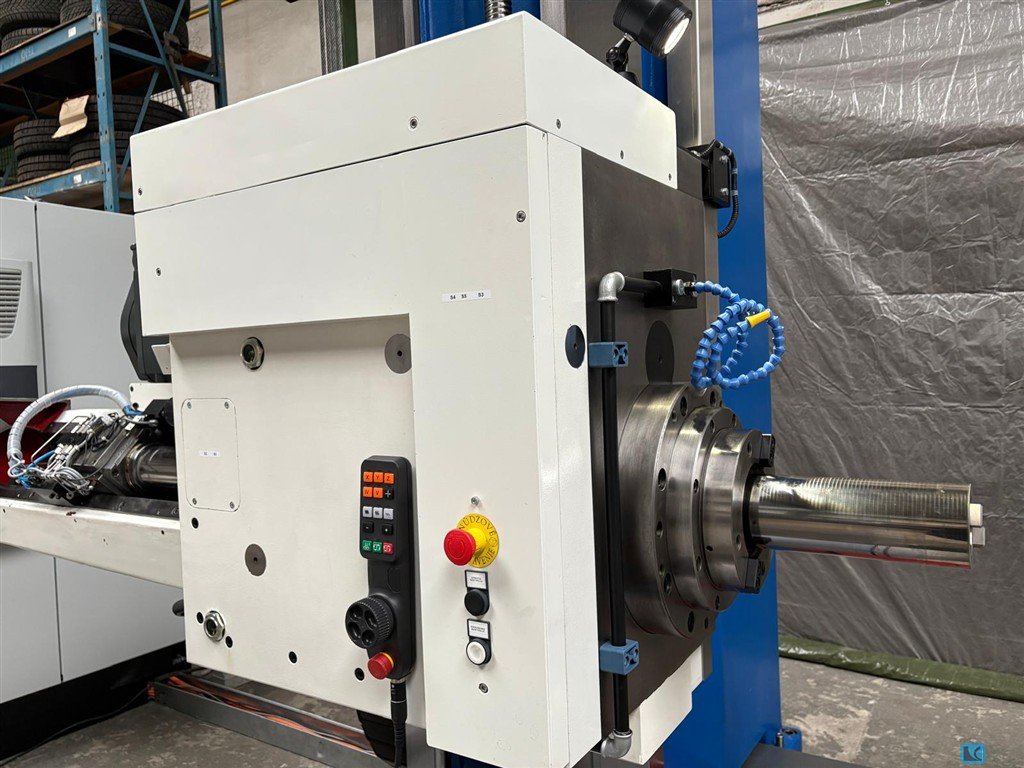

spindle diameter:100 mmx-travel:1250 mmy-travel:1100 mmz-travel:950 mmspindle turning speed range:2500 U/minRotary-table:1100 x 1000 mmtable surface area:1000 x 1100 mmtool clamping:69871 DIN spindle stroke:630 mmspindle taper:SK50 total power requirement:22/34 kWmax. workpiece weight:3000 kgweight of the machine ca.:13000 kg

LINEAR AXLE:. - Number of moving slides:2 DIMENSIONS / WEIGHTS:. - space requirements length:7000 mm

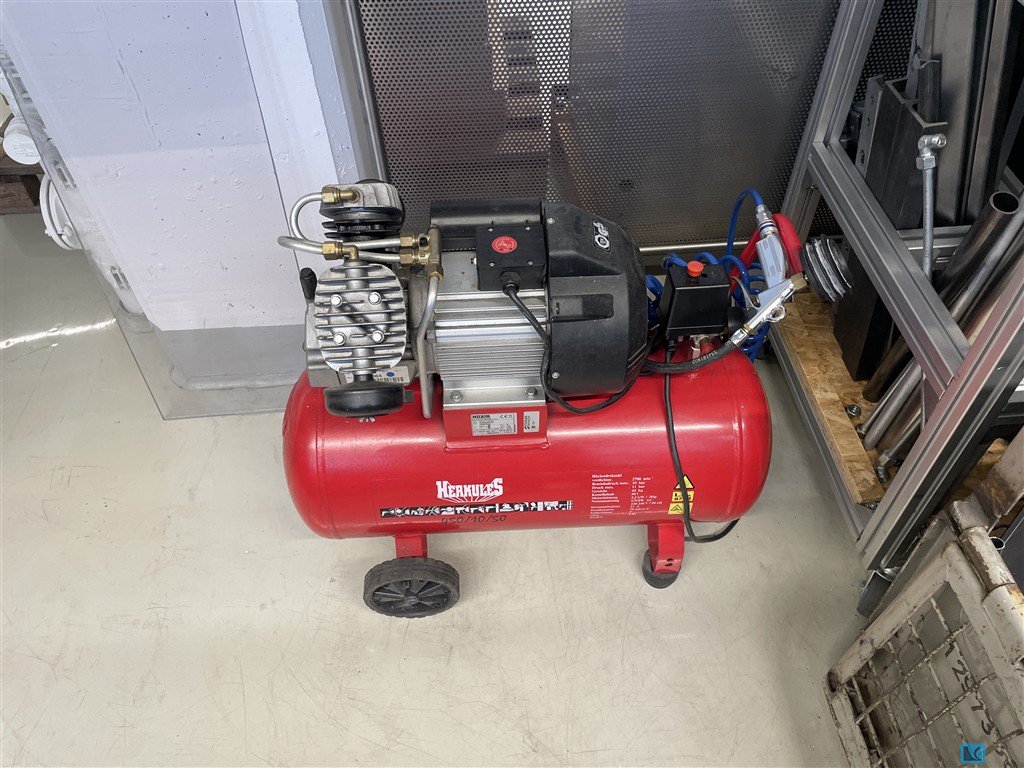

ParameterValueModel NameHerkules 450/10/50TypePiston Air CompressorTank Capacity50 litresMax. Operating Pressure10 bar Motor Power2.2 kW / ~3 HPVoltage230 V AC Frequency50 HzEngine Speed2800 rpmAir Intake Capacity400 L/minAir Delivery (Effective)320 L/min Noise Level95?97 dB Number of Cylinders2 (twin cylinder)LubricationOil-lubricated systemTypical UsesHome workshop, tire inflation, air tools, painting

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:10000 mm

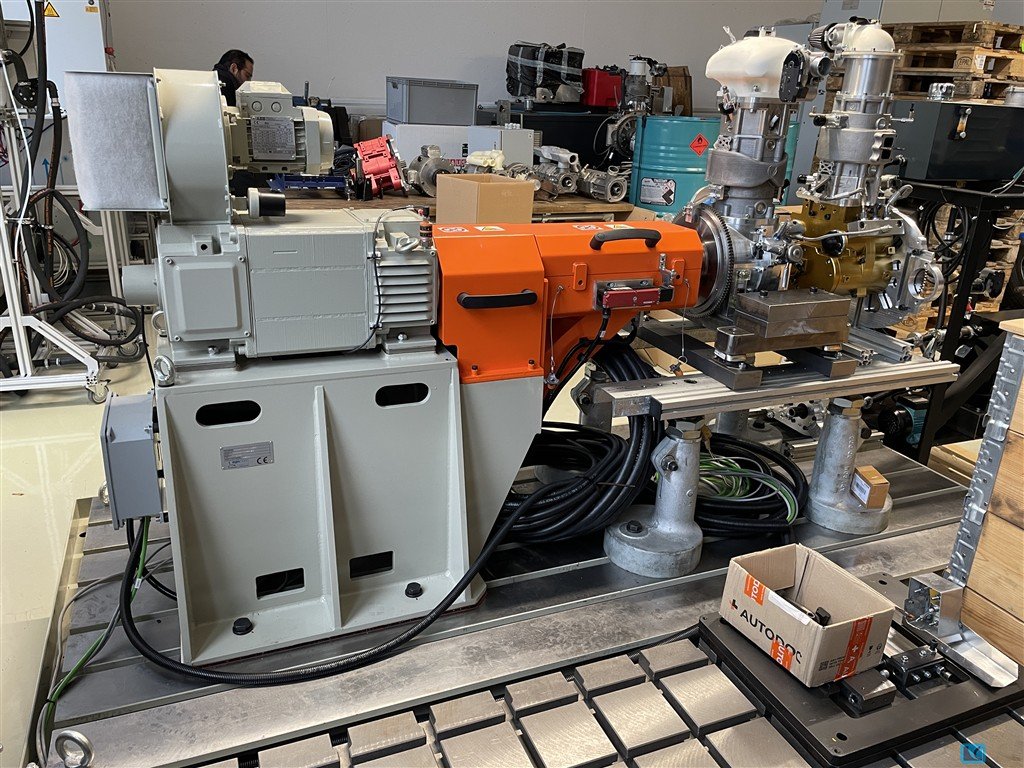

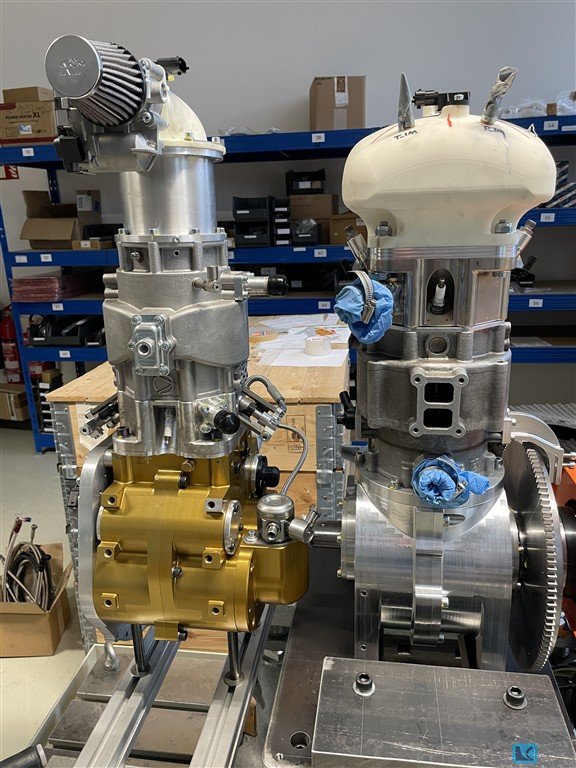

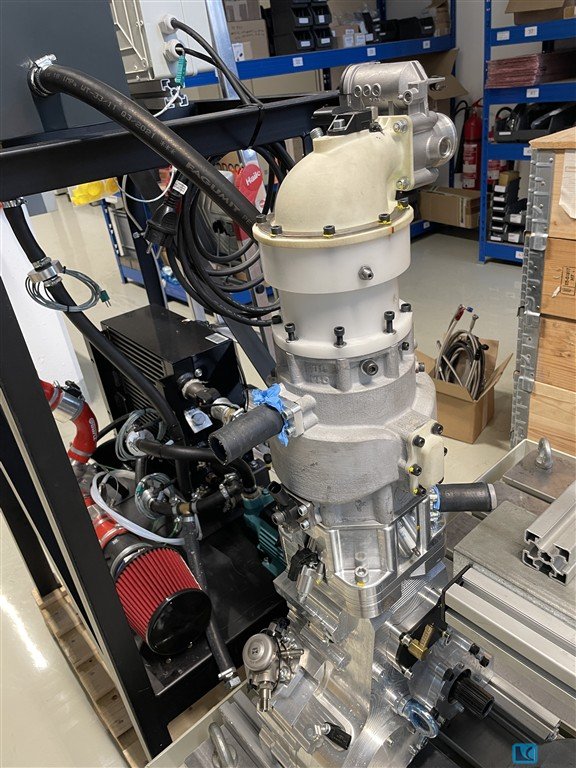

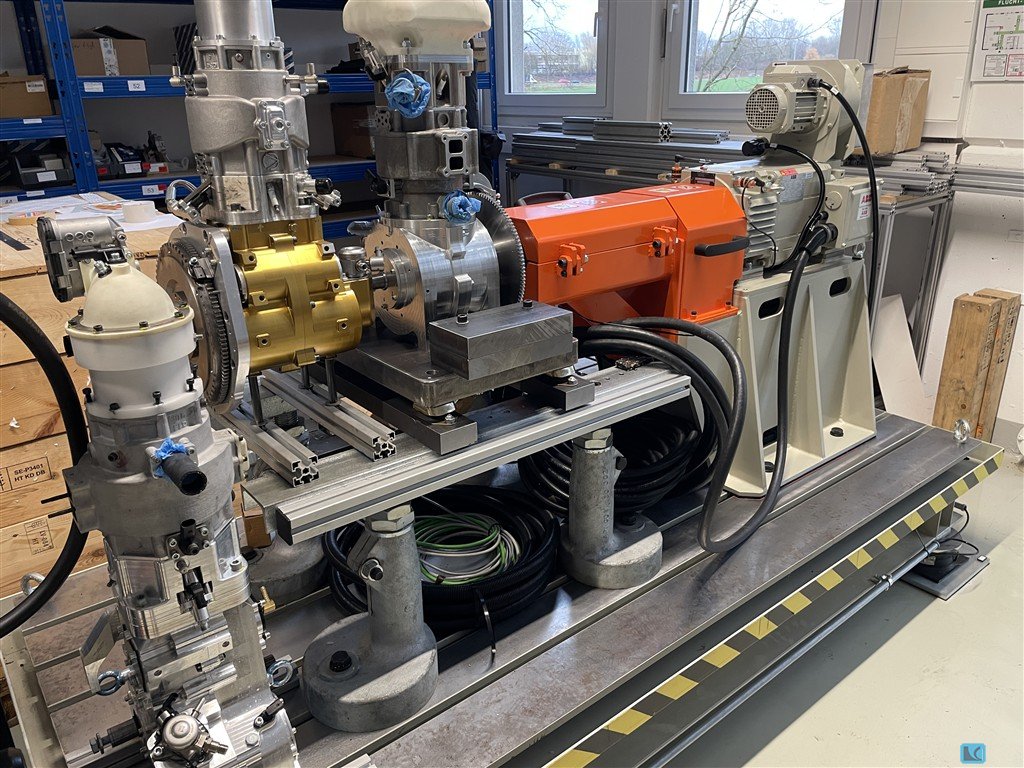

Performance·Max. motor power: 30 kW·Max. engine speed: 10,000 rpm·Rated torque (test bench): > 100 Nm·Max. braking torque: up to 122 Nm·Max. braking power: up to 46 kW (overload)Dynamometer·Type: AC asynchronous dynamometer, frequency-controlled·Voltage: 360 V·Cooling: Forced ventilation (IC06)·Protection class: IP23·Insulation class: F·Speed range: 0 ? 10,000 rpm·Continuous operation: up to 40 kW (depending on speed)·Overload capability: 1 min every 10 minMeasurement System·Torque measurement:oHBM T12HP torque flangeoMeasurement range: 200 NmoAccuracy class: 0.02·Speed measurement:oIncremental encoder, 1024 pulses/revoAccuracy: ±0.01 rpm·Vibration monitoring:oIntegrated vibration sensorMechanical Structure·Slotted base plate with air suspension (Bilz air springs)·Vibration-damped test bench·Motor mounting system:oAdjustable aluminum frameoMax. motor weight: 500 kgoCo ...

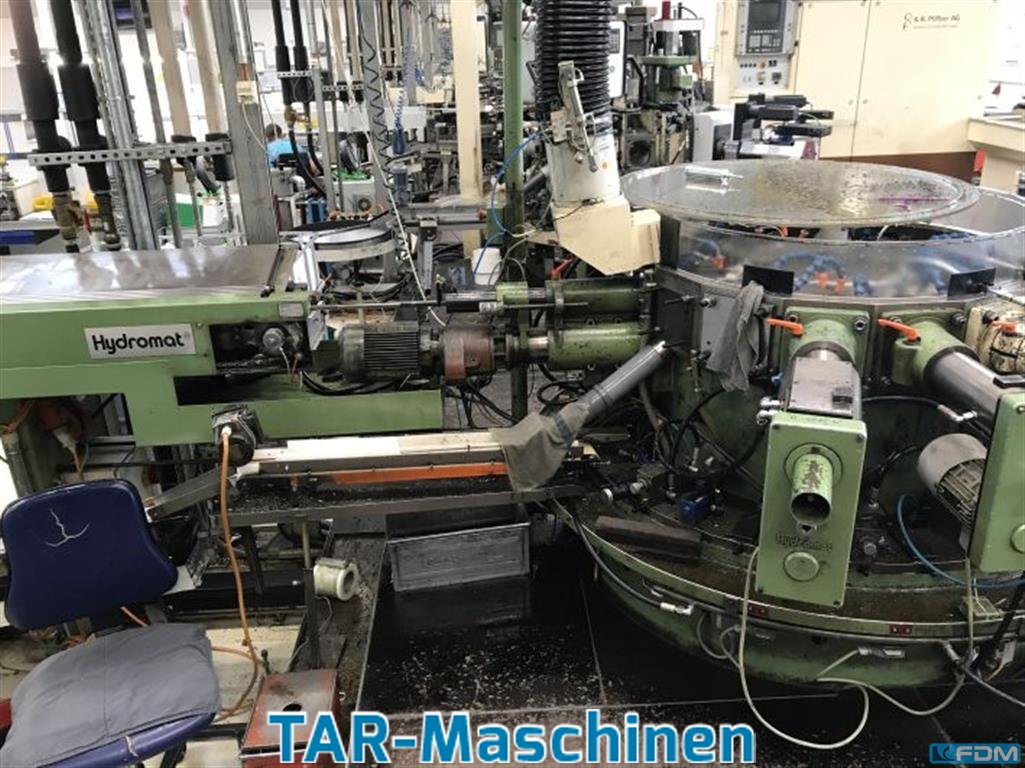

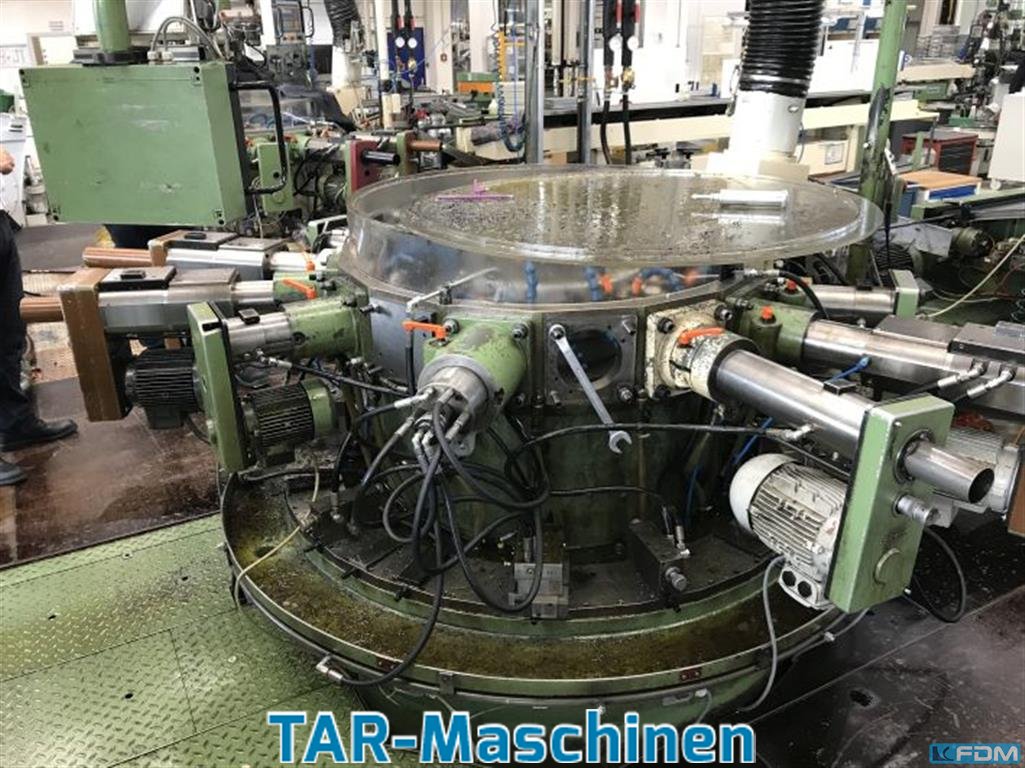

automatic switch plate1x saw unit with saw, head and saw valve 40/801x turning unit with turning valve 30/60 with flange9x units 30/60 with valve normal and flanges5x units 20/50 with valve normal and flanges1x oil distributor WK9; 1x bar feeder 4 meters; 1x chip conveyor VR500;1x hydraulic unit1 Knoll oil filterWithout collets and ejectors, without platform and without tool monitoring.supplied tooling may differ from the pictures.We can send you more pictures.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

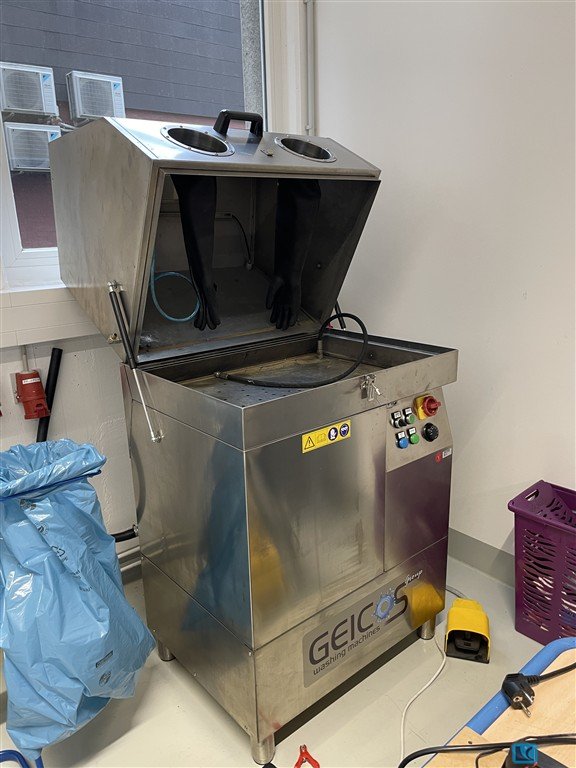

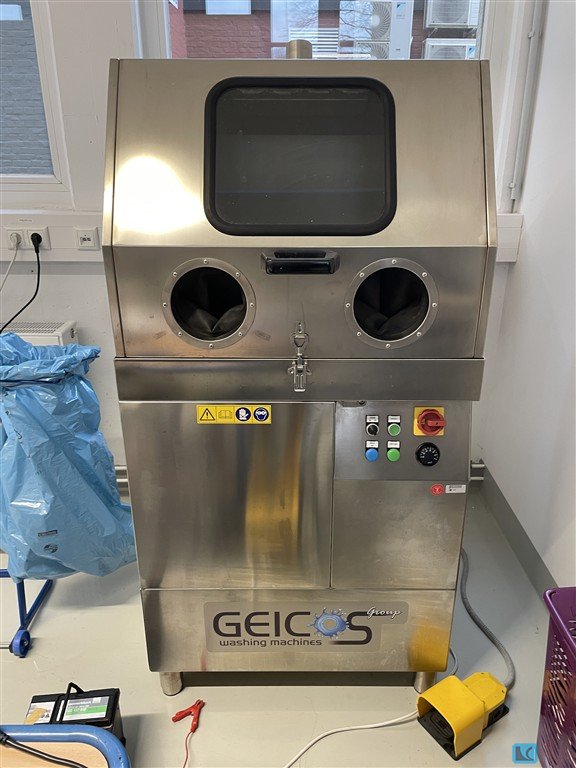

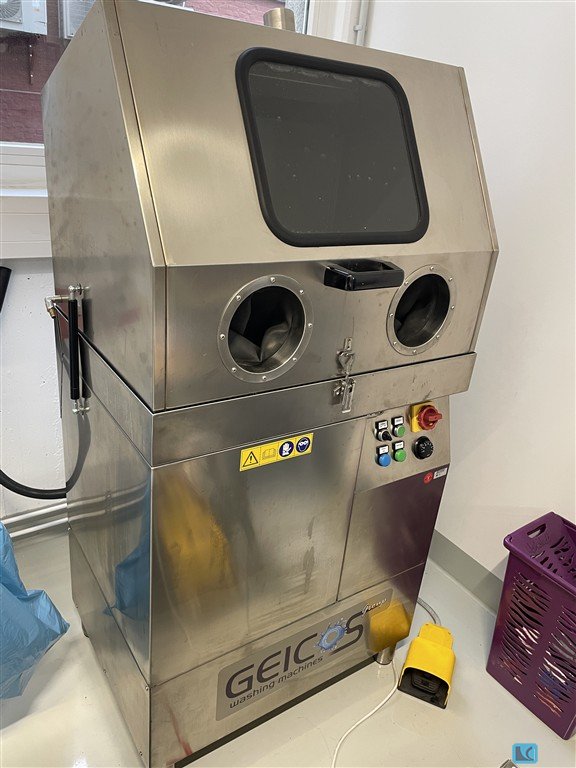

Max. basket weight:50 kgTemperature for washing water:0-60 °CElectrical heating power:2 kWRated power supply:230 VMachine size LxWxH:600x800x1650 mmMachine weight:90 kgDIMENSIONS DxWxH600x800x1650 mmPOWER SUPPLY230 VDETERGENTwaterPUMP POWER1.2 kWTANK CAPACITY100 lLOAD CAPACITY50 kgHEATING ELEMENTS POWER2 kWHEATING TEMPERATURE0-60°WORKTOP DIMENSIONS750x550 mmWEIGHT90 kg

LINEAR AXLE:. - Number of moving slides:3 DIMENSIONS / WEIGHTS:. - space requirements length:16000 mm

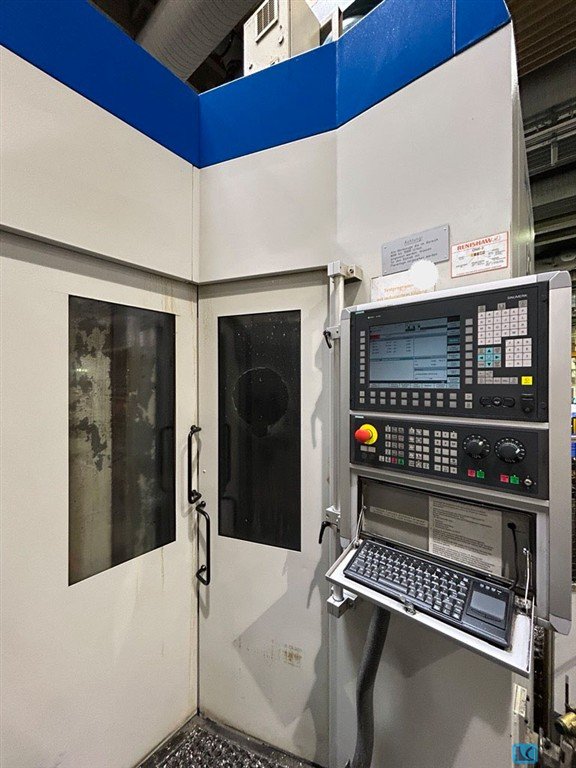

travel -x axis:800/1825 mmtravel -y axis:800/460 mmtravel -z axis:600 mmFeeding X,Y,Z up to:0 - 40/40/40 mm/min.swival range +/-:+10 bis -90 x 360 GradRotary-table:800 x 630 mmnumber of T-slots:5 T-slot - distance:125 mmT-Slots:18 mmcenter hole:30H7X15 mmswival range +/-:90 Gradturning speed:20 m/min.Number of axles:3-7 St.Spindle RPM:12.000 1/minmax. tool weight:10 kgmax. tool length:330 mmdiameter of tools max.:80 mmtool changing time:4 secCNC control with15.1" color flat-screen19" machine control panelPCU 50 with Intel Pentium IIWindows XP10.0 GB hard drive

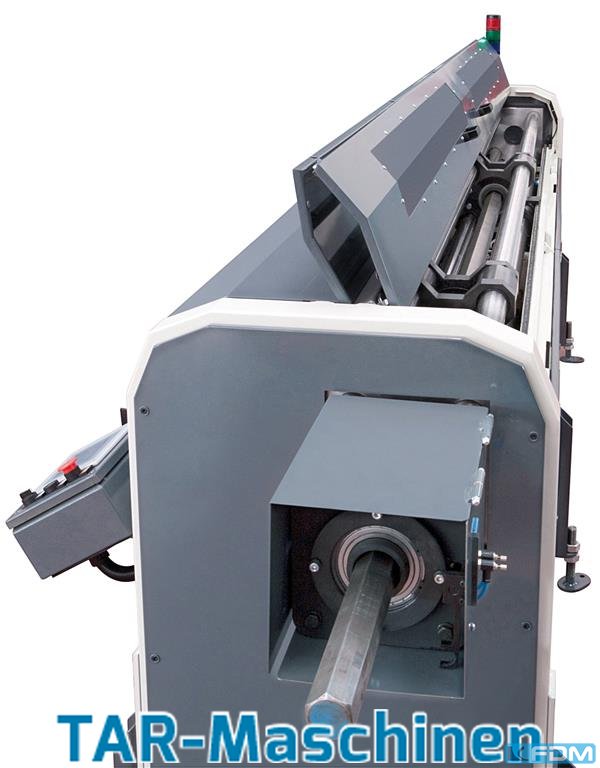

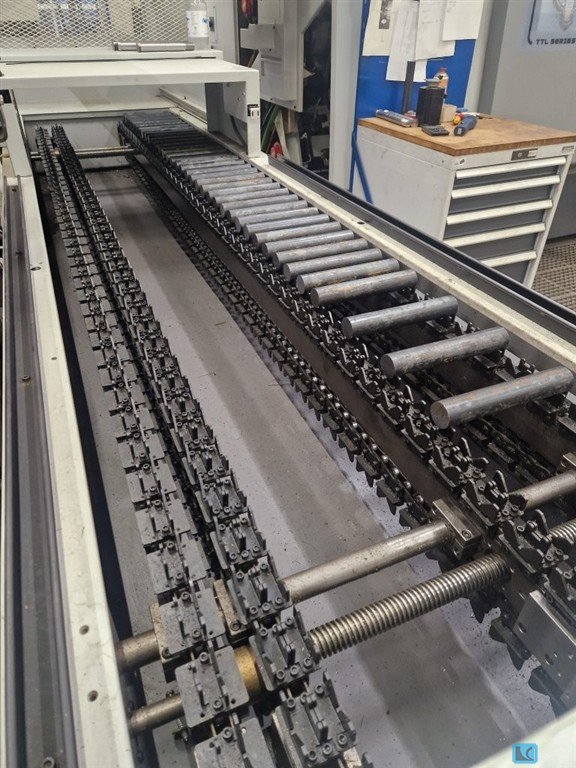

Automatic bar loading magazine for single spindle automatic lathe / short lathe, newTEST the new DB-EVO bar loader4 WEEKS, NON-BINDING, FREE OF CHARGE (conditions on request)very high speeds even with profile materialManufacturer: Giovanni CucchiMachine type: Automatic bar loading magazine for single-spindle / short turningType: DB-EVODesign: Surface loading magazine or bundle loading magazinediameter range: 20-110mmDB-EVO at a glance:Scope of delivery and optionally orderable functions:- oriented loading of the bar material possible (e.g. edge upwards) - optional feeding of saw cuts and short parts possible - optional- Monitoring and fault diagnosis (touch screen)- Surface magazine- Bundles and other variants possible- automatic loading of short bars- Trays for tools- low power consumption (start/stop function)- Available in versions for 1.5, 1.8, 2.5, 3.3, 4.2 and 6.1 meter rod length  ...

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:12000 mm

Keyence Digital Measuring Projector ? Model XM-1600General:Digital measuring projector with a high resolution image measurement system and very easy operation. Place the part on the stage and measure by pressing a button. Supports automated measurements of up to 300 dimensions within seconds.Measuring Head / Control Unit:·Sensor: Monochrome CMOS 1 inch, 20 megapixels·Display: 12.1 inch LCD monitor (WXGA 1280 x 800)·Lens: Double telecentric lensMeasuring Field and Measuring Range:·Standard measuring field: approx. 100 mm diameter·Precision mode measuring field: approx. 25 x 25 mmMeasurement Accuracy and Repeatability:·Display resolution: 0.1 micrometer·Repeatability (standard, without stage movement): approx. plus minus 1 micrometer·Precision mode (without stage movement): approx. plus minus 0.5 micrometerStage / Travel Axes:·XY measuring stage: motorized·Z axis: approx. 75 mm,  ...

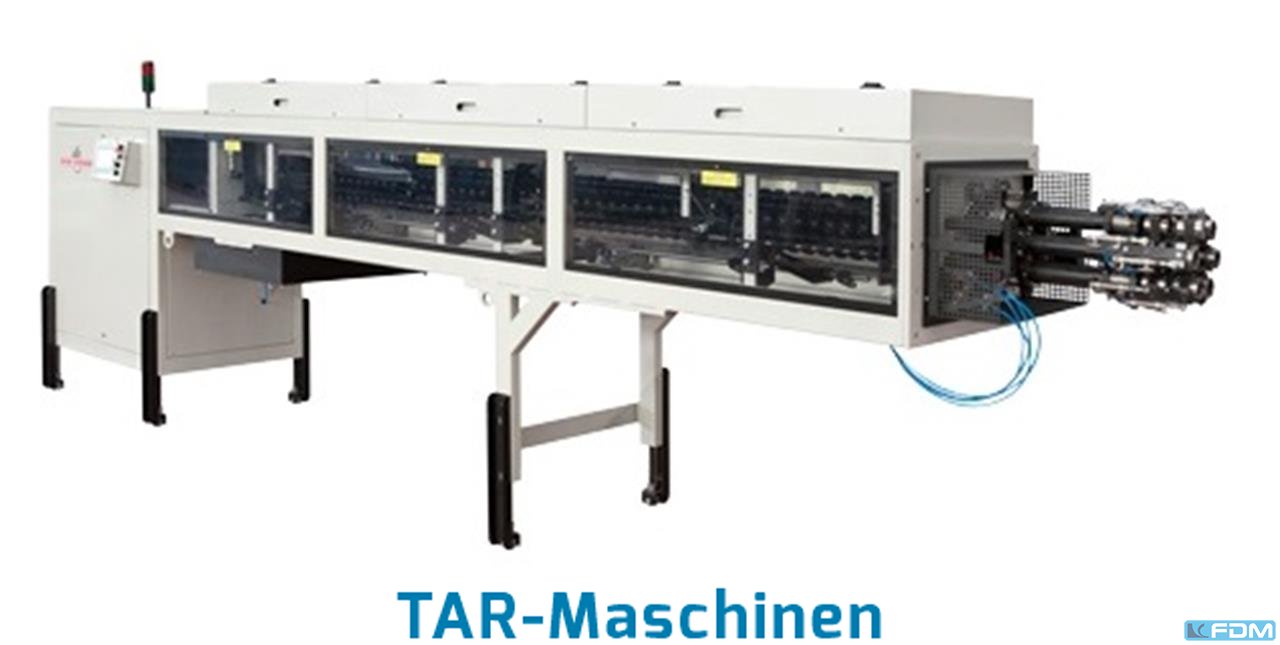

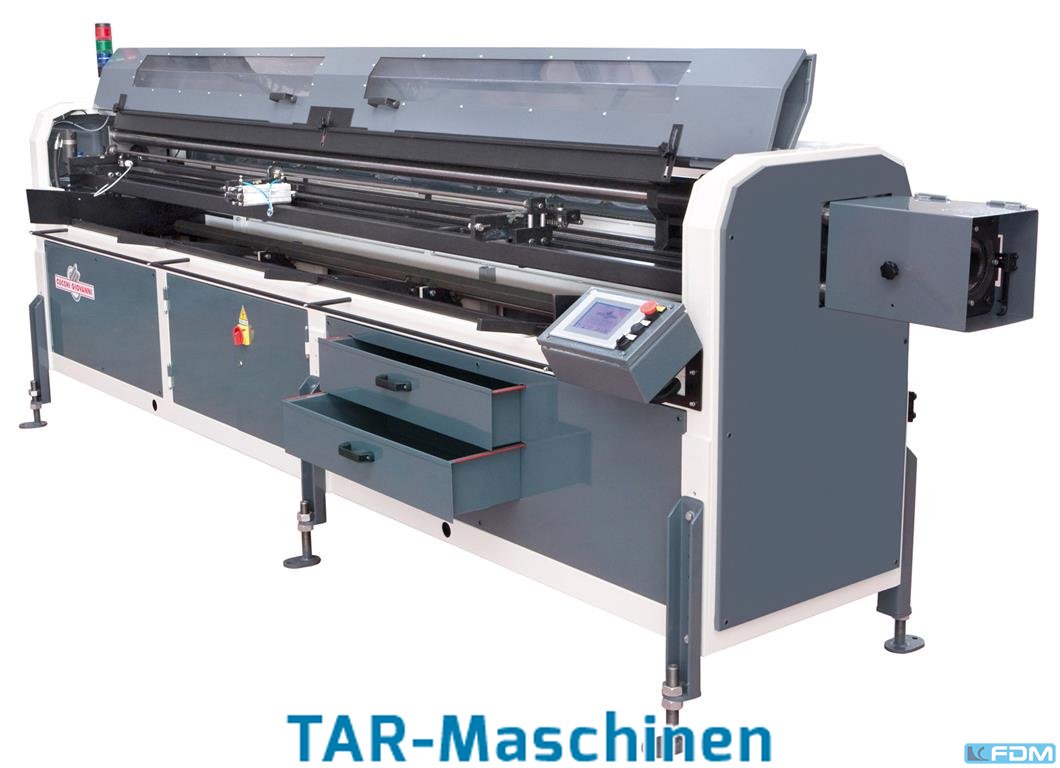

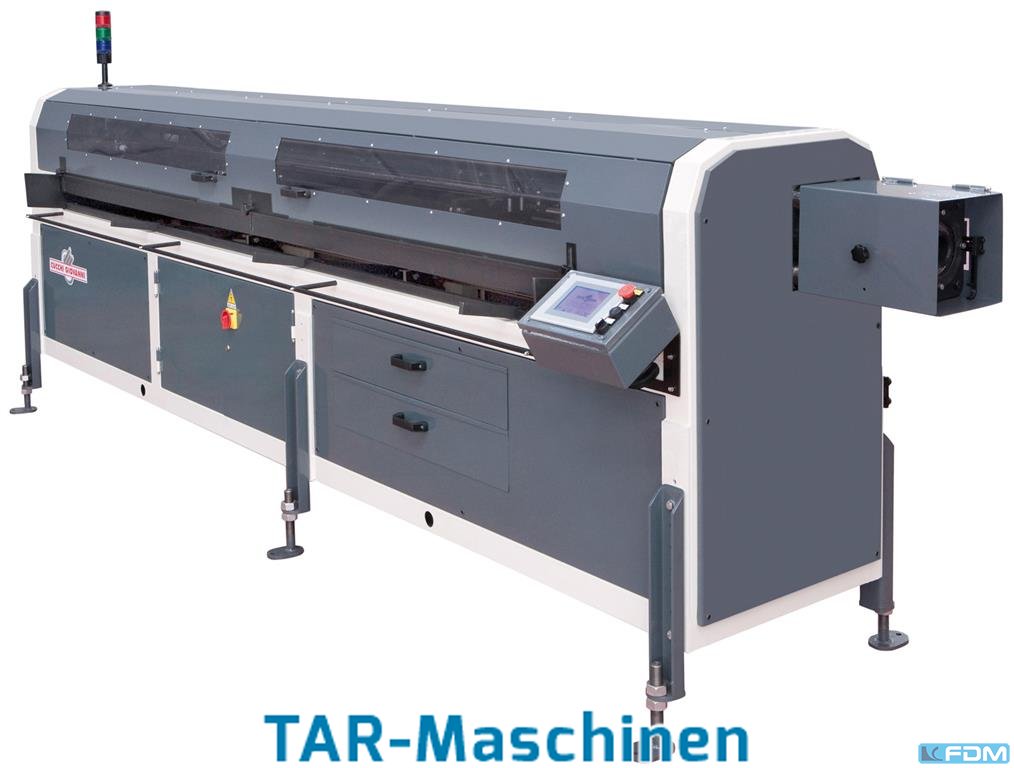

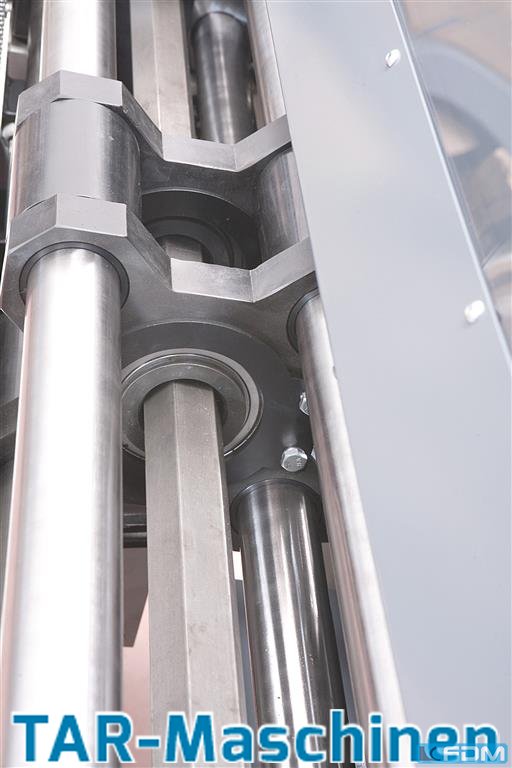

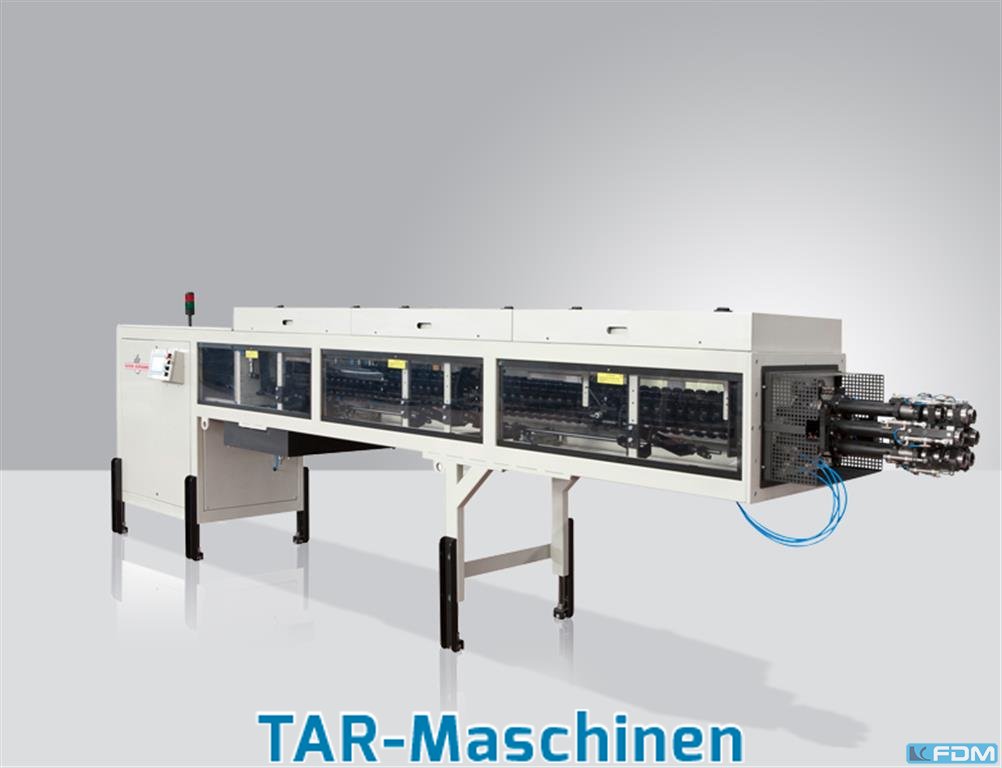

Bar loading magazine for multi spindle automatic lathe, newManufacturer: Giovanni CucchiMachine type: Bar loading magazine for multi-spindleType: CMSP/CMSPFDesign: Side loader as surface loading magazine or bundle loading magazineCMSP / CMSPF at a glance:Proven technology - in use for decadesThe material feed of this loader generation is carried out by the loading magazine. Bar loading magazines CMSP/CMSPF are mounted on rails, so they can be easily disconnected from the machine at any time by unlocking them at the quick release.These magazines do not require bar tubes on the machine and are screwed directly to the machine. It is possible to work in automatic mode as well as in manual mode.The magazine is mounted on rails, so it can be easily disconnected from the machine at any time by the operator by unlocking it on the machine. To change bar diameters, only the clamping sleeves of the ...

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

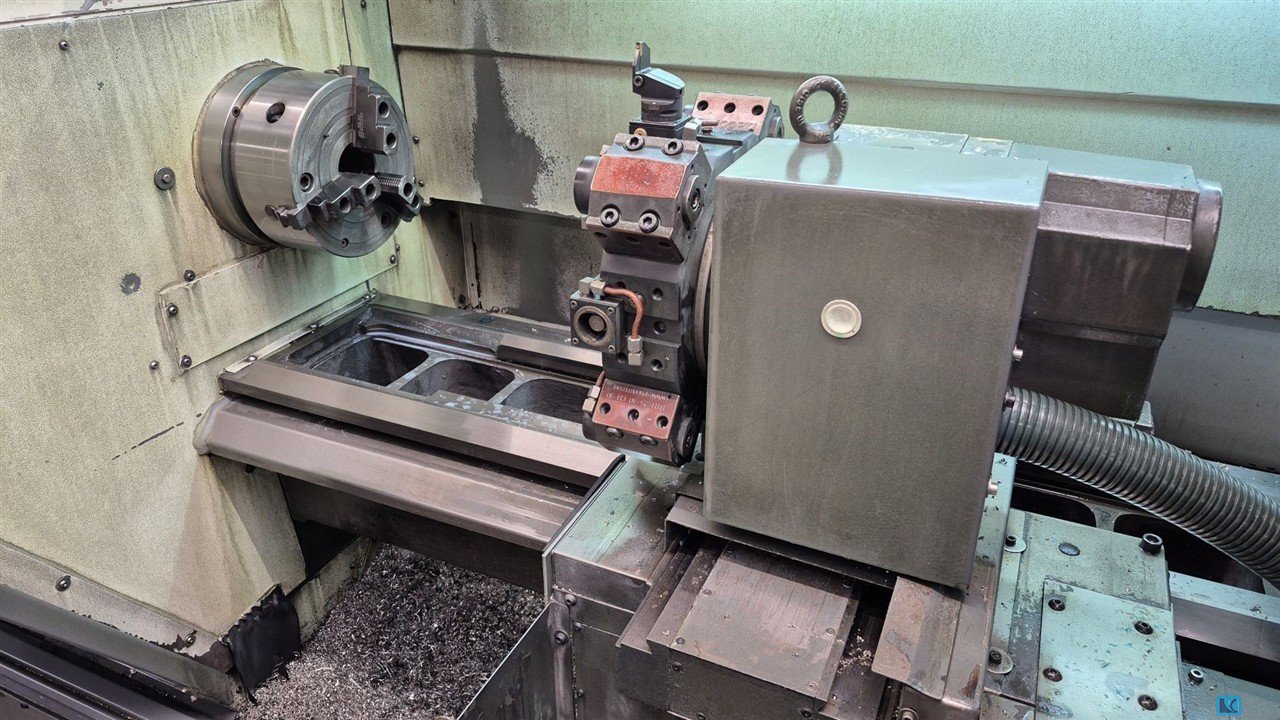

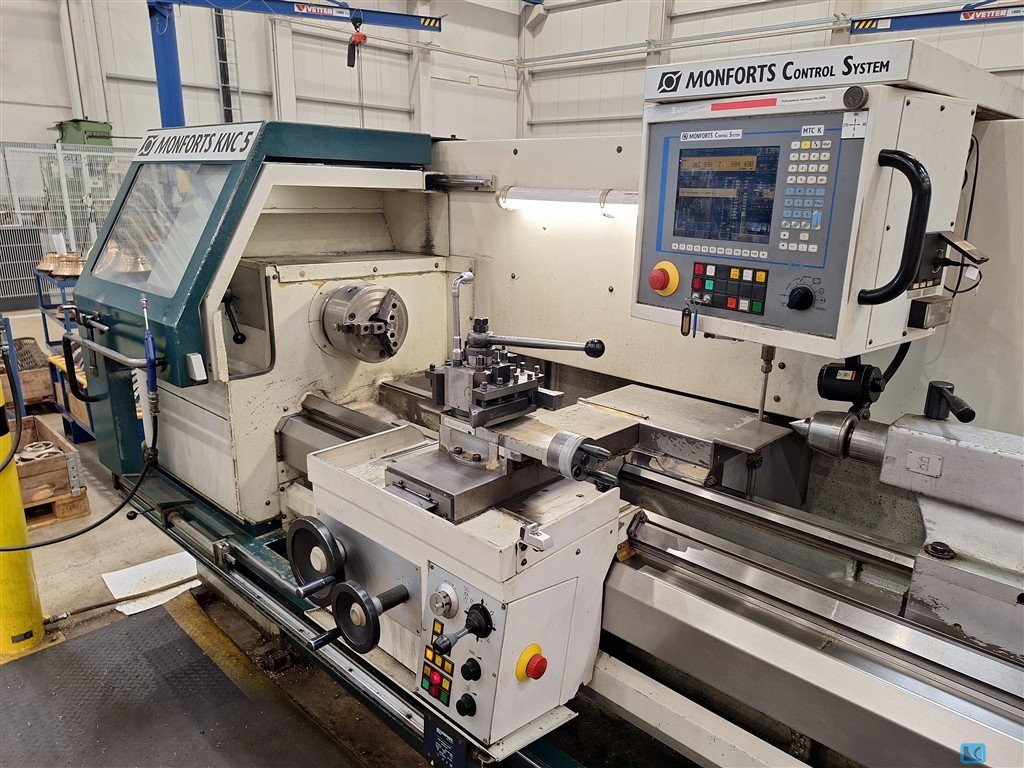

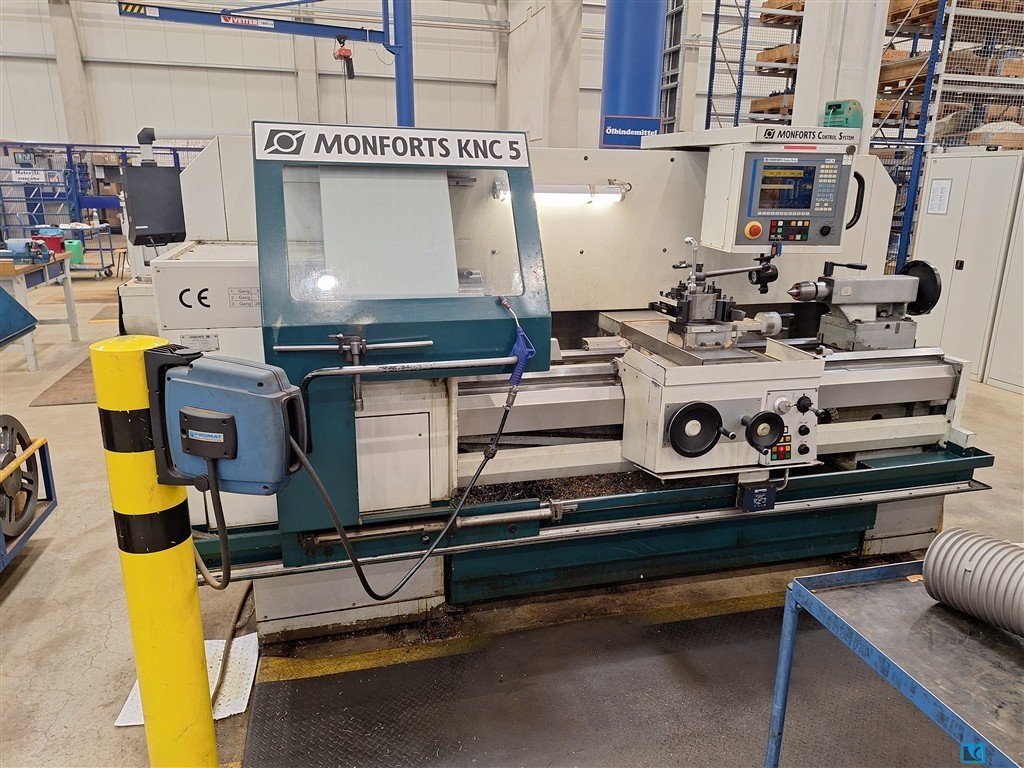

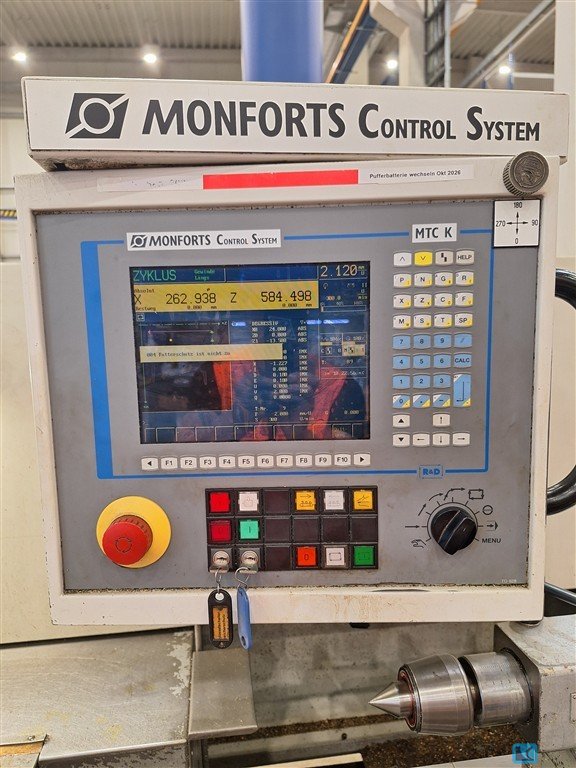

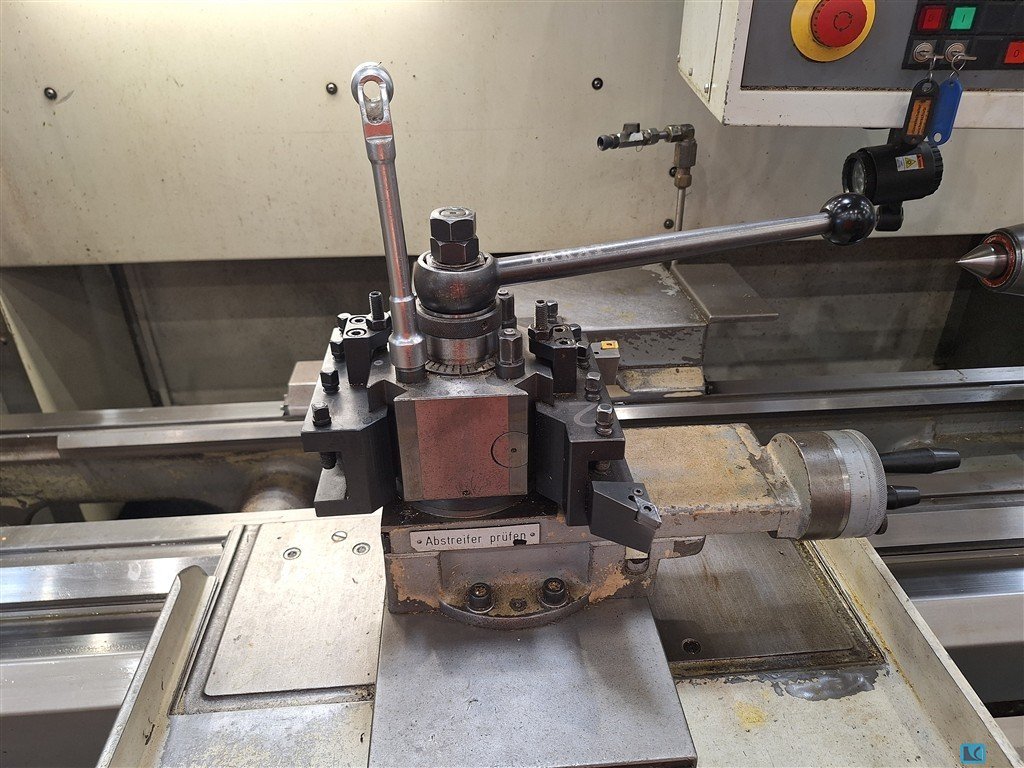

turning diameter:500 mmturning length:1500 mmTechnical Specifications:·Turning diameter over cross slide: 290 mm·Spindle bore: 71 mm·Speed range: 3?2,800 rpm·Rapid traverse speed: 10 / 5 m/min·Feed rate: 1?2,000 mm/min·Total power requirement: 22 kW·Machine weight: approx. 3.2 t·Space requirement: approx. 3.0 × 1.6 × 2.0 m

LINEAR AXLE:. - Number of moving slides:3 DIMENSIONS / WEIGHTS:. - space requirements length:24000 mm - total weight approx.:10100 kg
