otras máquinas para el procesado de metales usadas para la venta (11,133)

length:1600 mmwidth:1000 mmplate height:200 mmweight of the machine ca.:1 tdimensions of the machine ca.:1,6 x 1,0 x 1,3 mHardstone measuring plate with support desk and 2 tailstocks

working area:2500 mmFree moveable 6-axis measuring device- operating software- W-Lan- ball tracer

workpiece diameter: 5 - 1.000 mmmodule range: 0,2 - 25 helix angle: < 90 °Control: Wenzel GearTec faceplate diameter: 750 mmx-axis: 1.200 mmy-axis: 550 mmz-axis: 1.000 mmtotal power requirement: 6,5 kWweight of the machine ca.: 11 tdimensions of the machine ca.: 3,30 x 3,15 x 2,70 mSoftware:BMain, FPDFPPostAction, GrafTool, TAlign,TAnalyse, TApplication, TCali, TCut_INPUT,TCut_MEAS_EVAL, TGear_INPUT, TGear_MEAS_EVAL,THob_INPUT, THob_MEAS_EVAL, TMesblatt, TPlot,TRoot_INPUT, TShaft_INPUT, TShaft_MEAS_EVAL,TStat, TStylus, WMI, wingeco.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Basket size LxWxH:600 mmMax. basket weight:80 kgNo. of washing chambers:1 Temperature for washing water:60 °CElectrical heating power:4 kWtotal power requirement:5 kWLoading:Höhe bis 300 tank capacity:50 lCapacity:60 l/minMachine size LxWxH:0,75 x 1,0 x 1,2 mStainless steel high pressure cleaning machine for industrial use with basket diameter 600 mmWorkpieces will be cleaned with hot water, cleaning compound and high pressure in turnable baskets- pneumatic spring supported machine lit- stainless steel driven basket- spraying bars and pump stainless steel design- loading basket with Jog function

faceplate diameter:4000 mmswing diameter:4300 mmturning height:2500 mmmax. workpiece weight:63 ttotal power requirement:125 kWweight of the machine ca.:134 tdimensions:6100x10400x8400 mmUsed Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

Auction-ID: A1-48257-2133

Usado sin comprobar Auction-ID: A7-48592-16

bore: 40 mmlength: 110 mmmaterial: Stahl The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Technical description :- RAPID ACTION DOOR - Height = 2000mm- Width = 1800mm

Technical description :- RAPID ACTION DOOR - Height = 2000mm- Width = 2000mm

Pressure:175 tchamfer lenght:4100 mmdistance between columns:3600 mmcolumn arm:410 mmram stroke speed:180 mm/secreturn speed:135 mm/secworking speed:10 mm/secwork stroke:275 mmoil volume:200 ldayligth:550 mmtable height:900 mmtable width:90 mmtotal power requirement:15 kWweight of the machine ca.:12000 kgdimensions of the machine ca.:5100 x 2150 x 2850 mm

DIMENSIONS / WEIGHTS:. - total height:1000 mm

DIMENSIONS / WEIGHTS:. - total height:900 mm

x-travel:1000 mmy-travel:600 mmz-travel:550 mmfixed clamping table:1200 x 600 mmspindle drive motor:9 kWspindle taper ISO:40 spindle turning speed range:10 - 5000 U/minfeed range:2 - 6000 mm/mintotal power requirement:15 kWweight of the machine ca.:6 t

DIMENSIONS / WEIGHTS:. - total height:900 mm

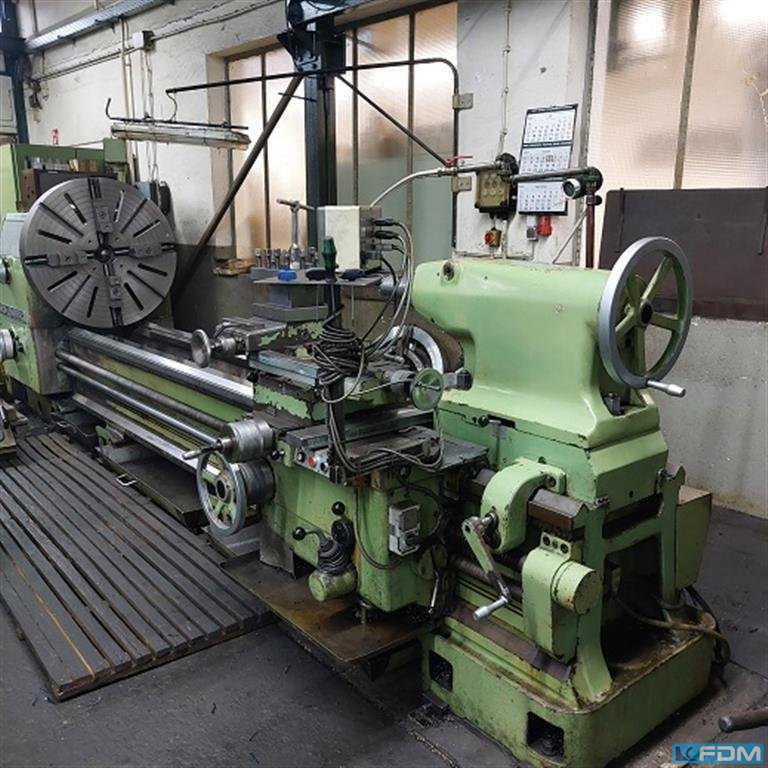

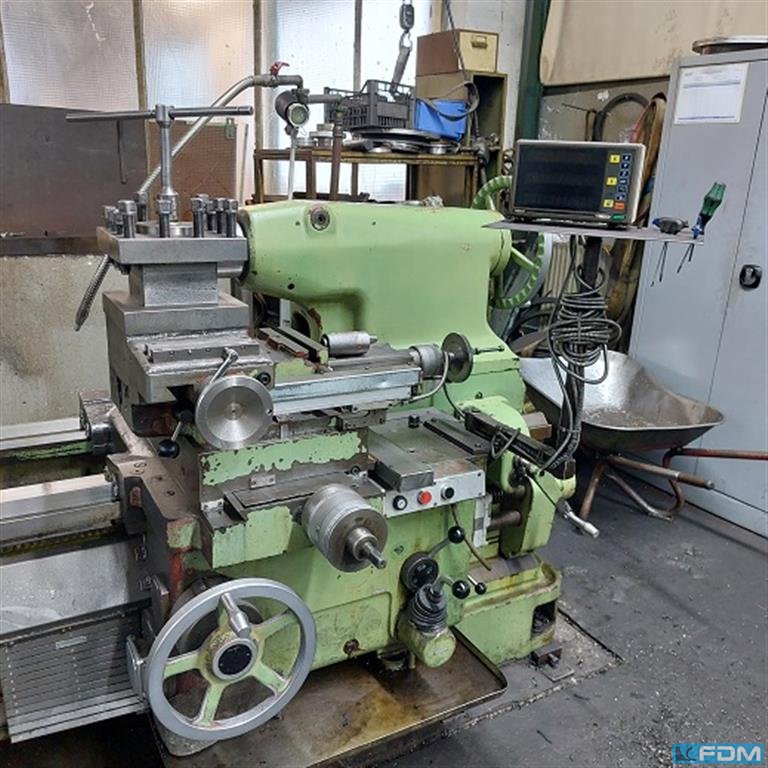

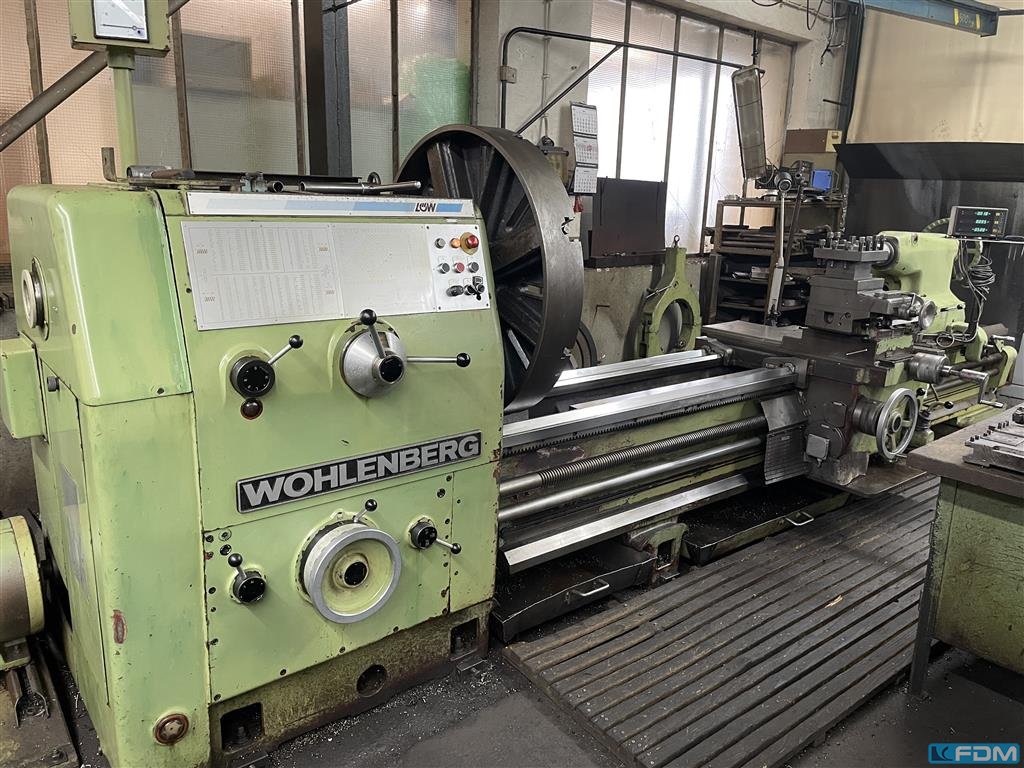

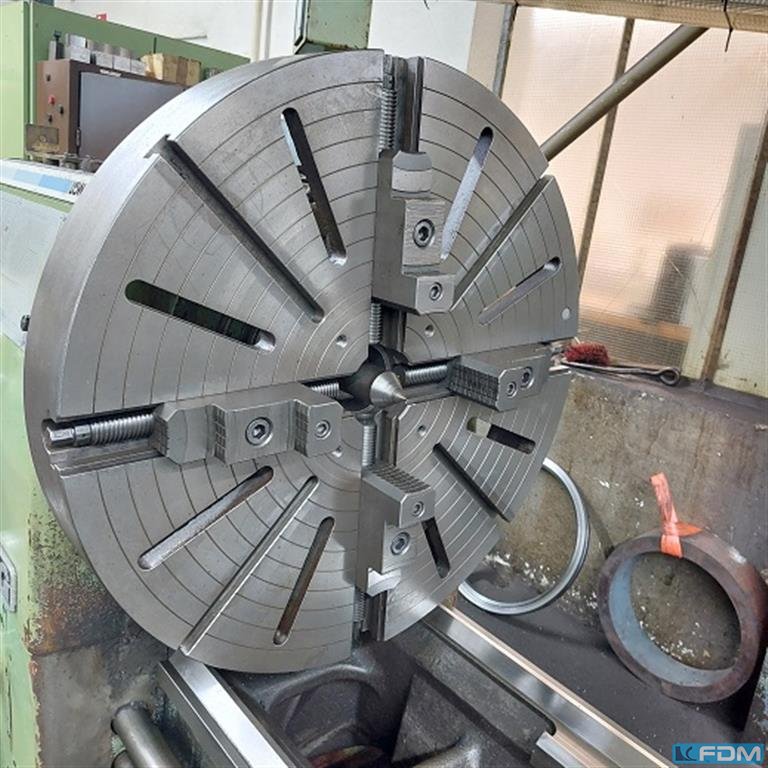

turning diameter over bed:1000 mmturning diameter over slide rest:750 mmturning length:3000 mmweight of the machine ca.:12 tdimensions of the machine ca.:6x2,5x1,8 mspindle bore:110 mmturning speed range:900 U/minYear:1986 Equipment:- Coolant device- 1 static steady rest- 1 rotating steady rest- Faceplate 1.000 mm- Digital display- Rapid traverse

DIMENSIONS / WEIGHTS:. - total height:900 mm

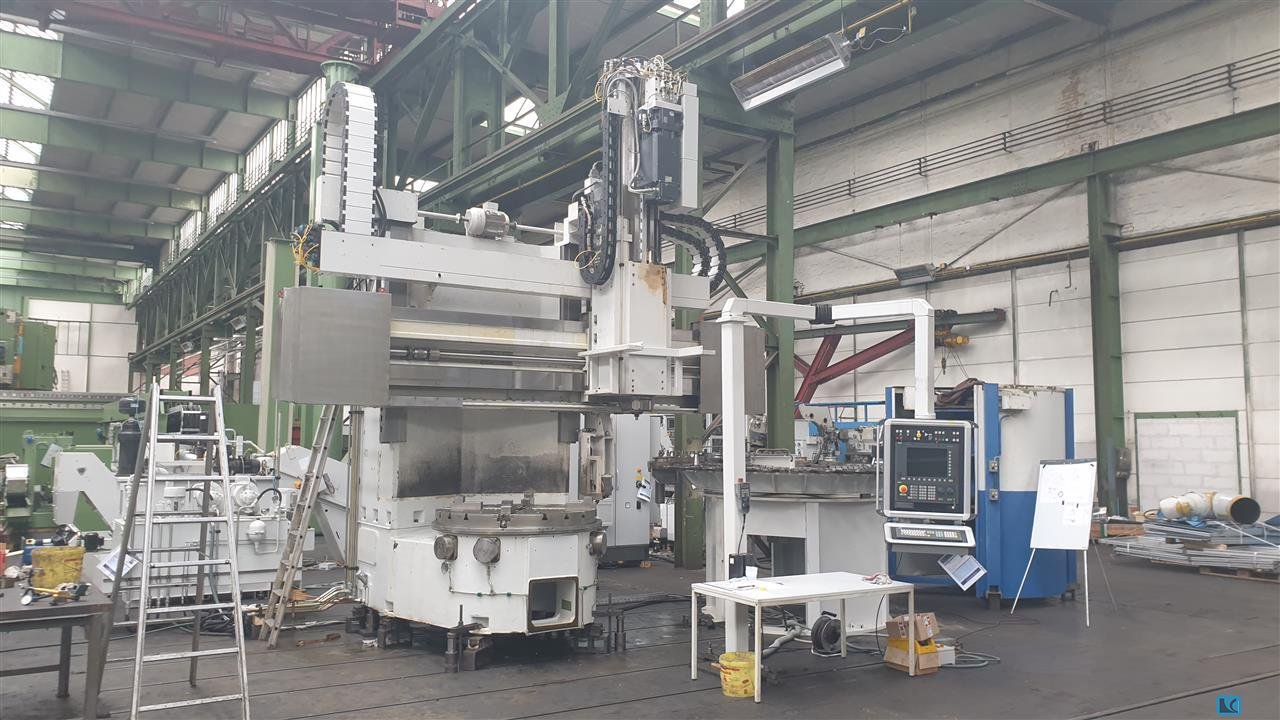

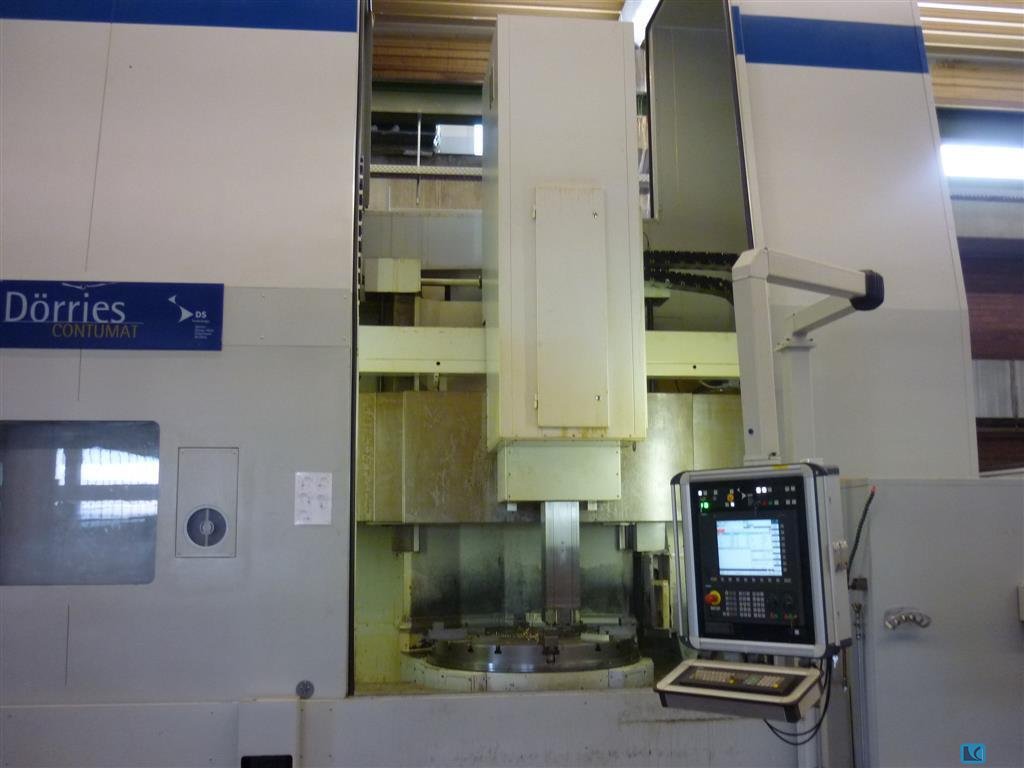

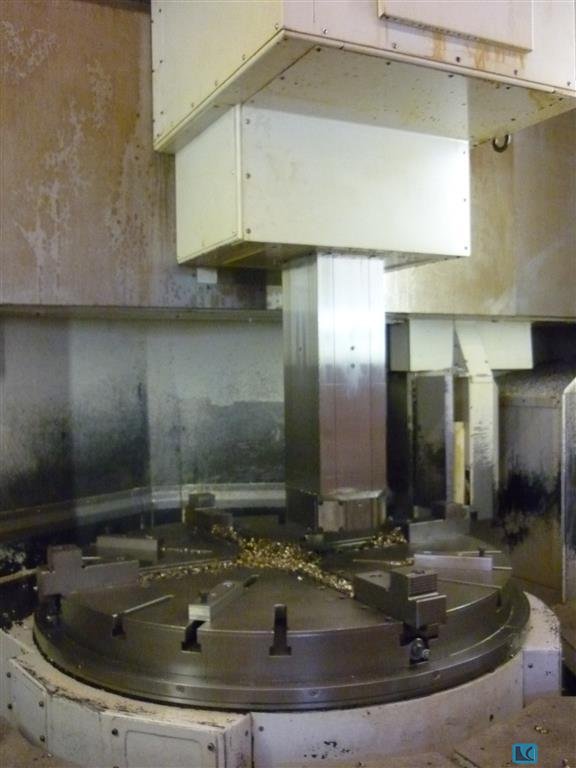

faceplate diameter:1400 mmswing diameter:2000 mmturning height:1500 mmmain drive:80 kWfaceplate speeds from - to:1 - 365 U/minmilling motor:37 kWram head dimension:240 x 240 mmmax. ram stroke:1250 mmtotal power requirement:133 kVAweight of the machine ca.:50 tdimensions of the machine ca.:11 x 5 x 6,4 mMachine was overhauled in 2008 by OEMNew control CNC SIEMENS 840 Dautomatic tool changer 72-pcsC-axis with driven toolsAngle-, straight tool holders with CAPTO holder Coolant deviceChipconveyour

DIMENSIONS / WEIGHTS:. - total height:1000 mm

x-travel:6.300 mmy-travel:2.000 mmz-travel:2.700 mmtool taper:ISO 50 surface area:7.000 x 3.000 mmturning speed range:60 - 4.000 U/minpower capacity:22/30 kWfeeds:0 - 10.000 mm/minrapid traverse:20.000 mm/minTool changer:80 max. workpiece weight:8.000 kgPlate clamping area 7,000 x 3,000 mmCNC rotary table 1,500 mmOrthogonal milling headDeep drilling unitIKZPaper belt filterMeasuring probe

DIMENSIONS / WEIGHTS:. - total height:35 mm

x-travel:1660 mmy-travel:760 mmz-travel:660 mmweight of the machine ca.:8700 tdimensions of the machine ca.:4.320 x 3.380 mmdistance spindlenose - table min./max.:808 mmdistance work spindle /surface of the table:155 - 815 mmMachine height:2850 mmfloor space required (w/o switchgear cabinet):4.320 x 3.380 mmspindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kWtool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/minsurface area:2.000 x 760 mmmax. table load:1.000 kgfeeds X-axis:1 - 5.000 mm/minrapid traverse X-axis:24.000 m/minrapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/minfeeds Z-axis:1 - 5.000 mm/minrapid traverse Z-axis:20.000 m/min

DIMENSIONS / WEIGHTS:. - total height:1000 mm

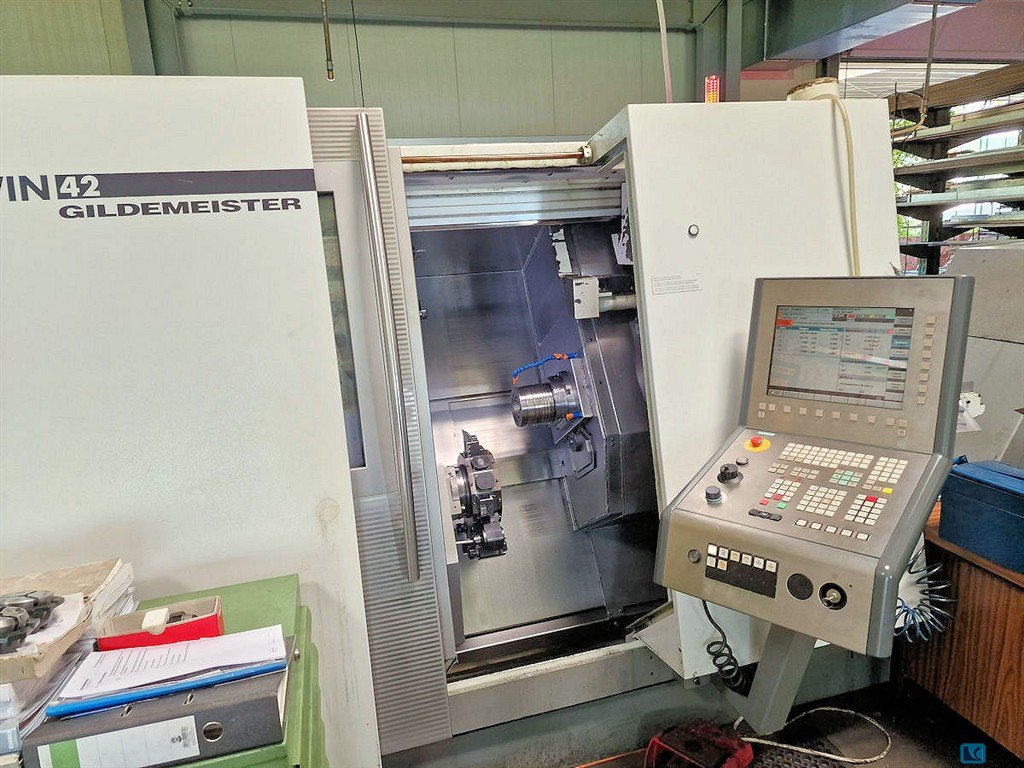

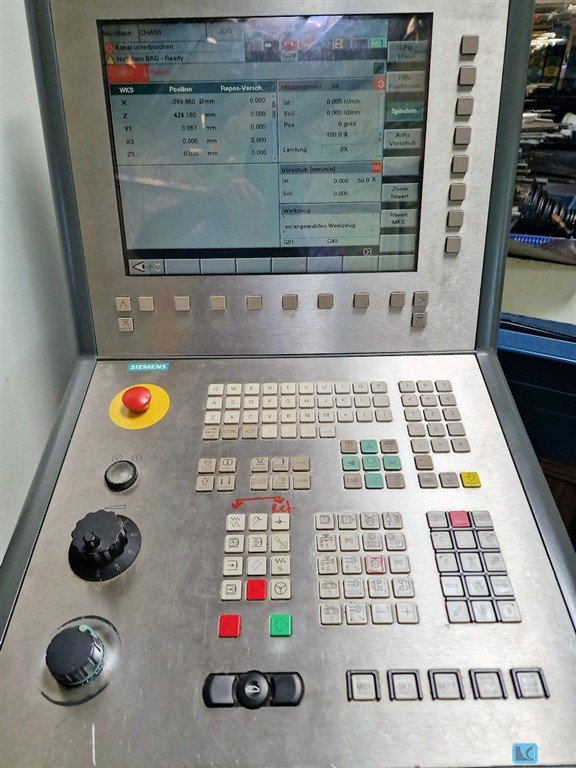

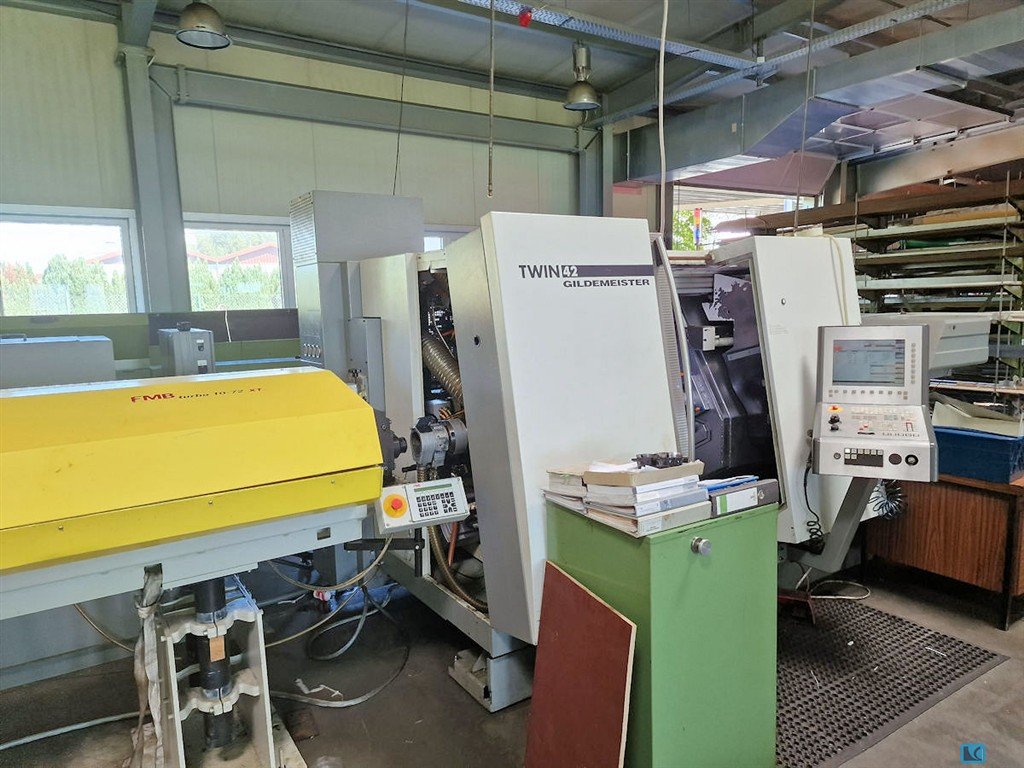

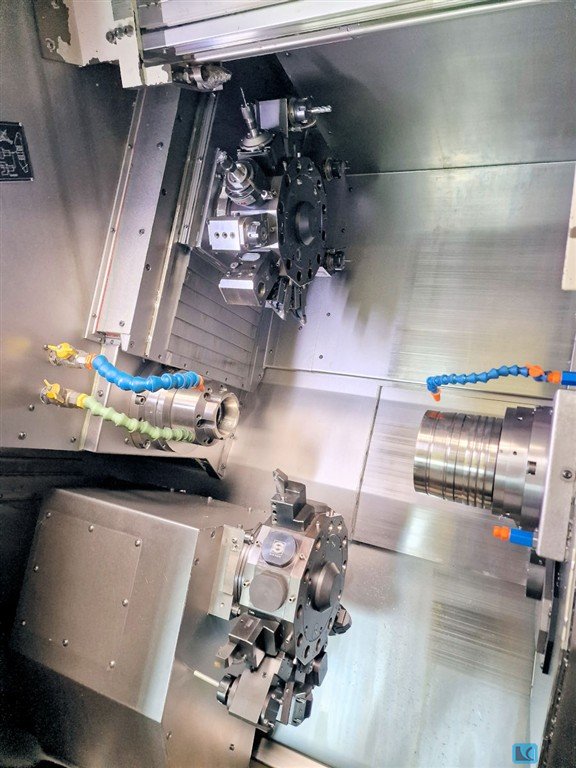

turning diameter:145 mmturning length:210 mmtotal power requirement:40 kWswing diameter:145 mmSpindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mmgreates pass round over bed:145 mmRPM Main Spindle:7.000 1/minnumber of workpiece supports:12 Shank diameter:25 mmC-axis RPM:2.000 1/minChuck diameter spindle 1:140 mmChuck diameter Spindle 2:140 mmNumber of tools:12 fach St.Tool bore:VDI 25 Shank diameter:25 mmweight of the machine ca.:5.300 kgdimensions of the machine ca.:5.000 x 4.100 x 2.050 mmSlide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mmVertical slide travel Y1: +/- 30mmLongitudinal spindle travel Z3: 380mmClamping tube inner draw tube 46mm diameterSpeed range main drive 1+2 up to 7,000 rpmSpeed of driven tools up to 6,000 rpmMain and counter spindle collet chuck1 axial driven tool1 radial to ...

DIMENSIONS / WEIGHTS:. - total height:35 mm

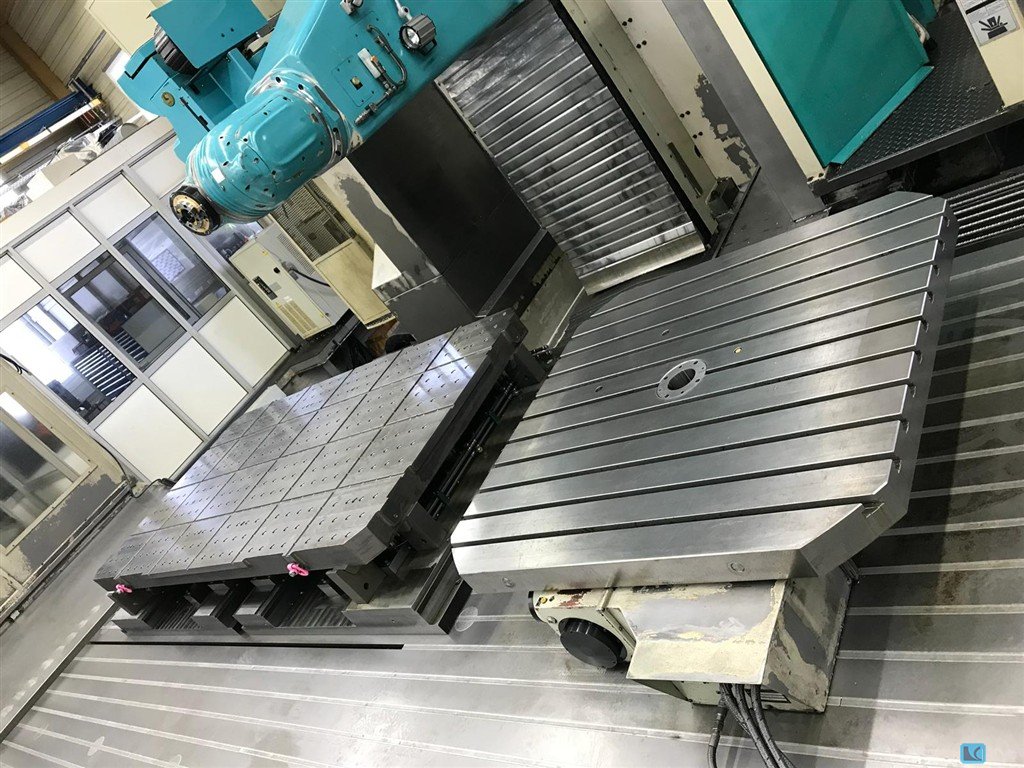

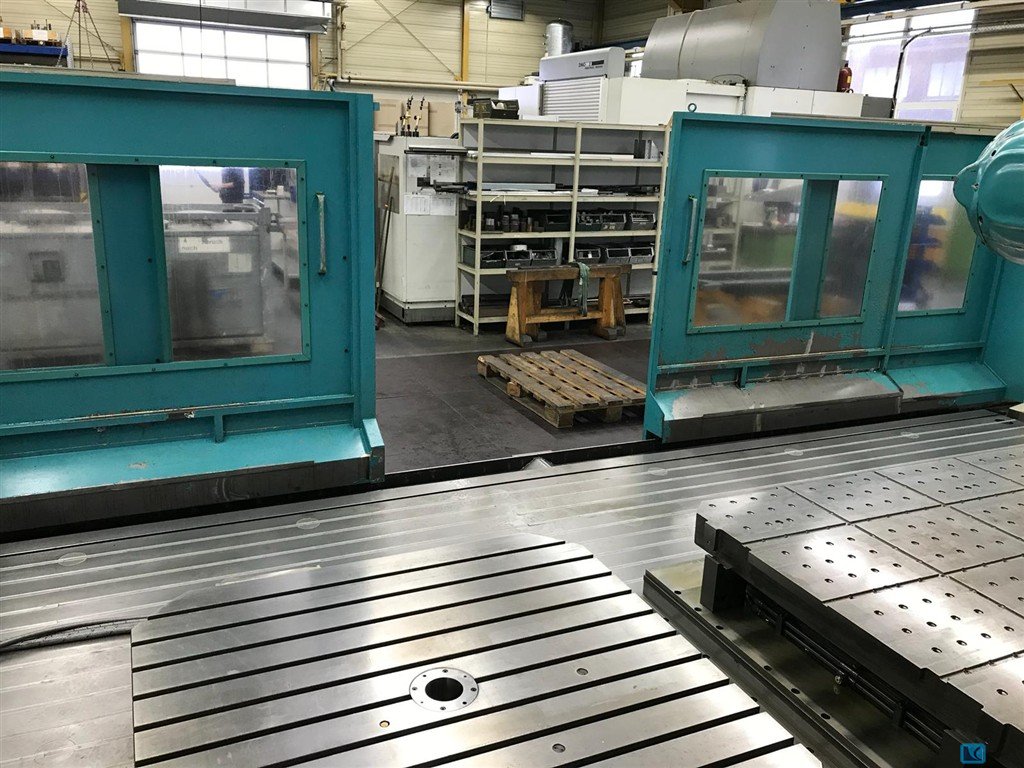

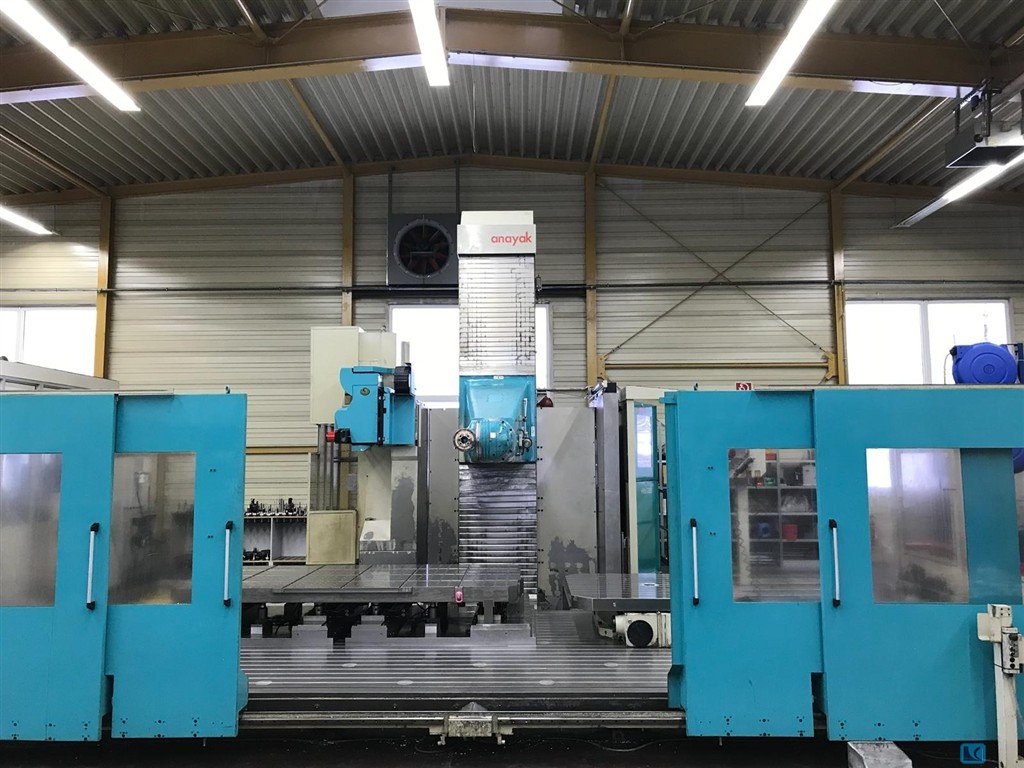

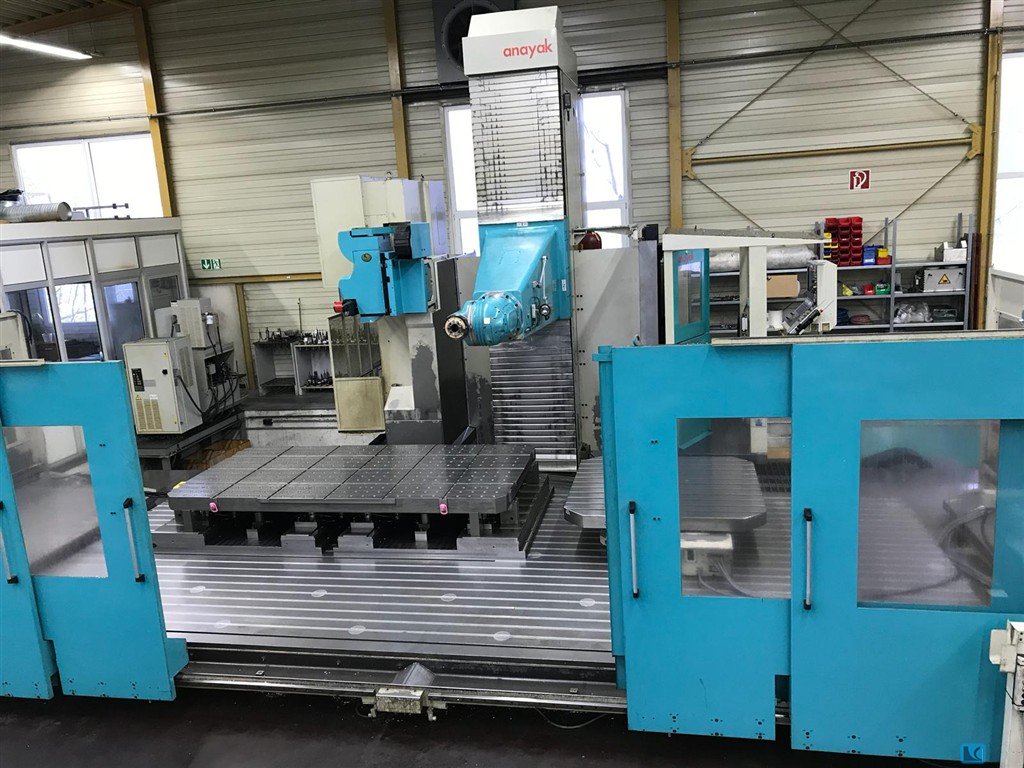

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmSpeed of boring spindles:1,25 - 1250 U/min.ram stroke:700 mmdimension of the ram:340 x 340 mm mmspindle taper ISO:50 rapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mCNC control Siemens 840 Dsl completely modernized 2010FIBRO CNC drilling work table 2500 x 2500 mm50 to. workpiece weightLongitudinal travel 2500 mmAngular milling head 4 x 90°Universal angular milling headPanel area approx. 10000 x 5000 mmChip conveyor and coolant deviceAerostatic guides

DIMENSIONS / WEIGHTS:. - total height:1000 mm

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.

DIMENSIONS / WEIGHTS:. - total height:900 mm

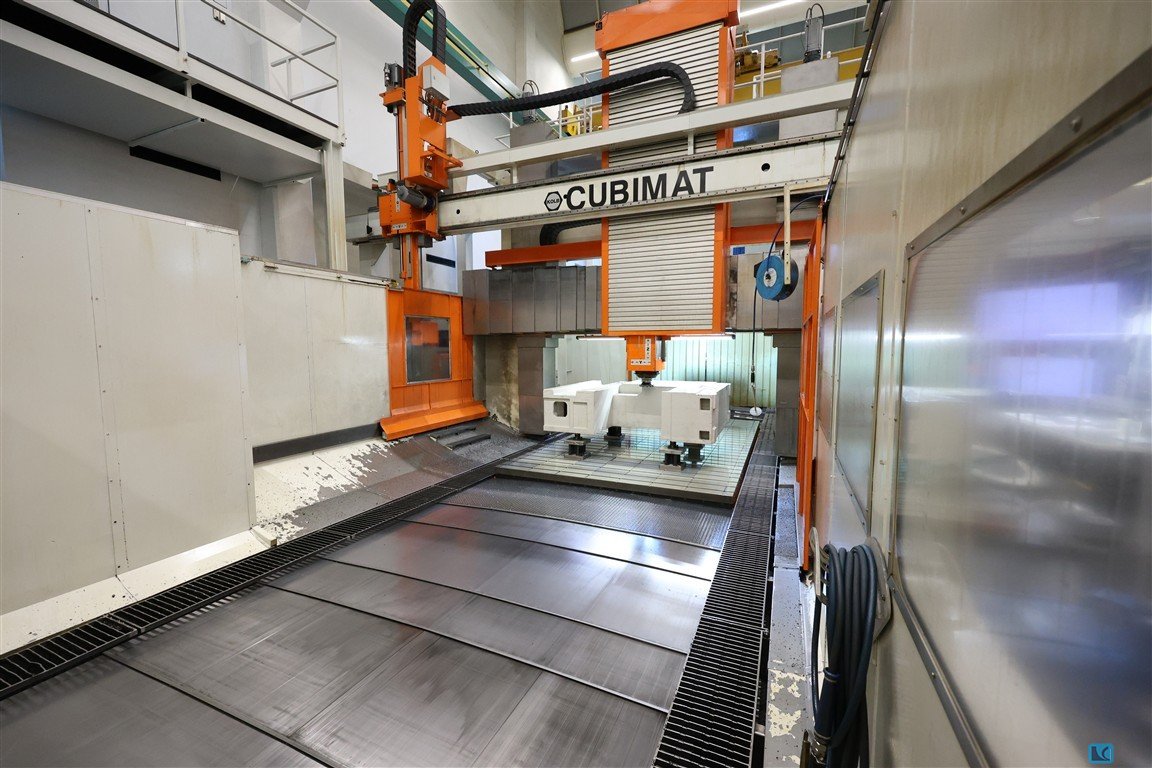

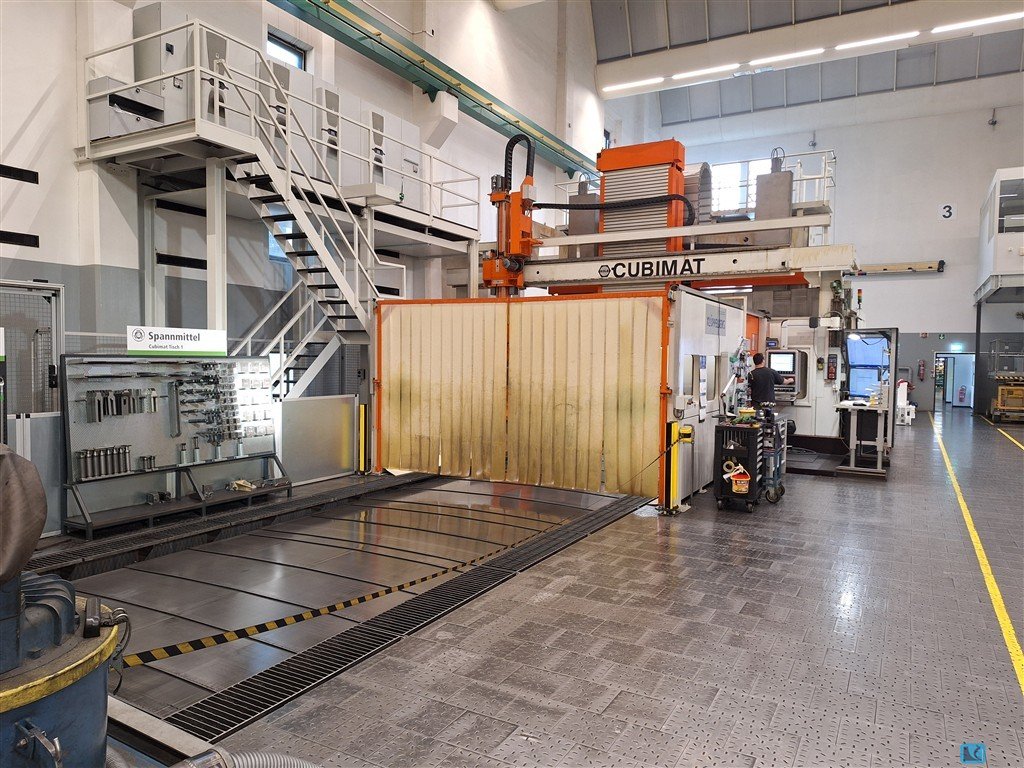

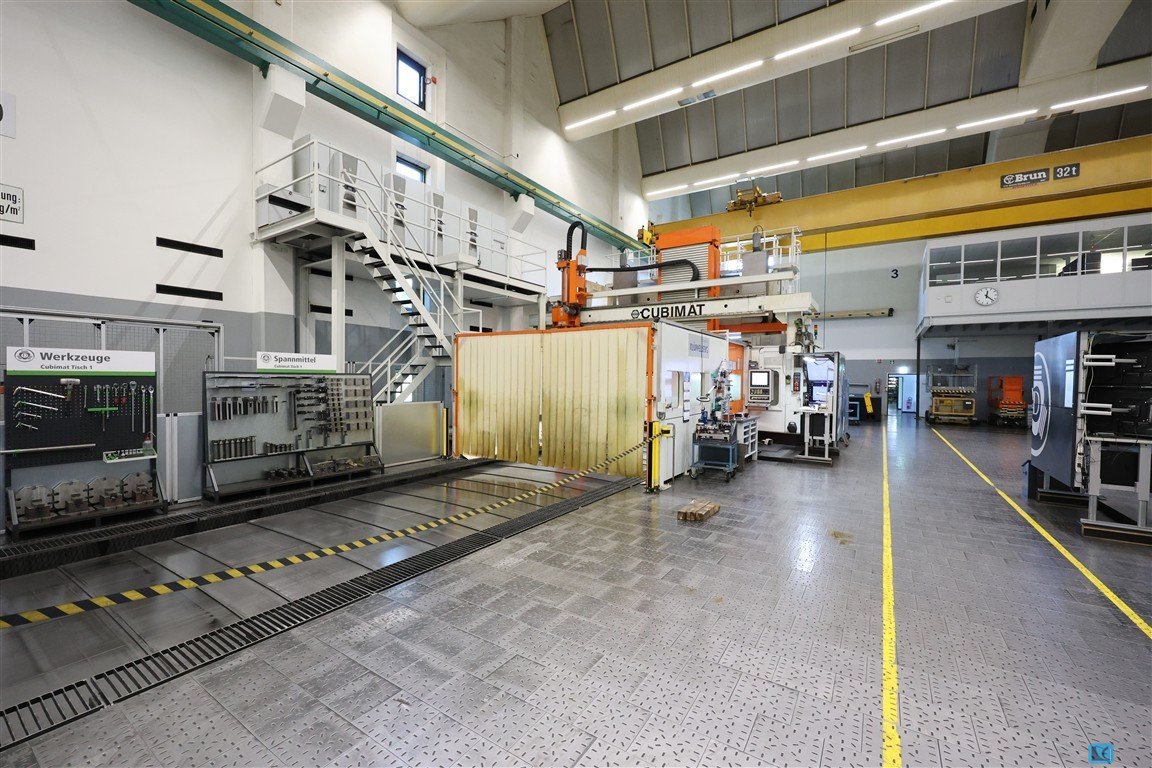

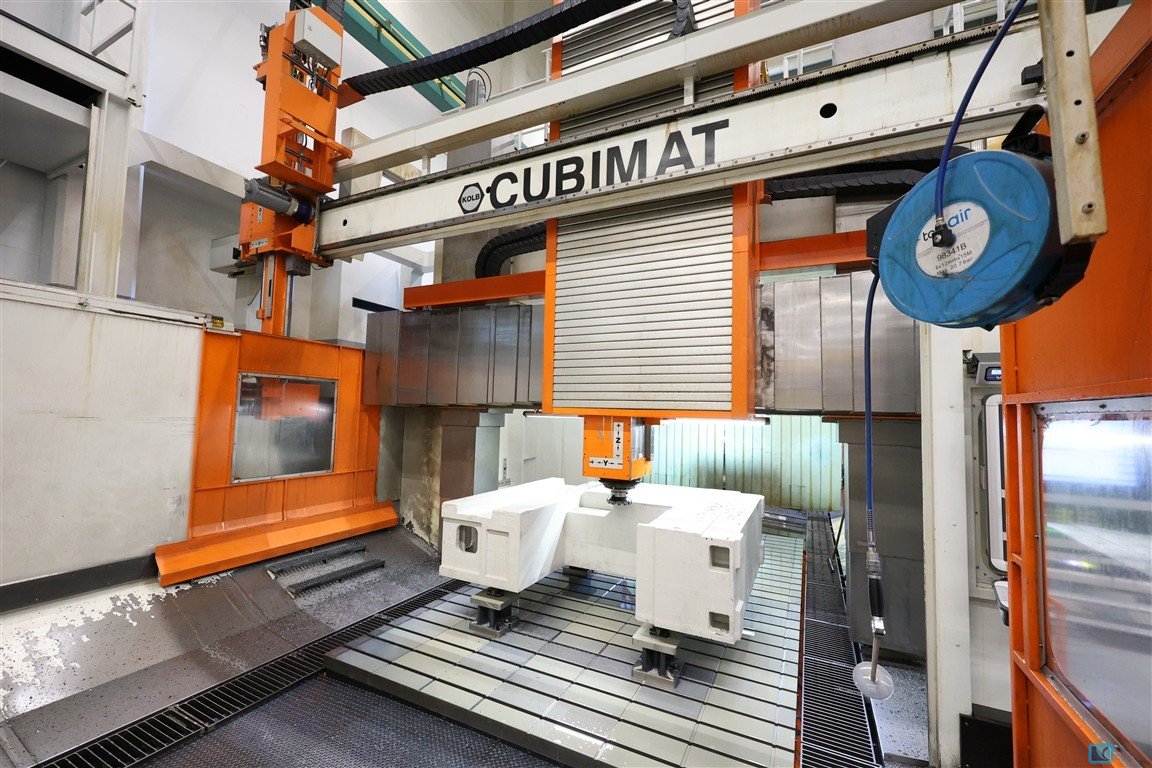

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...
