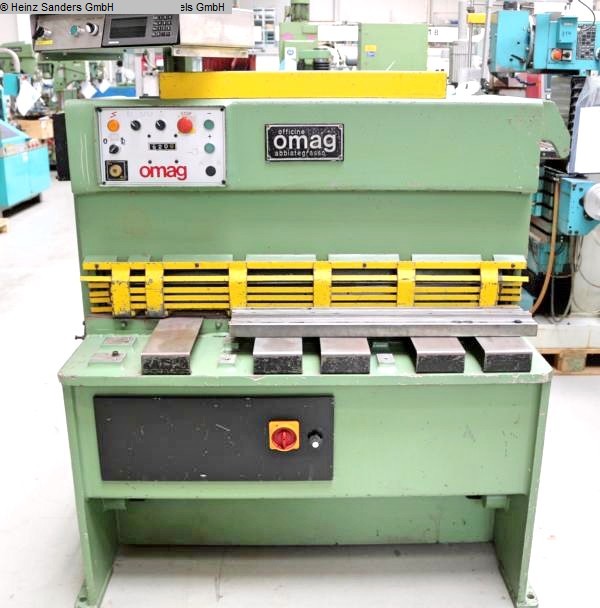

OMAG CEL 104 Cizallas hidráulicas

sheet width: 1050 mm
plate thickness: 4.0 mm
thickness at Niro-steel: 3.0 mm
distance between columns: 1200 mm
blade length: 1150 mm
no. of strokes: 46 - 69 Hub/min
cutting angle: 1.30 °
Control: konv.
oil volume: 100 ltr.
total power requirement: 5.68 kW
weight: 1100 kg
** From a maintenance workshop
** In good condition (!!)
Features:
- Robust electro-hydraulic sheet metal shear
- Electric motor-driven backgauge
* Backlash-free ball screw for backgauge
* Travel speed 100 mm/sec
- Electric cutting length limiter
* Cutting length limiter to increase the stroke rate per minute
- Manual cutting gap adjustment (lateral adjustment)
- Front support table with recessed grips
- Front finger/interference guard
- 1x side stop with T-slot and millimeter scale
- 2x front support arms
- 1x freely movable foot switch
- Operating instructions (PDF)
