Centros de torneado CNC NILES SIMMONS N 40 MC 3000

turning diameter: 820 mm
turning length: 3000 mm

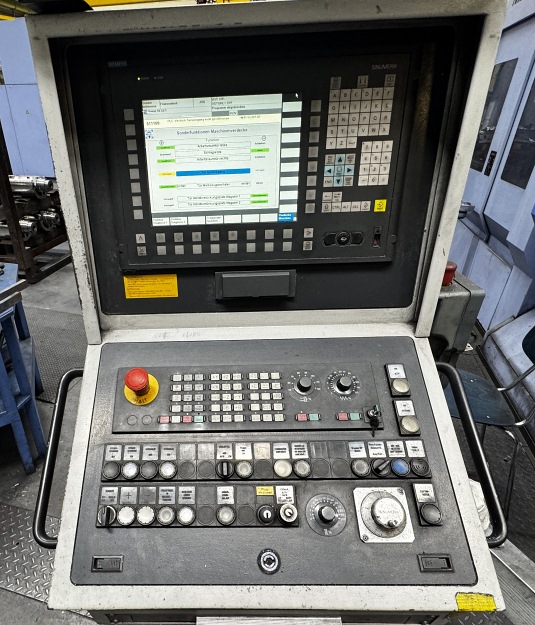

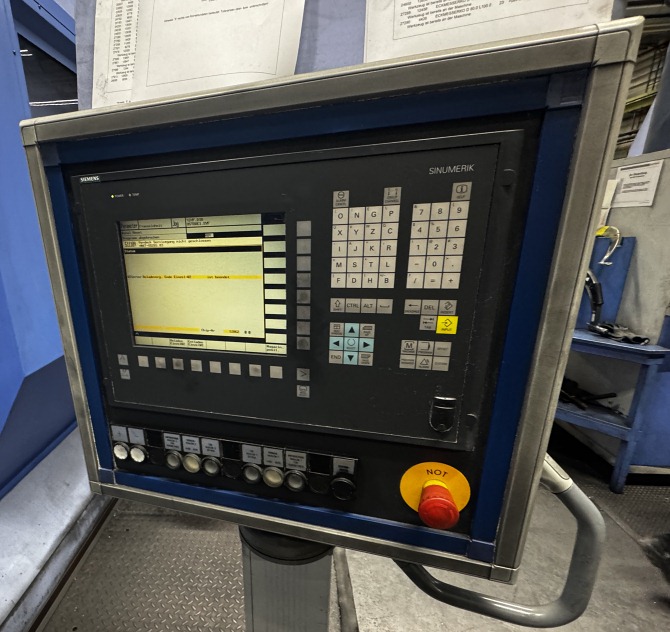

control: Siemens 840 D
workpiece weight: 2,5 t
drive of main spindle: 77 kW
spindle nose: A15
spindle bore: 160 mm
Workpiece head (C-axis): 0,005 grad
max. torque on the working spindle: 2500 Nm
main spindle speeds:: 0-2.430 U/min
feeds z-axis: 0,1-18.000 mm/min
rapid traverse Z-axis: 18 m/min
feeds x-axis: 0,1-30.000 mm/min
rapid traverse X-axis: 30 m/min
steady: 50-350 Spannbereich

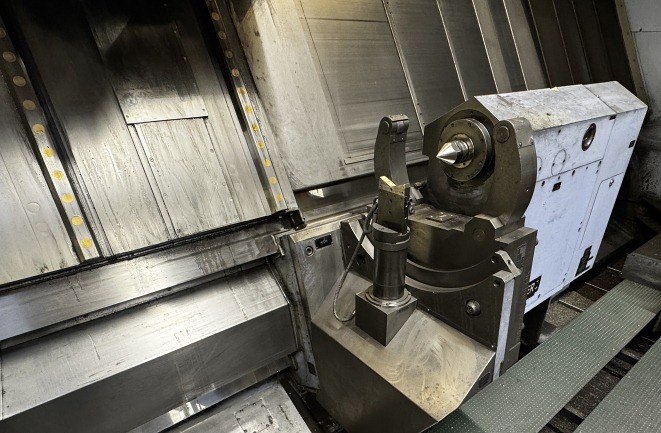

tailstock - quill dia: 180 mm
tailstock - travel of quill: 170 mm
y-axis: -100/+150 mm
rapid traverse y-axis: 12.000 mm/min
b-axis: -105/+95 Grad
milling spindle - taper: HSK100
milling spindle motor: 43 kW
milling head speed: 1-5.500 U/min
max. torque on the milling spindle: 336 Nm
tool changer: 96 Plätze
weight of tools max.: 15 kg
chip conveyor: kW
total power requirement: 166 KVA
weight of the machine ca.: 40 t
dimensions of the machine ca.: 112x4,4x3,85 m
