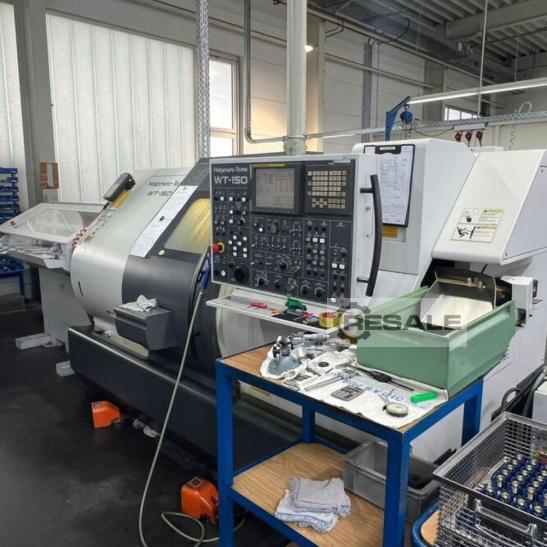

Torno horizontal NAKAMURA WT-150

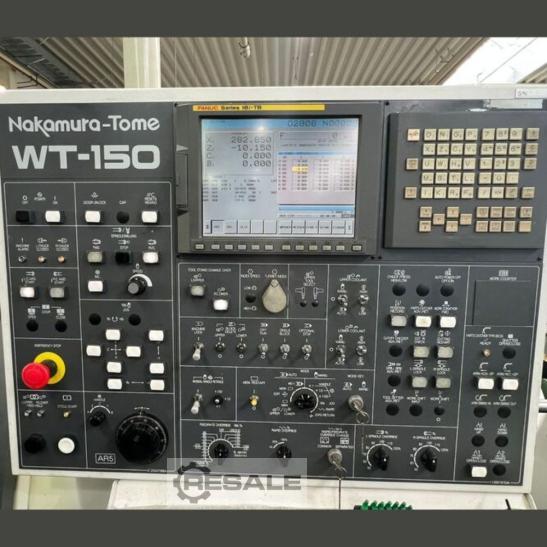

CNC controller: Fanuc 18i-TB
Capacity
X-axis travel mm: 157,5
Y-axis travel mm: 35
Z-axis travel mm: 464,8
B-axis travel mm: 600
C-axis: 360º (0,001º)
Turning length mm: 399
Max. turning diameter mm: ø: 190
Distance between spindle centers mm: 750
Bar work capacity mm: 52
Upper turret
Number of tool slots St .: 12
Speed driven tools RPM: 6.000
Drive power driven tools kW: 5.5 / 3.7
Number of upper turrets: 1
Lower turret
Number of tool slots St .: 12
Speed driven tools RPM: 6.000
Drive power driven tools kW: 5.5 / 3.7
Milling function: Both Turrets
Number of lower turrets: 1
Main spindle
Speed spindle rpm: 5.000
Drive power spindle kW: 15 / 11 351248314
Counter spindle 351248314
Speed spindle rpm: 4.500
Drive power spindle kW: 11 / 7.5
Equipment
Part catcher
Workarea light

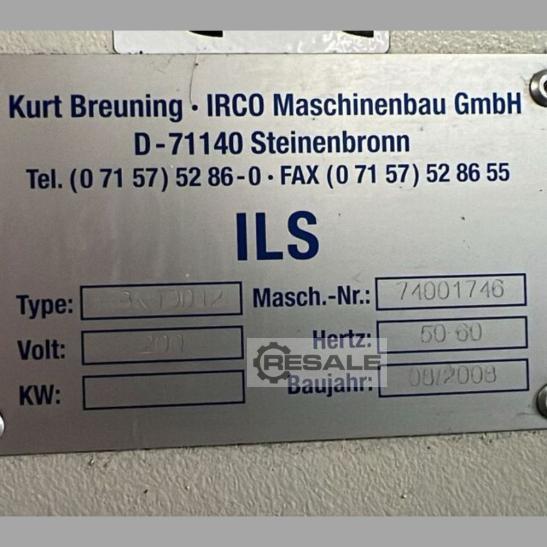

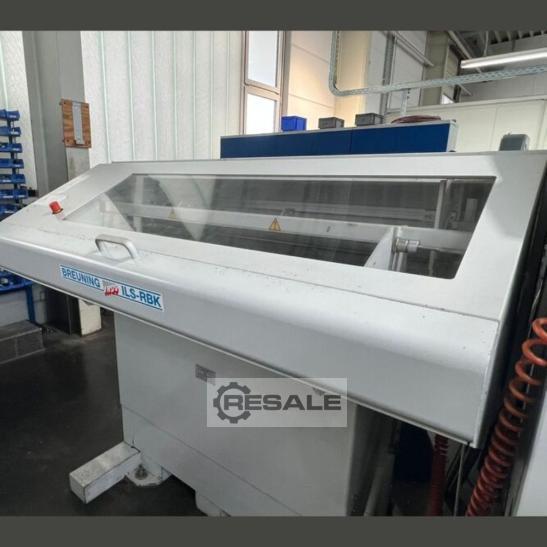

Bar Loader ILS - RBK
Machine running time:
Nominal Kva: 67,2
Basic machine dimensions / weight
Length mm: 3.675
Width mm: 2.258
Height mm: 1.885
Weight kg: 9.000
seller offer No. resale LAT0342
