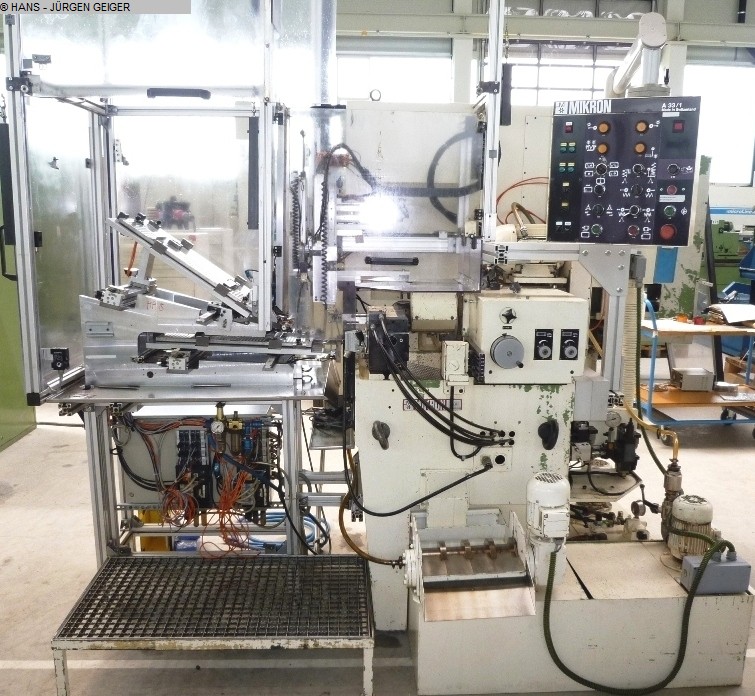

MIKRON A 33/1 Talladora de engranajes - horizontal

max. wheel diameter: 80 mm
gear width: 150 mm
max. module: 2,5
min. module:
total power requirement: 10 kW
weight of the machine ca.: 2400 kg
M I K R O N (Switzerland)
Fully Automatic Gear Hobber for Worm Gears
Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15
____________________________________________________________
max. gear- without feed magazine approx. 80 mm
max. gear- with feed magazine approx. 50 mm
Module max. 2, / 2,5
Axial milling length approx. 150 mm
max. workpiece-mounting length approx. 200 mm
Milling slide can be swivelled up to 90 degrees
Milling cutter - 24 - 50/63 mm
Max. radial distance of milling slide 0-14/18 mm
Milling cutter adjustment max. 25 mm
Milling cutter speed 212 - 2.000 rpm
Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation
radial infinitely adjustable 0,2 - 200 mm/min.
Milling spindle drive 3 kW
Total electrical load approx. 10 kW - 50 Hz - 380 Volt
Weight approx. 2.400 kg
Accessories/Special Features:
Fully automatic operation cycle and minimum idle times due to programmable
SIEMENS Program Controls S 5 for all machining steps i.e. rapid gear, feed, milling cutter on/off
for the loading device, tailstock, possibly shifting, etc. with unit counter, program numbering
including 30 different numeric error displays
Pneumatic workpiece-loading and unloading facility parallel to work piece axis upright for rod workpieces approx. 140 mm long x 8 mm , including pneumatic double gripper for
loading and unloading of work pieces. Raw parts are inserted into change cassettes externally and then placed into the loading device. The double gripper places the parts between workpiece spindle and tailstock,
the tailstock spindle sleeve pushes the parts in the main spindle collet and clamps them simultaneously.
The finished parts are ejected from the main spindle, then placed back again into the finished parts cassette by the gripper.
The whole process is electrically monitored and checked.
The complete loading facility is encased by plexiglass.
Hydraulic work piece clamping device including collets and hydraulic ejector
separate cooling system with magnetic separator * separate hydraulic system * various change gears

This machine is set up for worm gears/armature shafts that can be used for adjustable
car seats, window lifters, etc.
