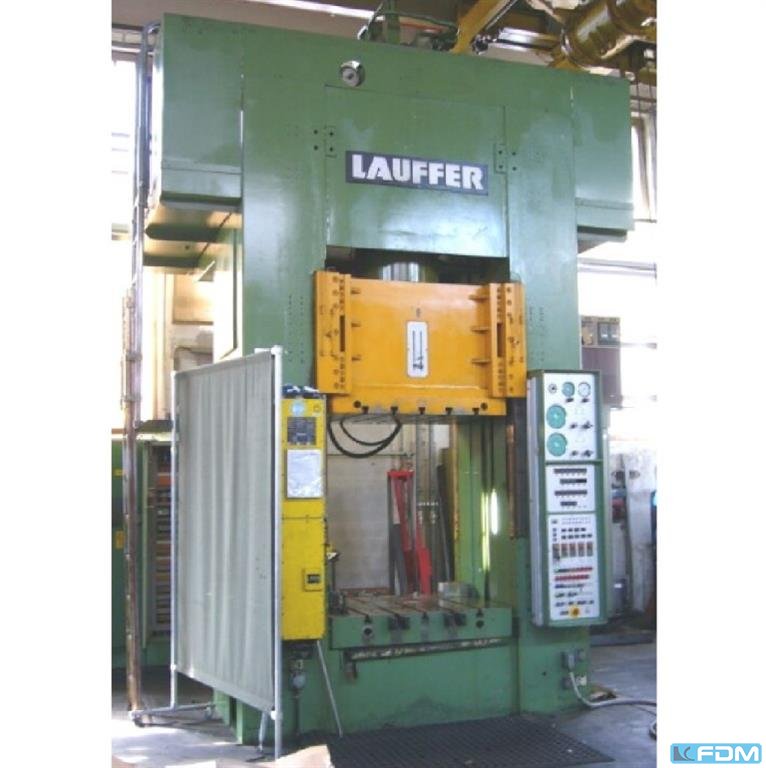

LAUFFER RAU 320 (UVV) Hydraulic Double-Column (Drawing) Press

pressure:350 t
distance between columns:1350 mm
stroke:900 mm
distance table/ram, max. stroke up, adjustment up:1300 mm
table surface area:1300 x 1000 mm
pressure of drawing cushion in table:100 t
stroke of drawing cushion in table:380 mm
die cushion area:350 x 285 mm
capacity of ejector in ram:25 t
ejector stroke in ram:200 mm
table height over floor:750 mm
ram surface:1300 x 1000 mm
speed down:500 mm/s
speed up:160 - 470 mm/s
working speed:16 - 44 mm/s
drawing speed:57 - 160 mm/s
return capacity:32 t
oil volume:1700 l
power requirement:91,0 kW
Dimensions (WxDxH):3,75 x 2,8 x 7,2 m
height over floor:5,28 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
light guard:Sick
drawing cushion in table:hydraulic
ejector in ram:hydraulic
ram interlocking:in TDC
foundation pit:necessary
