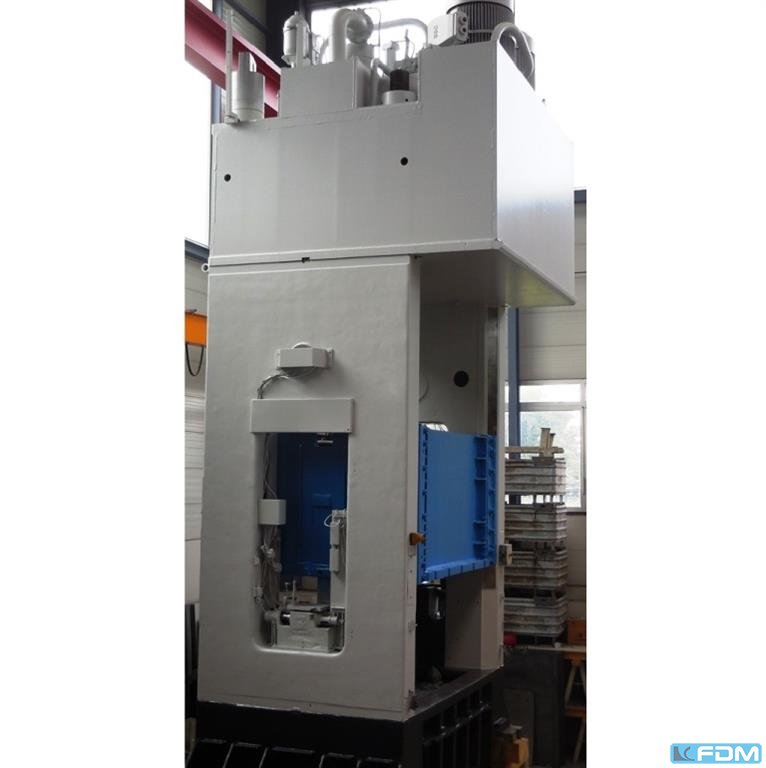

LAEPPLE ZEH 500 (UVV) Hydraulic Double-Column (Drawing) Press

pressure:500 t
distance between columns:2240 mm
stroke:1180 mm
distance table/ram, max. stroke up, adjustment up:1800 mm
table surface area:2050 x 1800 mm
pressure of drawing cushion in table:250 t
stroke of drawing cushion in table:380 mm
drawing cushion surface in table:1800 x 1200 mm
pressure of drawing cushion in ram:122 t
stroke of drawing cushion in ram:200 mm
drawing cushion area in ram:1800 x 1200 mm
ram surface:2215 x 1800 mm
table height over floor:500 mm
speed down:400 mm/s
speed up:10 - 400 mm/s
working speed:10 - 100 mm/s
depth of the foundation:3,0 m
power requirement:122 + 75 + 64,5 kW
weight:110,0 t
Dimensions (WxDxH):3,6 x 2,2 x 8,5 m
height over floor:6,8 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
drawing cushion in table and ram:hydraulic
