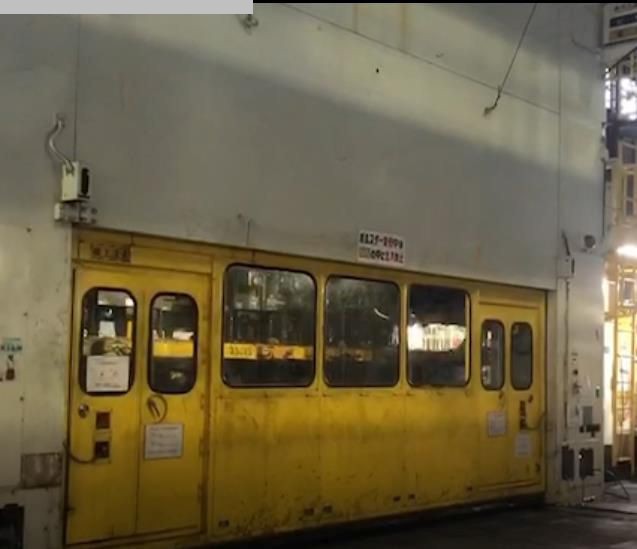

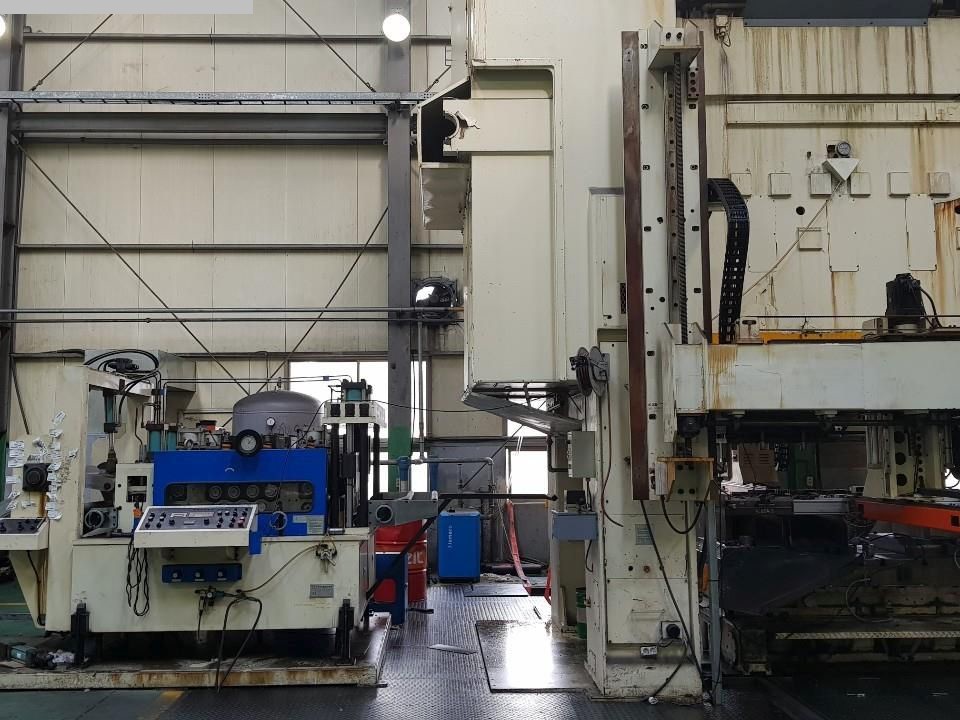

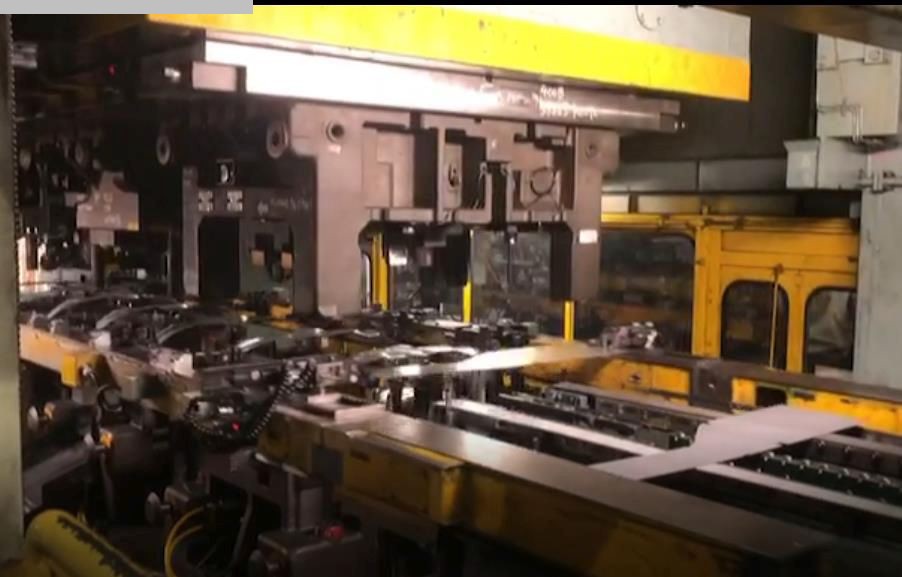

Prensas transfer (de 2 a 4 montantes) KOMATSU E4T 2500.07.70-MF-D
máquinas para el procesado de metales / prensas / Prensas transfer (de 2 a 4 montantes)
pressure: 2500 ttable length: 5200 mmtable width: 2300 mmPRESS FORCES: • CAPACITY : 2500ton• Point pressure capacity: • - Upper 1600t• - Down 900ton• Slide stroke: 650mm• Slide adjustment: 225mm• Slide stroke number: continue 9~25spm • Die-height: 1250mm• Slid size(LxR ,FxB): ...
Fabricante: KOMATSU
Modelo:E4T 2500.07.70-MF-D
Tipo de máquina: Prensas transfer (de 2 a 4 montantes)
Número de artículo: 170033631
Cantidad: 1
Fecha: 28.08.2026
Año de fabricación: 1990
Ubicación: ab Werksstandort Non-EU
Precio:
Máquina en stock:Sí
Seller-item-No.:1020-19119
pressure: 2500 t
table length: 5200 mm
table width: 2300 mm
PRESS FORCES:
• CAPACITY : 2500ton
• Point pressure capacity:
• - Upper 1600t
• - Down 900ton
• Slide stroke: 650mm
• Slide adjustment: 225mm
• Slide stroke number: continue 9~25spm
• Die-height: 1250mm
• Slid size(LxR ,FxB): 5400x2400mm
• Bolster size(LxR, FxB, T): 5200x2300x200mm
• Balance capacity: 30ton
• Main motor: DC 355kw
• Feed back(bolster upper side): 700,780mm
• Feed back stroke : 550,700,1000mm
• Cramp stroke : 0-250mm
• Lift stroke: 0~150mm
• Transfer inner size(cramp): 650~2200mm
• Die cushion capacity
• No.1 station 120ton
• No.2 station 80ton
• No.3 station 60ton
• No.5,6,7 station: 5ton
• Stroke: 200mm
• Bed size: 480x1780mm
• Stop time: 430ms
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
