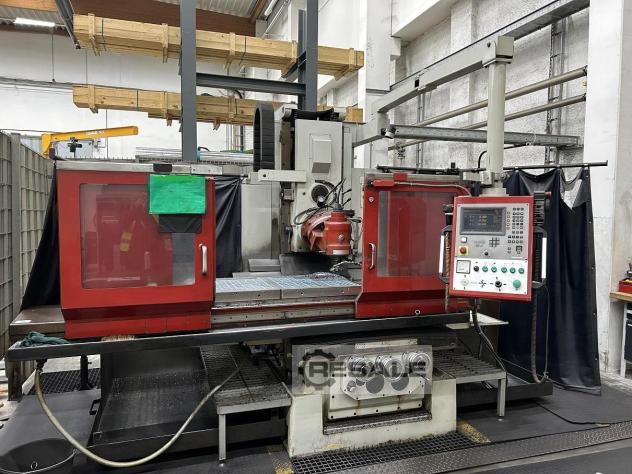

Fresadoras de bancada CNC KIHEUNG POINT U 6

X-travel: 1600 mm Y-travel: 710 mm Z-travel: 700 mm HEIDENHAIN TNC 124

Travel X-axis Travel X-axis 1600 mm
Travel Y-axis Travel Y-axis 710 mm
Travel Z-axis Travel Z-axis 700 mm
Height table to vertical spindle 50 – 750 mm
Height table to horizontal spindle 60 – 760 mm

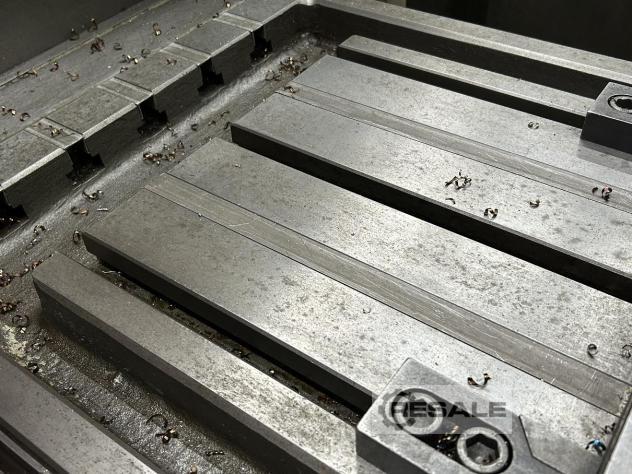

Working table Working table 2200 x 550 mm
Table load 3000 kg
Drive power AC milling motor Main motor power AC 11 kw
Tool taper ISO 50
Spindle speeds stepless 40 – 1600 rpm
Feeds x,y feeds x;Y 2000 mm/min
Rapid feed x,y, 5000 mm/min
Feed Z Feed Z 1000 mm/min
Rapid traverse Z Rapid feed Z 2500 mm/min
Machine weight approx. Machine weight approx. 8000 kg

Equipment

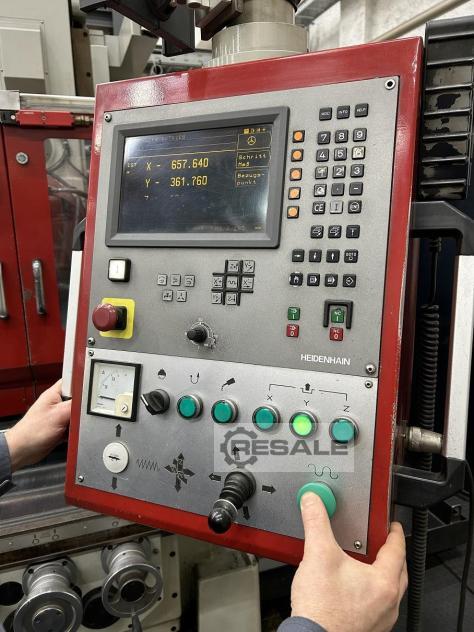

Electronic handwheel / elctronical hand-wheel HEIDENHAIN
Table enclosure

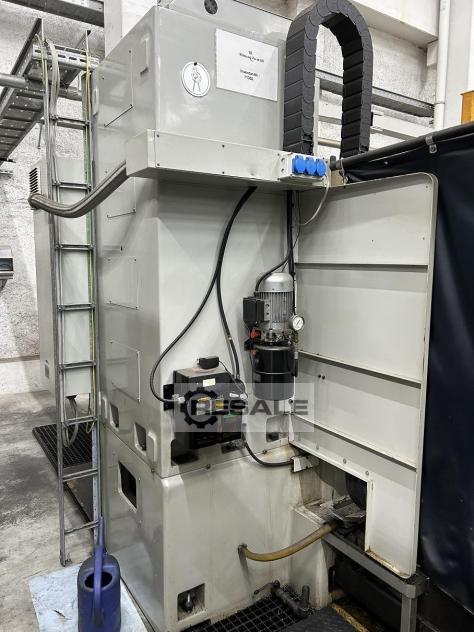

Hydraulic tool clamping

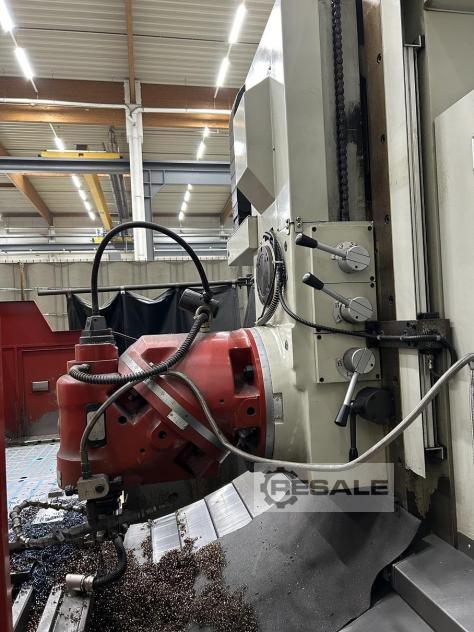

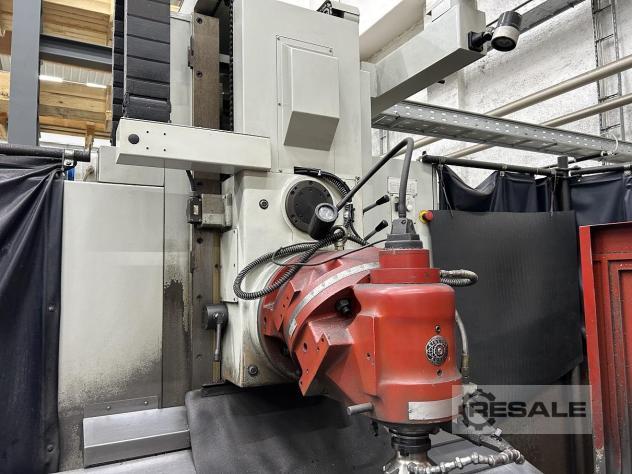

Universal milling head
Coolant system
Bodenwanne / floor-pan
Documentation

Additional /additional

Completely new replacement gearbox from spare parts stock
Completely new gear-box from spar-part inventory (worth several thousand EUR)

The machine is well maintained and fully operational
The machine is well maintained and fully operating

Shown clamping elements on the table are not available
Clamping elements on the table are not available

seller offer No. resale 168817226
