Fresadoras CNC INFOTEC 2515 Energy

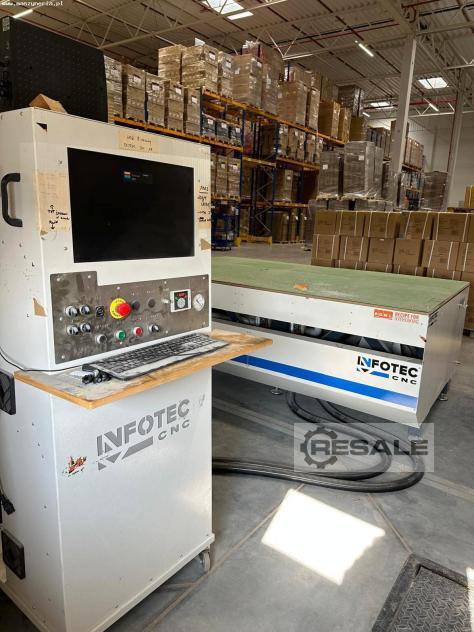

InfoTEC 2515 Energy CNC router was built in 2017 in Poland by 4CNC Sp. z o.o. The machine is designed for the production of precise, repeatable parts made of a wide range of materials, i.e. wood, plastics and light metals. Its versatility and cost-effectiveness make it an excellent choice for companies with diversified production profiles.

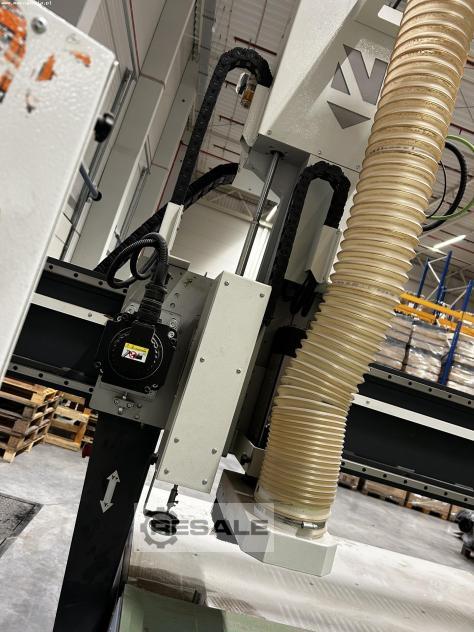

Materials are machined on a large work table using a brushless HSD spindle with automatic tool changing (ATC) system. This system allows the use of several tools in a single machining cycle, significantly saving the time required for changeover of the workhead. What’s more, the innovative control system has been integrated with powerful digital AC servo motors to achieve excellent dynamics and feed repeatability. The InfoTEC 2515E CNC milling machine weighs approximately 2200 kg.

Technical specifications of the InfoTEC 2515 Energy milling machine
- machinable materials: wood, wood-based materials, plastics, aluminium, etc.

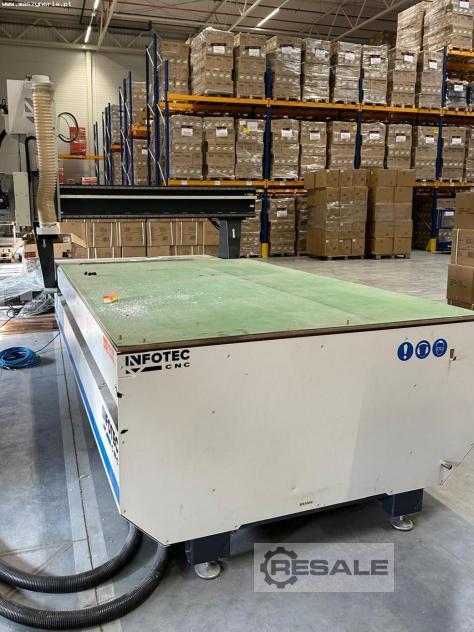

- work area (L x W): 2500 x 1500 mm
- maximum free feed rate: 400 mm/s
- maximum working feed rate: 300 mm/s
- workhead stroke: 250 mm

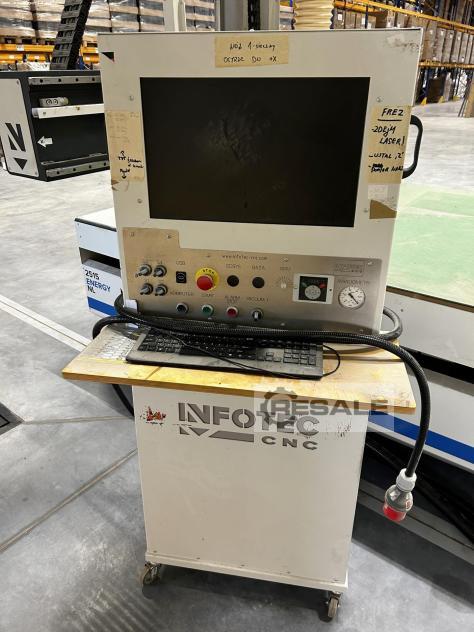

- CNC controller
- brushless HSD spindle with automatic tool changer (ATC)
- tool holder: HSK F63 ER32
- spindle drive power: 8.5 kW
- programming resolution: 0.025 mm
- positioning resolution: 0.03 mm
- digital AC servo motors
- USB port
- weight of the InfoTEC 2515 ENERGY machine: ca. 2200 kg
seller offer No. resale 169784754
