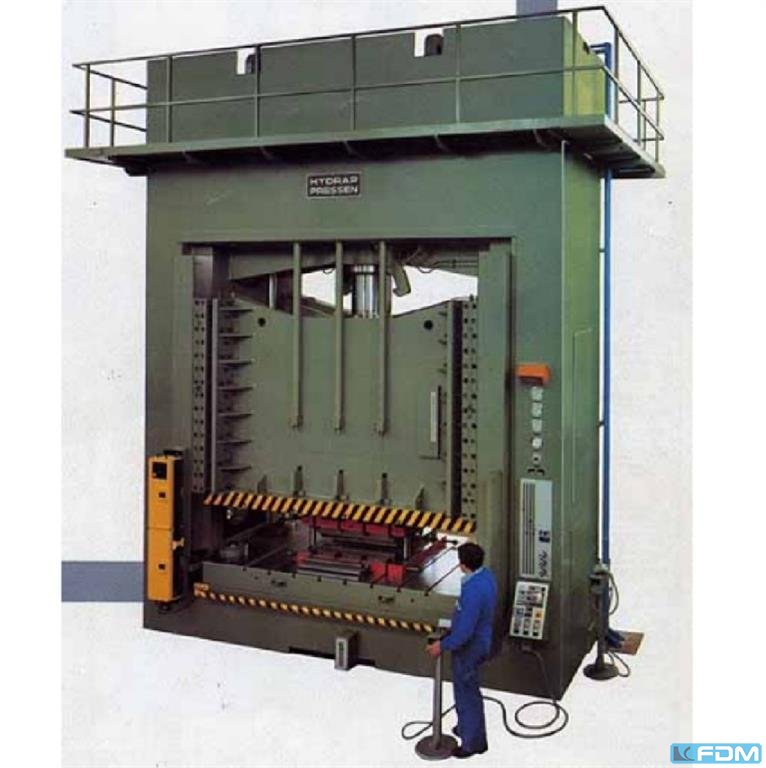

HYDRAP HPDZB 400 (UVV) Hydraulic Double-Column (Drawing) Press
usadoVendedor verificado
Solicitar precio
Directamente al vendedor
1 / 3
Datos técnicos
· ID 170400809Maquinaria usada
- Estado
- usado
- Año de fabricación
- 1980
- Ubicación
- Lager Salach, Baden-Württemberg
Identifikation
FabricanteHYDRAP
ModeloHPDZB 400 (UVV)
Número de artículo1050-023080
Technik
Cantidad1
Descripción
pressure:400 t
distance between columns:3250 mm
distance table/ram, max. stroke up, adjustment up:1000 mm
stroke:800 mm
table surface area:3250 x 1400 mm
table height over floor:1250 mm
die cushion capacity:170 t
die cushion stroke:200 mm
die cushion area:1800 x 1000 mm
distance between cutting impact cushioning:2610 mm
side window:800 mm
ram surface:3250 x 1400 mm
return capacity:51 t
speed down:300 mm/s
speed up:300 mm/s
working speed:16 - 33 mm/s
quantity of oil:2900 l
power requirement:100,0 kW
weight:70,0 t
Dimensions (WxDxH):4,9 x 3,1 x 7,6 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
cutting impact absorption:hydraulic
distance between columns:3250 mm
distance table/ram, max. stroke up, adjustment up:1000 mm
stroke:800 mm
table surface area:3250 x 1400 mm
table height over floor:1250 mm
die cushion capacity:170 t
die cushion stroke:200 mm
die cushion area:1800 x 1000 mm
distance between cutting impact cushioning:2610 mm
side window:800 mm
ram surface:3250 x 1400 mm
return capacity:51 t
speed down:300 mm/s
speed up:300 mm/s
working speed:16 - 33 mm/s
quantity of oil:2900 l
power requirement:100,0 kW
weight:70,0 t
Dimensions (WxDxH):4,9 x 3,1 x 7,6 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
cutting impact absorption:hydraulic
