Pallet Winder HALOILA Octopus COMPACT

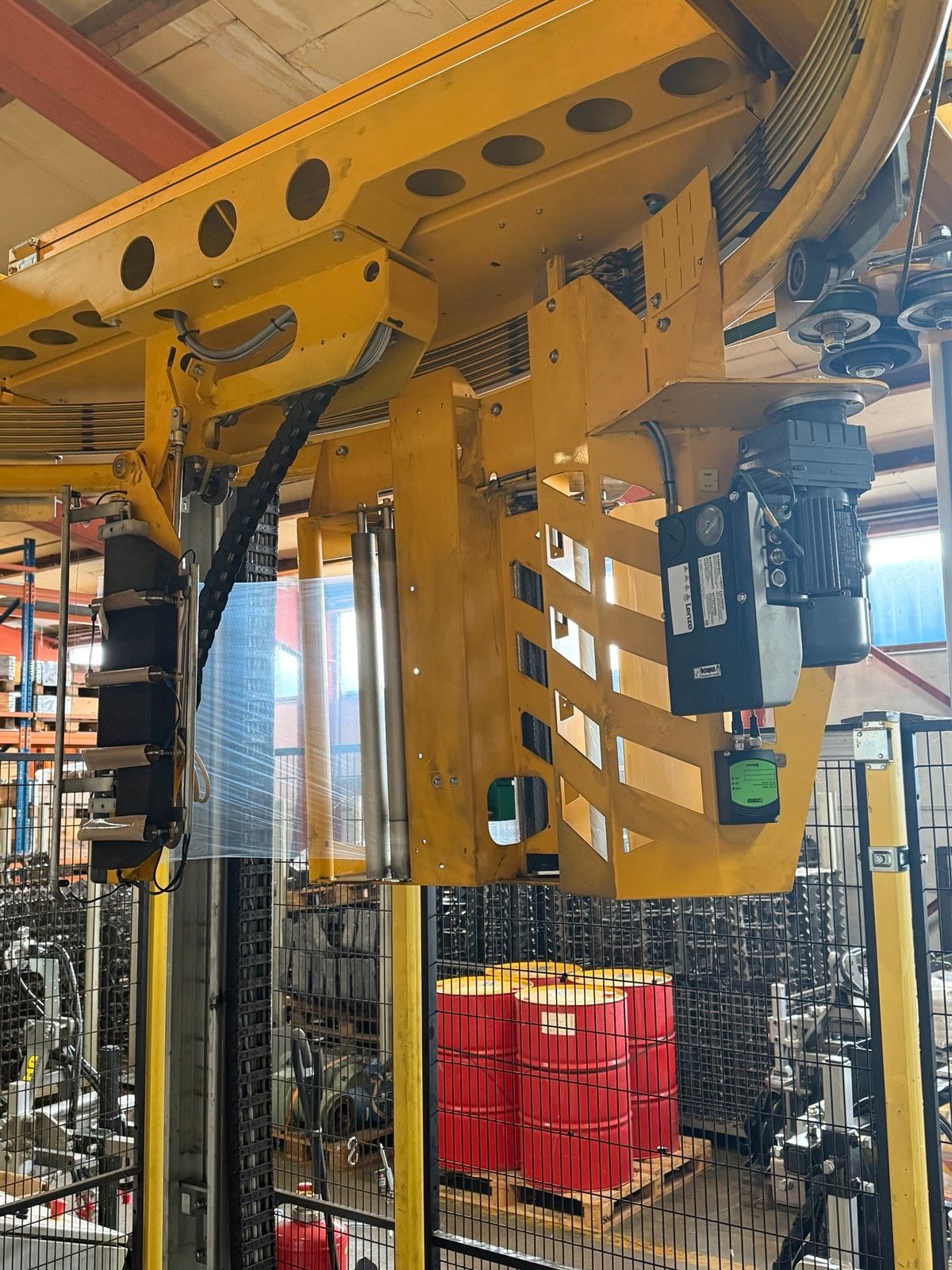

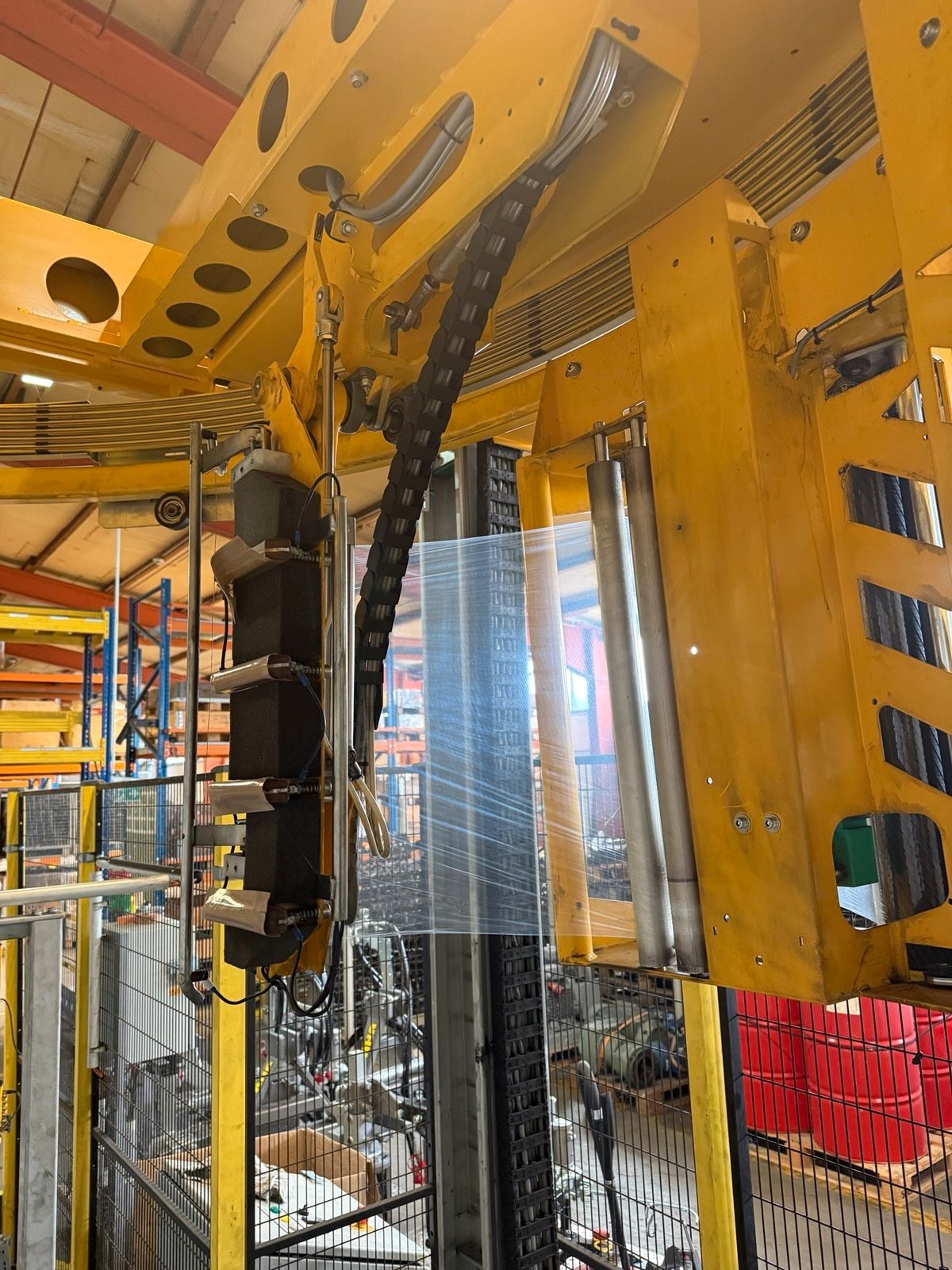

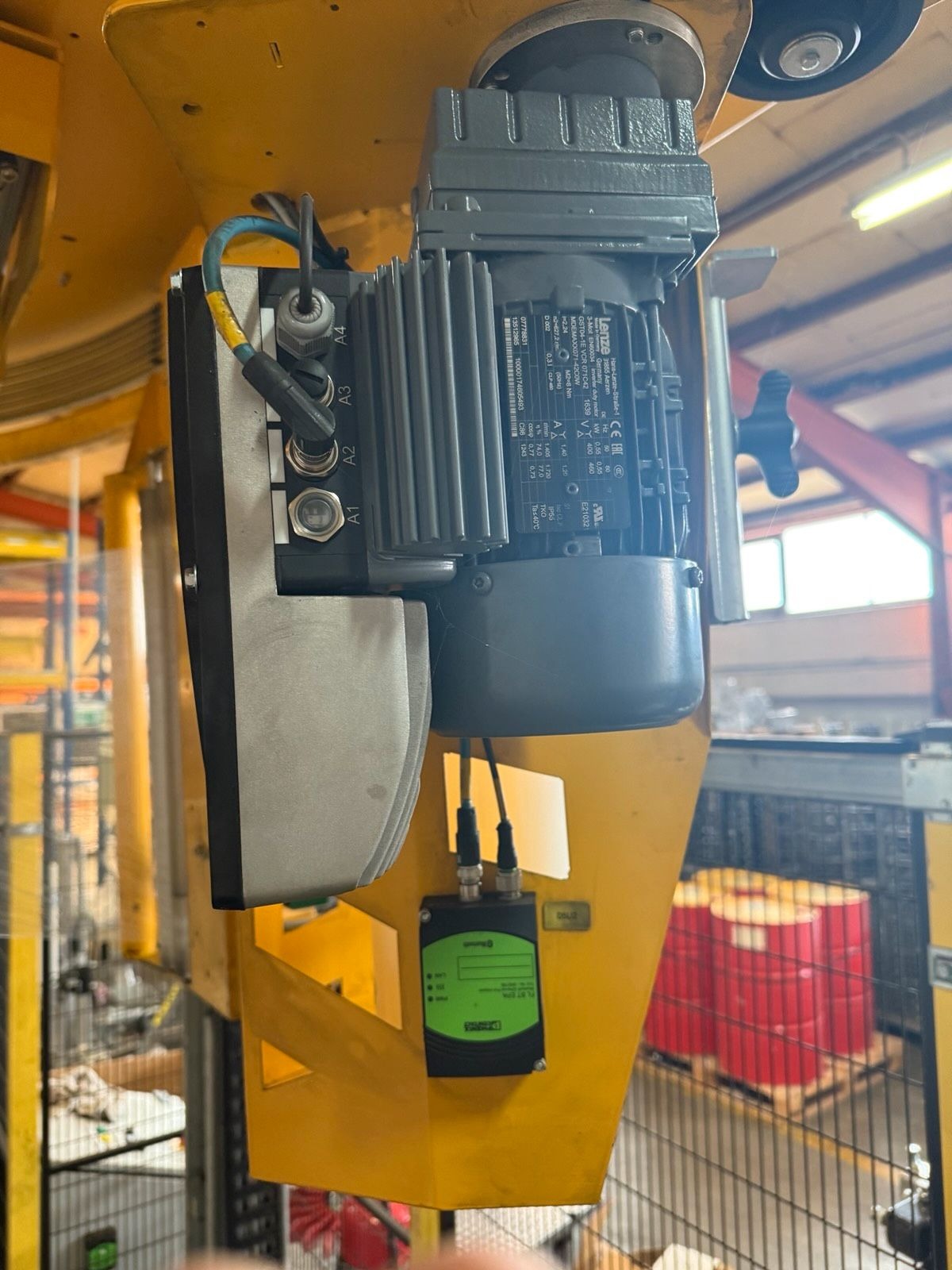

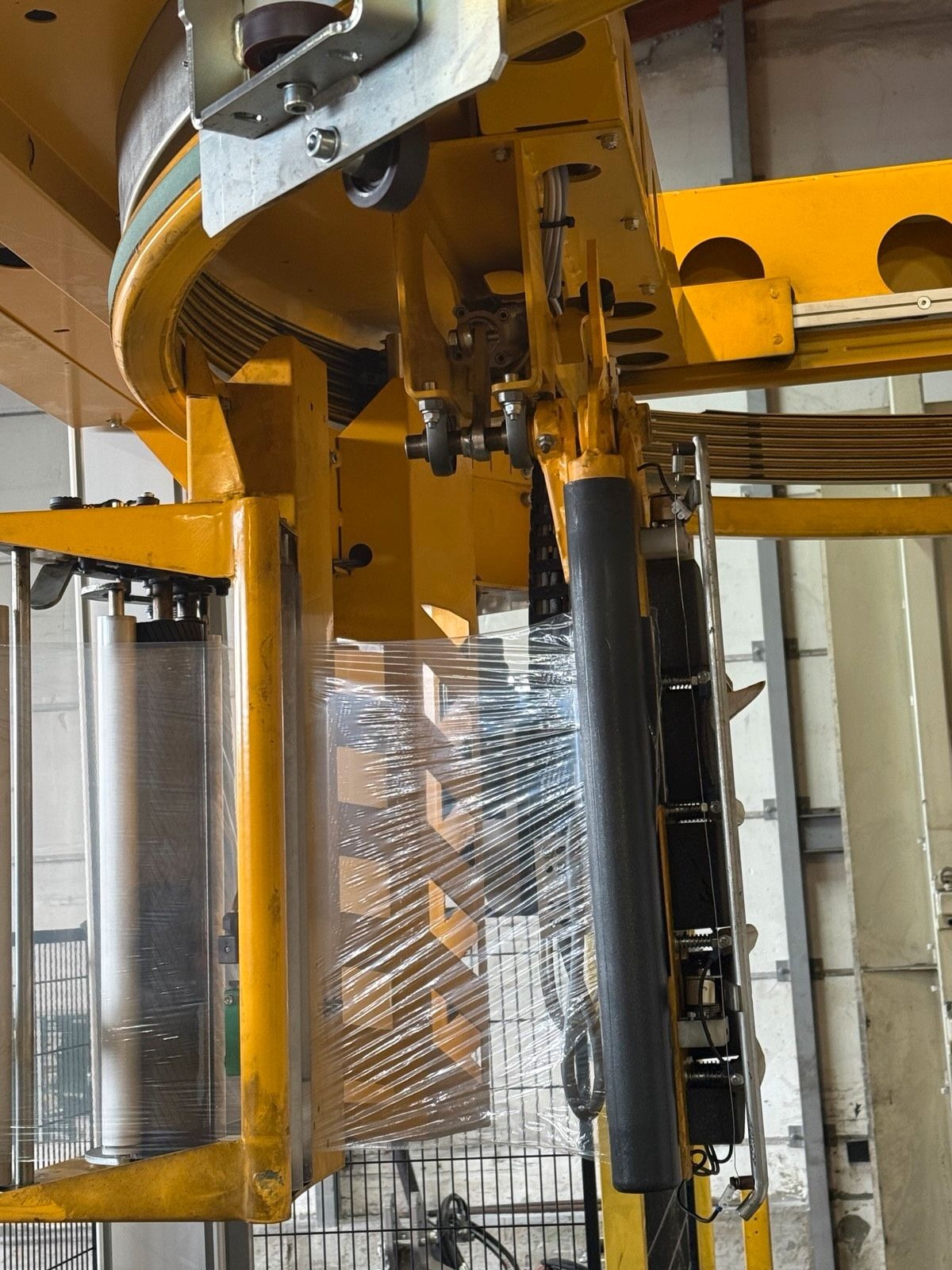

Overview This Haloila Octopus Compact is an automatic rotary-ring stretch wrapper for palletised loads, built in 2016 by Oy M. Haloila Ab in the inline version. It is sold together with its pallet roller conveyor with pallet lifter and its control cabinet. The machine was specified for wrapping barrels and canisters on pallets, is in very good condition and fully functional, and has been out of production since July 2024. It is still installed and under power and can be inspected on site. The rotating ring carries the film carriage around the stationary pallet, so the load itself is never turned - a compact layout suited to lines where the pallet runs straight through the winder on the conveyor. Technical data Manufacturer: Haloila Model: Octopus Compact, inline version Year of manufacture: 2016 Machine type: automatic rotary-ring pallet stretch wrapper (pallet winder) Designed output: 32 pallets per hour (reference pallet height 1,200 mm, 14 wraps per pallet, double wrapping) Pallet formats: 1,000 x 1,200 mm, Euro 800 x 1,200 mm and special 1,200 x 1,200 mm Load: up to 1,200 x 1,200 mm, height 500 to 1,200 mm, up to 1,000 kg Conveyor: roller conveyor, height 390 mm, speed 15 m/min, effective width 1,285 mm, roller pitch 166 mm, Movimot geared motors Film carriage: AC-powered, pre-stretch up to 230 % Film seaming: heat-seal pad Power supply: 3 x 400 V, 50 Hz + N + PE Connected load: 4 kW Rated current: 10 A CE mark on the machine plate Equipment Rotating ring with film carriage and film pre-stretch unit Roping device Pallet roller conveyor through the winder, with chain transfer section and pneumatic pallet lifter with sensors Photoelectric sensors for pallet and load height detection, photocells for load position Control cabinet and touchscreen operator panel (German), signal tower Signal exchange interface (DP/DP coupler) for connection to a line control Safety fencing around the wrapping zone, safety light curtains at infeed and outfeed with muting Restart push-buttons at the infeed Condition Used, very good condition and fully functional. Out of production since July 2024. Sold without warranty. Availability Available immediately. The machine is still installed: dismantling and loading are to be arranged by the buyer. The matching oil filling line from the same site can also be offered on request. Location: Germany.
seller offer No. resale DE-PAL-HAL-2016-00001
