FEMI N 251 DA XL Sierras de cinta

cutting diameter: 225 mm
saw band length: 2480 mm
cutting width: 250 mm
cutting speed: 45 / 90 m/min
dimensions of saw-band: 2480 x 27 x 0,9 mm
capacity 45 degrees: flat: 135 x 185 - 145 x 150 mm
capacity 45 degrees: round: 150 mm
capacity 45 degrees: square: 145 mm
capacity 60 degrees: flat: 63 x 107 - 69 x 90 mm
capacity 60 degrees: round: 70 mm
capacity 60 degrees: square: 70 mm
capacity 90 degrees: flat: 240 x 160 - 250 x 110 mm
capacity 90 degrees: round: 225 mm
capacity 90 degrees: square: 185 mm
total power requirement: 0,75 / 1,1 kW
weight of the machine ca.: 200 kg
dimensions of the machine ca.: 1385 x 580 x 890 mm
Technical features:
- Hydraulic head descent control system
- End stop at the end of the cut
- Powerful three-phase induction motor with 2 speeds and
Transmission with oil bath
- Saw frame, vice and swivel group made of cast steel

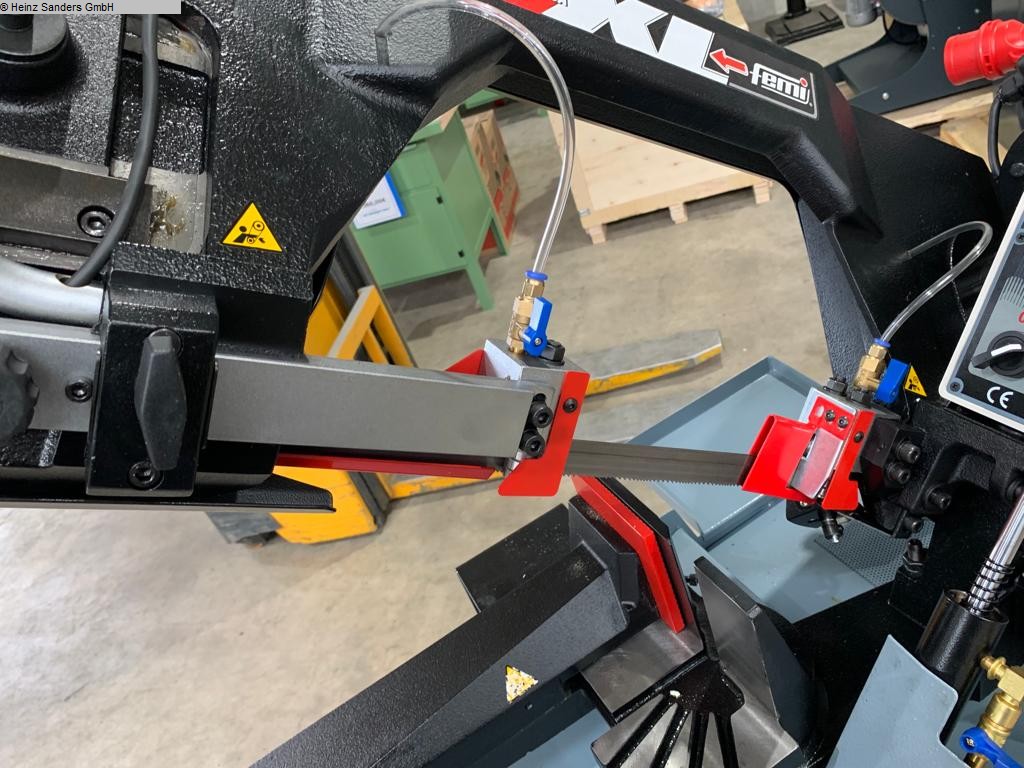

- Steel blade guide with ball bearings

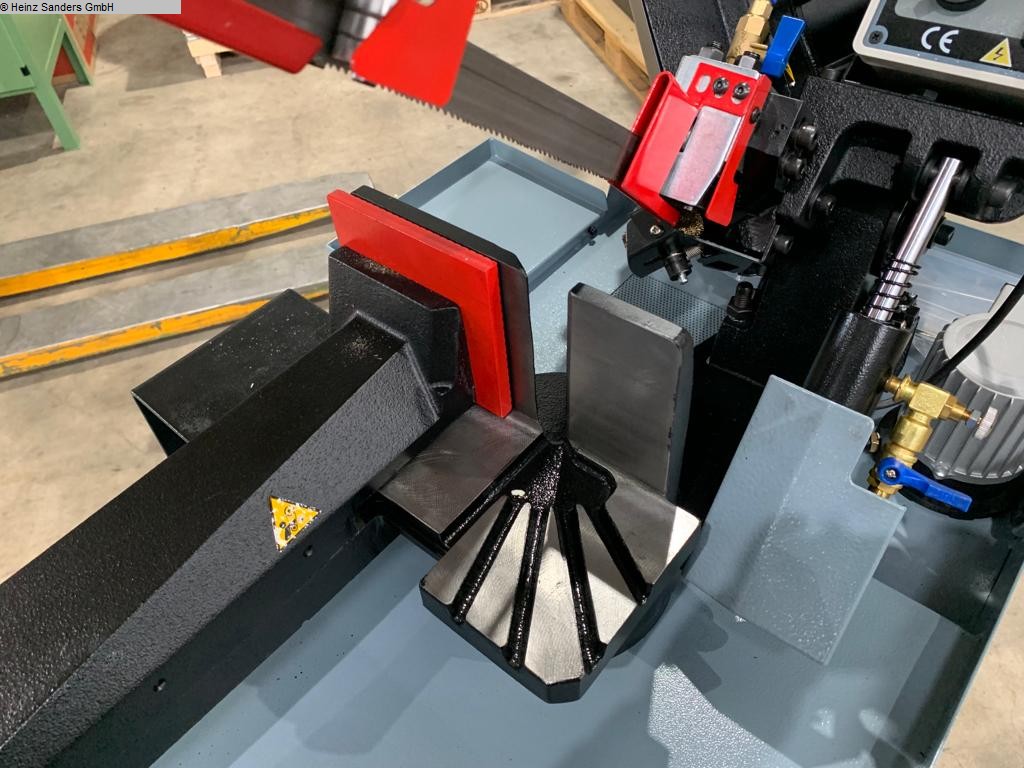

- Vice with quick clamping
- Lever integrated on the front for locking the miter adjustment
- Coolant pump with aluminum body
- Large hand wheel for easy saw blade tension
- Pressure gauge to show the belt tension (600-1000 kg/cm3)

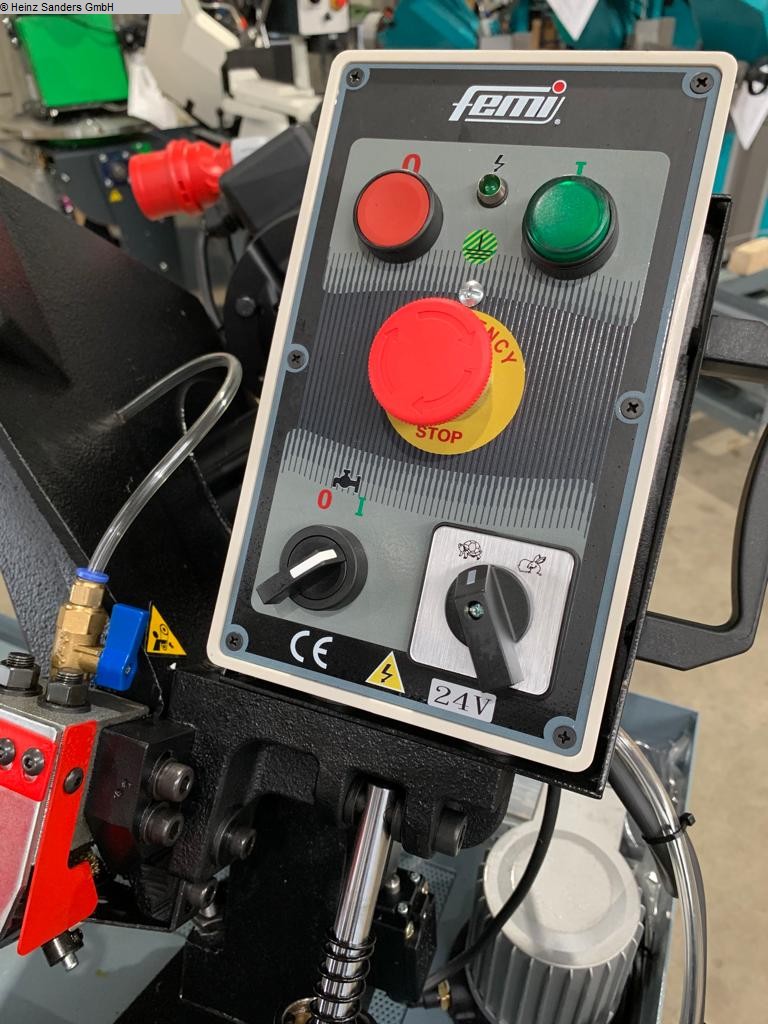

- Emergency stop safety switch
- Swarf brush for cleaning the saw blade
STANDARD EQUIPMENT:
- Mountable base cabinet
- coolant tank
- Electric coolant pump
- Length stop for serial cuts
- Band change and settings tools
- Chip removal brush
- Hydraulic cylinder with feed control
