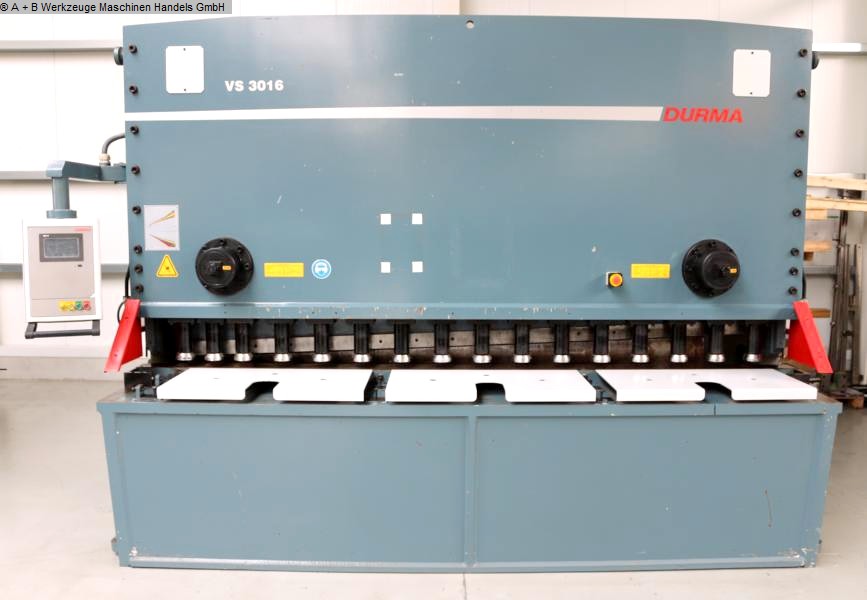

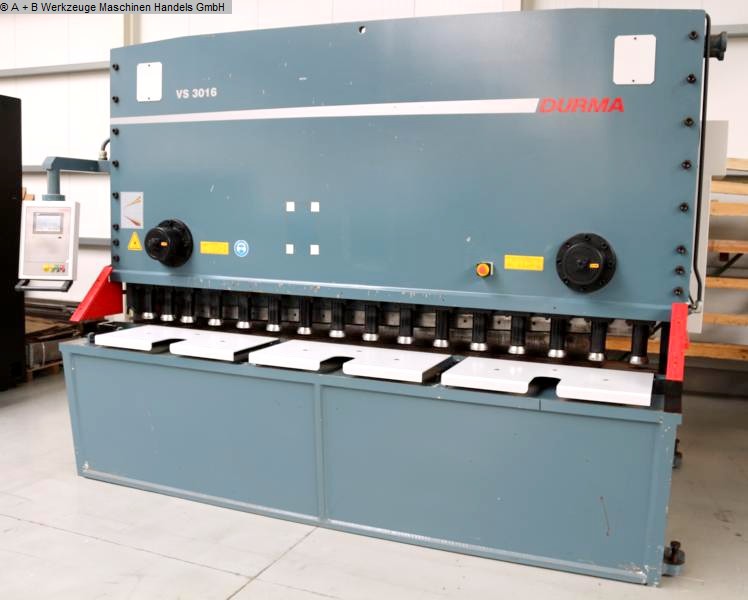

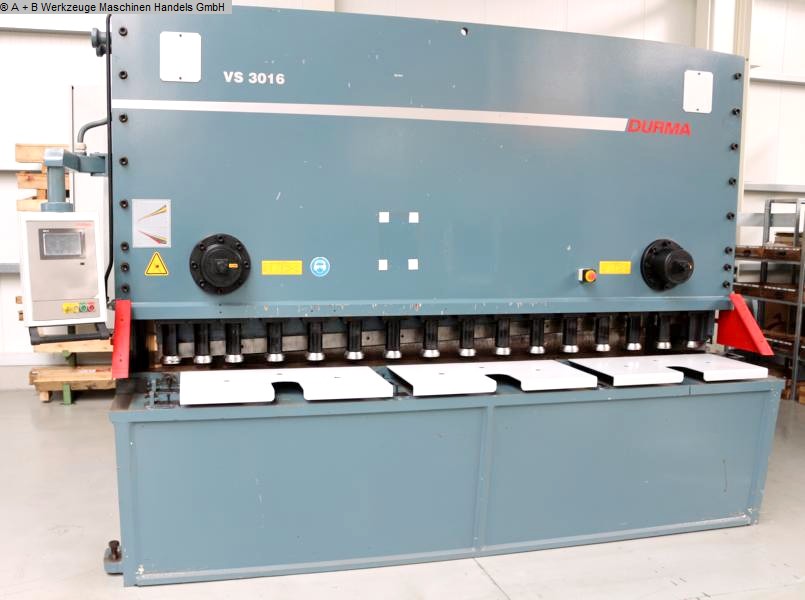

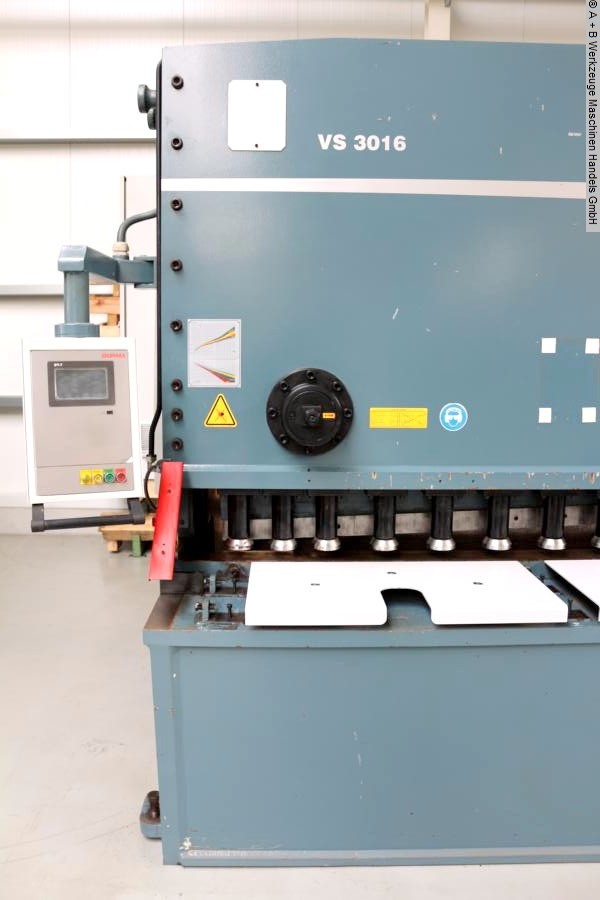

Cizallas hidráulicas CNC DURMA VS 3016

sheet width: 3080 mm
plate thickness: 16.0 mm
thickness at Niro-steel: 12.0 mm
cutting angle: 0.5 - 2.5 °
no. of strokes: 7 - 12 Hub/min
back stop - adjustable: max. 1000 mm
traversing speed: 200 mm/sek
down holder: 14 Stück
work height max.: 840 mm
Column width: 3420 mm
throat: 350 mm
Control: D-Touch 7
oil volume: 450 l
engine output: 45.0 kW
voltage: 400 V
weight: 18150 kg
range L-W-H: 4130 x 2210 x 2570 mm
Good / well-maintained condition ()
New price ~ €120.000
Special price upon request

Features:
- Robust electro-hydraulic sheet metal shear (guided)

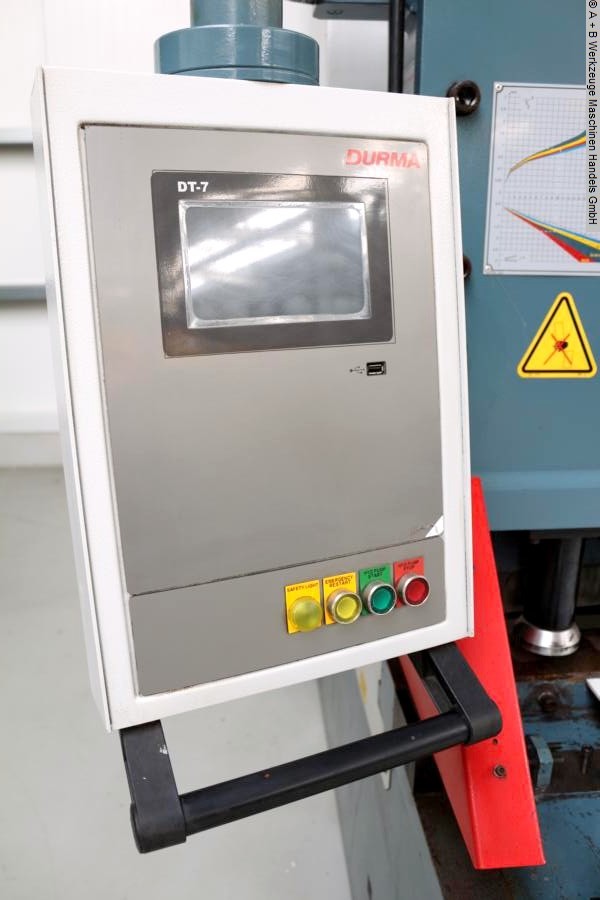

- CNC control unit D-Touch 7 (touchscreen)
Anti-reflective robust 7 color touchscreen control panel
Easy positioning to the desired size
Positioning accuracy 0.1 mm
Unlimited material definition in the material library
Intuitive menu navigation
Separate display for actual and target values
Backgauge retraction function
Cutting length control via adjustable stroke length
Cut counter
Automatic machine stop when the programmed cuts are reached
- CNC electro-motorized adjustable backgauge
Travel range max. 1,000 mm
Backgauge adjustment via ball screws and linear guides
- CNC electro-motorized cutting gap adjustment
- CNC Electro-hydraulic cutting angle adjustment
- Heavy-duty welded steel construction
- Ergonomically positioned and clearly H51251851 laid-out control H51251851 panel

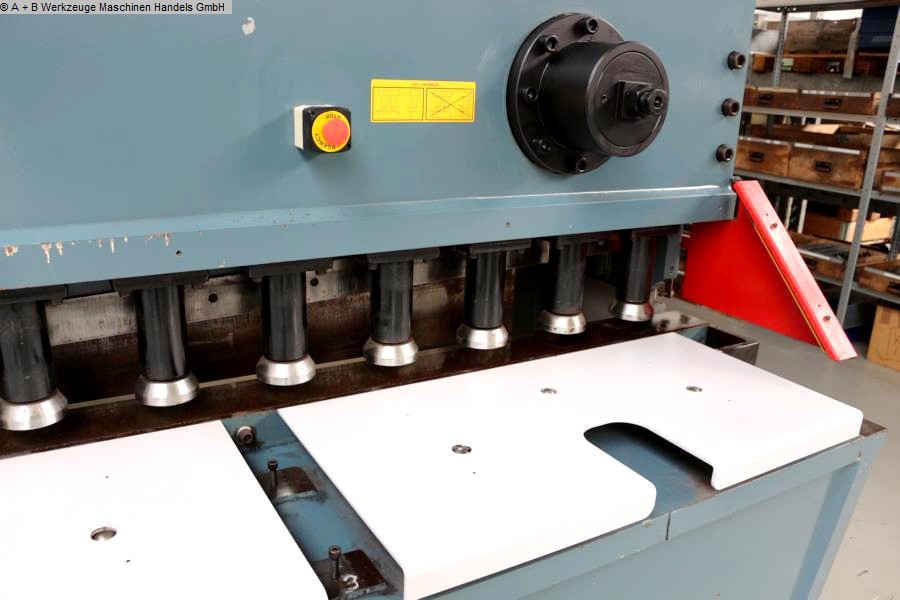

- Hold-down clamp positioned close to the cutting edge
- Front light barrier (instead of finger guard)
- Self-regulating hold-down clamp pressure
- Rear safety device (light barrier)
- 1x side stop (L = 1,500 mm)
- 2x support arms (L = 1,000 mm each)

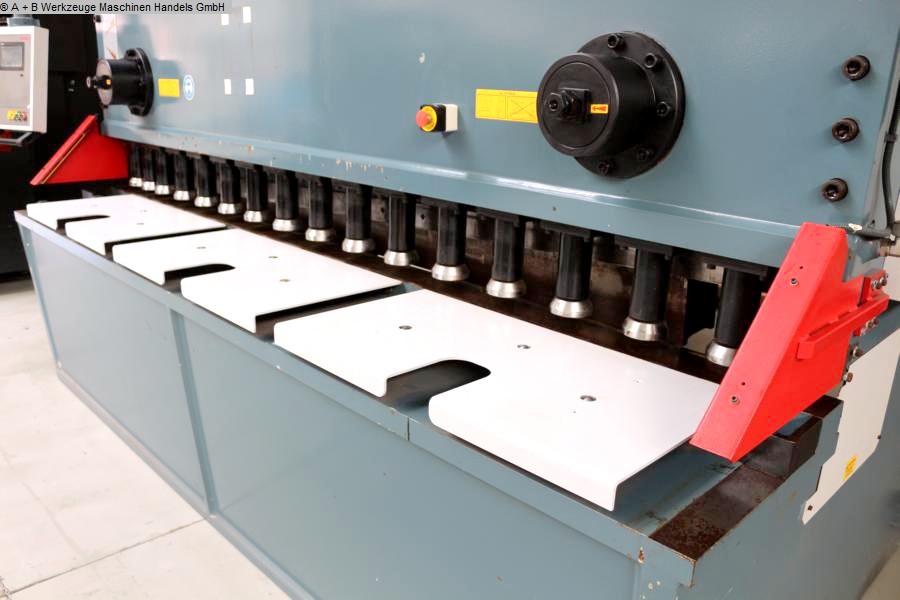

- Wide sheet supports with ball transfer rollers
- Mobile foot switch with emergency stop function
- High-quality, regrindable blades (split)
- Rear sheet chute
- Original operating instructions
