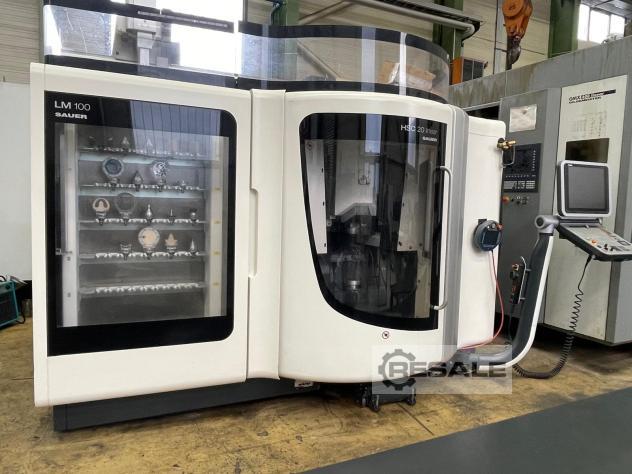

Fresadoras CNC DMG MORI HSC20 linear

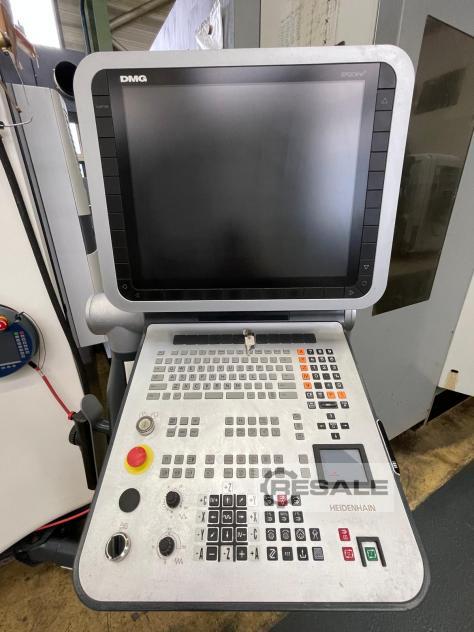

Control CNC: HEIDENHAIN iTNC530

Axes
X-axis travel mm: 200
Y-axis travel mm: 220
Z-axis travel mm: 280
C-axis degrees: 360º
A-axis degrees: -15º max.130º

Work Table
Table dimensions mm: ø200
Maximum workpiece weight kg: 15

Spindle
Spindle speed rpm: 42.000

Cooling
Cooling through the spindle bar: 40

Tool System
Tool holder: HSK-E32
Tool magazine slots: 60
Max. tool diameter mm: ø50
Max. tool length mm: 200
Chip-to-chip time s: 10

Equipment

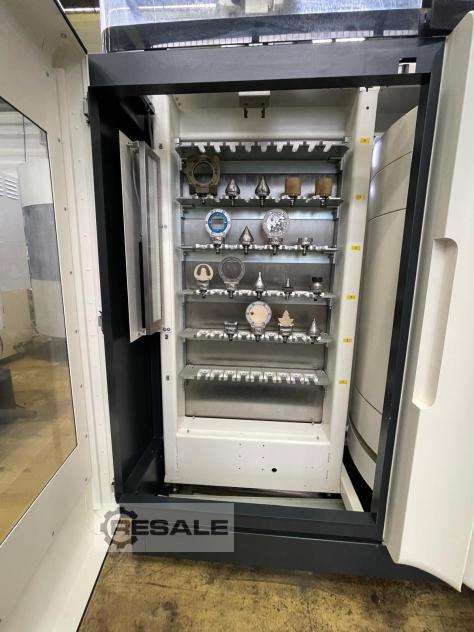

Automation LM100 (EROWA ITS72, 5 levels of 9 positions); 10 kg maximum manipulation
Electronic handwheel

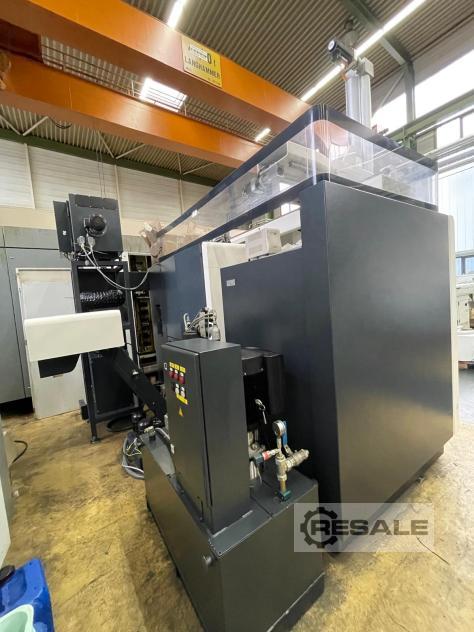

Chip conveyor
Infrared probe
High-pressure pump

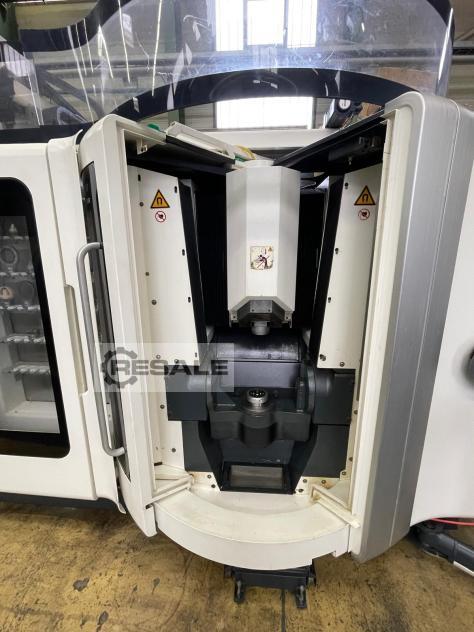

NC rotary tilting table

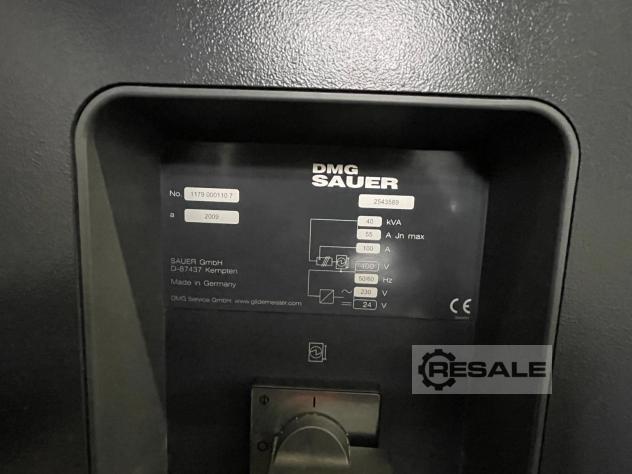

Rated power kVA: 40
seller offer No. resale CNC0332
