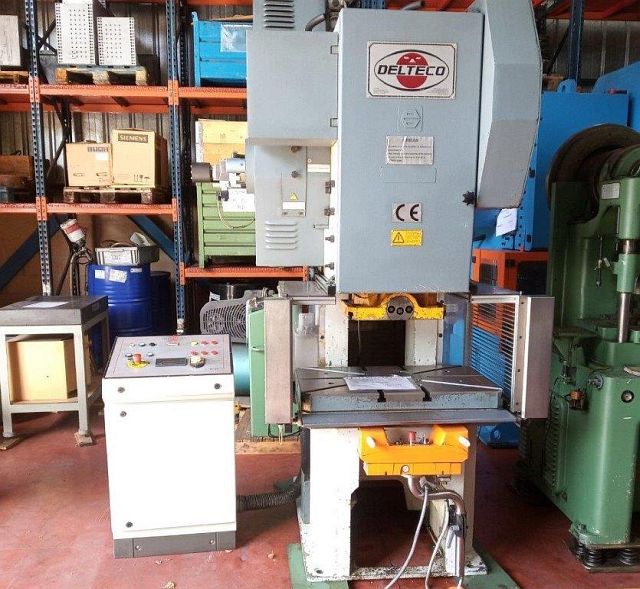

DELTECO PE-63 Prensas excéntricas

PRESS DESIGN
  drive system: eccentric / crank
  table cushion: yes
PRESS FORCES
  total force (nominal): 63 to
  nominal work capacity: 630 kNm
PRESS TABLE
  table surface (left-right): 900 mm
  table surface (front-back): 560 mm
  opening in bed (diameter): 250 mm
SLIDE
  table surface (left-right): 450 mm
  table surface (front-back): 310 mm
  clamping surface diameter: 50 mm
  stroke: 100 mm
  stroke rate (max.): 100 /min
SLIDE (MECHAN. PRESS)
  slide adjustment: 80 mm
  stroke min.: 17.5 mm
  stroke max.: 100 mm
DIE CUSHION (TABLE CUSHION)
  number of cushions: 1
TOOL ASSEMBLY DIMENSIONS
  shut height (stroke down, adjustment up), BDC: 340 mm
  distance table - slide max.: 440 mm
ELECTRICAL SPECIFICATIONS
  total power consumption: 5.5 kW
  mains voltage: 380 V
  mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
  space requirements -left/right-: 1310 mm
  space requirements -front/back-: 1500 mm
  total height: 2900 mm
  total weight approx.: 4800 kg
ATTACHMENTS (PRESSES)
  decoiler: optional
  leveller unit: optional
  strip feeder: optional
  2-hand engagement: yes
  foot engagement: yes
  European CE standards: yes
