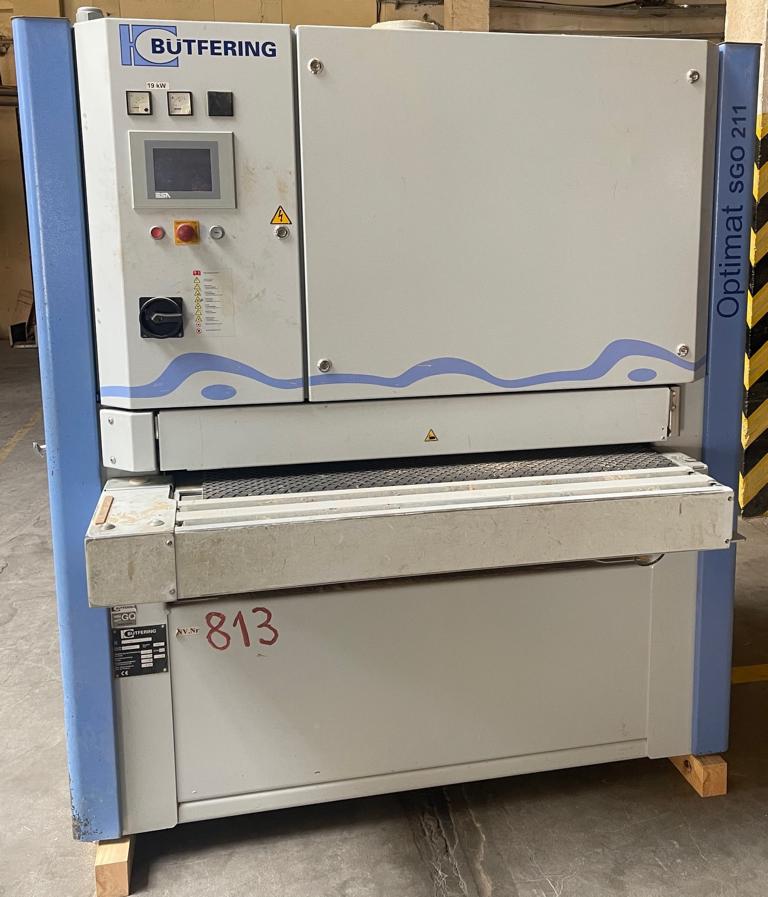

Bütfering Optimat SGO 211
Vendedor verificado
Solicitar precio
Directamente al vendedor
1 / 1
Datos técnicos
· ID 170389234Maquinaria usada
- Año de fabricación
- 2008
- Ubicación
- D - Nordrhein-Westfalen
Identifikation
FabricanteBütfering
ModeloOptimat SGO 211
Número de artículo3318175
Technik
Cantidad1
Descripción
Technical data:
- Manufacturer: Bütfering
- Type: Optimat SGO 211/RC
- Number of grinding units: 2
- Year of manufacture: 2008
- Working width: 1.100 mm
- Grinding belt width: 1.120 mm
- Grinding belt length: 1.900 mm
- Workpiece thickness: 3
-160 mm
- Feed speed: 2,5
-13 m/min.
- Table height adjustment Standard equipment:
- Automatic workpiece thickness adjustment
- Stepless feed speed via requency converter.
- 125 grinding programs can be stored
- Wear
-free braking system 1. Grinding unit (R)
- Calibration roller
- Profiled steel contact roller
- Diameter 160 mm
- Drive motor: 15 kW 2nd grinding unit (C)
- Combination unit with roller and grinding shoe
- Rubberized contact roller 65 Shore
- Contact roller diameter 160 mm
- Electronic link pressure bar with segment width 35 mm.
- Belt speed: 12 and 21 m/s
- Tolerance compensation up to 1 mm
- Suitable for veneered surfaces and solid wood.
- Drive motor: 11 kW
- Total connected load: approx. 28 kW
- Operating voltage: 400 V / 50 Hz.
- Compressed air consumption at 6 bar, 20 L/min.
- Belt blow
-off device per pressure surge 440 L/min.
- Extraction volume: approx. 2,880 m3/h/ at 20 m/s
- Extraction connection: Dedusting: 1 x Ø 160 mm (grinding unit, roller) 1 x Ø 160 mm (grinding unit, shoe) Dimensions:
- Length: 1,700 mm
- Width: 1,850 mm
- Height: 2,100 mm
- Location: not in stock
- Manufacturer: Bütfering
- Type: Optimat SGO 211/RC
- Number of grinding units: 2
- Year of manufacture: 2008
- Working width: 1.100 mm
- Grinding belt width: 1.120 mm
- Grinding belt length: 1.900 mm
- Workpiece thickness: 3
-160 mm
- Feed speed: 2,5
-13 m/min.
- Table height adjustment Standard equipment:
- Automatic workpiece thickness adjustment
- Stepless feed speed via requency converter.
- 125 grinding programs can be stored
- Wear
-free braking system 1. Grinding unit (R)
- Calibration roller
- Profiled steel contact roller
- Diameter 160 mm
- Drive motor: 15 kW 2nd grinding unit (C)
- Combination unit with roller and grinding shoe
- Rubberized contact roller 65 Shore
- Contact roller diameter 160 mm
- Electronic link pressure bar with segment width 35 mm.
- Belt speed: 12 and 21 m/s
- Tolerance compensation up to 1 mm
- Suitable for veneered surfaces and solid wood.
- Drive motor: 11 kW
- Total connected load: approx. 28 kW
- Operating voltage: 400 V / 50 Hz.
- Compressed air consumption at 6 bar, 20 L/min.
- Belt blow
-off device per pressure surge 440 L/min.
- Extraction volume: approx. 2,880 m3/h/ at 20 m/s
- Extraction connection: Dedusting: 1 x Ø 160 mm (grinding unit, roller) 1 x Ø 160 mm (grinding unit, shoe) Dimensions:
- Length: 1,700 mm
- Width: 1,850 mm
- Height: 2,100 mm
- Location: not in stock
