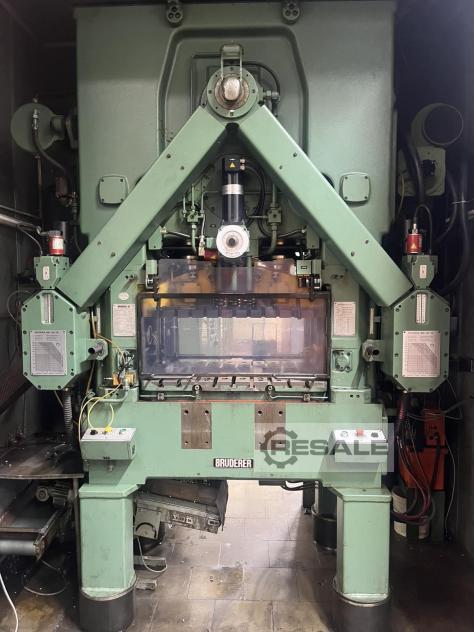

Prensas de gran velocidad BRUDERER BSTA 50 EL CNC

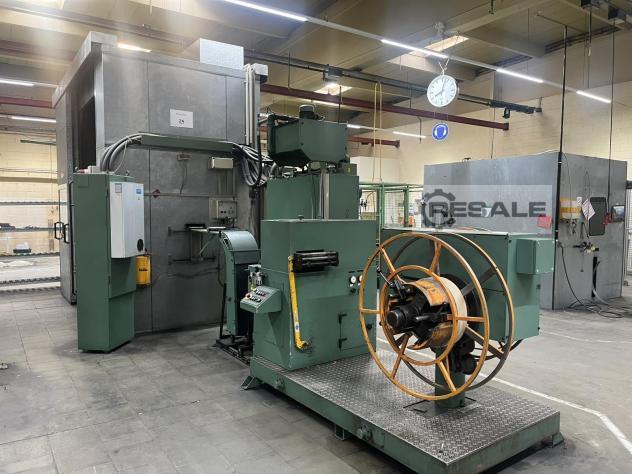

Configuration 2 x BRUDERER BBV 202/120 DOUBLE strip feeder KOHLER leveling machine 100.180/2.500.2M, year of construction 1992 Unwinding reel / coil reel Soundproof cabin Conveyor belt for part removal Lifting and sorting device for containers Roller conveyors and stacking racks Technical documentation available Complete BRUDERER high-performance punching line consisting of a precision punching machine BSTA 50 EL, BRUDERER strip feeder BBV 202/120, KOHLER leveling machine, unwinding reel, soundproof cabin, and discharge and conveying equipment. The system is designed for the efficient processing of strip material in high-speed punching operations. Extensive technical documentation is available.

Technical Specifications
Stroke Power 500 kN (50T)
Table area: 940 x 580 mm
Tool length max. 950 mm
Operating hours 49637
Strip width: Max. 202 mm
Machine dimensions: 3100 x 2700 x 1800 mm
Power supply 3 x 380 V
Feeder: TWIN 2 x BBV 202/120
Adjustable stroke: 16-51 mm
Strip thickness: Max.: 4 mm
seller offer No. resale 38026
