BOSCHERT EVO LINE 300 digital

working area: X .. 370 mm
working area: Y .. 700 mm
pressure: 28.0 t
plate thickness: max. 12.7 mm ST
throat: 310 mm
height of stroke: 0 - 40 mm
no. of strokes: max. 180 Hub/min
punch diameter: max. 105 mm
: 845 x 1420 mm
work height max.: 900 mm
oil volume: 50.0 l
total power requirement: 5.0 kW
weight of the machine ca.: 1800 kg
range L-W-H: 1800 x 1200 x 1500 mm
New price including accessories approx. 35,000 euros
Special price on request

The machine was used continuously in a test area
and as a result has very few operating hours !

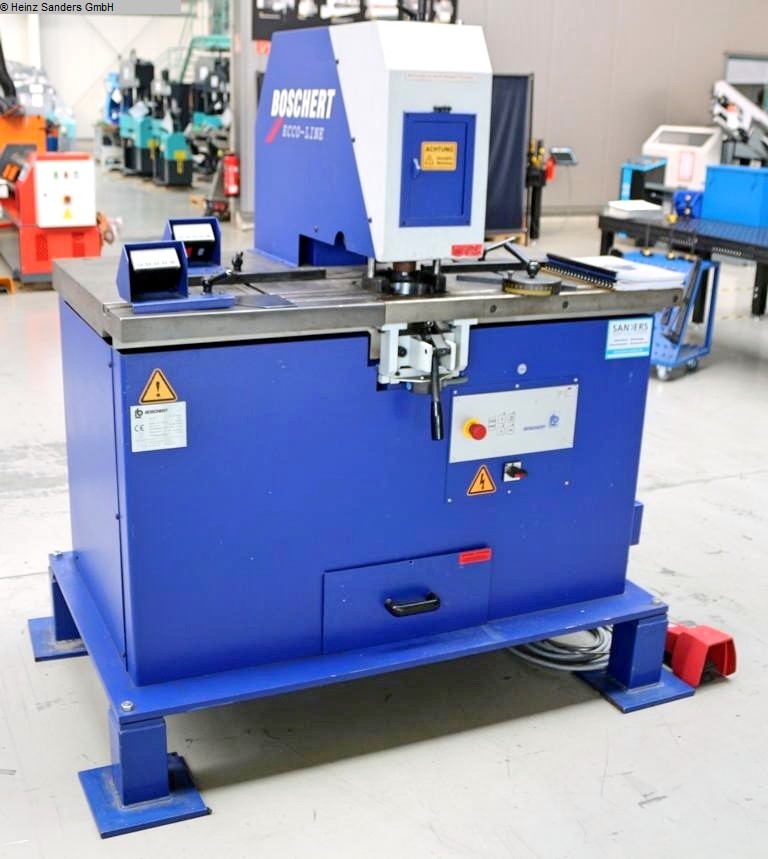

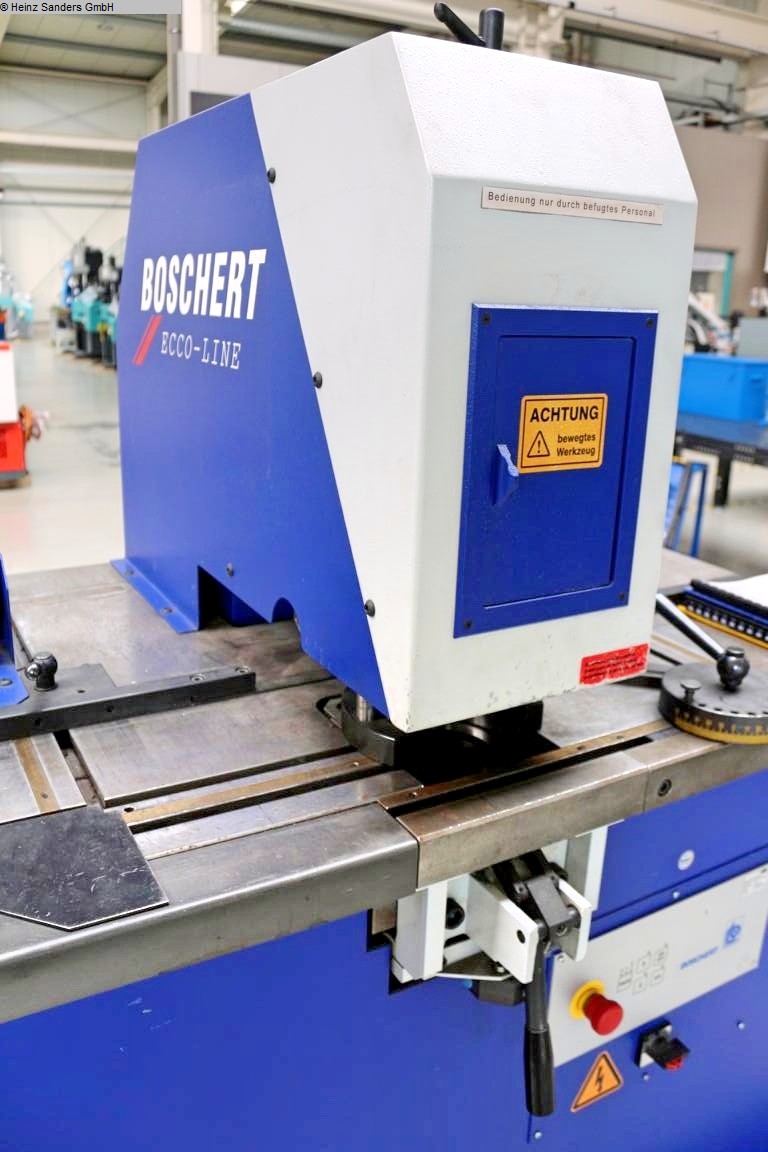

The ECCO LINE hydraulic punching machine has been specially optimized
for the processing of sheet metal and profile parts. It is characterized by its
The machines of the ECCO LINE series are equipped with a punching force of
LINE series are equipped with 28 tons of punching force in conjunction with the
proven Trumpf tool system. Tool change time approx. 15 sec (manual)

Mode of operation: After installing the tool, the stops are positioned
in X and Y are positioned accordingly and the material is pushed against
the stops. By the hole is then punched by pressing the foot pedal

Features of the machine:
- Maintenance-free hydraulic drive
- Stepless stroke adjustment
- Compact unit
- Constant punching force

Features:
- Robust electro-hydraulic hole punch
- TRUMPF tool system with many insert tools

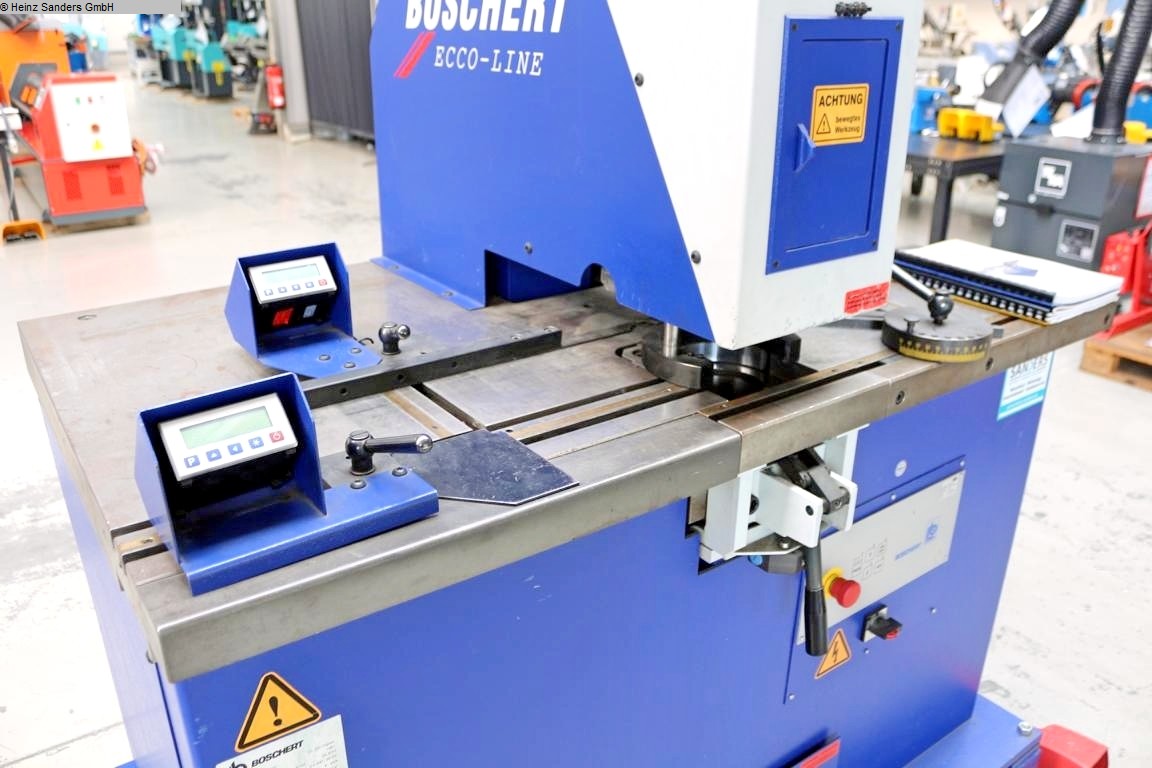

- Stop system with digital displays
Magnetic scale integrated into the side of the machine table
Scanning head integrated in the stops
Energy guiding chains for supply line to the scanning head
Evaluation electronics
Position indicators mounted on the stops
Stake-out device for zeroing the axes
Readout accuracy /- 0.1 mm

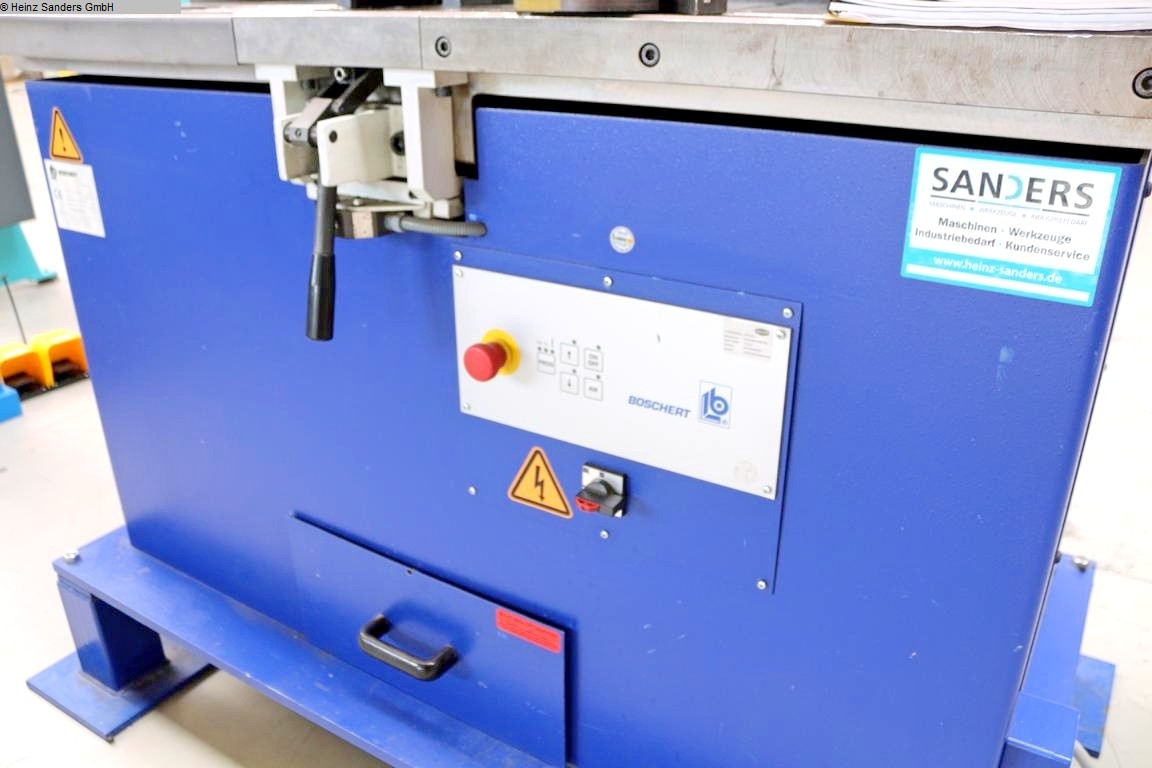

- Control panel: set-up, single and continuous stroke
- Stepless stroke height adjustment
- Free-moving foot switch

with many punching tools !
