Instalaciones de arenado BLASTMAN B20CX

BLASTMAN B20CX shot blasting robot was built in 2024 in Finland by Blastman Robotics Ltd. The machine is in very good technical condition with minor signs of use.

The BLASTMAN B20CX is a state-of-the-art system designed to operate in demanding industrial environments. The machine is designed for precision surface cleaning of steel structures, castings, large-sized parts and other workpieces that require high efficiency and repeatability of the process. The shot blasting process is performed by means of steel shot or corundum, ejected under high pressure through two nozzles mounted on a 2750 mm long telescopic boom. This solution enables effective blasting even in hard-to-reach places.

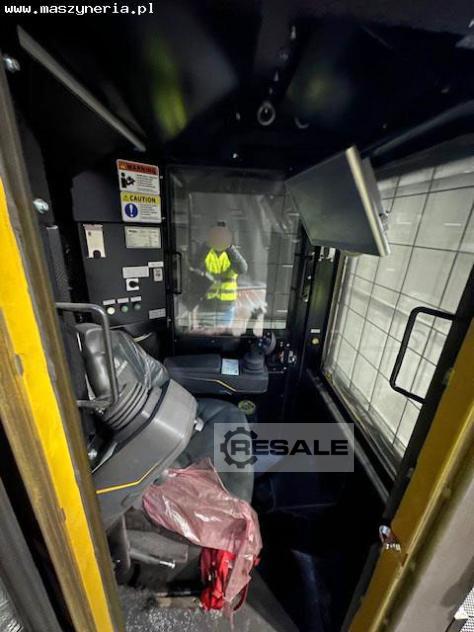

The B20CX shot blasting robot is distinguished by its robust gantry design adapted to the dimensions of the blasting chamber. The operator controls the machine from a comfortable, sealed cabin equipped with all necessary steering elements. Depending on the task at hand, operation can be in either automatic or manual mode. The offer also includes an abrasive recovery system and a filtration system.

Technical specifications of the BLASTMAN B20CX shot blasting machine

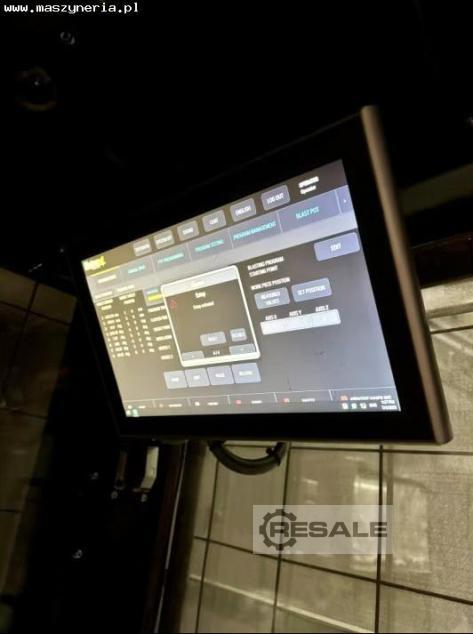

- control system
- operation mode: automatic, manual
- capacity: up to 200 m2/h
- blasting medium: steel shot, corundum
- number of nozzles: 2
- telescopic boom length: 2750 mm

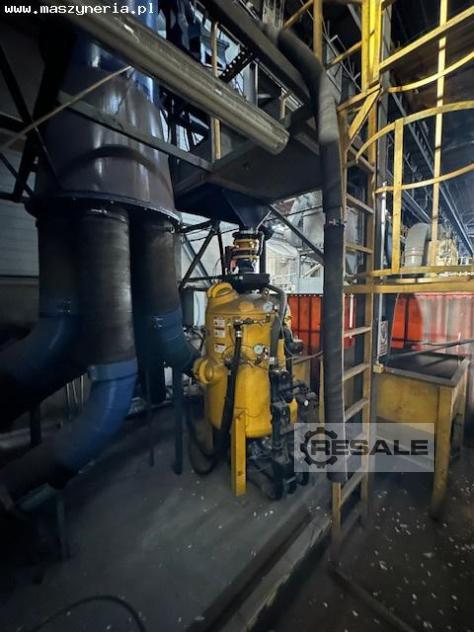

- abrasive recovery system (pressure tanks + pneumatic feeder + screw spirals, screens)

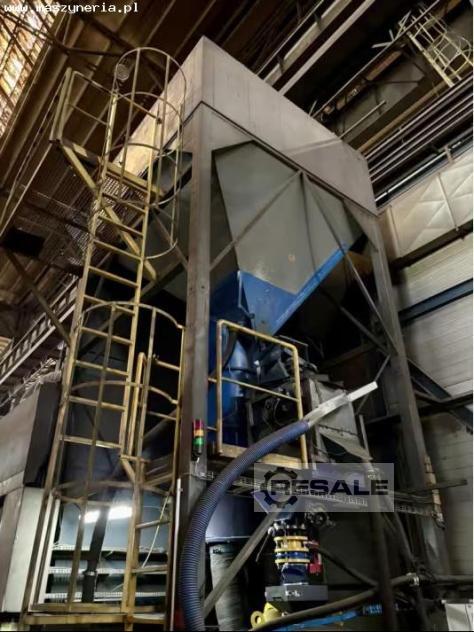

- filter system (extraction units + replaceable filter cassettes)
- loading: crane
- maximum working pressure: 10 bar
- blasting chamber work area (L x W x H): 8 x 6 x 3 m
- power supply of the BLASTMAN machine: 400 VAC; 50 Hz
