BAUER - VG 320 ZA2 Sierras de cinta verticales

cutting diameter: 320 mm
saw band length: 3400 x 27 x 0.9 mm
capacity 90 degrees: flat: 320 x 400 mm
capacity 45 degrees: flat: LI 320 x 280 mm
capacity 45 degrees: flat: RE 320 x 260 mm
capacity 60 degrees: flat: RE 320 x 140 mm
band speed: 35 + 70 m/min
work height max.: 930 mm
voltage: 400 V
total power requirement: 2.67 kW
weight: 950 + 250 kg
range L-W-H: - mm
** well-maintained condition (!!)
** current new price incl. accessories ~ 40.000 Euro
** special price on request
- in checked conditions - machinevideo -
https://www.youtube.com/watch?v=AHgMDxAcpgE
Equipment:
- electro-hydraulic vertical mitre bandsaw
- with large cutting range and small footprint
- Robust material support table
- miter cuts are carried out fully automatically
* electro-hydraulic miter adjustment left right
- Up to 99 cutting programs
- Central operation of all machine functions from the front
- Loading also possible from above
- Precise positioning thanks to accurate measuring system
- electro-hydraulic miter adjustment left right
- Electro-hydraulic material clamping
- electro-hydraulic infeed from the saw arm
* steplessly adjustable (cutting pressure control)
- Operating instructions (PDF)
* Special accessories included :

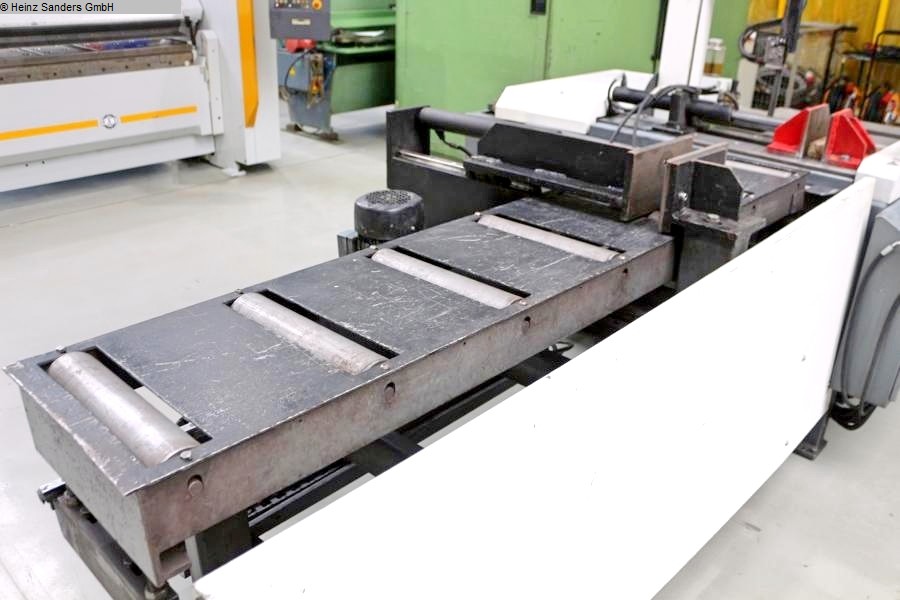

- BAUER material feed unit

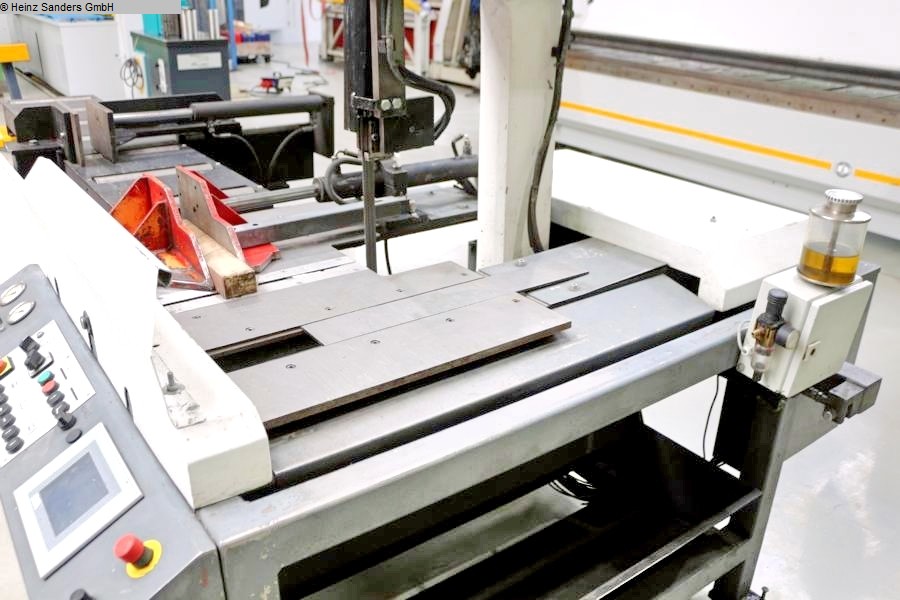

- Micro-dosing device (spray oiler)
