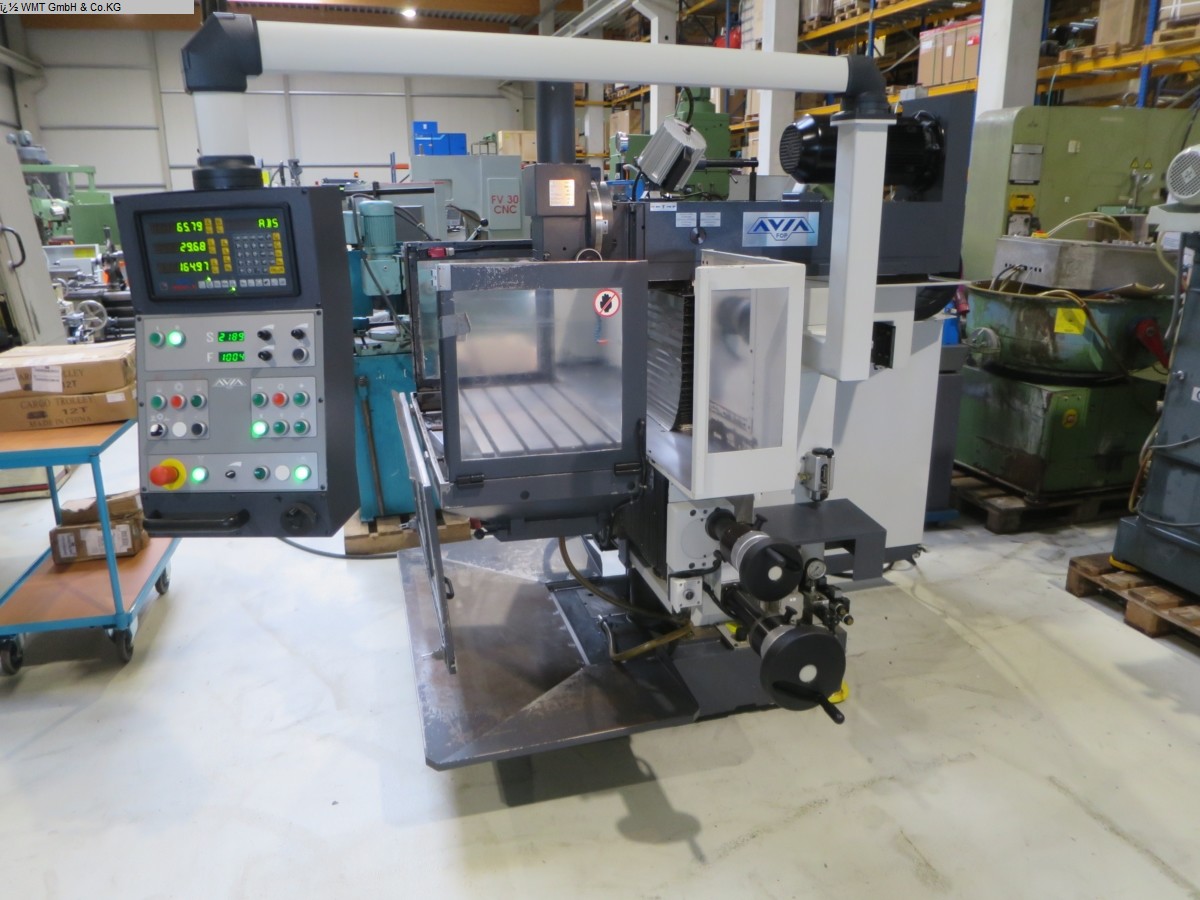

Fresadoras-taladradoras universales AVIA FNE 40P

x-travel: 620 mm
y-travel: 420 mm
z-travel: 400 mm
turning speeds: 50- 4000 U/min
total power requirement: 17,5 kW
weight of the machine ca.: 1,9 t
dimensions of the machine ca.: 2,0 x 2,7 x 2 m
Description:
- excellent condition
- Heidenhain ND780 digital readout
- infinitely variable speed control
- infinitely variable feed drives
- hydraulic tool clamping
- mechanical handwheels
- electronic handwheel
- drilling quill
- horizontal milling spindle
- coolant system
X-travel 620 mm
Y-travel 420 mm
Z-travel 400 mm
Spindle taper ISO 40 DIN 69871A
Spindle speeds 50 - 4000 rpm

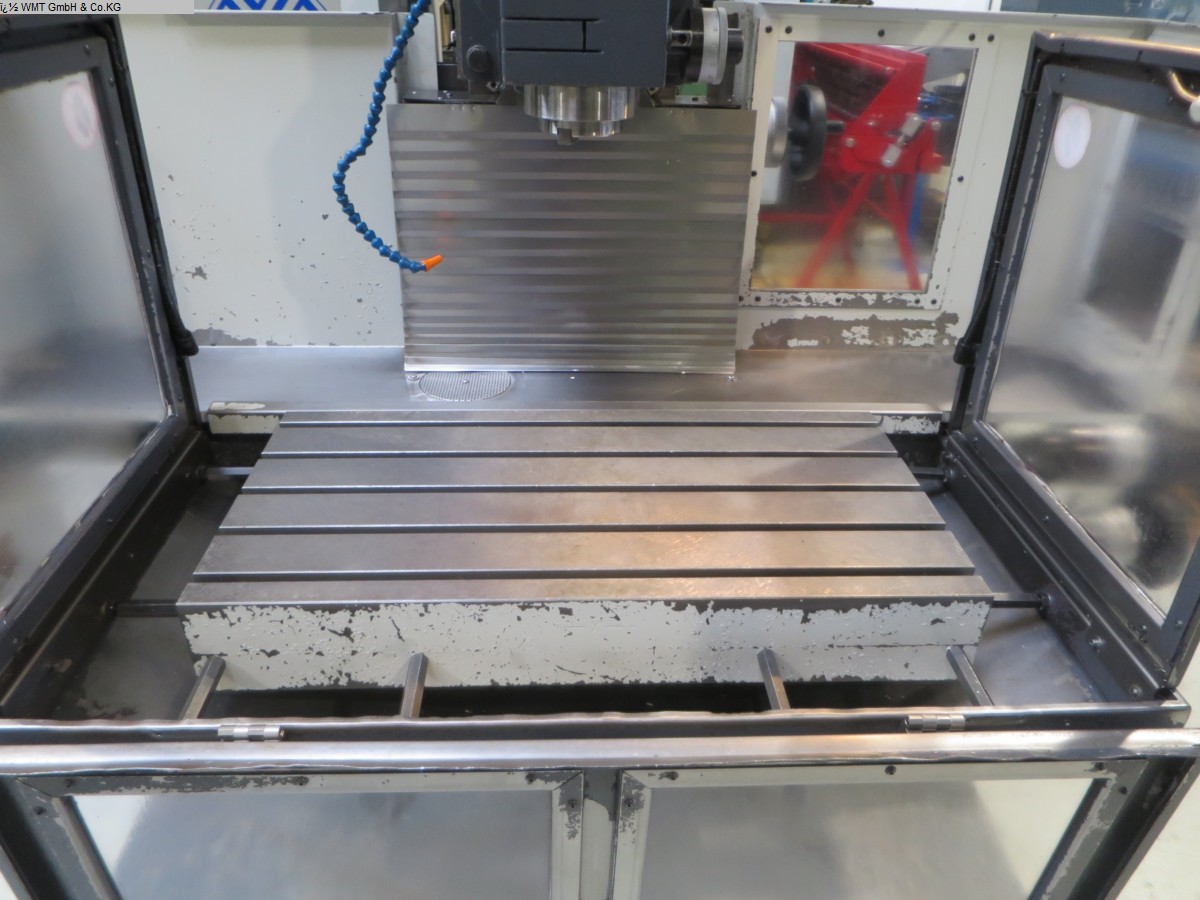

Table size 800 x 400 mm
Table load 400 kg
Feed rates infinitely variable, max. 2000 mm/min
Rapid traverse 5 / 4 m/min
Drive power - milling spindle (S1) 10.5 kW
Quill stroke 80 mm
Coolant system
Operating voltage 400 V
Total power requirement 17.5 kW
Machine weight approx. 1.9 t
Space requirement approx. 2.00 x 2.76 x 2.05 m
