Sistemas de ventanas WEINIG Unicontrol 11 NC,Univar 6, WKZ

Tenoning spindle: 1 St.
Number of milling agregates: 5 St.
Spindle diameter: 50 mm
Control: Weinig PC-Nexus
Weinig Unicontrol 11 NC window production system with an extensive set of tooling
-----------------------------------------
INCLUDES:
- Weinig Univar 6 rebating/profiling machine
- Tooling for both the Unicontrol 11 and Univar 6

The machines can be viewed in operation until the end of calendar week 46, 2026. Dismantling and loading must take place during calendar week 47, 2026.
(Note: If the buyer is unable to collect the equipment during week 47, temporary storage at our facility can be arranged.)

OPTIONAL (for an additional charge):
Professional dismantling and loading of the machines onto the customers trucks: 4,500.00 EUR

Manufacturers technical specifications:
-----------------------------------------

Item 1: Weinig Unicontrol 11 window production system (built 2007)
-----------------------------------------
Includes existing tooling for:
- IV 67 (timber and timber-aluminum)
- IV 77 (timber and timber-aluminum)
- IV 90 (timber)

Cross-cut saw:
------------------------------------------------------------- -
Equipped with a laser alignment light, motor power 3 kW, spindle diameter 40 mm,
spindle speed electronically adjustable (3,000–6,000 rpm) with integrated brake. Maximum tool cutting circle: 400 mm
Axial adjustment: 150 mm via NC axis
Radial adjustment: pneumatic, with 8 positions for top-side edge rounding

Horizontal rounding unit (bottom):
-------------------------------------------------------- ------
Motor with brake: 1.5 kW, spindle diameter 20 mm, clamping length 25 mm,
rotational speed 9,000 rpm
Maximum tool cutting circle: 130 mm
Axial adjustment: mechanically coupled to the cross-cut saw
Radial adjustment: pneumatically controlled

Tenoning and slotting spindle:
--------------------------------------------------------- -----
Includes hydraulically clamped outboard bearing
Motor power (with brake): 15 kW
Spindle diameter: 50 mm
Spindle speed: 2,800 rpm
Maximum tool cutting circle: 400 mm
Tool clamping length: 640 mm
Axial adjustment: via NC axis
Base position (below table): 5–10 mm
Radial adjustment: fixed

1st profiling spindle (climb and conventional milling):
-------------------------------------------------------- ------
Motor power (with brake): 11 kW
Spindle diameter: 50 mm
Spindle speed: 6,000 rpm
Tool cutting circle: min. 140 mm, max. 232 mm
Tool clamping length: 400 mm (with outboard bearing)
Axial adjustment: 350 mm via NC axis
Radial adjustment: via NC axis
Base position (below table): 5–10 mm
2 feed rollers opposite the spindle, axial position pneumatically controlled (8 positions)

Horizontal profiling unit (top):
----------------------------------------------------------- ---
Motor power (with brake): 3.7 kW
Spindle diameter: 40 mm
Clamping length: 40 mm
Spindle speed 9,000 rpm
Maximum tool cutting circle: 130 mm
Pneumatic adjustment to 8 positions (axial and radial)

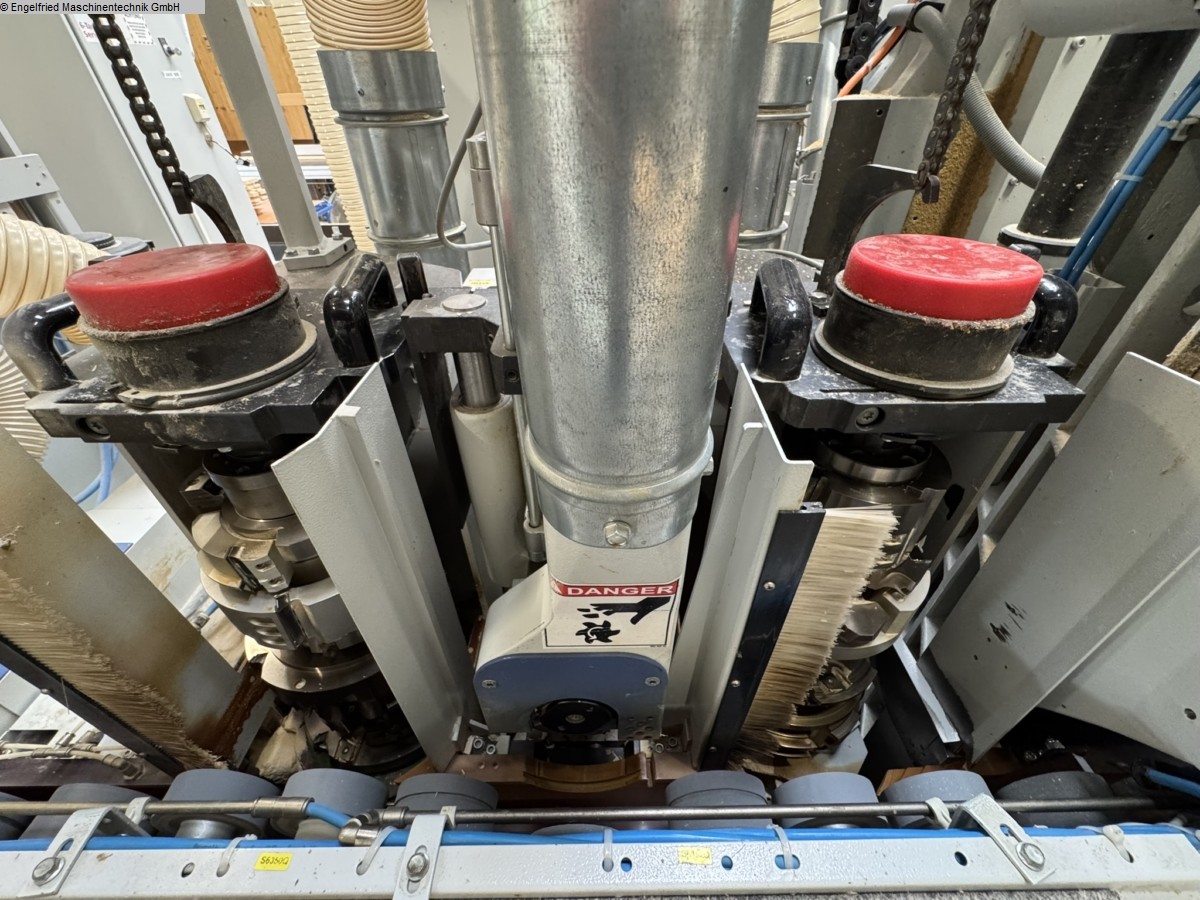

2nd Profile Spindle:
--------------------------------------------------------- -----
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 6,000 rpm
Tool cutting circle: min. 140 mm, max. 232 mm
Tool clamping length: 400 mm (with outboard bearing)
Axial adjustment range: 350 mm (NC-controlled axis)
Radial adjustment range: NC-controlled axis
Base position (below table): 5–10 mm
Cyclic guide fence with support rail for muntins/bars
2 feed rollers positioned opposite the spindle, pneumatically controlled (8 axial positions)

Vertical Profile Milling Unit (Right-hand side, at the end of the machine):
-------------------------------------------------------- ------
Motor power (with brake): 3.7 kW
Spindle diameter: 40 mm
Clamping length: 160 mm
Spindle speed: 5,850 rpm
Tool cutting circle: min. 112 mm, max. 210 mm
Pneumatic adjustment to 8 positions (axial and radial)

Horizontal Profile Milling Unit (Bottom):
-------------------------------------------------------- ------
Motor power (with brake): 3 kW
Spindle diameter: 40 mm
Clamping length: 125 mm
Spindle speed: 5,850 rpm
Maximum tool cutting circle: 200 mm
Pneumatic adjustment to 8 positions (axial and radial)

Additional Accessories:
----------------------------------------------------- ---------
- CNC-controlled length stop, mounted on the tenoning/slotting table
For lengths up to 3,500 mm, includes a cut-off saw integrated into the machine control system. - Studio window setup, capable of 60° swiveling in both directions
- Dual-component handling package with automatic singulation and transfer
- Perimeter milling package with synchronous feed mechanism and automatic plunge function
- Sash-turning carriage for processing narrow sashes with a width of less than 500 mm Automatic pneumatic clamping
- Air conditioning unit for the control cabinet
- NEXUS PC control system
- Automatic turning system: Slat conveyor, including a transport belt to return workpieces to the operator

Item 2: Weinig Univar 6 Window-Profiling Machine (built 1998)
-----------------------------------------
Includes existing tooling

1. Profiling spindle (synchronous-rotation spindle with automatic plunge function)
> Synchronous rotation for tear-free profiling (rebating/profiling)
> Position: vertical, right-hand side
> Number of tools: 1
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 120 mm
> Max. tool diameter: 232 mm
> Motor: 7.5 kW

2. Profiling spindle
> Position: vertical, right-hand side
> Number of tools: 3 (with 95 mm stroke)
> Axial/radial adjustment range: 240/80 mm
> Axial adjustment: pneumatic
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 320 mm
> Max. tool diameter: 232 mm
> Motor: 11 kW

3. Profiling spindle (hardware/fitting milling unit)
Position: vertical, right-hand side
Spindle diameter: 40 mm
Tool clamping height: 160 mm
Motor: 3 kW
Axial adjustment range: 90 mm

Additional features:
> Screen-based control system for 99 window types.
> Carriage for processing sash frame widths
under 500 mm. Manual clamping and operation.


The tooling is sold in its current condition, scope, and with the accessories present at the location. Note regarding window cross-sections, tool drawings,
and tool system lists: Engelfried does not guarantee that the tools actually on hand
correspond to the systems mentioned or illustrated.

Technical specifications are provided by the manufacturer—no guarantee is assumed!
All prices are net, plus statutory VAT.
