máquinas rectificadoras usadas para la venta (2,228)

Technical data Type: F 50 Grinding length: 500 mm (600 mm without magnetic plate) Grinding width: 200 mm Table size: 200 x 600 mm Spindle speed: 3000 rpm Grinding wheel: Ø 225 x 25 x 51 mm Power: approx. 2.7 hp Weight: approx. 1200 kg Configuration Magnetic clamping plate Automatic transverse feed Stepless table movement Fine adjustment of the grinding head Coolant Setup Protective cover

1x make MB, 1 KW power and 1x make FINE, Type DST , 037 kw

Combined belt grinding and pipe grinding machine with - Abrasive belt K 40 - with 7 sanding rollers. 20, 28, 32, 41, 48, 60 and 76mm Sanding belt direction left/right Belt width 100 mm Belt length 2000 mm Belt speed 15/30 m/sec Tube diameter 20 - 76 mm Angle adjustable from - to 30 - 90 degrees Connection voltage 400 V Total power requirement 2.5 /3.3 kW Machine weight approx. 0.19 t Space requirement approx. 1.2 x 0.75 x 0.7 m Condition: never used / new (5)

Belt width 150 mm Belt length 2000 mm Belt speed 30 - 34 m/sec Total power requirement 4.8 HP Machine weight approx. 100 kg Space requirements approx. 1.2 x 0.5 x 0.85 m

Serial number: F8133Grinding wheel diameter: approx. 90 mmReference: Schmidt - Lot 95

Accessories see lot no. 183

Serial number: 1647Nominal speed: 2830 rpmwith two grinding wheels installedMax. grinding wheel diameter: approx. 180 mm

Belt width: 65 mmincl. whetstone, diameter: 110 mm

Sanding belt size: 915x 100mm Plate size: 150mm Grinding speed: 490 m/min Engine speed: 2850 m/min -1 Motor power: 400 watts incl. base

Belt sander with - Contact disc: 600 x 150 mm Belt width 150 mm Belt length 2000 mm Belt speed 33 m/sec Total power requirement 4 kW Machine weight approx. 100 t Space requirements approx. 1.2 x 0.5 x 0.85 m Condition: never used / new (5)

Max. grinding wheel diameter: 200 mm

Surface Grinding Machine - Magnetic plate - Coolant system - Documentation Grinding length 1250 mm Grinding width 400 mm Workpiece height 550 mm Table clamping area 1720 x 400 mm Grinding wheel dimensions 400 x 50 x 127 mm Table height above floor mm Magnetic plate 1250 x 600 mm Grinding spindle speed 3000 rpm Table load 1100 kp Total power requirement 13.8 kW Machine weight approx. 6.0 t Dimensions approx. 5.0 x 3.4 x 2.4 m

Double bench grinder: Grinding grit: 36 and 80 Grinding wheel diameter max. 150 mm Grinding wheel width 25 mm Mounting diameter 32 mm Connection voltage 230 V Motor power 0.5 KW Condition: never used / new (5)

right working side equipped with belt sander leftworking side equipped with polishing brushrevolutions: 1400/2800 rpmfor further technical data see photographed nameplate

This grinder is ideal for regrinding tools such as face mills, drills, TIG welding needles and much more. comes standard with: Accessories for lathe tools Accessories for drills Accessories for milling 5C Spring Collet (4-6-8-10-12 mm) Clutch wrench 38-42 Grinding wheel wrench Allen key M3-M8 Screwdriver Diamond grinding wheel Ø 100 x 50 x 20 Grinding wheel: Ø 100 x 50 x 20 Diamond Pen Spring Collet: 3/16" - 5/16" - 3/8" - 1/2" Grinding range 3 -28 mm Angle adjustable from - to horizontal 0-180 degrees Angle adjustable from - to vertical 0-45 degrees Angle adjustable from - to negative 0-52 degrees Clamping range 3 - 28mm mm Speed 5200 rpm Connected load 230 / 250 volts / watt Disc diameter 100 x 50 x 20 mm Machine weight approx. 45 kg Dimensions L x W x H 0.5 x 0.4 x 0.4 m Condition: never used / new (5)

Combined belt grinding and pipe grinding machine with - Abrasive belt K 40 - with 7 sanding rollers. 20, 28, 32, 41, 48, 60 and 76mm Sanding belt direction left/right Belt width 100 mm Belt length 2000 mm Belt speed 15/30 m/sec Tube diameter 20 - 76 mm Angle adjustable from - to 30 - 90 degrees Connection voltage 400 V Total power requirement 2.5 /3.3 kW Machine weight approx. 0.19 t Space requirement approx. 1.2 x 0.75 x 0.7 m Condition: never used / new (5)

SeriesNo. 90-272 Working range X: 600mm Z: 200mm Pendulum range X: 600mm Table speed: 1-28 m/MIN Dimensions magnetic clamping plate: 500x200 mm Working Area Y : 290mm Accessories: Coolant system 85L to 500L Belt filter system, Max Grinding Wheels Size: 225x20x51 Incl. assortment (pallet with grinding wheels)

Without grinding wheels

Diámetro de la muela de esmerilado 250 mm, longitud máxima de rectificado aprox. 600 mm, con dispositivo de refrigerante y sistema de filtro de forro polar

Sistema de armario de control separado, sistema de filtros de forro polar

Key data: 1000 mm

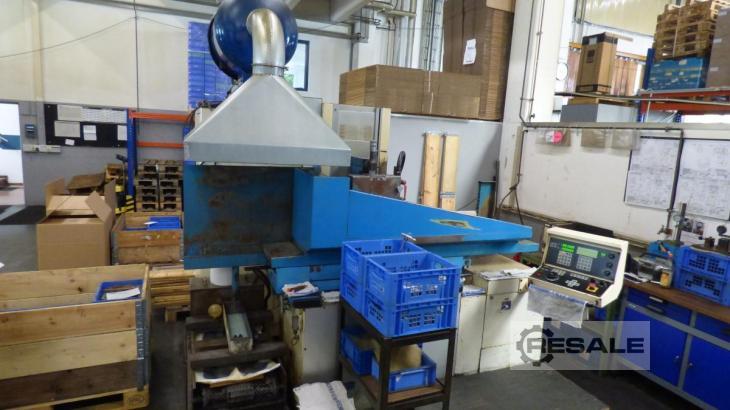

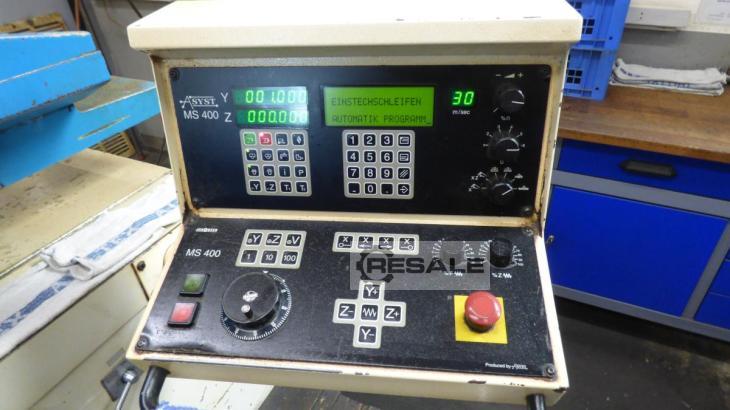

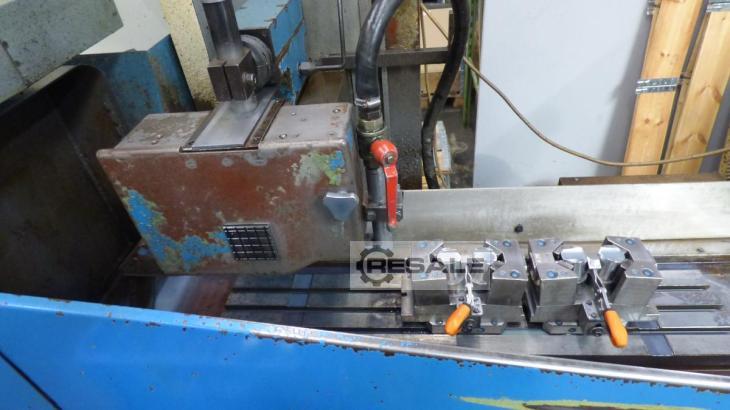

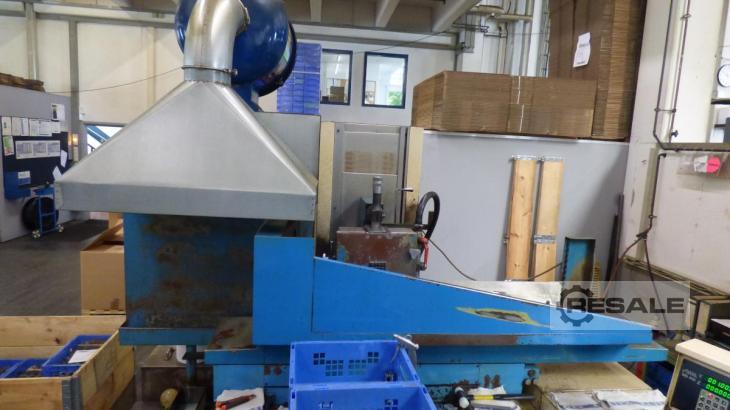

Control de máquina ASYST MS 400, diámetro de la muela de rectificado 250 mm, longitud máxima de rectificado aprox. 1000 mm, con dispositivo de refrigeración, sistema de filtración de forro polar y extracción

Control CNC FANUC POWER MATE, cinta transportadora de piezas, sistema de filtros de forro polar y sistema de refrigeración HYFRA

Compuesto por: Máquina de rectificado de desbaste KOENIG & BAUER, BJ. 1977, Ser. Nº 73903 y la rectificadora de acabado KOENIG & BAUER, BJ. 1989, Ser. No. 720500007, con electrón. Sistema de transporte y carga de piezas de trabajo, tecnología de lubricación central BEKA UPE

Diámetro de la muela de rectificado 300 mm, longitud máxima de rectificado aprox. 600 mm, con dispositivo de refrigerante y sistema de filtro de forro polar KNOLL

con unidad de potencia hidráulica separada

Deburring machine, pipe deburrer, bore deburrer, deburring device, brush deburring machine, wire brush -Manufacturer: wrt, deburring machine with base -Drive: 3.0 kW / 2800 rpm -Brush: Ø 250 mm -Shaft: Ø 80 x 110 mm -Dimensions: 660/430/H1200 mm -Weight: 101 kg

Está disponible una rectificadora cilíndrica interna llamada Jung C8, modernizada por Retza. Rango de diámetro de rectificado: 6mm-50mm, profundidad máxima. Profundidad de rectificado: 80mm, velocidad: 1000rpm, dimensiones de la máquina X/Y/Z: aprox. 2100mm/1400mm/1400mm, peso: aprox. 2000kg. Sin eje de rectificado y sin inversor para ello. Es posible realizar una inspección in situ.
