máquinas rectificadoras usadas para la venta (2,503)

: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 6352 €: 122.59 €: 150 x 2.000 mm: 20 - 114,3 mm: 1 : 1 : 4 kW: 270 kgThe AL150 can be operated with two hand-wheels or a lever. The machine is equipped with both options.The AL150 can be used to grind material from Ø 20 mm tot Ø 114.3 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°.The ALMI AL150 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system makes tensioning the grinding belt even easier. The belt is tensioned using the hexagonal spanner supplied with the machine.The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds.All pipe grinders ...

: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 7733 €: 149.25 €: 1 : 150 x 2.000 mm: 20 - 114,3 mm: 1 : 1 : 4 kW: 270 kgThe new AL150HS 2 in 1 machine: grinding belt and pipe grinder. High Speed Belt thanks to a unique transmission, up to 150ft/per second.The Benefits of the AL150HS: less dust/particules, less change of colour and longer belt life (2 to 3 times) due to high speed. The AL150HS can be operated with two hand-wheels or a lever. The machine is equipped with both options.The AL150HS can be used to grind material from Ø 20 mm tot Ø 114.3 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°.The ALMI AL150HS can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of mate ...

: neu : ca. 2 Wochen ab Auftragse : Niederlande : 4785 €: 100 x 2.000 mm: 20 - 76,1 mm: 1 : 1 : 3 kW: 220 kgThe AL100U-02 can be operated with two hand-wheels or a lever. The machine is equipped with both options. The AL100 U-02 can grind material from Ø 20 mm to Ø 76 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°. The ALMI AL100U-02 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system makes tensioning the grinding belt even easier. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipp ...

grinding length: 300 mmgrinding width: 500 mmworkpiece height: mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter:380 mmgrinding length:1000 mmcentre height:180 mmgrinding wheel diameter:400 mmmax. workpiece weight between centres:250 kgtotal power requirement:10 kWweight of the machine ca.:4,1 tdimensions of the machine ca.:3 x 2 x 1,6 mwith internal grinding attachmentwith fixed and swivelling headstockwith coolant tank

grinding height:-- mmgrinding width:220 mmgrinding wheel diameter:762 mmtotal power requirement:90 kWweight of the machine ca.:13 tgrinding spindle 1 drive::37 kWgrinding spindle 2 drive::37 kWGrinding machine for pre-grinding the connecting rodWith 2 replacement spindle motors

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device

grinding length:1250 mmgrinding width:600 mmworkpiece height:730 mmtable surface area:1720 x 500 mmheadstock: dist. table - spindle center:900 mmmax. longitudinal movement:X-1450 feed range:10 - 20.000 mm/minvertical movement:Y-730 mmfeed range:0,2 - 3.000 mm/mincross travel:Z-550 mmfeed range:5 - 5.000 mm/minpower capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/mincutting speed:max. 80 m/sec.weight of the machine ca.:11 twith CNC SIEMENS 840 Cauto. dynamic balncing system integrated in the grinding conusprofile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpmtwo magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

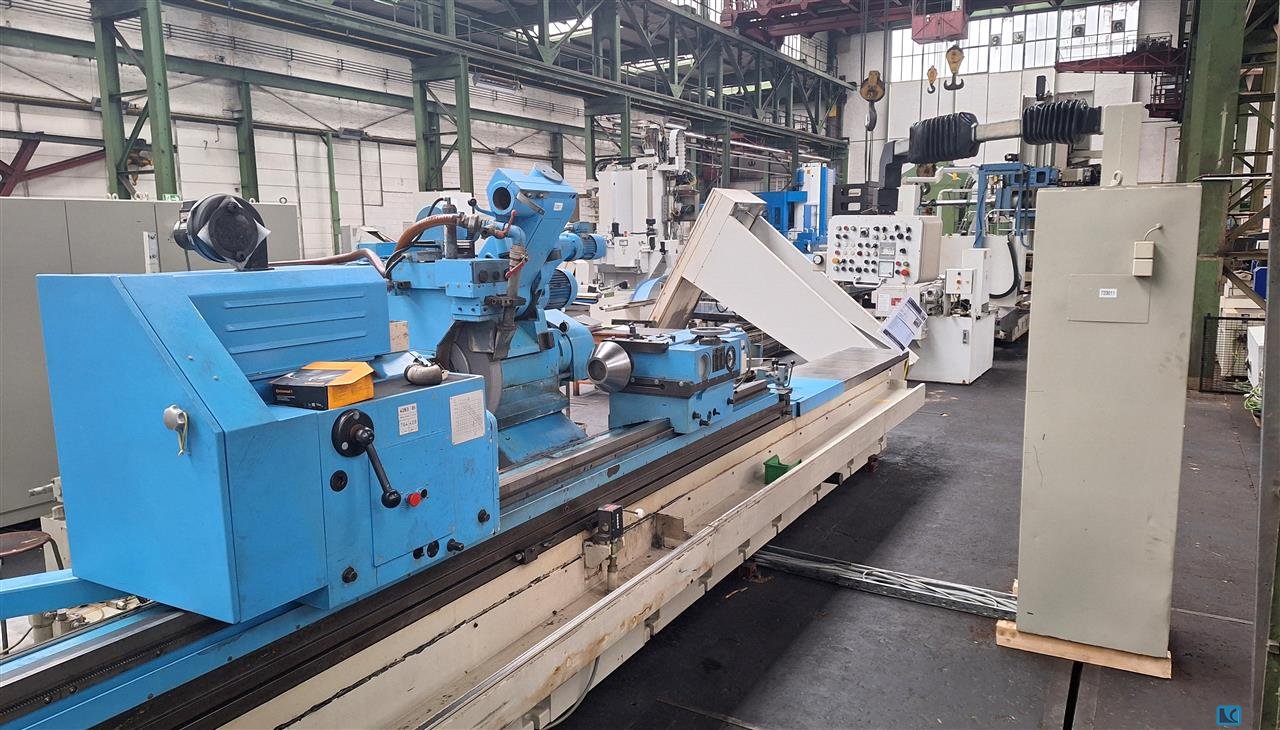

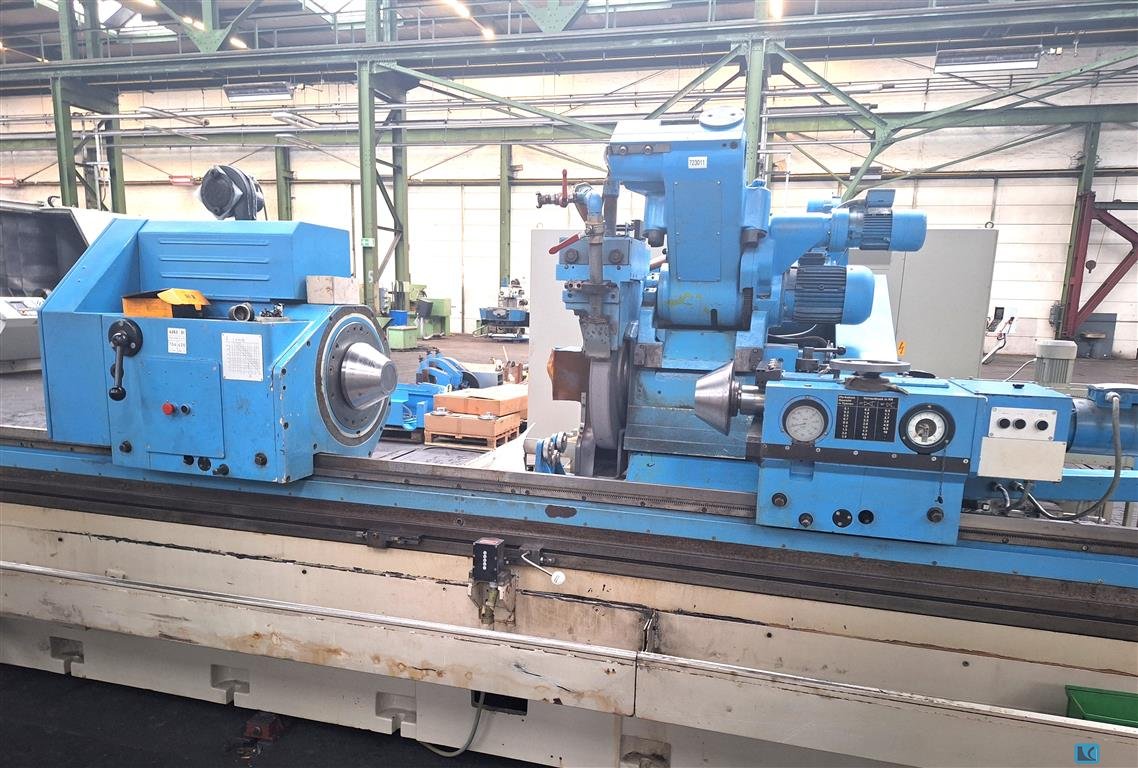

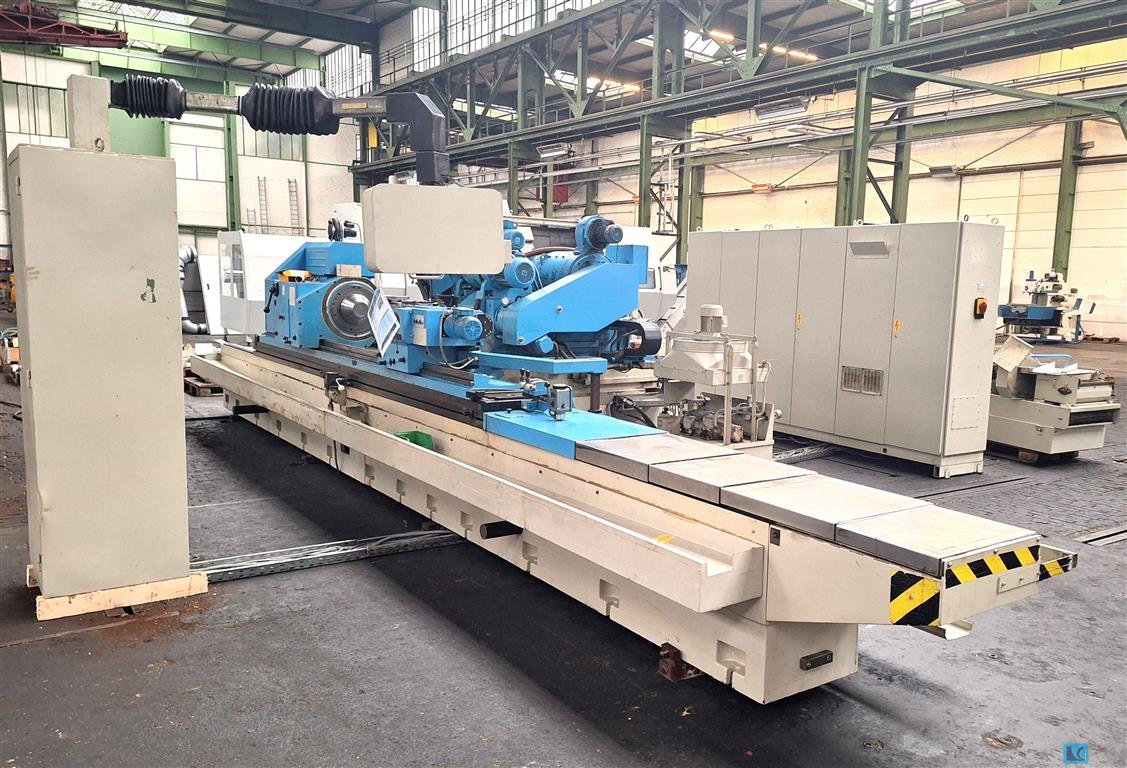

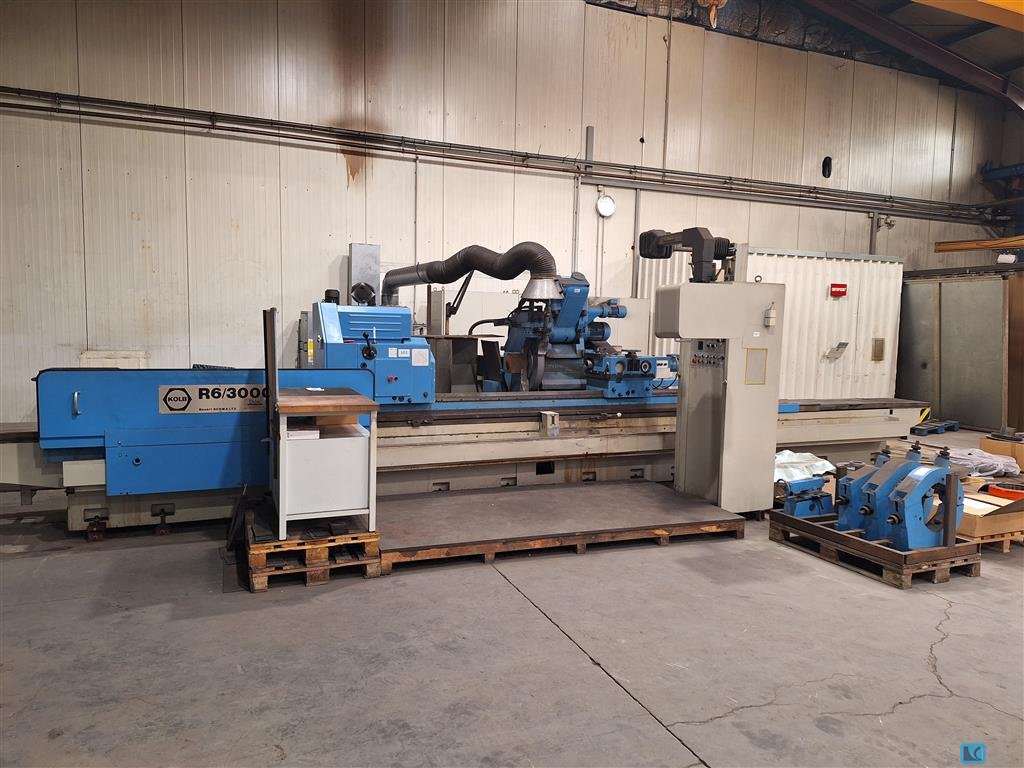

grinding diameter:600 mmgrinding length:3000 mmcentre height:300 mmweight of the machine ca.:11,8 tdimensions of the machine ca.:7100x2300 mmspindle turning speed range:14 - 220 U/mingrinding wheel diameter:650 mmgrinding wheel flange for width 25-40 mm:3 Stk.open tailstocks:3 Stk.chuck:Ø310 mmfixed steady:320 mmDistance between center: 3000 mm.Height of centres: 300 mm.Spindle speed: (n°12) 14 - 220 RpmMax grinding diameter: 600 mm.Stroke the wheelhead:(rapid) 50 mm.Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. .Max grinding wheel diameter: 650 mm.Max tilt table: 3° 30'Total absorbed power: 27,7 HpDimension: 7100x2300 mm.Weight approx: 11800 Kg.

workpiece diameter:5-125 mmgrinding depth:50-1000 mmclamping length:1000 mmtotal power requirement:1.9 KVAweight of the machine ca.:630 kgmax. workpiece weight:100 kgCenter Hole Grinding Machine.Workpiece must be rotated by machine during grinding

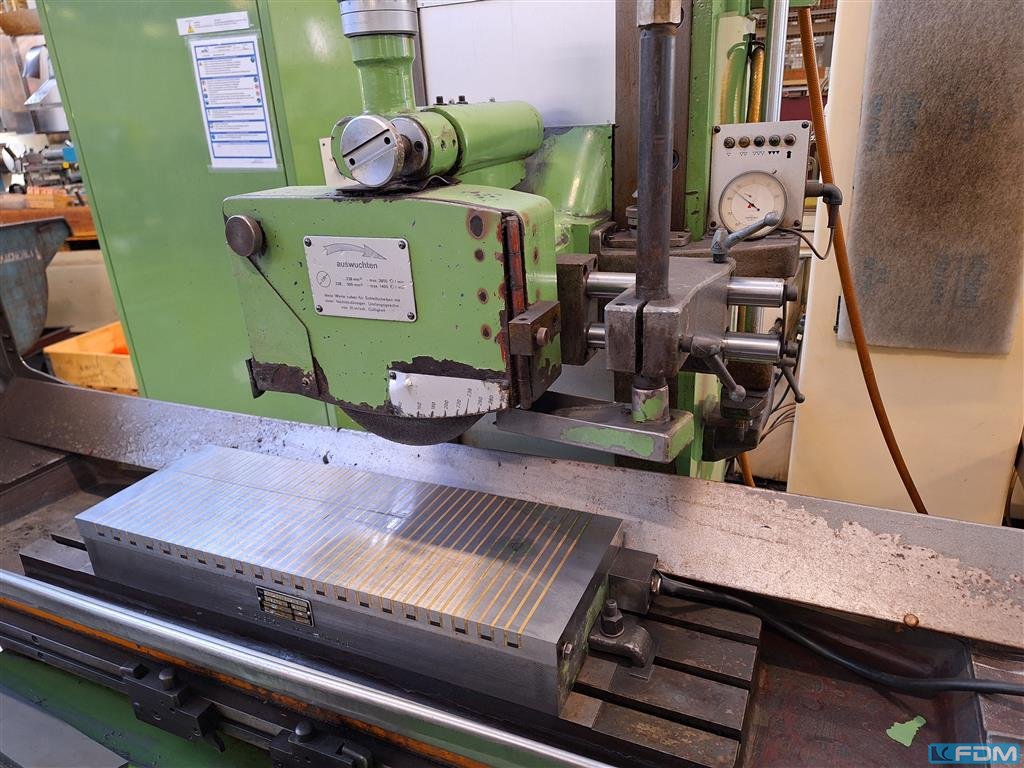

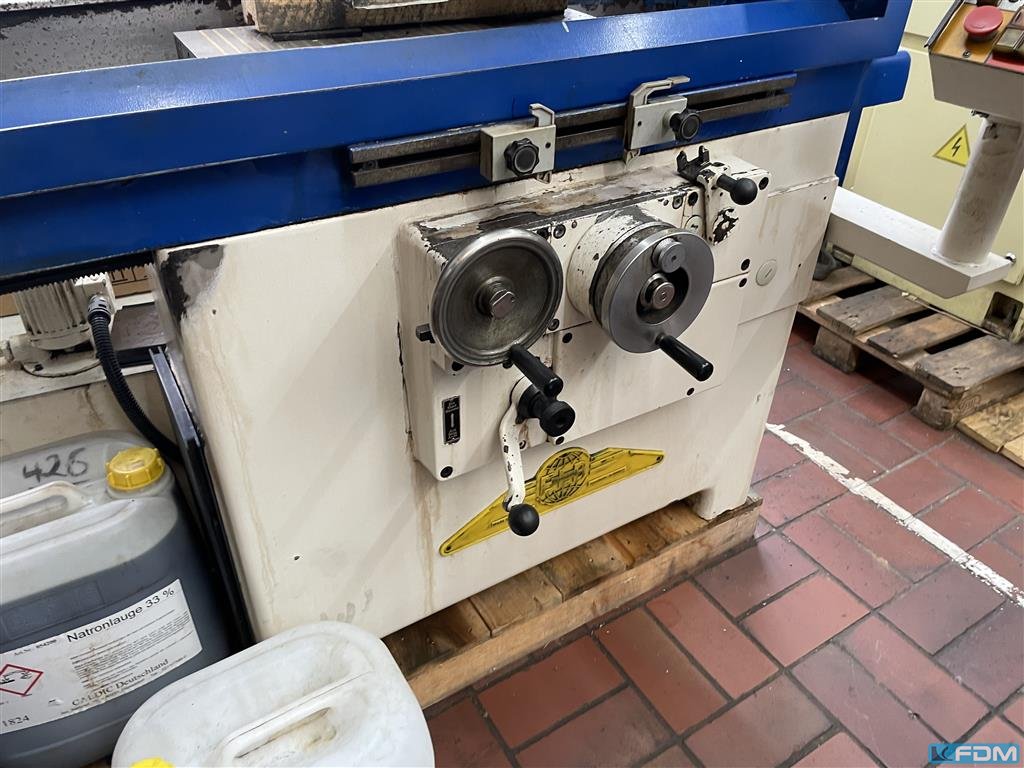

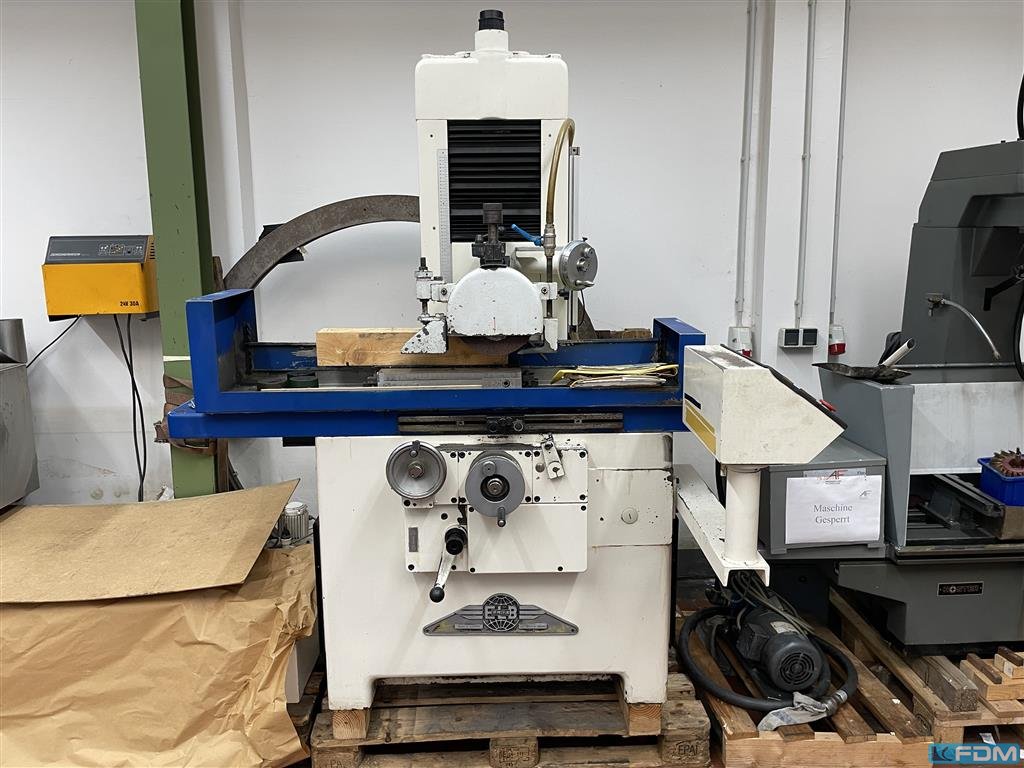

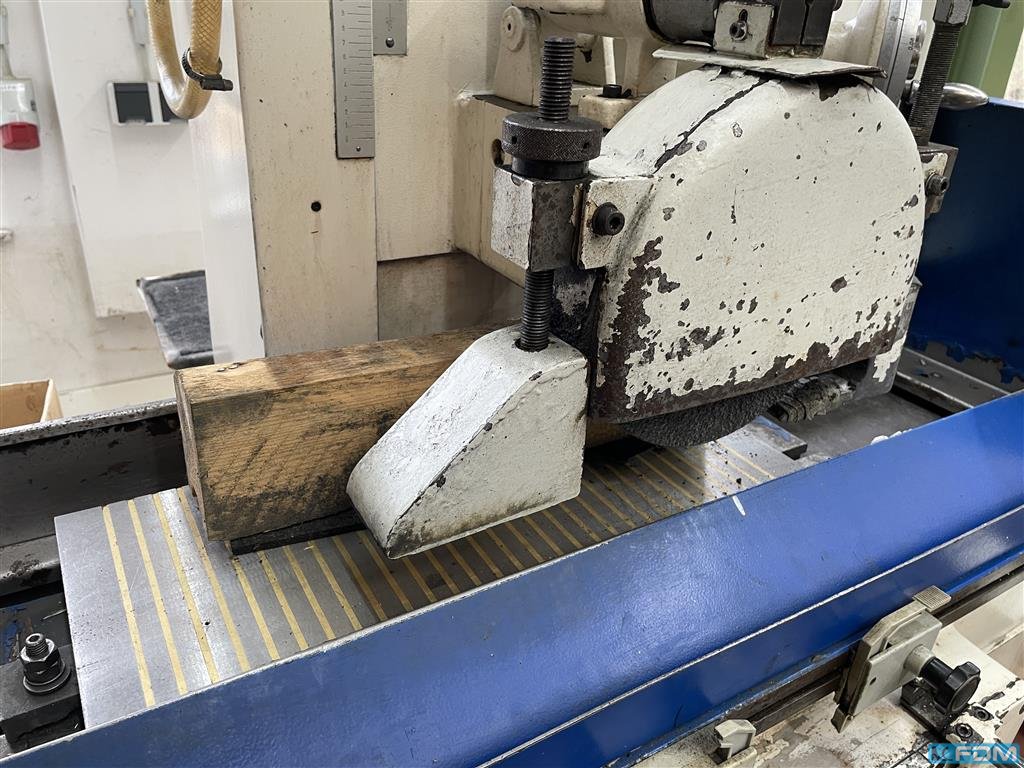

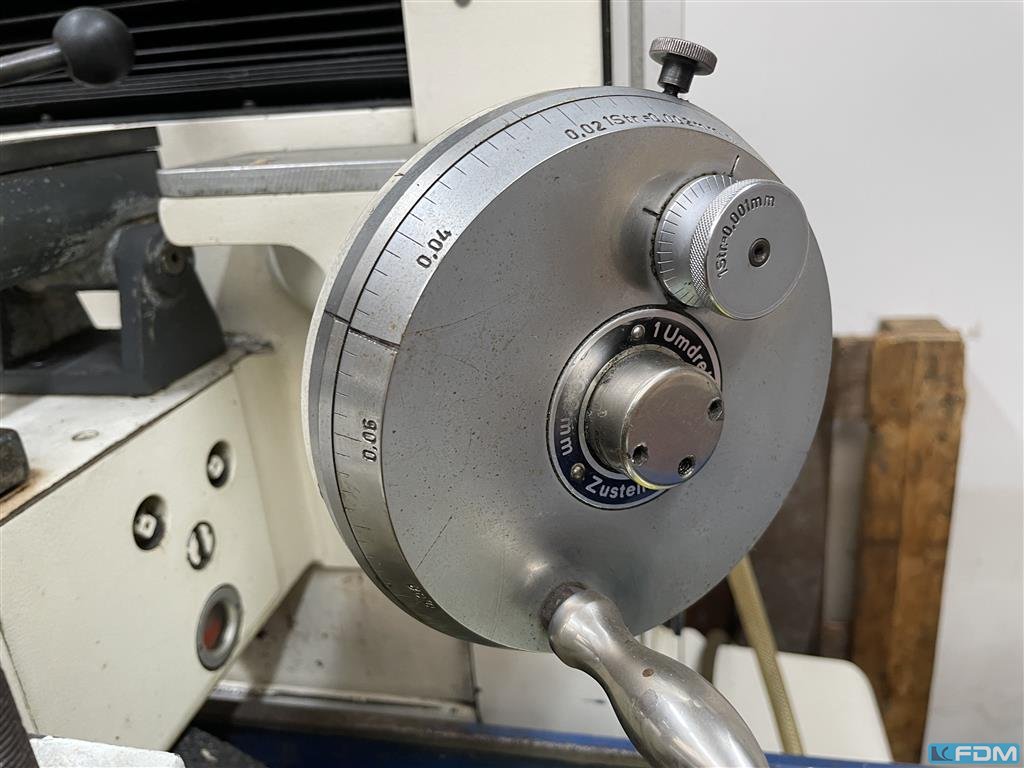

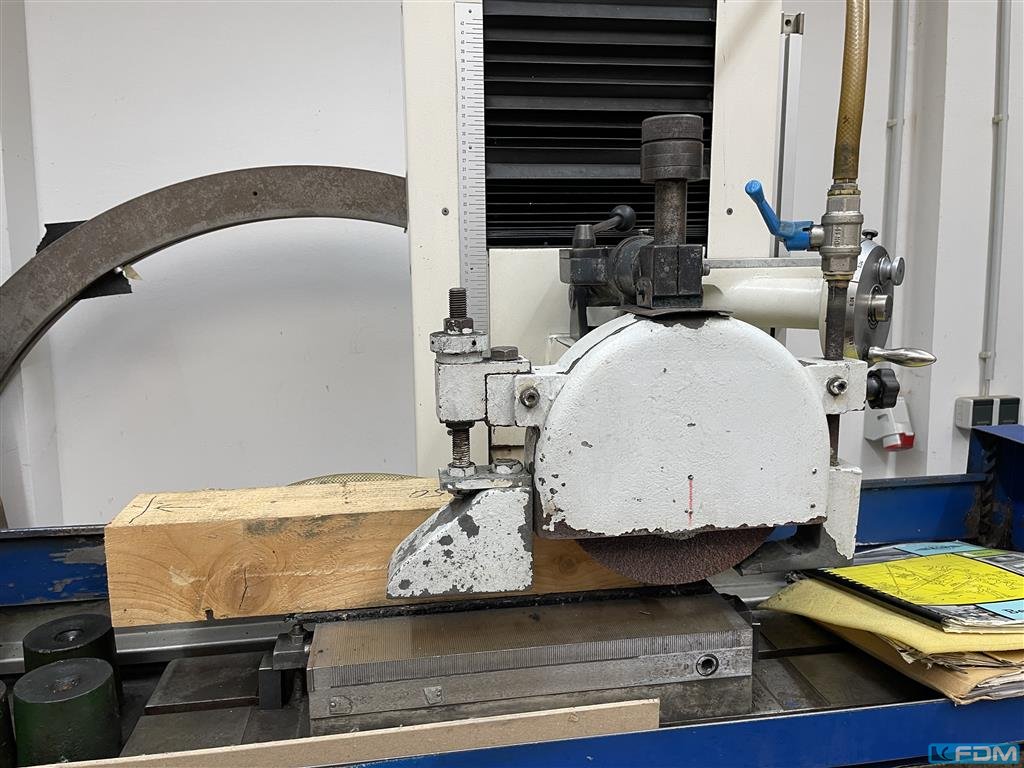

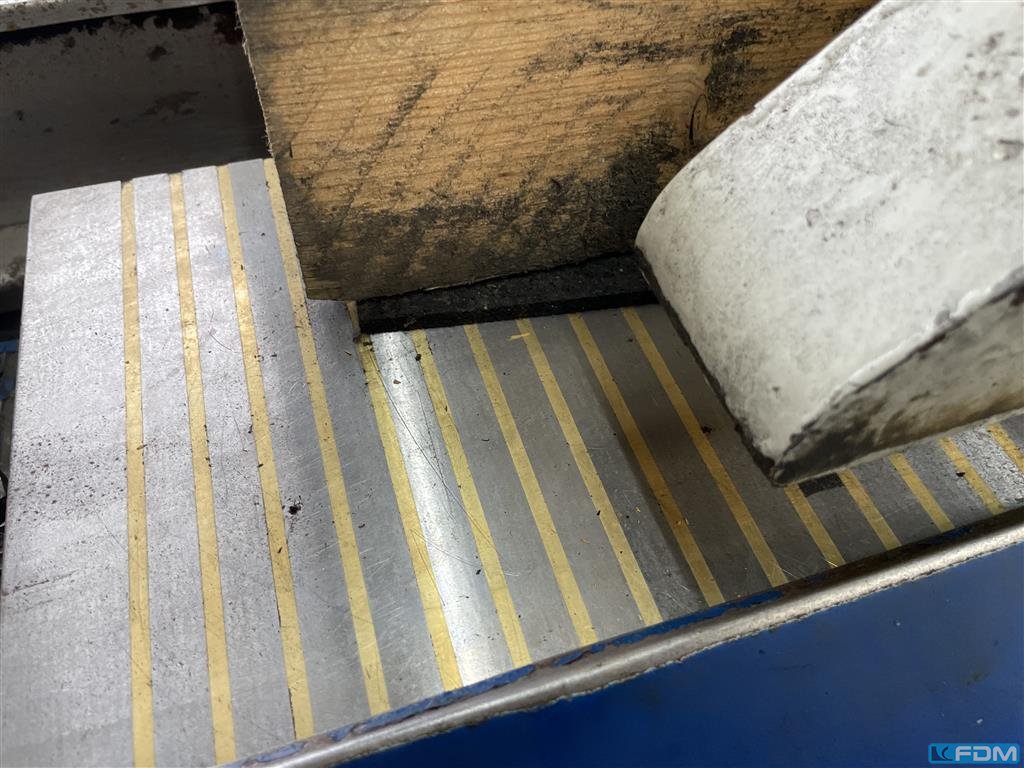

grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

honing diameter:51 mmstroke:300 mmspindle speeds::600 - 3000 U/minfeed range:1500 - 5000 mm/minspindle drive:1,1 kWweight of the machine ca.:0,8 ttotal power requirement:4 kWdimensions of the machine ca.:1,1 x 1,9 x 1,5 m

Auction-ID: A1-49365-27

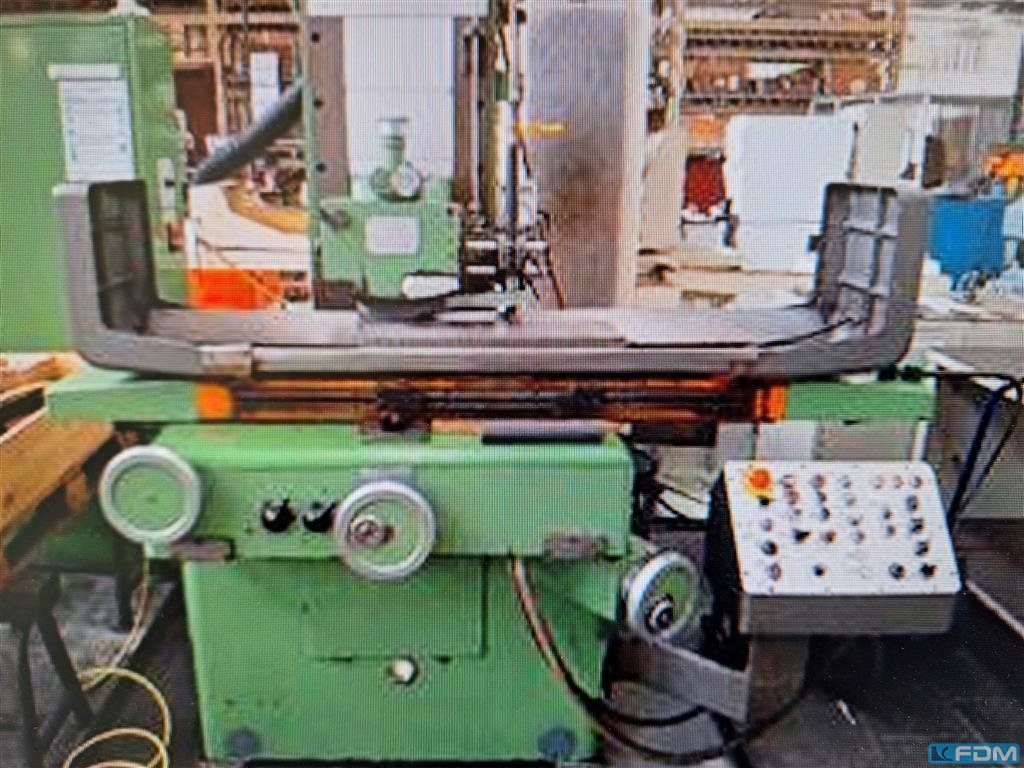

grinding length:600 mmgrinding width:300 mmtotal power requirement:7,5 kWnumber of spindle speeds:0-3000 grinding wheel motor:7,5 kWgrinding wheel diameter:300 mmdimensions of grinding wheel:76 x 20 mmABA magnetic table flat grinding machine

Auction-ID: A1-49365-41

grinding diameter:280/320 mmgrinding length:750 mmcentre height:170 mmweight of the machine ca.:22,5 tdimensions of the machine ca.:4,7 x 3,65 x 3,0 mJunker Jumat 6S 18-20S-18 has 2 internal and 1 external spindle.

weight of the machine ca.:15 t

weight of the machine ca.:24 tdimensions of the machine ca.:3900 x 3500 x 2500 m-the machine has no B axis -two grinding spindles with one grinding wheel each -The transport instructions can be found in the documentation (attachment). including Hoffmann KSM filter system Loading list availableOperating data v. 03/27/2023: Operating time: 21727 h / production time: 11960 h Machine documentation: 1 set of circuit diagrams, electrical plans, operating instructionsAccessories: 2 replacement measuring heads Marposs S/500; prism supports Other: Hoffmann KSM filter system Machine condition: according to age, due to processing with emulsion

KSS/filter/cooling systemsEmulsion

grinding length:400 mmworkpiece weight:250 kgweight of the machine ca.:4,1 tswing diameter:250 mmgrinding spindle speed:2387, 2938 U/min

grinding diameter:20 mmgrinding length:20 mmmax. workpiece diameter:20 mmmin. workpiece diameter:1 mmgrinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/minWeight:950 kgdimensions: 1200 x 2100 mm

grinding length:600 mmcentre height:180 mmswing dia.:360 mmworkpiece weight:80 kgmax. dia. of grinding wheel:500 mmgrinding wheel width:80 mmgrinding wheel hole diameter:203,2 mmperipheral speed:45 m/secThere is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

workpiece diameter:26 mmswing diameter:- mmworkpiece length:66 mmtotal power requirement:12 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,14 x 1,69 x 2,2 mThe machine has so far processed the parts in a stream, i.e. without interruption. Piston rods are usually machined with a clearance, requiring the finishing stone to be placed only when the part passes under the stone.1. Feed Roller2. Stone holder, 10 pieces, 50 mm new guides can be made between approx. 15 to 40 mm The Roller of Nagel:Dia: approximately 120 mmL: app. 880 mm

grinding diameter:300 mmgrinding length:540 mmcentre height:175 mmtotal power requirement:20 kVAcentre distance:1000 mm

grinding diameter:50 mmgrinding length:100 mmcentre height:100 mmcentre distance:200 mm

internal diameter:140 mmtotal power requirement:5,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:2,8 x 2,5 mmax. workpiece weight:15 kgclamping dia. max.:140 mmclamping length:250 mmmax. bore diameter to be ground:0,8-90 mmmin./max. hole to grind:160 mmcentre height:90 mmworkpiece spindle stepless:112-1000 U/min

dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

max. grinding diameter:160 mmstations:2 sanding width:30 mmtotal power requirement:0,37 kWweight of the machine ca.:100 kgdimensions of the machine ca.:520 x 520 x 1160 mm
