Maquinas arregladoras de metal presionado UNGERER 1500/3,00/23

material width: 1500 mm
material thickness: 3,00 mm
no. of straightening rolls: 23
between stands ca.: 1530 mm
thickness min. approx.: 0,50 mm
diam. of the rolls ca.: 47 mm
straight. speed ca.: 0-18 m/ min
barrel length ca.: 1560 mm
run-in height: 1150 mm
total power requirement: 23 kW
weight of the machine ca.: 9,00 t
dimensions of the machine ca.: 4,30 x 1,80 x 2,60 m
Specifications:
- Max. vertical roll gap: 20 mm (Note: scale only goes up to 15 mm)

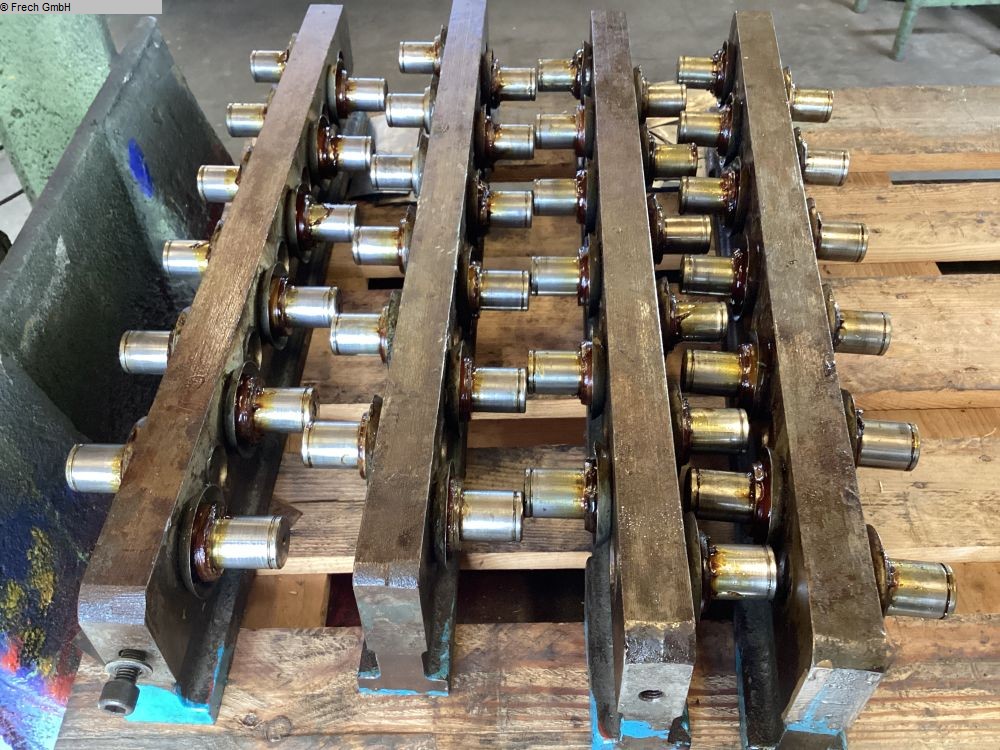

- Lower support assembly: 5-point configuration with support rollers (individually adjustable)
- Upper support assembly: 5-point configuration with support rollers
- Bottom roll crowning
- Circulating lubrication system for gearbox and drive shafts
- Infeed table included
- Reversible operation

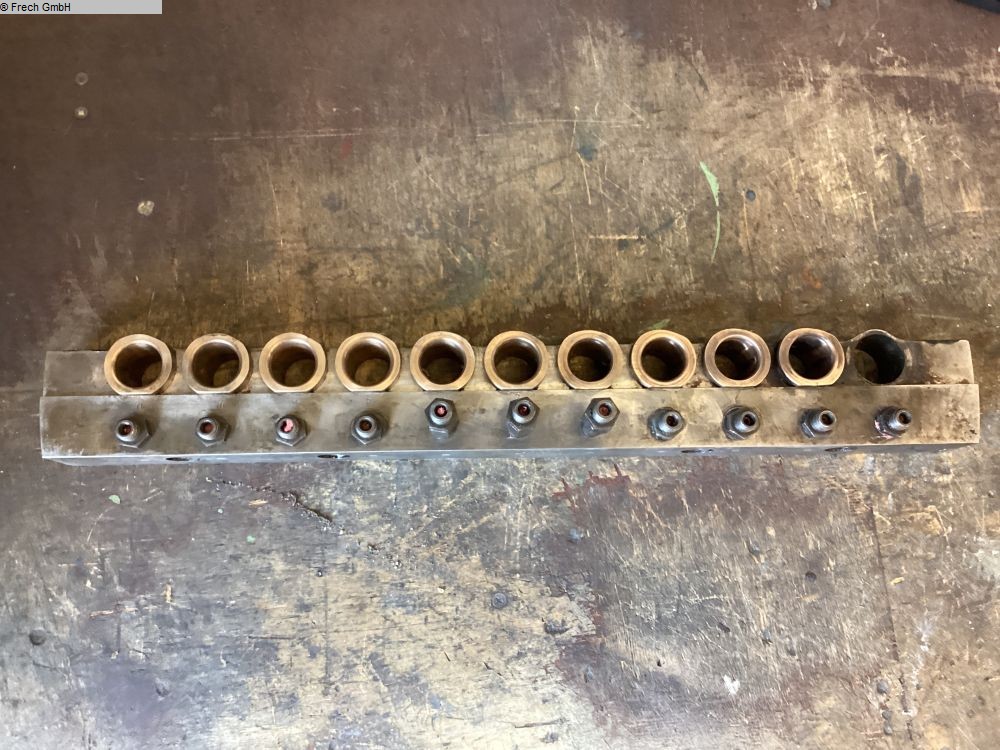

- Centralized grease lubrication for leveling roll bearings
- MITSUBISHI ELECTRIC frequency converter (Type A800)
- 22 kW drive motor
- Drive motor features simple On/Off control
- Oil pump features simple On/Off control
- Manual height adjustment
- Manual tilting/swiveling
- Customer to fill with oil upon delivery (approx. 35 liters)
- Infinitely variable speed control

The leveling machine is permanently mounted on a steel frame together
with the motor.

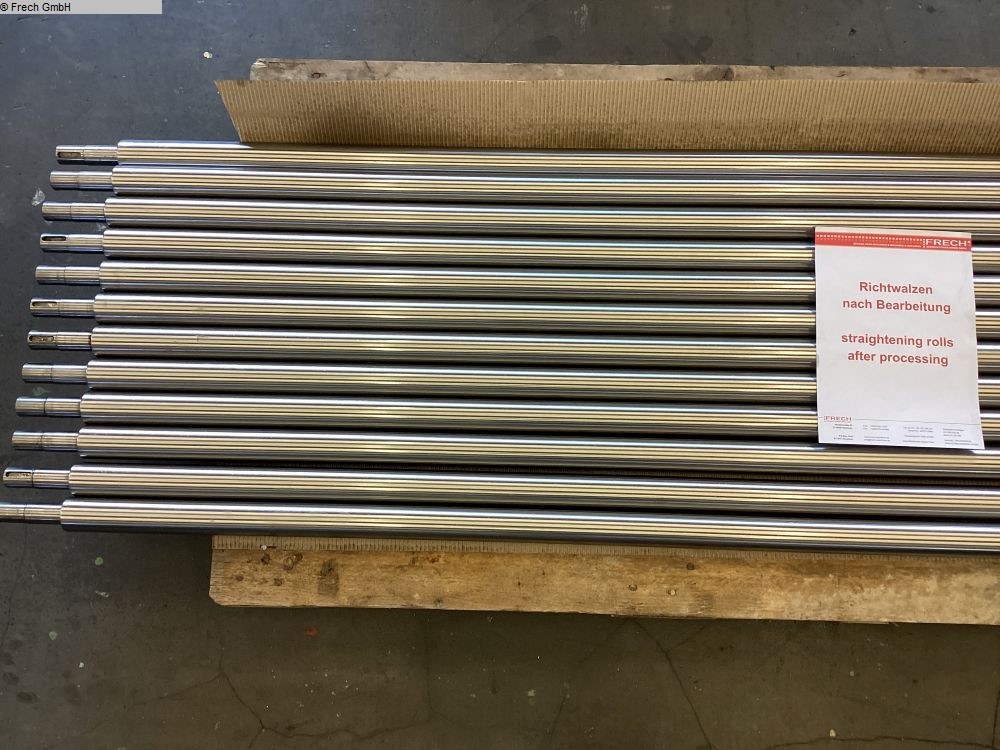

FRECH TEAM has performed a complete retrofit of the UNGERER leveling machine.
A test run/demonstration is possible at any time.
