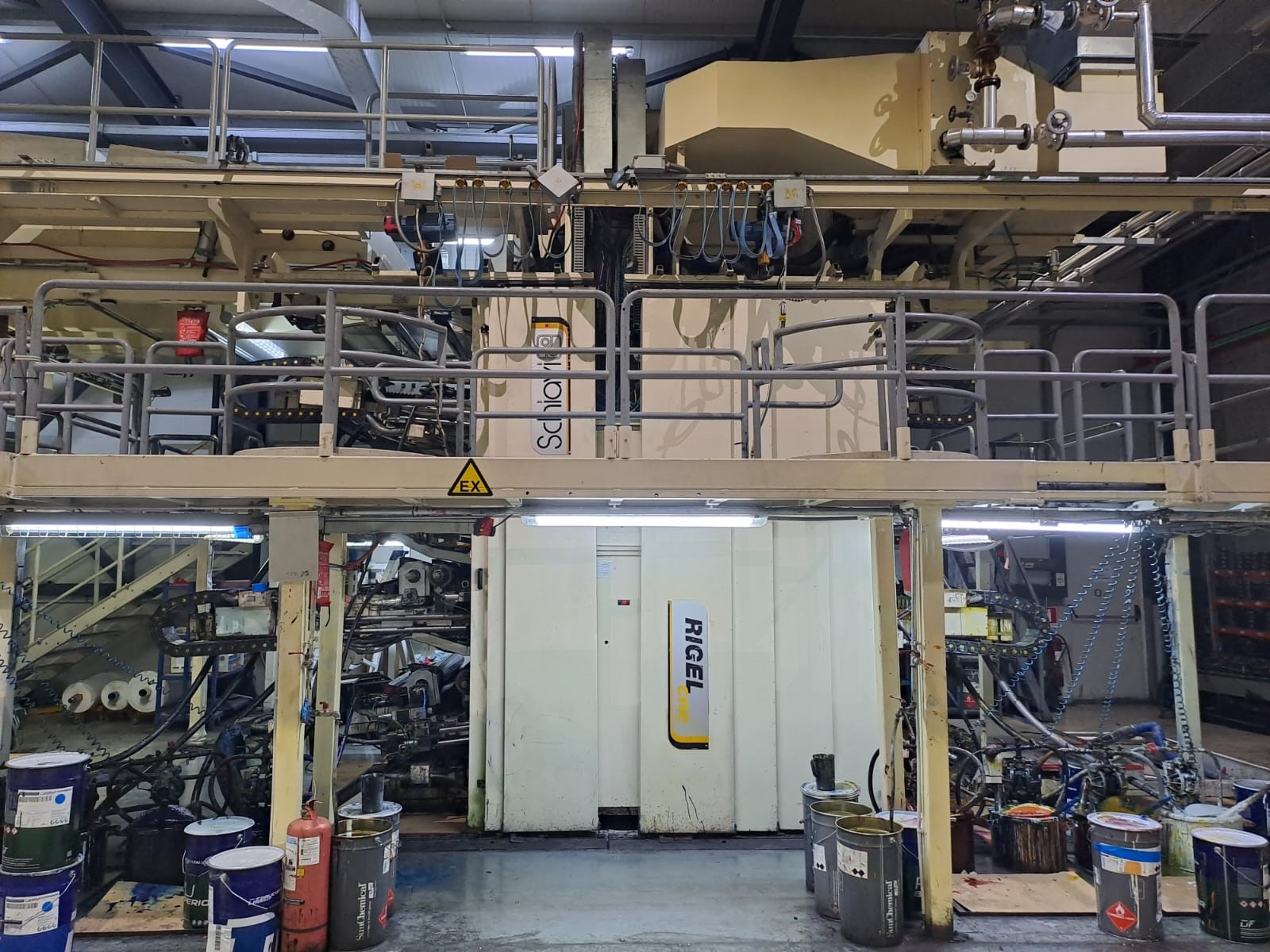

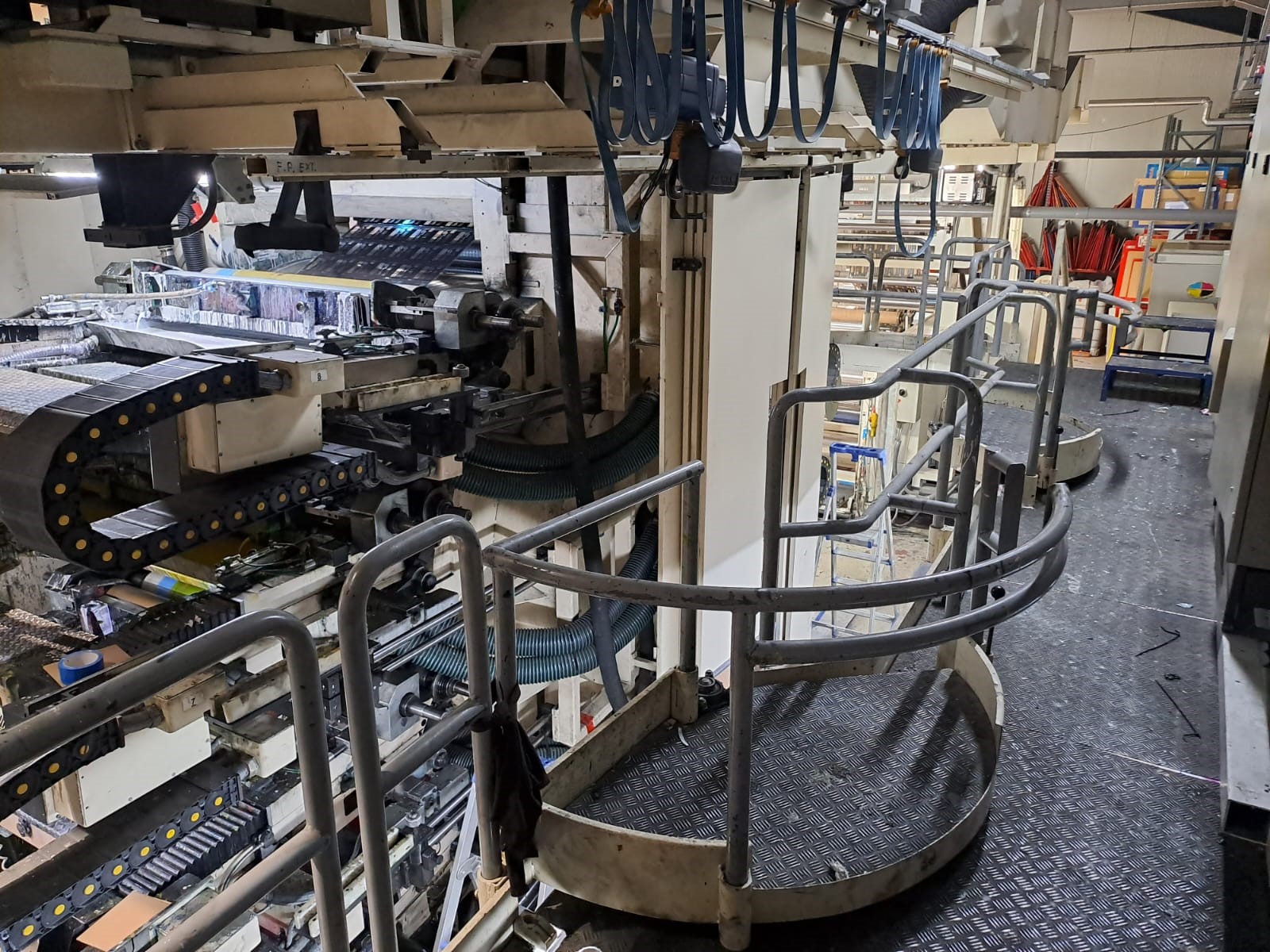

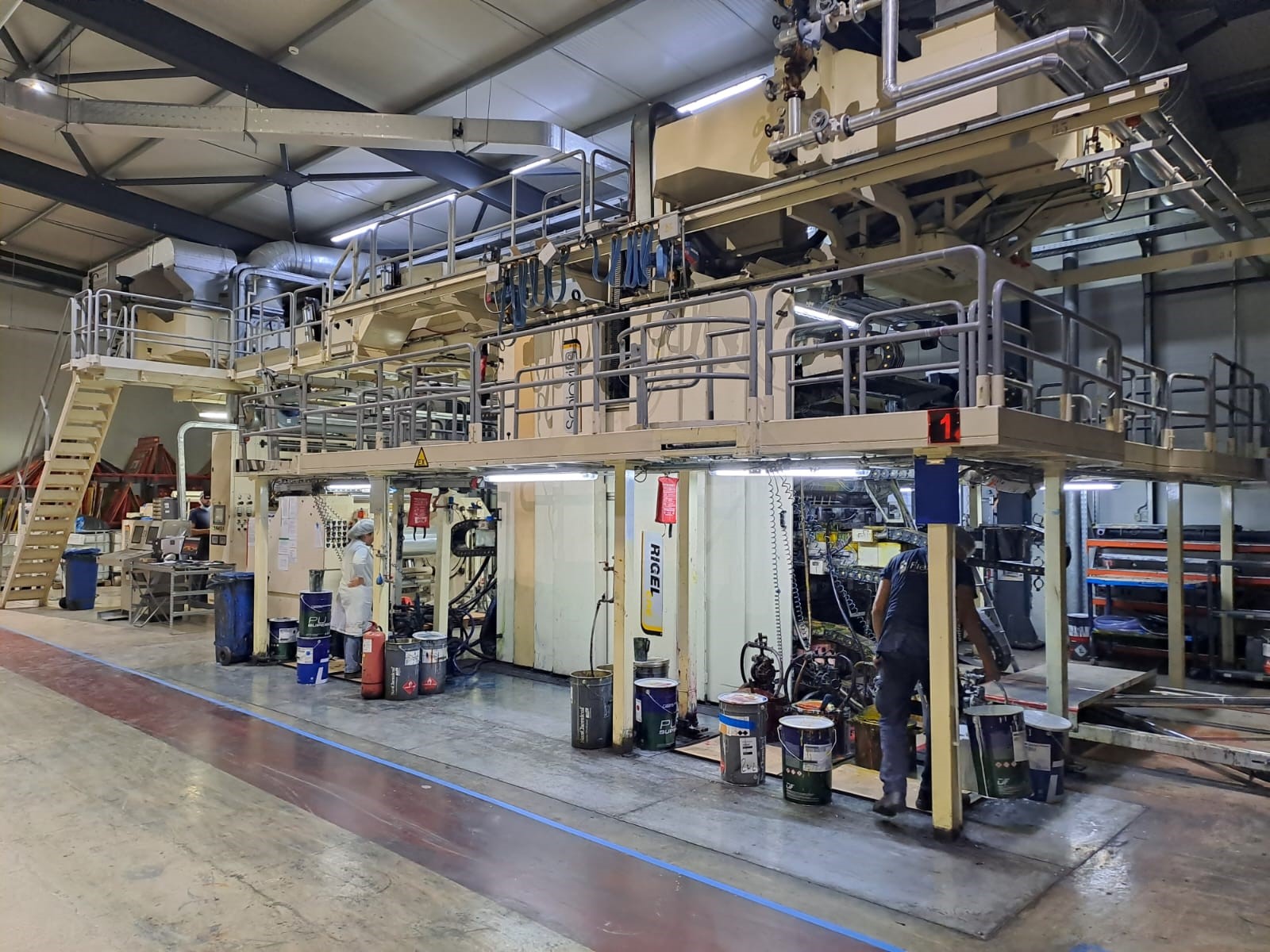

Impresión Flexo SCHIAVI Rigel
máquinas de impresión / transformación de papel: otras
Fabricante: SCHIAVI
Modelo:Rigel
Tipo de máquina: Impresión Flexo
Número de artículo: 168283389
Cantidad: 1
Fecha: 07.12.2025
Año de fabricación: 2001
Ubicación: Athens, Greece
Precio:
Seller-item-No.:8182262
Manufacturer: Schiavi / BOBST
Model: Rigel
Year of Manufacture: 2001
Colors: 8
Print possibilities: 4+4
Materials: LDPE, HDPE, BOPP, CPP, PET, ALU, PAPER, BIO
Gearless: No
Checked up: 2022 by BOBST technicians both mechanic and electric parts
Max Speed: 300m/min
Fast Sleeve Change: Yes
Fast Sleeve Anilox Change: Yes
Computer Supervision: Yes
Web Width: 1320mm
Print Width: 1290mm
Min Print Repeat: 430mm
Max Print Repeat: 1200mm
Unwinder Type: Double Turret Automatic Flying Splice
Winder Type: Double Turret Automatic Flying Splice
Max Reel Diameter Unwinder: 800mm
Max Reel Diameter Winder: 800mm
Drying: Thermal Oil
Video camera: Yes (FIFE)

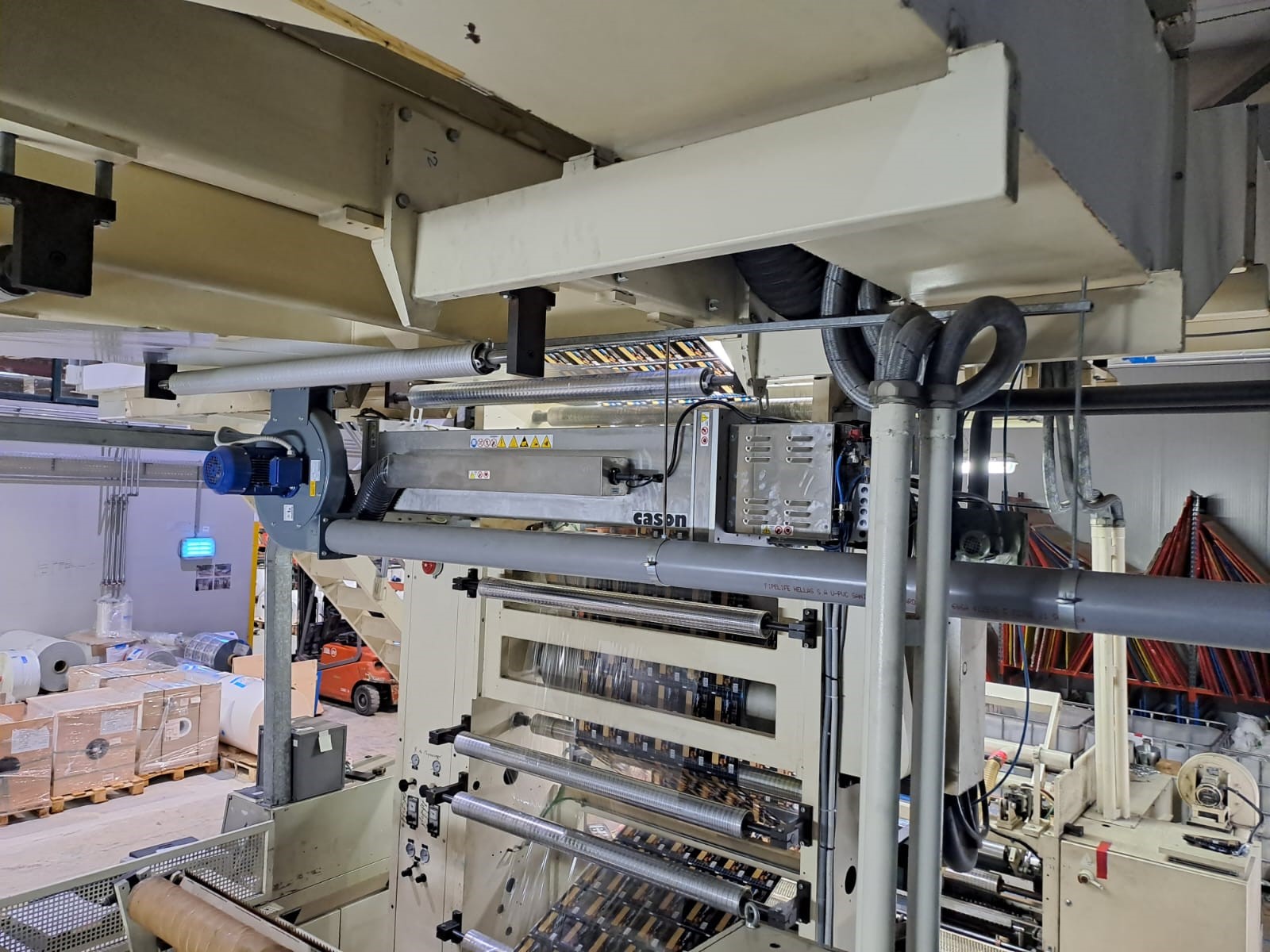

Corona Treatment: Yes (Cason) for conductive and non-conductive materials
Web Guides: In and out (BST)
Viscosity Control: Gama (not in use, must be repaired)
Inking System: Ceramic Anilox + Chambered Doctor Blades
Anilox Sleeves: 23 pieces (2x80ln/cm, 2x100ln/cm, 2x120ln/cm, 2x140ln/cm, 1x160ln/cm, 1x180ln/cm, 1x200ln/cm, 2x220ln/cm, 1x270ln/cm, 5x360ln/cm, 4x380ln/cm U51258834 )
Printing Sleeves: 40 pieces ( 8x850, 8x1000, 8x1020, 8x1050, 8x1150 )
Print Cylinders: 8 for sleeves more than 700mm repeat and 8 adaptors for sleeves more than 900mm repeat
Note: Motorized print station positioning- Motorized remote controlled longitudinal and side registers, Chiller thermoregulator,
Turning Cross Bar in order to print in both sides of the film (4+4)
Spare Parts: Drives, Cards and Gears
Find more here - /
Contact us at -
Model: Rigel
Year of Manufacture: 2001
Colors: 8
Print possibilities: 4+4
Materials: LDPE, HDPE, BOPP, CPP, PET, ALU, PAPER, BIO
Gearless: No
Checked up: 2022 by BOBST technicians both mechanic and electric parts
Max Speed: 300m/min
Fast Sleeve Change: Yes
Fast Sleeve Anilox Change: Yes
Computer Supervision: Yes
Web Width: 1320mm
Print Width: 1290mm
Min Print Repeat: 430mm
Max Print Repeat: 1200mm
Unwinder Type: Double Turret Automatic Flying Splice
Winder Type: Double Turret Automatic Flying Splice
Max Reel Diameter Unwinder: 800mm
Max Reel Diameter Winder: 800mm
Drying: Thermal Oil
Video camera: Yes (FIFE)
Corona Treatment: Yes (Cason) for conductive and non-conductive materials
Web Guides: In and out (BST)
Viscosity Control: Gama (not in use, must be repaired)
Inking System: Ceramic Anilox + Chambered Doctor Blades
Anilox Sleeves: 23 pieces (2x80ln/cm, 2x100ln/cm, 2x120ln/cm, 2x140ln/cm, 1x160ln/cm, 1x180ln/cm, 1x200ln/cm, 2x220ln/cm, 1x270ln/cm, 5x360ln/cm, 4x380ln/cm U51258834 )
Printing Sleeves: 40 pieces ( 8x850, 8x1000, 8x1020, 8x1050, 8x1150 )
Print Cylinders: 8 for sleeves more than 700mm repeat and 8 adaptors for sleeves more than 900mm repeat
Note: Motorized print station positioning- Motorized remote controlled longitudinal and side registers, Chiller thermoregulator,
Turning Cross Bar in order to print in both sides of the film (4+4)
Spare Parts: Drives, Cards and Gears
