Centros de mecanizado de alta velocidad (HSC) RöDERS TEC RXP 500

X-travel: 500 mm Y-travel: 400 mm Z-travel: 240 mm Röders 3-Axis High-Speed Machining Center


Compact 3-Axis High-Speed Milling Machine

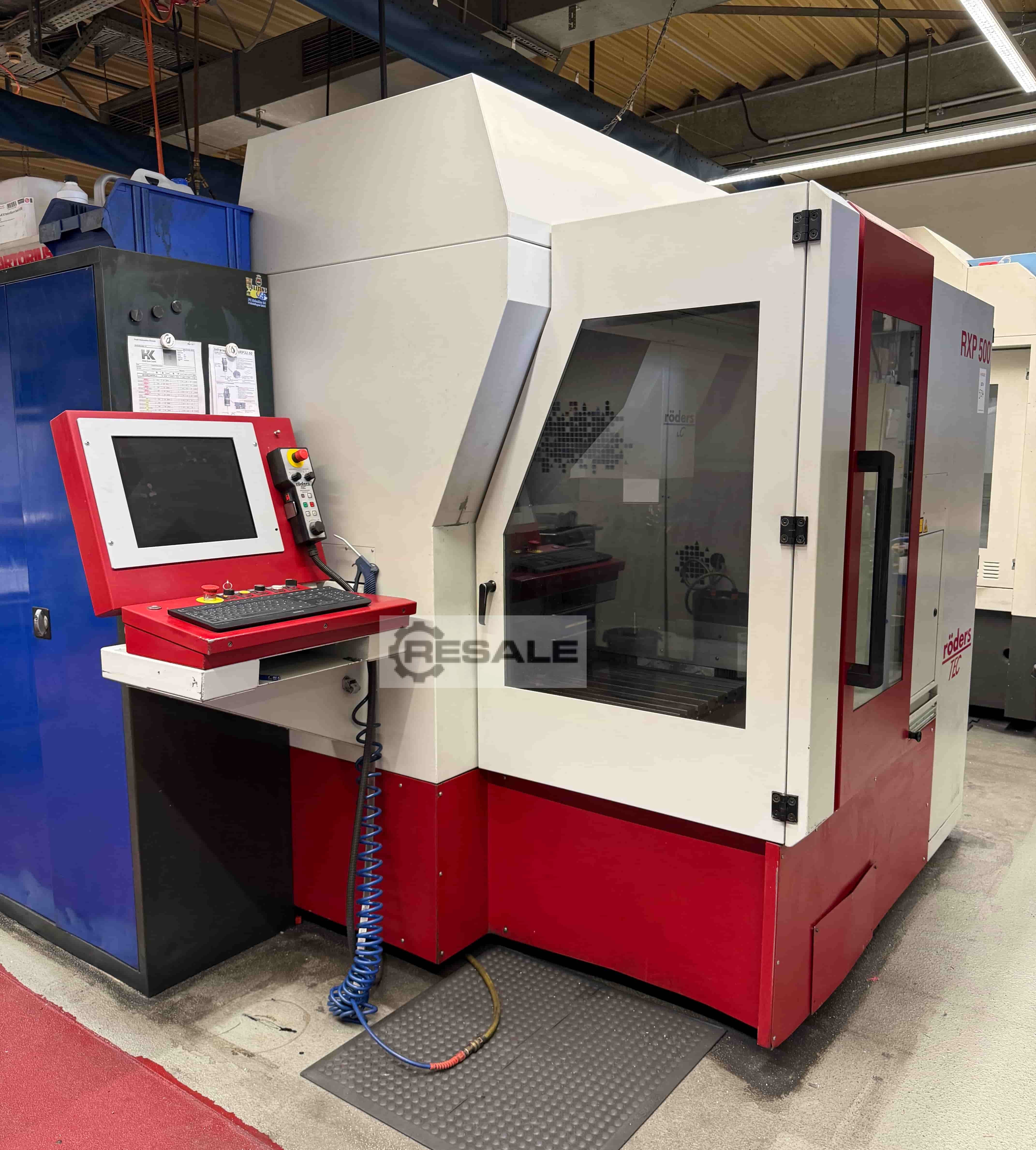

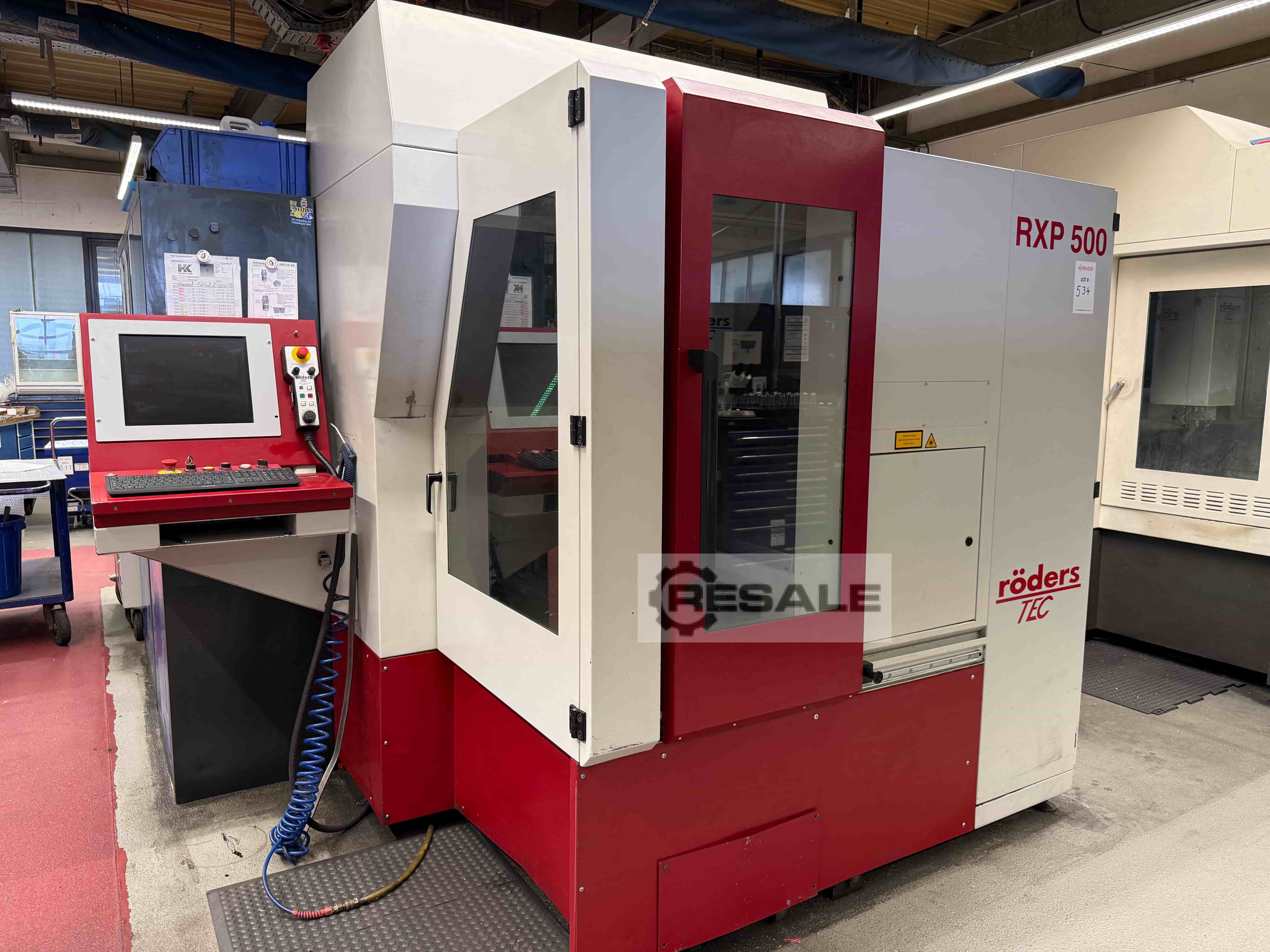

This 2006 Röders RXP 500 is a dedicated 3-axis high-speed machining center, highly regarded in the industry for micro-machining and delivering impeccable surface finishes.



Technical Details
‍

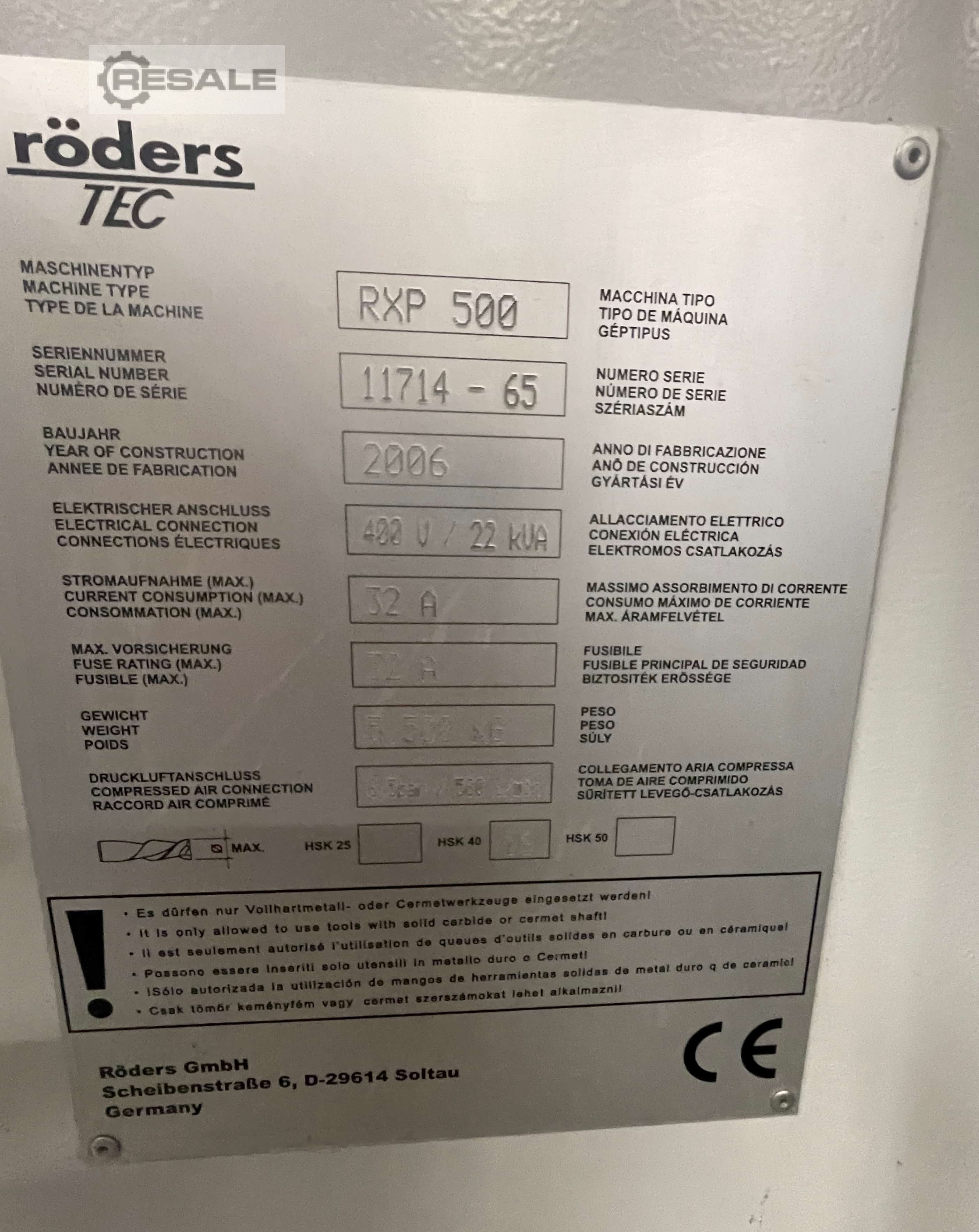

1. Machine identification data

Name: CNC High-Speed Milling Machine
Manufacturer: Röders
Model: RXP 500
Machine number: 11714-65
Year of manufacture: 2006

2. Operational parameters

Travel (X / Y / Z): 500 / 400 / 240 mm

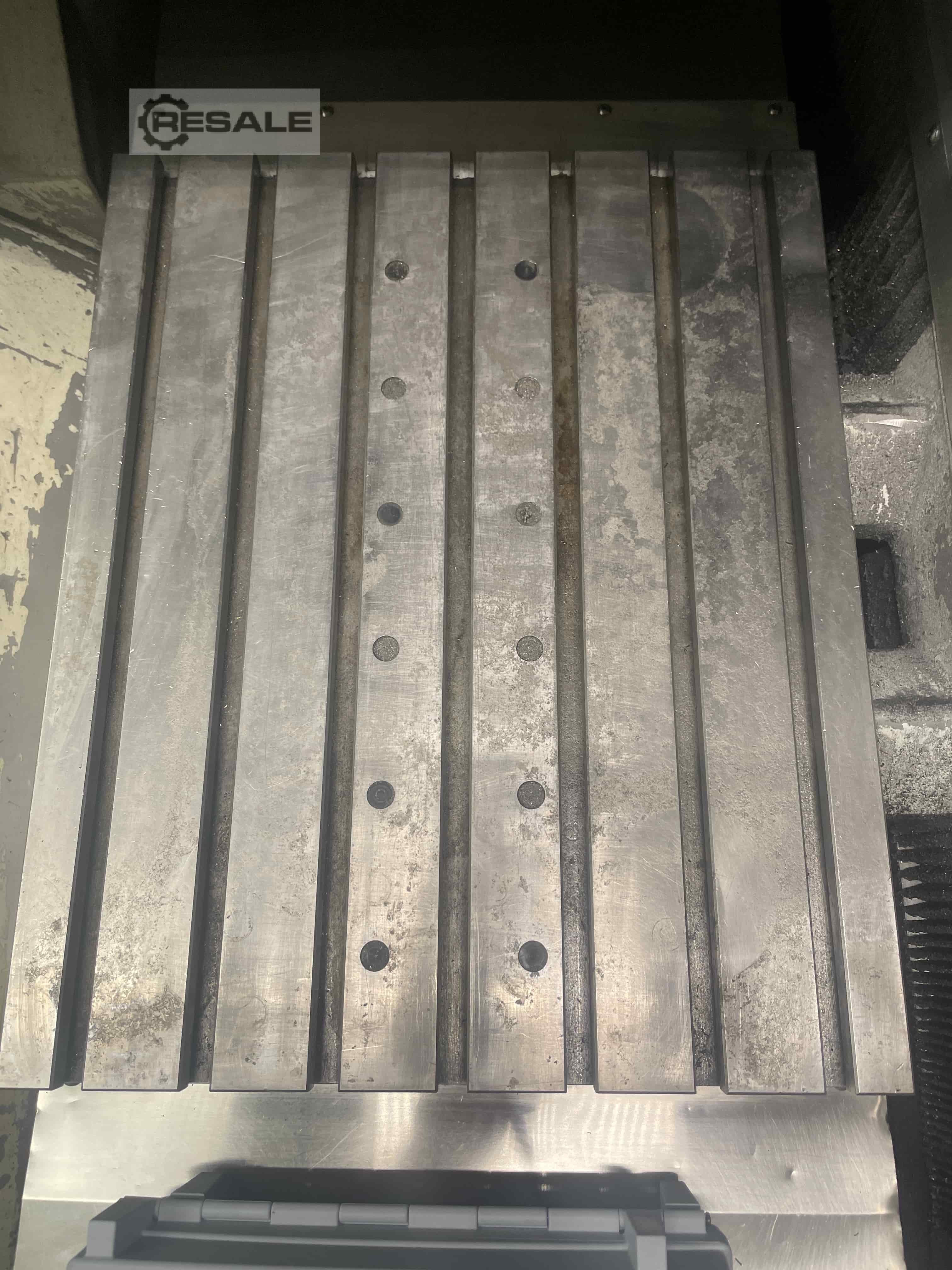

Table size: 550 x 450 mm (T-slots: 14 mm, spacing 63 mm)
Max. workpiece weight: 400 kg
Axis drives: Linear motors in all axes
Feed rate: 0 – 40,000 mm/min

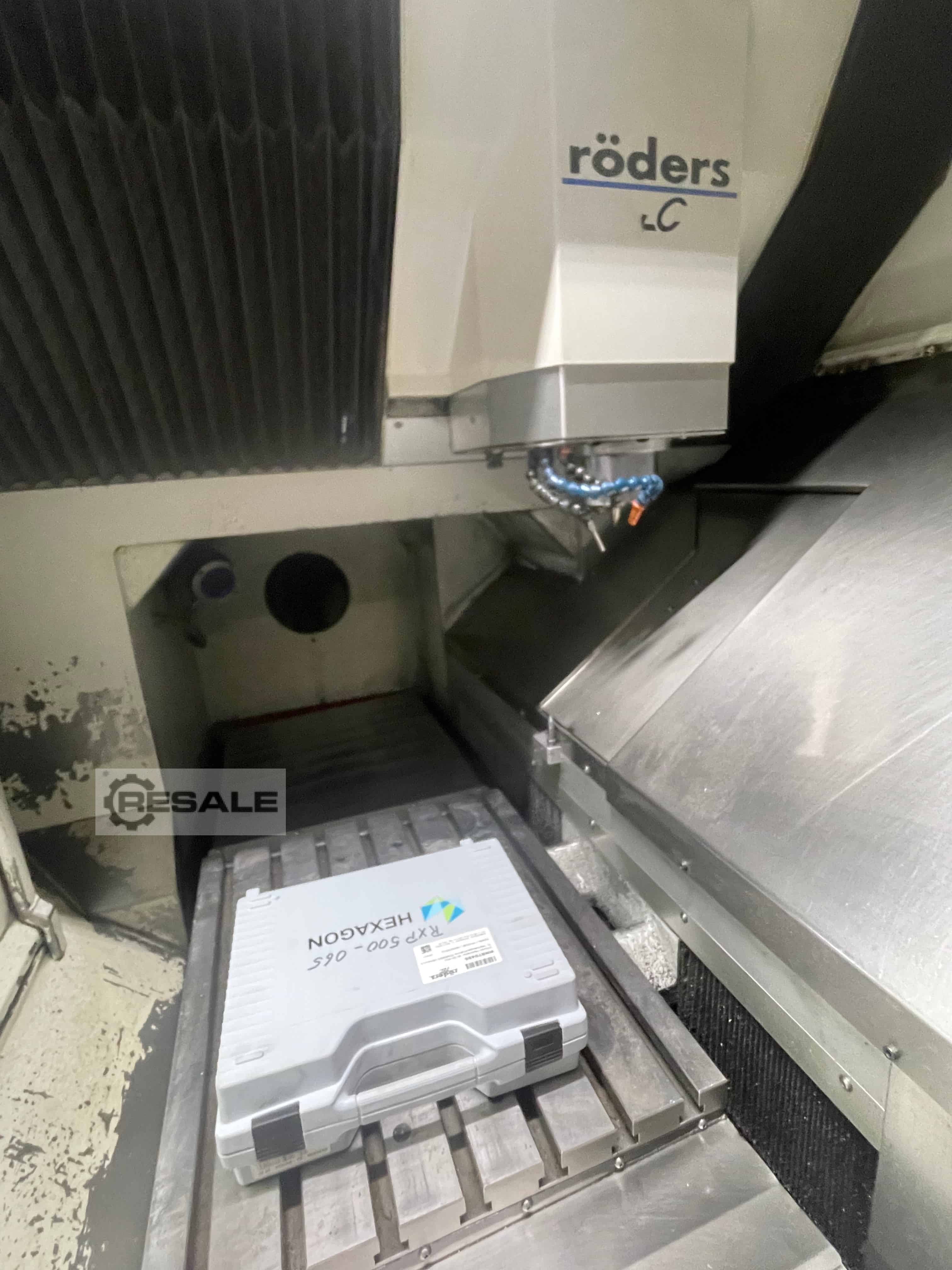

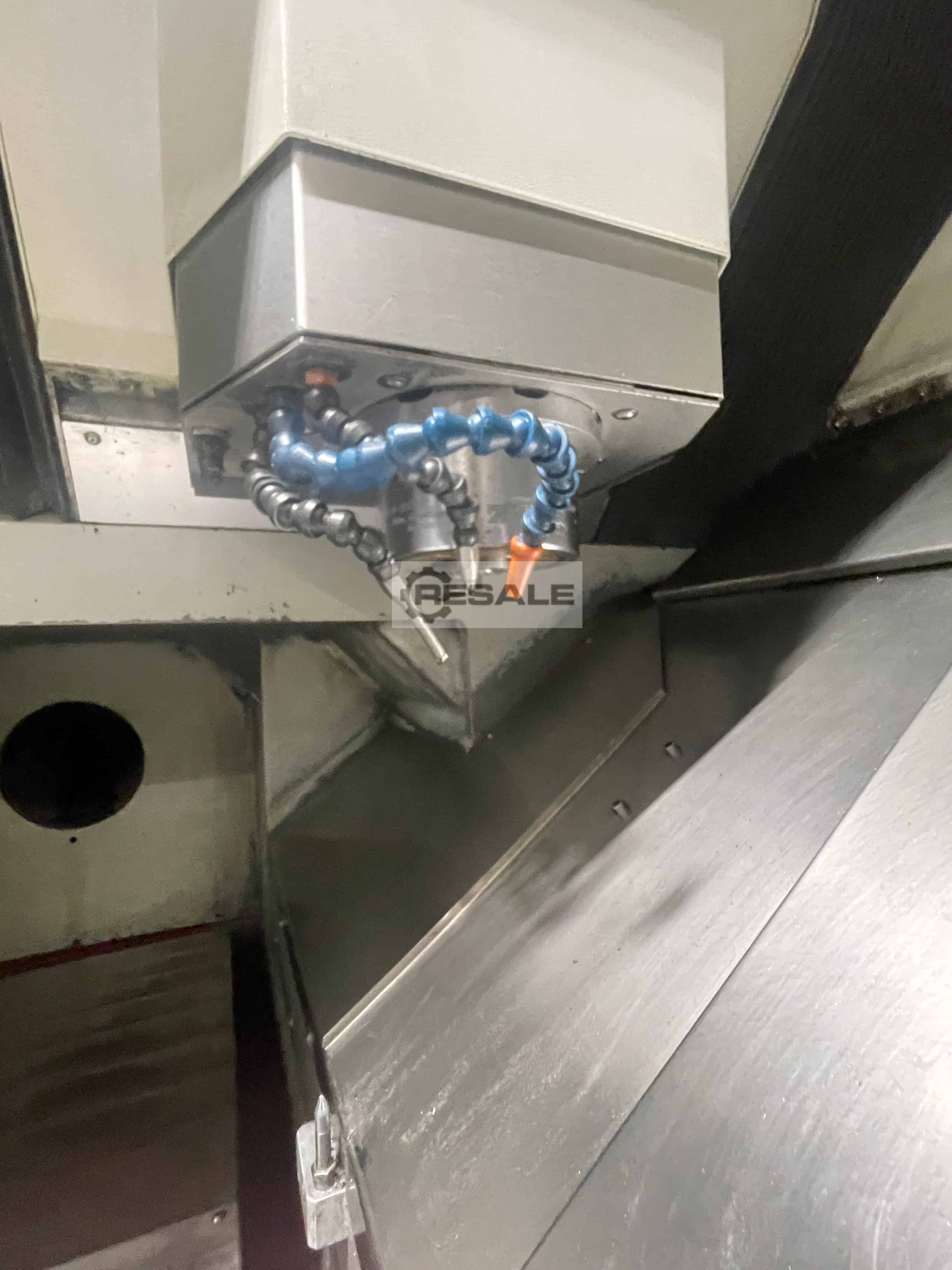

Spindle: 14 kW; 42,000 rpm
Tool holder: HSK E40
Tool magazine: 21 positions (optional up to 42 positions)
Max. tool diameter: 16 mm
Connections (Electrical): 400 V 3-phase (390V - 410V); 22 kVA
Connections (Pneumatic): min. 6.5 bar; 500 Nl/min (filtered, oil- and water-free)
Environmental limits: 15°C - 35°C operating temperature

3. Weights

Total machine weight: approx. 5500 kg

4. Dimensions

Overall dimensions with electrical cabinet (Width x Length x Height): 2710 x 2350 x 2320 mm
Height with optional suction device: 2600 mm
