Centros de mecanizado de alta velocidad (HSC) RöDERS TEC RFM 600/2

X-travel: 600 mm Y-travel: 450 mm Z-travel: 300 mm Röders 3-Axis High-Speed Machining Center


3-Axis High-Speed CNC Machining Center

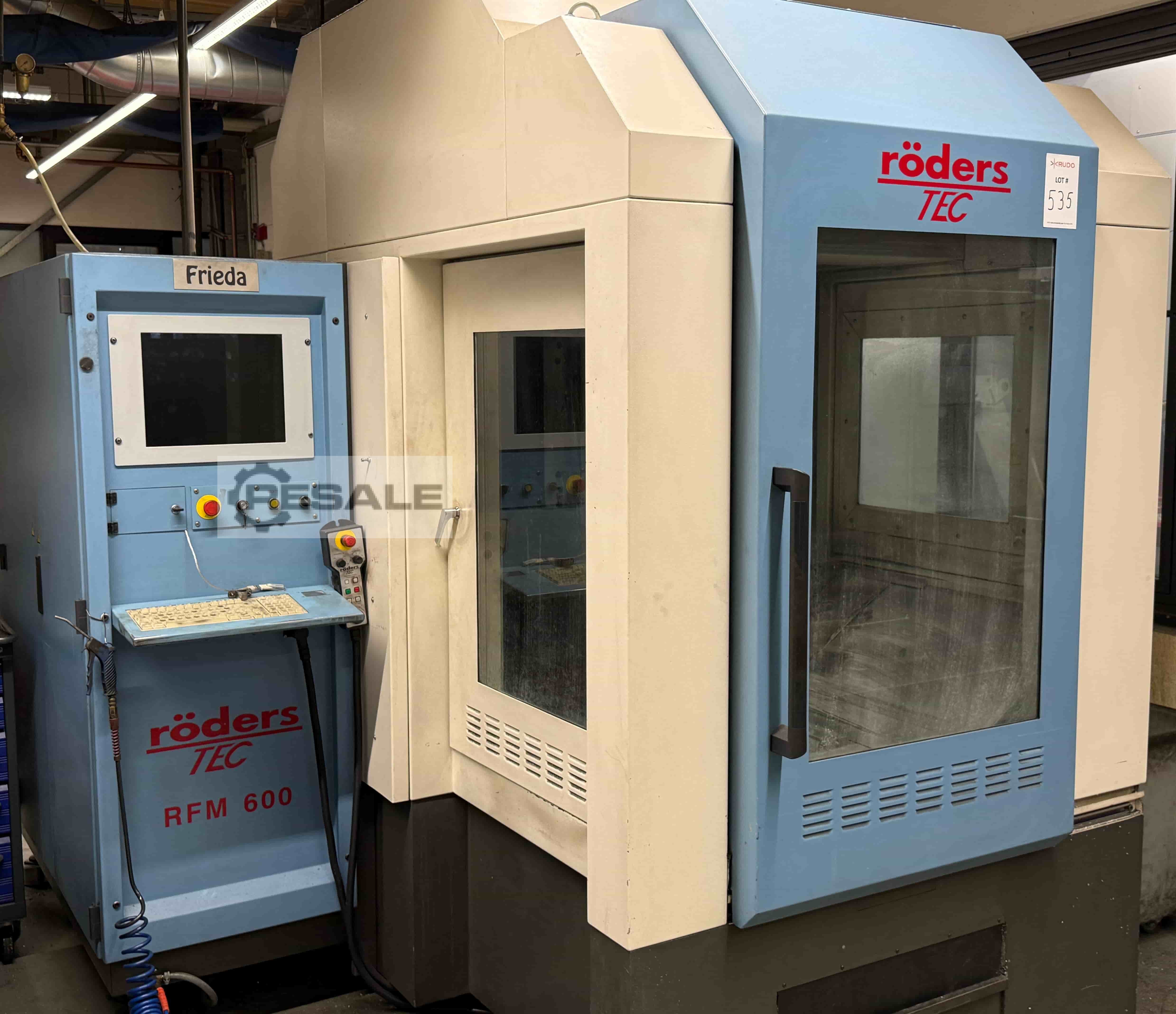

A proven performer in industrial milling, this 1999 Röders RFM 600/2 delivers reliable 3-axis high-speed cutting designed for precision tooling and mold making.




Technical Details
‍

‍

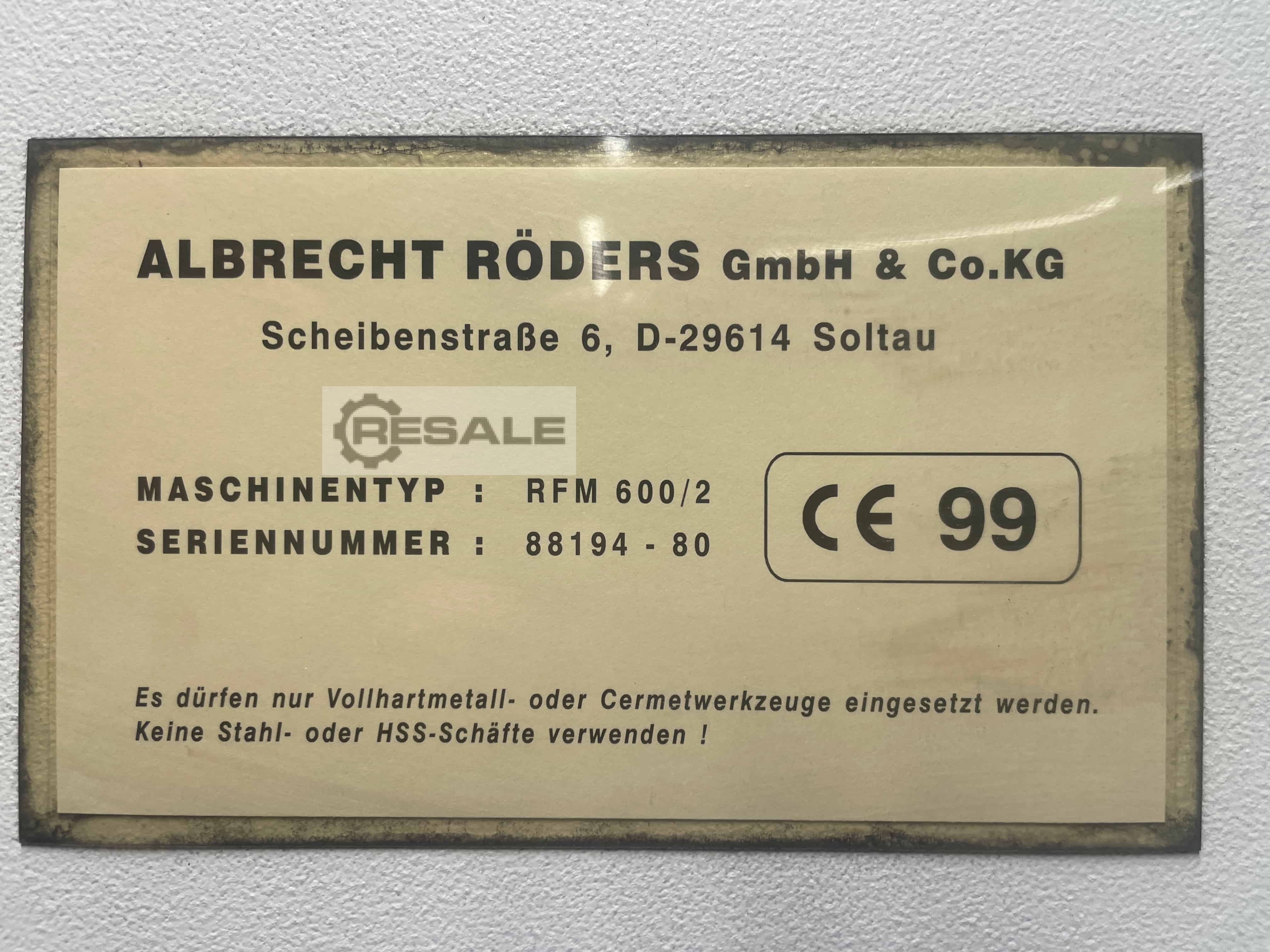

1. Machine identification data

Name: High-Speed Machining Center
Manufacturer: Röders
Model: RFM 600/2
Year of manufacture: 1999
Machine number: 88194-80

2. Operational parameters

Travel (X / Y / Z): 600 / 450 / 300 mm

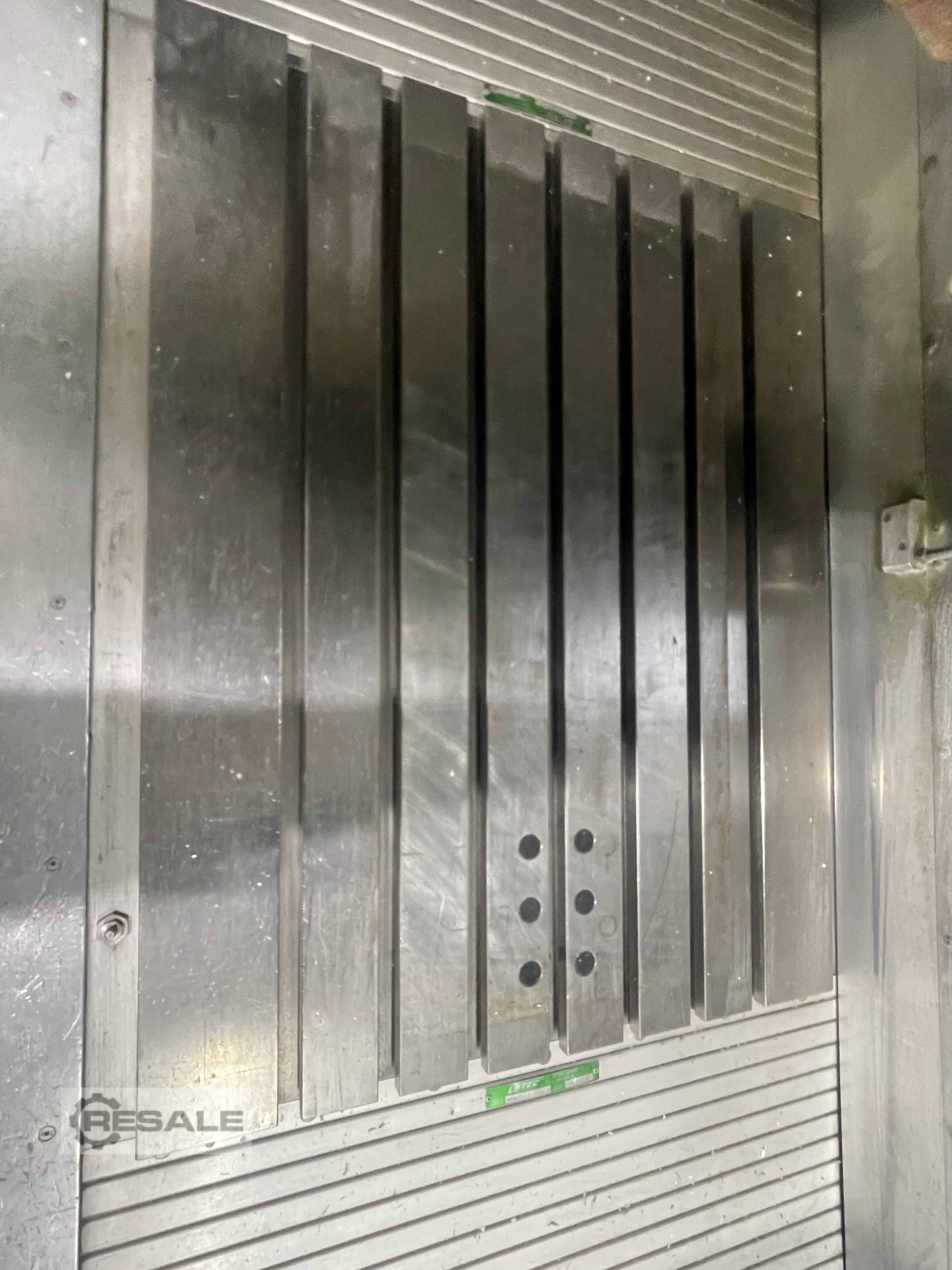

Table size: 700 x 550 mm
Max. table load: 800 kg
Spindle speed: 42,000 rpm
Spindle motor power: 14 kW
Feed rate: 0 – 30,000 mm/min
Rapid traverse: 30 m/min
Tool changer: 18-position
Operating hours: approx. 108,888 h
Spindle hours: approx. 18,625 h

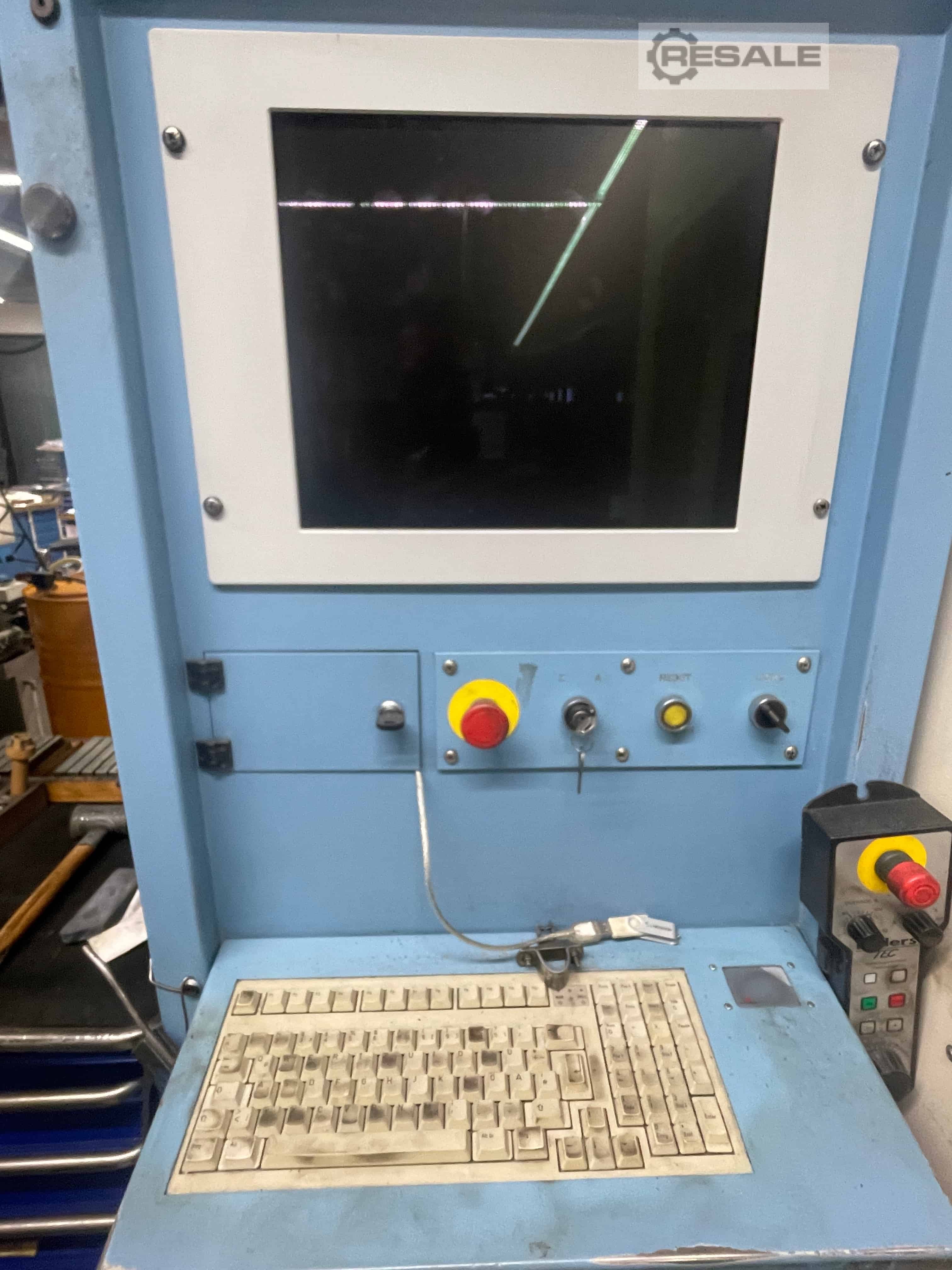

Control: Röders RMS6

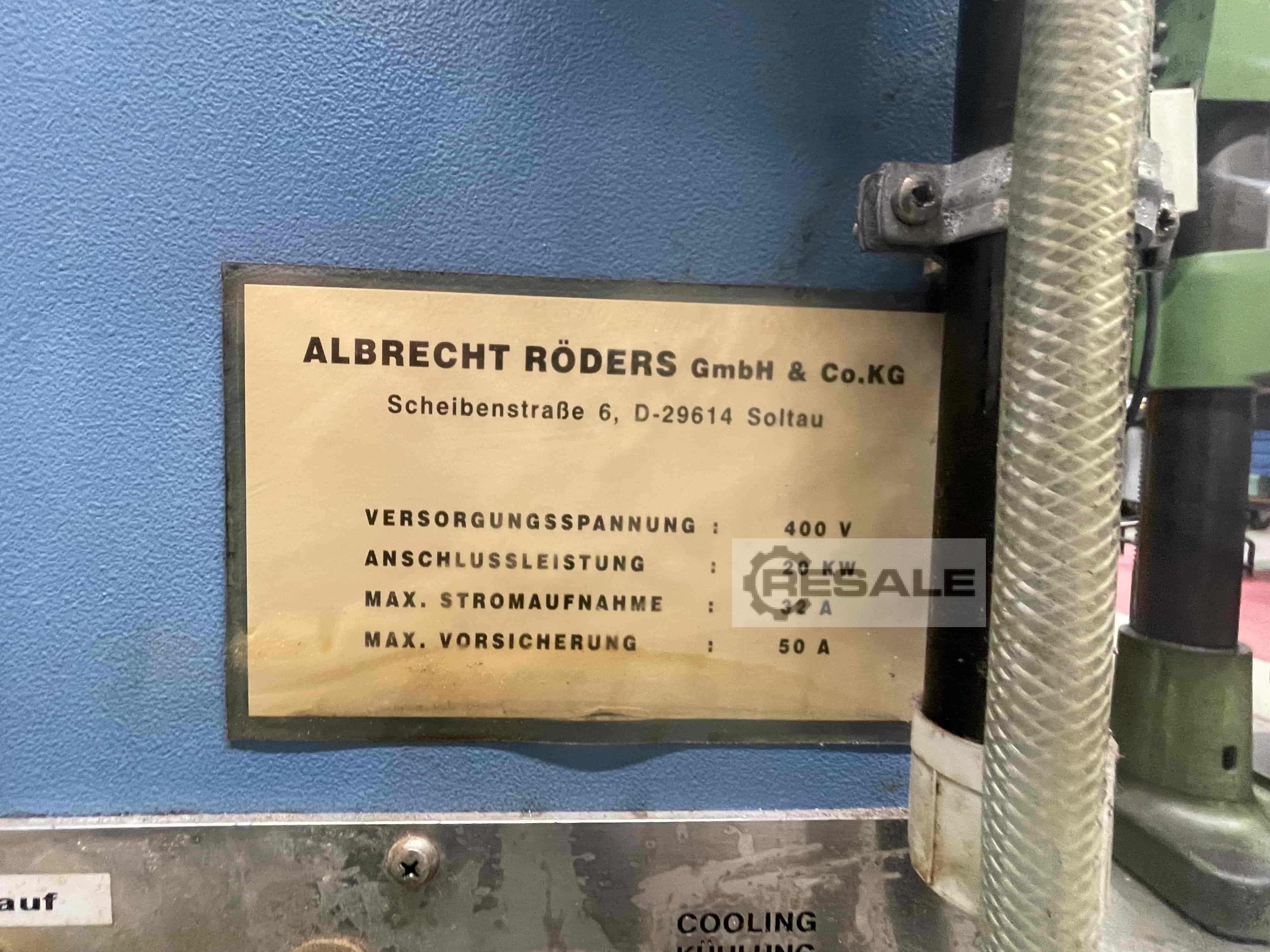

Connections (Electrical): 400 V; 20 kVA

3. Weights

Total machine weight: approx. 5200 kg

4. Dimensions

Overall dimensions (Width x Length x Height): approx. 2300 x 3000 x 2700 mm
‍

‍

Disclaimer: The technical specifications provided are for general reference only and have been sourced from publicly available information for the same or similar model.

seller offer No. resale 535
