PINACHO RHINO SK – 425 Tronzadoras

control: GE Fanuc Series 21i-T
Distance between centres: 5000 mm
center bore: 425
swing over bed: 850 mm
bed width: 425 mm
rapid feed: 10000 mm/min
working feed: 7000 mm/min
main spindle bore: 85 mm
Main spindle: DIN 55027-n°8
taper: 5
spindle speeds: 0-2000 U/min
Spindle power: 11 KW

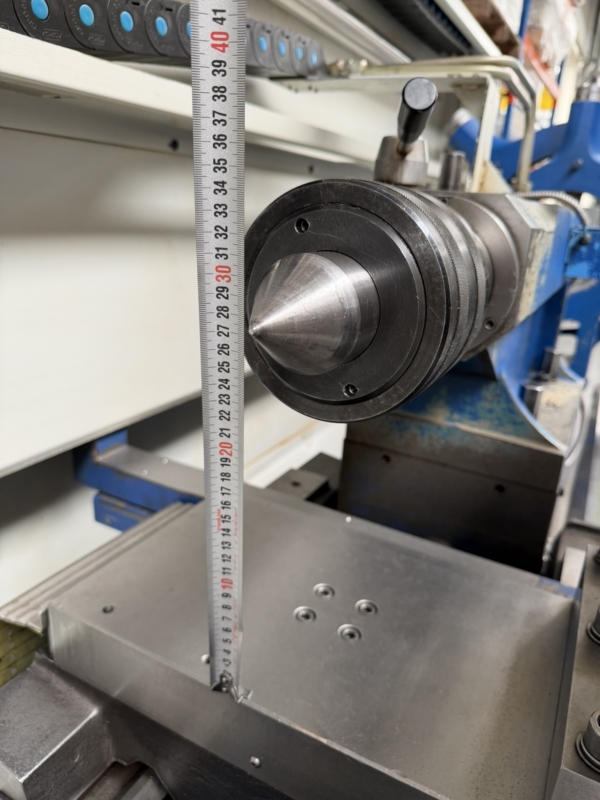

tailstock quill diameter: 96 mm
tailstock travel: 215 mm
weight of the machine ca.: 7 t
dimensions of the machine ca.: 7.300x1.700x1.900 m
Support Guides 2
Swing over cross carriage 560 mm.
Automatic ranges 2
Turret type Automatic
Turret positions 8
Hydraulic tailstock quill stroke INCLUDED
Tailstock taper MORSE 6

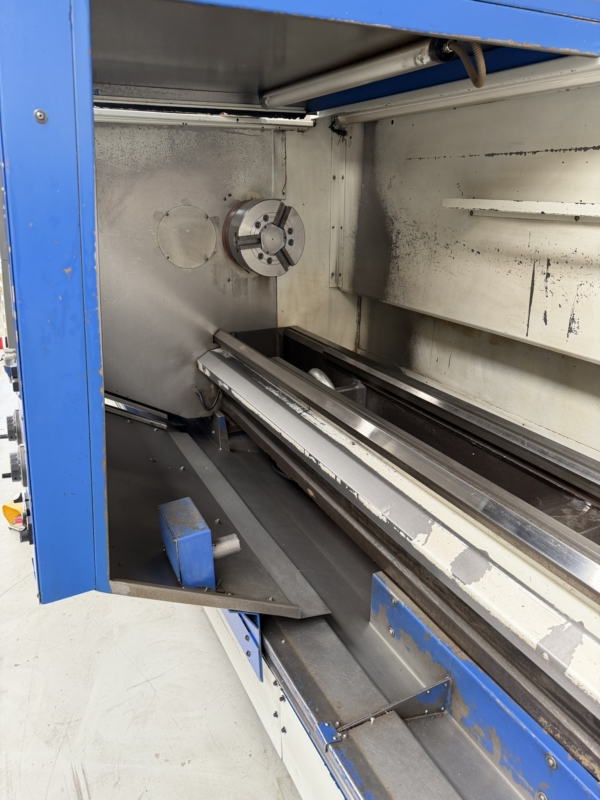

3 Jaw Auto-centering hydraulic chuck Ø 300 mm. INCLUDED

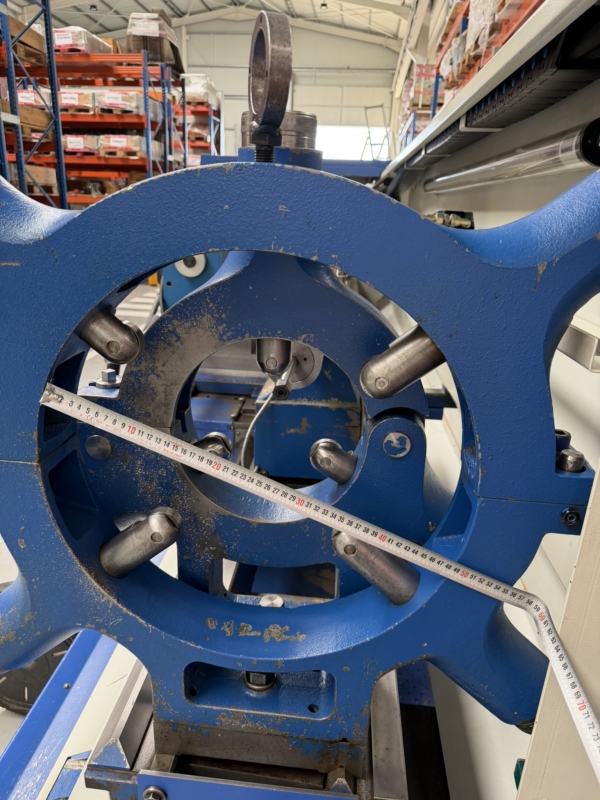

4 support steady rest Ø 450 mm. INCLUDED
3 support steady rest Ø 250 mm INCLUDED
Chuck protection INCLUDED
Complete rear protection INCLUDED
Dual handwheel for carriage control INCLUDED
Foot pedals for hydraulic chuck operation INCLUDED
